Laser Marking Machine with CCD Automatic Registration Function

You are here: Home » Laser Machines » Laser Marking Machine » Fiber Laser Marking Machine » Laser Marking Machine with CCD Automatic Registration Function

Share to:

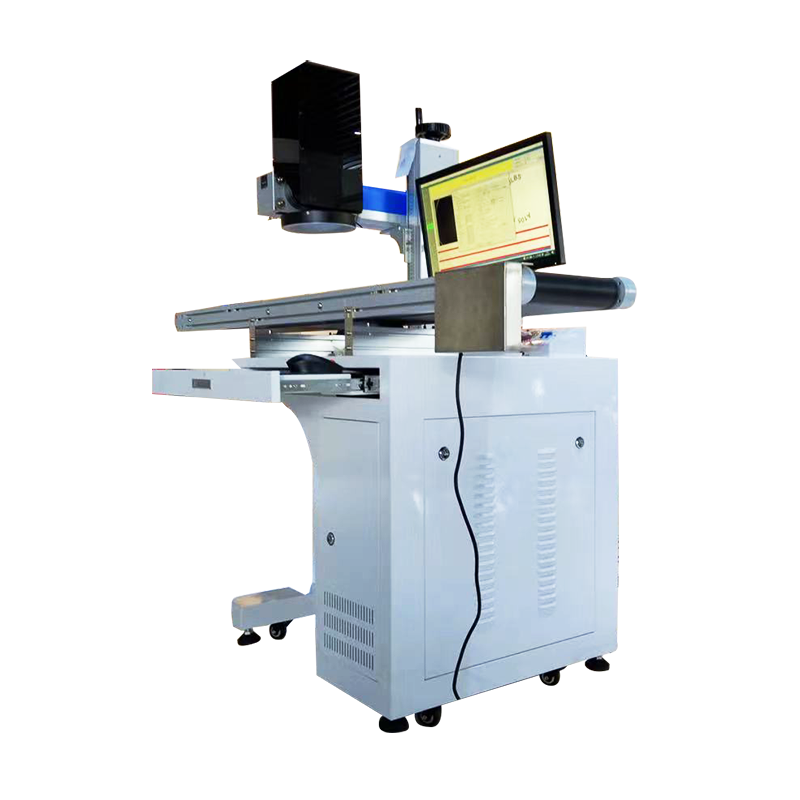

Laser Marking Machine with CCD Automatic Registration Function

Availability:



Inquire Add to Basket

Model:
Laser Marking
Brand:
SMARTECH
Code:
Laser Marking
Size:
110 * 110
Power:
20/30/50/60/80/100/120/150/200W
Machine Color:
as customized

Product Description

Product Overview

fiber Laser marking machine with CCD visual automatic positioning function

 1.New design Motorized lifting Z axis pillar.
More convenience for adjusting the height of Z axis,design is more user-friendly.
2.Raycus/max Q-switched,JPT MOPA/IPG laser source(optional)
Each piece has a sole serial NO. and test report.
3.Working area:Standard 110*110mm
4.CCD visual automatic positioning function
This CCD Camera Fiber Laser Marking Machine is especially suitable for marking on ultra high-precision small parts which is not
easy to be positioned by hand, such as: electronic components, IC chips, circuit boards, resistors, small capacitors, metal
buttons, pens, etc.


FEATURES AT A GLANCE

   Laser power 20/30/50/60/80/100/120/150/200W(Optional) Fiber laser source brand Raycus/MAX/IPG/JPT MOPA Fiber laser source type Q-Switched/MOPA Center Wavelength 1064nm Cooling type air cooling Marking Area Standard :110x110mm How to get focus Motorized Z axis pillar+double red dots marking Depth 0.001-2mm Max positioning speed 8000mm/s Min. Character size 0.2mm Supply voltage AC110V 60HZ / AC220V 50HZ Control program EZCAD(markingmate)


 Right elevation

 Left elevation

 Front elevation

>>Main Features of the machine

1.Genuine laser source with 3 years warranty--Raycus/max/IPG/JPT MOPA laser source(optional)   Each piece has a sole serial No. and test report. 2.Genuine EZ CAD controller(EZCAD2/EZCAD3 Optional) Each piece has a sole serial No. to check to avoid fake. 3.Newest digita galvo scanner head(Century Sunny/EZCAD/Scanlab basicube10/Sino optional) Comes with double red light and Alarm lamp. 4.Motorized Z axis. The Galvo head moving up&down to find focus dot by motor, not by hand. More convenience. 5.High quality aluminuim alloy machine body. PACKING LISTMachine 1set Standard Accessories 1.Focus ruler 1pcs 2. English user manual 1pcs 3. U-disk for setted parameter of software 1pcs 4.software Setup CD 1pcs 5.Foot switch 1pcs 6.Allen wrench 1pcs 7.Power cable(as per request) 1pcs


PRODUCT SPECIFICATIONS

Packing and shipping 1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once more to ensure all parts are included. 2. Our packaging standard: +thick layer of plastic wrap + Six-sided pearl cotton + high-strength wooden box + packing belt and then fix the machine to ensure the safety of the machine during transportation. 3. Stick the shipping mark to ensure the buyer can recognize the right machine easily. 4. Stick the Safety signs can remind transporters to take good care of our equipment during shipping

PRODUCT CONFIGURATION

 Control system

 CCD Camera

 Lenovo computer

 Optical system

 F-theta lens

 Raycus power source

 Industrial camera for auto registration function

 Marking samples

 Marking samples

SALES AND SERVICE NETWORK

Successful Project

 >>Application
+Marking metal and some non-metal materials.
+Deep engraving and cutting thin metal.
>>Processed samples
1.Ordinary marking

 2.Fine and color marking by MOPA

machine recommendation

FAQ -Q What is the payment terms? A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping ways?
A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.
-Q Can I arrange sample for cutting test?
A:Yes, always welcome.
-Q How about your laser machine package?
A: Standard export wood package with free fumigation
-Q How about the quality guarantee period?
A:5 Years for whole machine
-Q How can you guarantee the production quality ?
A:We have 15years experience of QC team; strictly quality
control system in our production process.
-Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

 SERVICE

PRE - SALE SERVICE

 Semi-A1. Free Sample Machining Service Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality. 2. Machining Solution Design: According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer. 3. Custom and OEM Service The divisions and partnerships of SMARTECHC welcome both custom work and OEM customers. We have a broad range of capabilities and manufacturing strengths, which makes it possible for SMARTECHC to customize our existing products for OEM customers.utomatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

During sale Service

 We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;

AFTER-SALE SERVICE

 1.We will supply the CNC router machine with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. 2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days. 3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.

GUARANTEE AND WARRANTY

 New CNC router machines sold by SMARTECH carry a 3-years warranty (fiber laser cutting machines carry a 5 years warranty) effective from the date of shipping. CNC machines sold through dealers must be registered with SMARTECH within 30 days of purchase to be covered by this warranty. We would send new parts or repair for you during warranty period.

About SMARTECH

 SMARTECH brand Comes from Smart Technology.In order to protect the trademark, we have registered and applied for the SMARTECH & ISMARTECH trademarks from China government. SMARTECH based in Jinan, China, has been leading the industry in woodworking innovations since 2002 years and continues to challenge the industry with new advancements. We provide our clients advanced and original, high-tech products, as well as solutions in the field of CNC laser-based production for different material processing applications.Our core business is design and production of CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers, 4 axis CNC routers, and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines, laser cutting machines, and laser welding machines), CNC milling machines, CNC plasma cutting machines, CNC machining centers, CNC wood turning lathe machines, CNC spare parts, and other CNC machines. Welcome to visit our factory when you are convenient !
