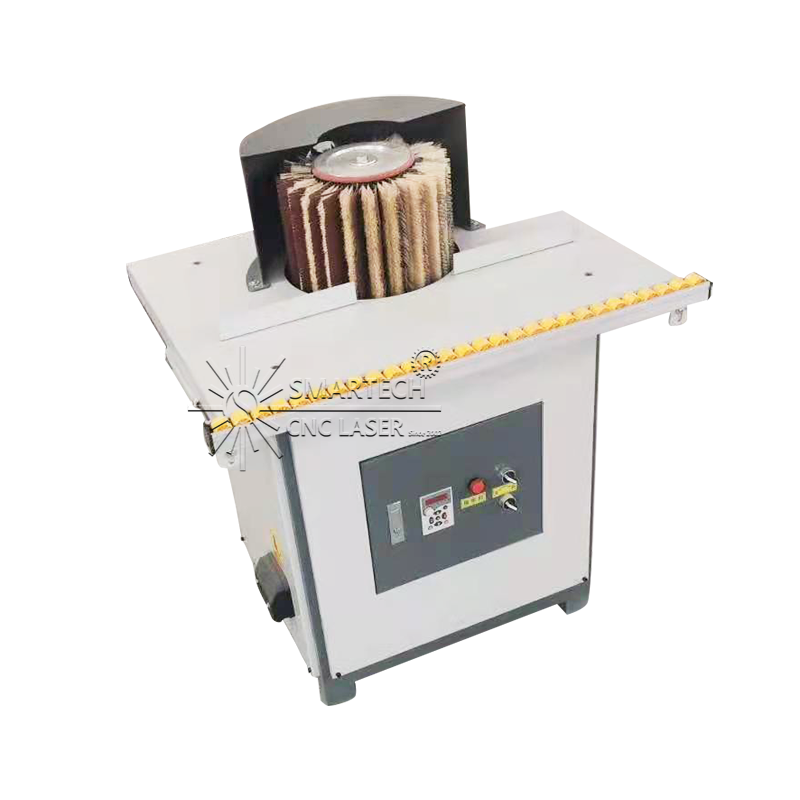

Woodworking Polishing Machine Sanding Machine

Availability:



Inquire Add to Basket

Model:
SP-A
Brand:
SMARTECH
Code:
New Product 2021
Size:
100X50X100
Power:
11kw
Machine Color:
as your preference

Product Description

Product Overview

Woodworking Sand Polishing Machine wood Polisher Factory Best Price From China

 Advantage features 1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and durability 2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance. 3. The belt tensionning cylinder is made of cast iron, which has large tension and good stability.


FEATURES AT A GLANCE

Type    GD630    GD1000    GD1300 Working width 30-630mm 30-1000mm 30-1300mm Working thickness 2-100mm  2-100mm 2-100mm Feed speed  5-25m/min  5-25m/min 5-25m/min Size of abrasive belt  650*1900mm 1020*2000mm 1320*2200mm Working air pressure  ≥0.55Mpa  ≥0.55Mpa ≥0.55Mpa Speed of sucked air  ≥25m/s  ≥25m/s ≥25m/s Overall dimensions 1862*1240*1995mm 1862*1635*2040mm 2262*1983*2130mm


 Right elevation

 Left elevation

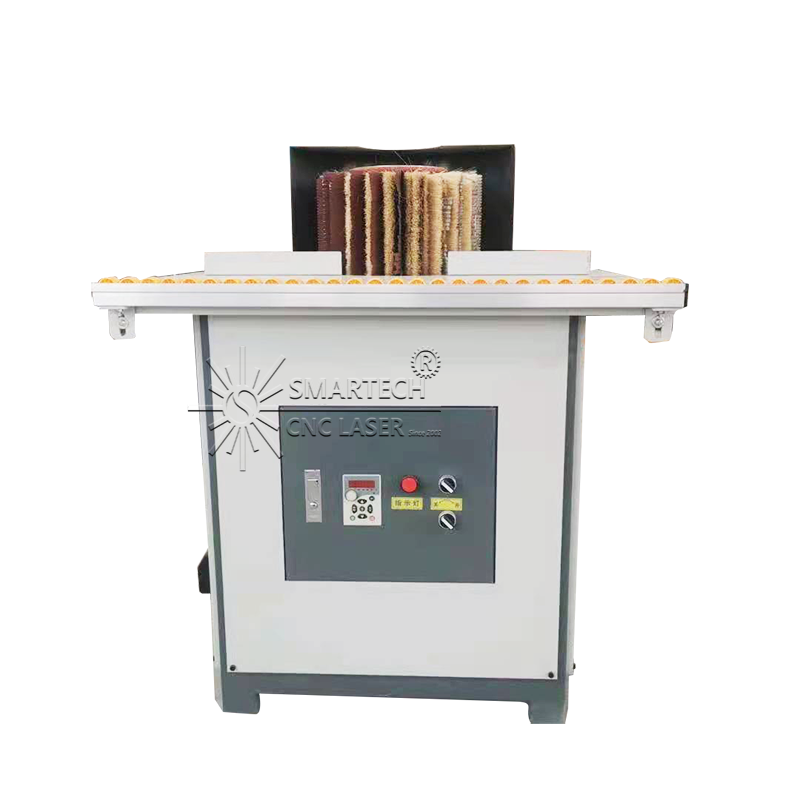

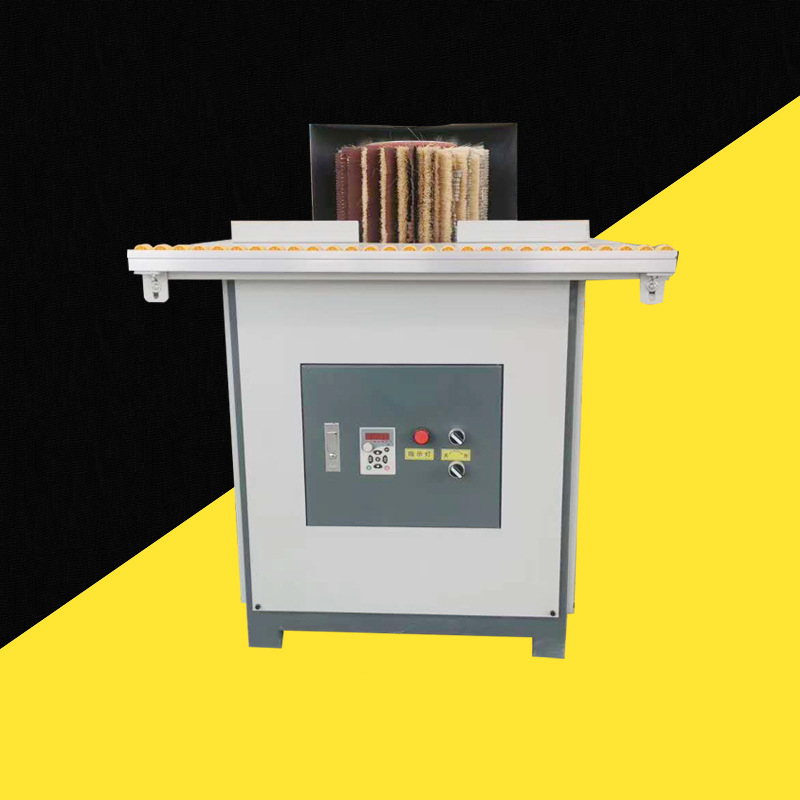

 Front elevation

PRODUCT SPECIFICATIONS

 Model  SP-AMax.working width     1000mm Min.working length      400mm Max.working thickness      100mm Horizontal roller motor power      2x1.5kw Disc brush motor power      1.5kw Screw roller motor power      2x1.5kw Lifting power of horizontal roller      0.55kw Lifting power of disc brush      0.37kw Lifting power of screw roller      1.1kw Total power      10.44kw Screw roller number      2pcs Screw roller diameter      300mm Brush plate number      9pcs Brush plate diameter     180mm Horizontal plate number     7pcs Horizontal plate diameter     260mm Conveyor speed    6-30m/min Conveyor belt size     5970x1000mm Dunction dust hood     6x100mm Overall dimension      3950x1750x1900mm

PRODUCT CONFIGURATION

Successful Project

 The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard,insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.

 SERVICE

PRE - SALE SERVICE

 Semi-A1. Free Sample Machining Service Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality. 2. Machining Solution Design: According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer. 3. Custom and OEM Service The divisions and partnerships of SMARTECHC welcome both custom work and OEM customers. We have a broad range of capabilities and manufacturing strengths, which makes it possible for SMARTECHC to customize our existing products for OEM customers.utomatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

During sale Service

 We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;

AFTER-SALE SERVICE

 1.We will supply the CNC router machine with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. 2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days. 3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.

GUARANTEE AND WARRANTY

 New CNC router machines sold by SMARTECH carry a 3-years warranty (fiber laser cutting machines carry a 5 years warranty) effective from the date of shipping. CNC machines sold through dealers must be registered with SMARTECH within 30 days of purchase to be covered by this warranty. We would send new parts or repair for you during warranty period.

About SMARTECH

 SMARTECH brand Comes from Smart Technology.In order to protect the trademark, we have registered and applied for the SMARTECH & ISMARTECH trademarks from China government. SMARTECH based in Jinan, China, has been leading the industry in woodworking innovations since 2002 years and continues to challenge the industry with new advancements. We provide our clients advanced and original, high-tech products, as well as solutions in the field of CNC laser-based production for different material processing applications.Our core business is design and production of CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers, 4 axis CNC routers, and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines, laser cutting machines, and laser welding machines), CNC milling machines, CNC plasma cutting machines, CNC machining centers, CNC wood turning lathe machines, CNC spare parts, and other CNC machines. Welcome to visit our factory when you are convenient !
