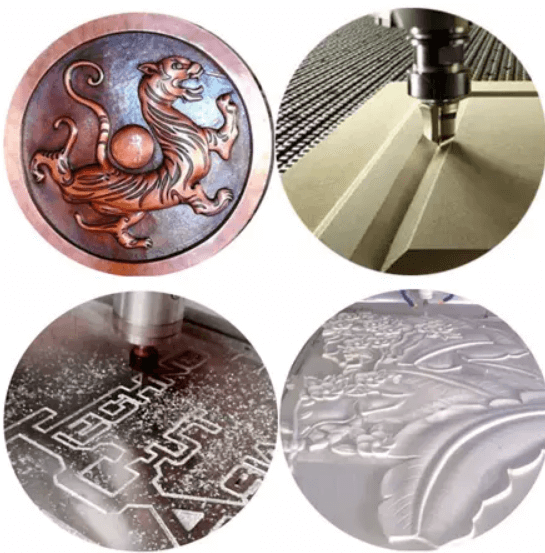

Applications of cnc router 6090:

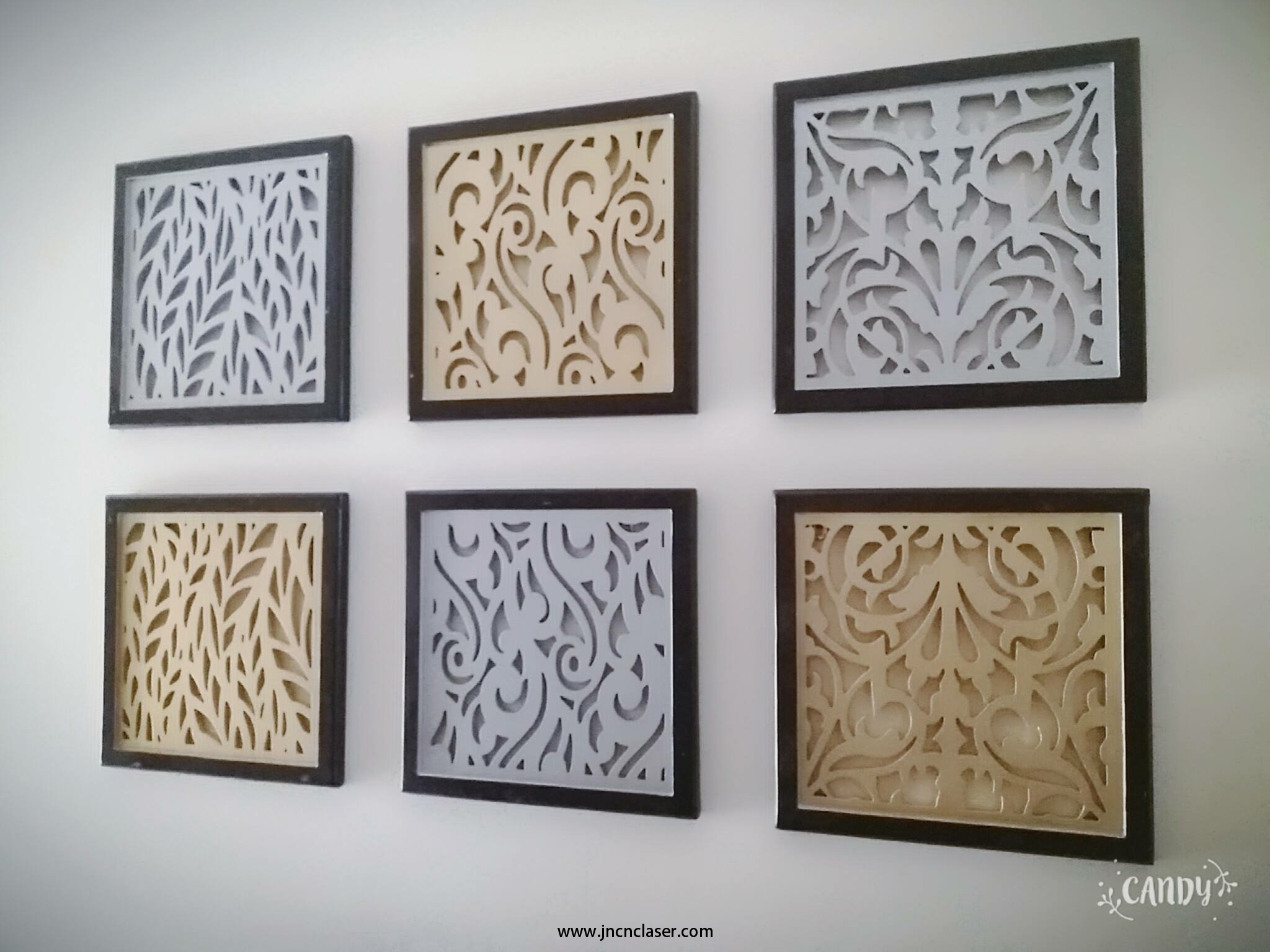

Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;

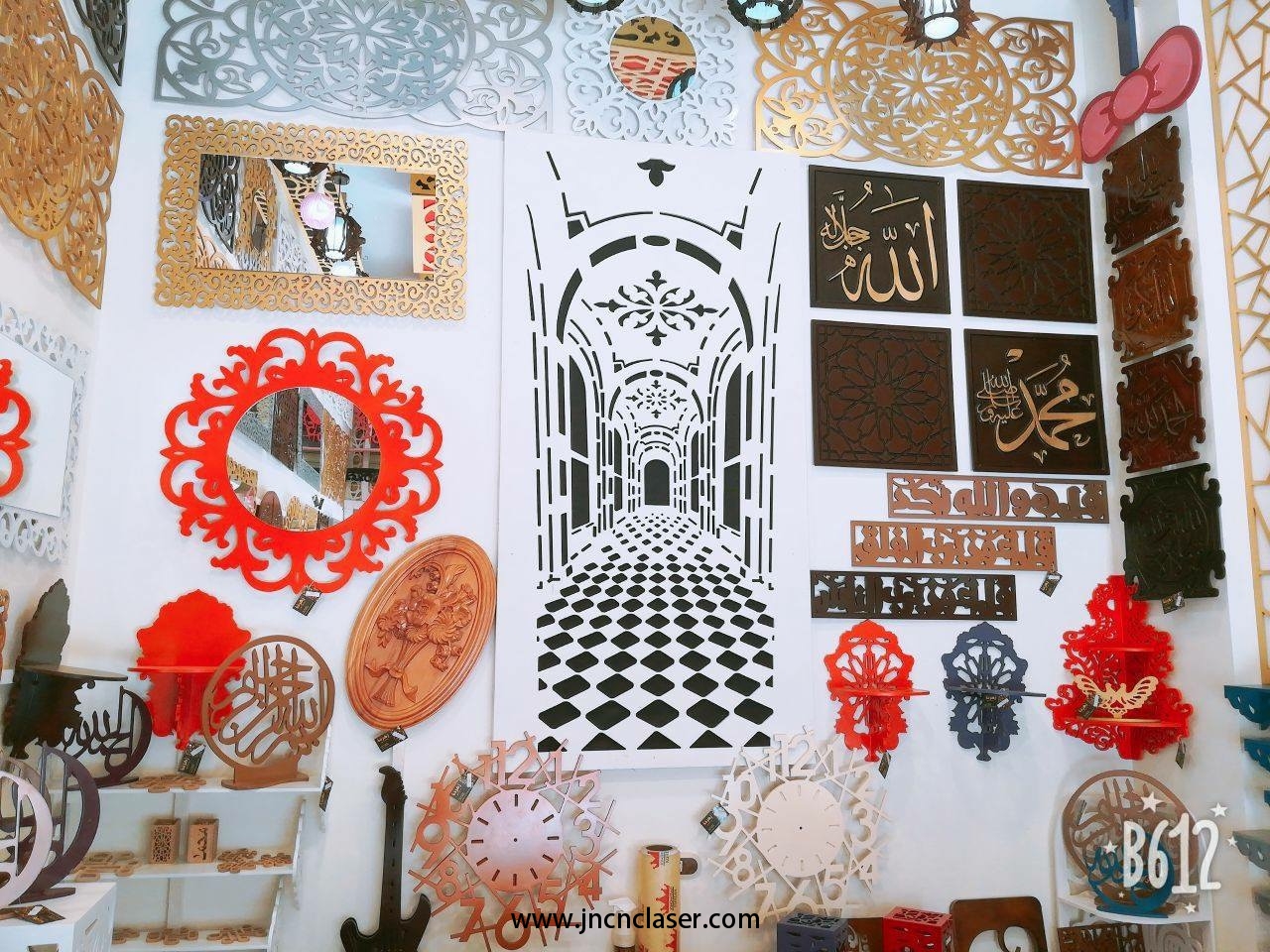

Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;

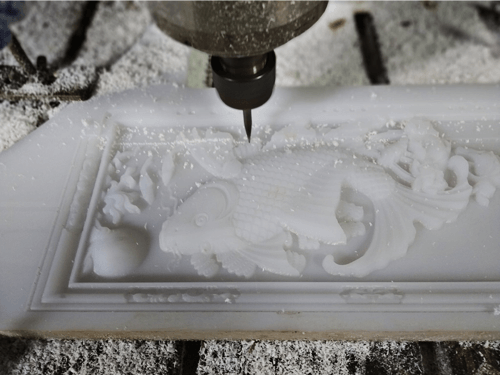

Decoration:acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, et.
Performance characteristics:
1. Adopts casting mechanical structure and imported linear orbit.big loading capacity, gantry moving, good moving stability, high precision and long lifetime.
2. Optional DSP or NC control system ,easy to operate,it is able to continue engraving when the electricity and with the function of forecasting process time.
3. Adopts high frequency spindle ,ensure to well engrave and cut ,long lifetime.
4. Be compatible with several CAD/CAM designing software, Type3,ARTCAM .JD, Master CAM,UG,Castmate ,etc

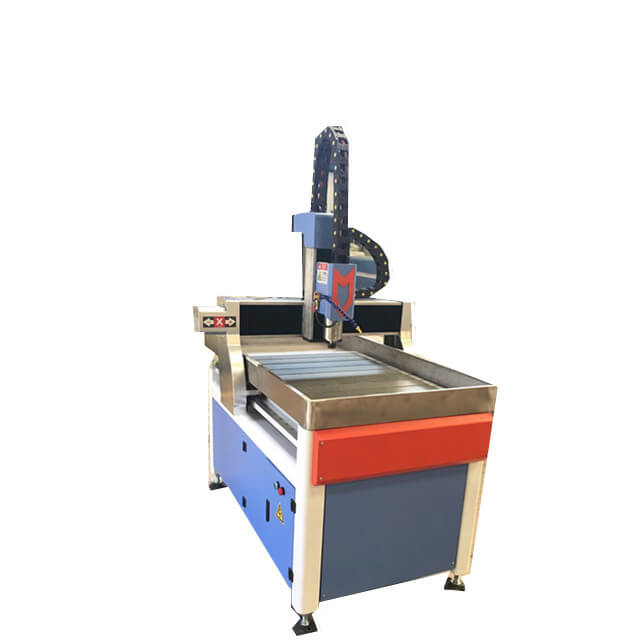

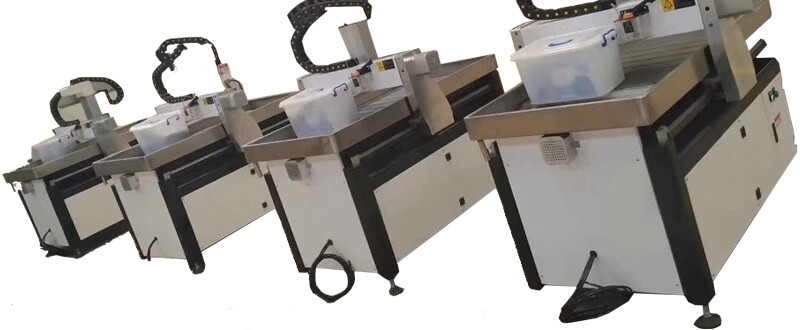

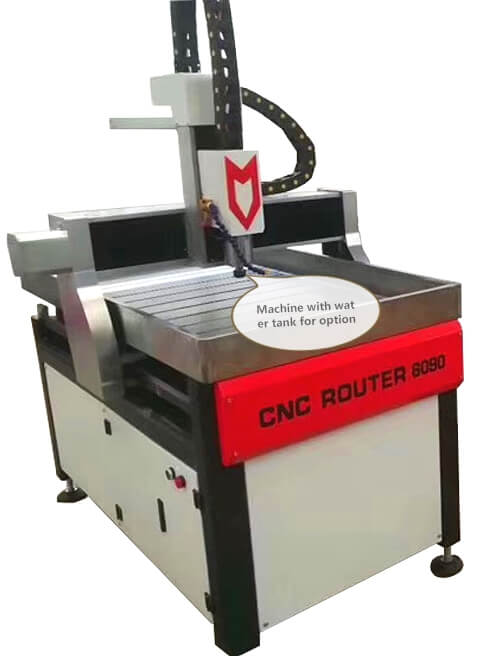

5. The 6090 cnc router can be equipped with water cycle working table ,ensure to process many materials.
6. Adopts stepper motor and driver, high speed ,good moving and low noise(servo motor and driver is also available)
7. Optional rotation axis,expand the processing materials and improve the added value of products.
8.high accuracy ball bearing guide screw of taiwan,minimize the slit.
9.imported linear rail,self lubricating glide.
10.our routers have the features of recarving after stop and the power failure may be restored.
11.unique preservation way of the zero point.
12.use for long time and no distortion.
13.this type is suitable for advertisement.
Features:
1.This machine design is very popular and won very good reputation from our worldwide customers so far.Super Cost-Effective Model.
2. It is equipped with Atlanta accuracy gear rack, and the X/Y-axis adopt high accuracy grinding rack for transmission. Assured high stability and processing accuracy.
3. Enlarged cast iron column, ensure processing steady.
4. Exclusive painting experience is as shiny as the newly purchased car.
5. With the functions of power off recovery, break point continue curving, auto-tool adjustment, re-engrave, finish position set up, etc. And support 9 coordinates positioning, true humanization design.
6. It is compatible for many software such as TYPE3, Artcam, UG,etc.

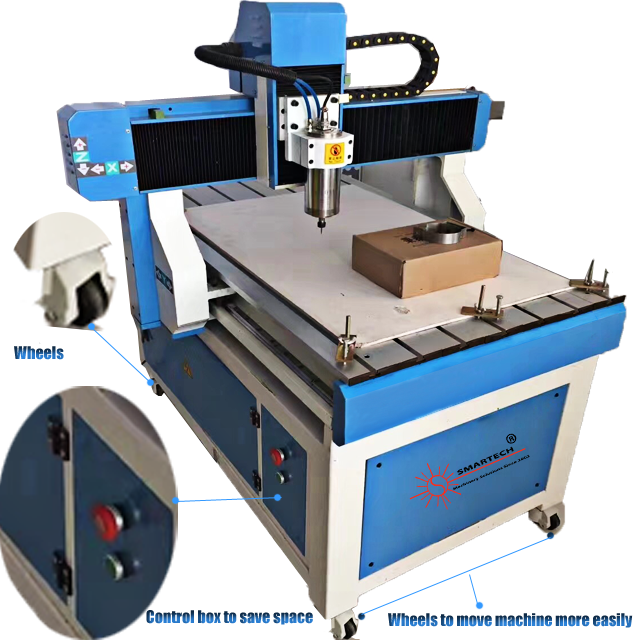

7. The integrated electrical cabinet design,help save shipping space and customers’ space,especially good choice for the hobbies and beginners.
8.Very Easy for operating and maintenance.
9. 220V/3KW high speed water cooling motorized spindle, high power and efficiency.
10.All machine colors could be customized as your preference.
11. This machine has manual oil supply system. For easy in maintenance.Just need to press two times lubricating tank handle.
12. Very widely applications.mould,woodworking,crafts,signage,hobbies etc
CNC Router 6090 parameters:NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x900x100mm |
2 | Table Size | 890X1200mm |
3 | X,Y,Z Traveling Positioning Accurate | ±0.03/300mm |
4 | X,Y,Z repositioning Positioning Accurate | ±0.02mm |
5 | Table Surface | T-slot Extrusions |
6 | Frame | Cast Steel |
7 | X, Z Structure | Ball Screw |
8 | Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. power Consumption | 0.8Kw |
10 | Max. Rapid Travel Rate | 6000mm/min |
11 | Max. Working Speed | 4000mm/min |
12 | Spindle Power Motor | 1.5Kw spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Stepper system |
15 | Working Voltage | AC220V/50/60Hz |
16 | Command Language | G code |
17 | Operating System | DSP |
18 | Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER16 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Artcam software (Option:Type 3 software) |
23 | Running Environment | Temperature: 0℃～45℃ |
24 | Packing Size | 1400x1100x1100mm |
25 | Net Weight | 200kg |
26 | Gross Weight | 220kg |

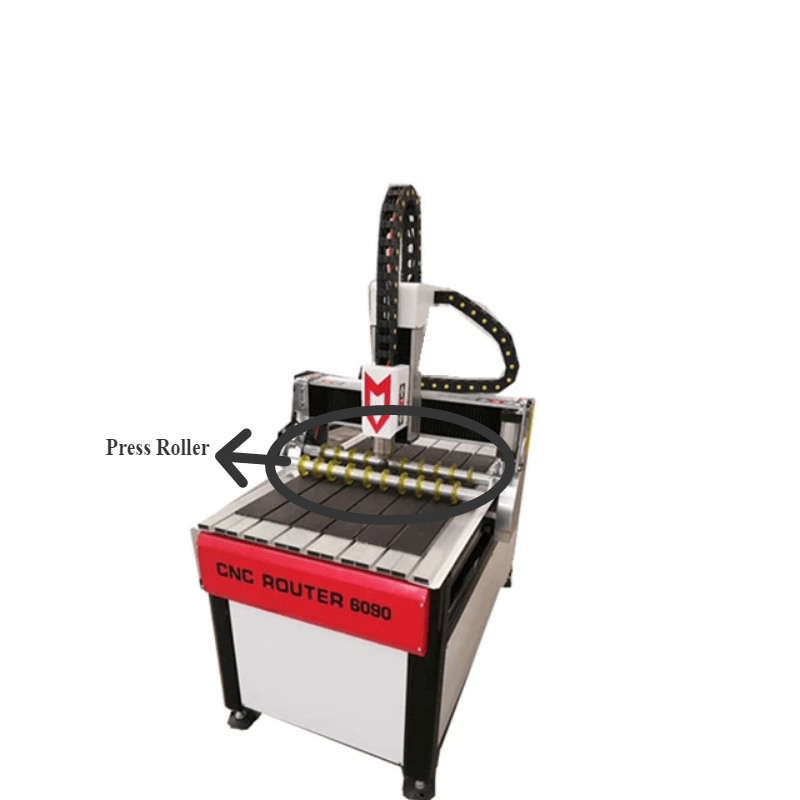

27 | Optional parts | Rotary device |
FAQ:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
