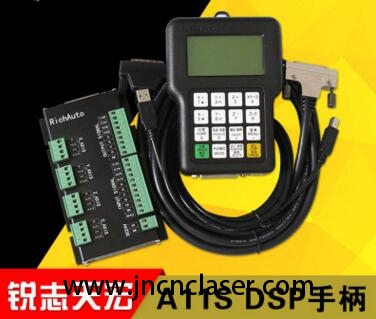

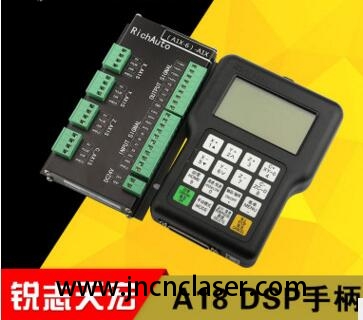

DSP Controller for cnc router
产品简介Descriptions
1. High performance core processing CPU: The eight nuclear processing CPU, faster calculation, stronger processing ability.
2. Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple and quick.
3. Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.
4. Intelligent reading processing documents function: AutoNow series products is more smart in proof reading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands which save the users’ valuable time in great degree.
5. Intelligent memory function: support power lost and breakpoint processing; not only storage the process position, but also memory the file name, ensure user continue processing from breakpoint quickly & accurately.
6. Two kinds of processing mode choice: high precision mode and to ensure the machining precision and quality of high speed mode, that ensure the process efficiency, saving processing time.
7. Security checking & alarm: Add security warning system and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, processing beyond the function such as display, greatly guarantee the accuracy and consistency processing.
8. More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.
9. Anti-jamming performance ids greatly increased: Though some CE test, anti-jamming greatly improved.
10. Department stronger: AutoNow based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU, but also for secondary development, for the customer equipments of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.
产品特点Features
l Support cylinder stator multi-cutter control mode.
Indentify ‘T’ order achieved the cutter automatic switching, support processing more cutters at the same time.
Define the amount of the cutters as customers’ requirements
Easy install and adjust
With simple processing definition, easy operate.
Automatic calculate cutters separation distance, ensure multiple cutters sharing the same work piece coordinate system.
产品参数Parameters
Product model | RichAuto |
CPU | DSP |
Internal Memory | 512MB |
Display Screen | 128*64 Monochrome LCD |
Communication Port | U Disk、USB Cable |
Controlled Axis Number | 3 axis |
Control Signal | Differential Signal |
Drive System | Step Motor/Servo Motor |
Min. Input Unit | 0.001mm |
Arc Ignition Delay | Support |
Automatically Adjustable High | Support |
External Power Supply Voltage | 24V DC |
Manual Mode | Continuous、Point Move、Distance |
Interpolation Way | Line、Arc |
Soft/Hard Limit | Support |
Max. Pulse Frequency | 1M/S |
Password Protection | support |
Support Language | Simple Chinese/Traditional Chinese、English、other languages |
Standard Configuration | (1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring board;(1) Data CD |
Contact us for a price offer !
