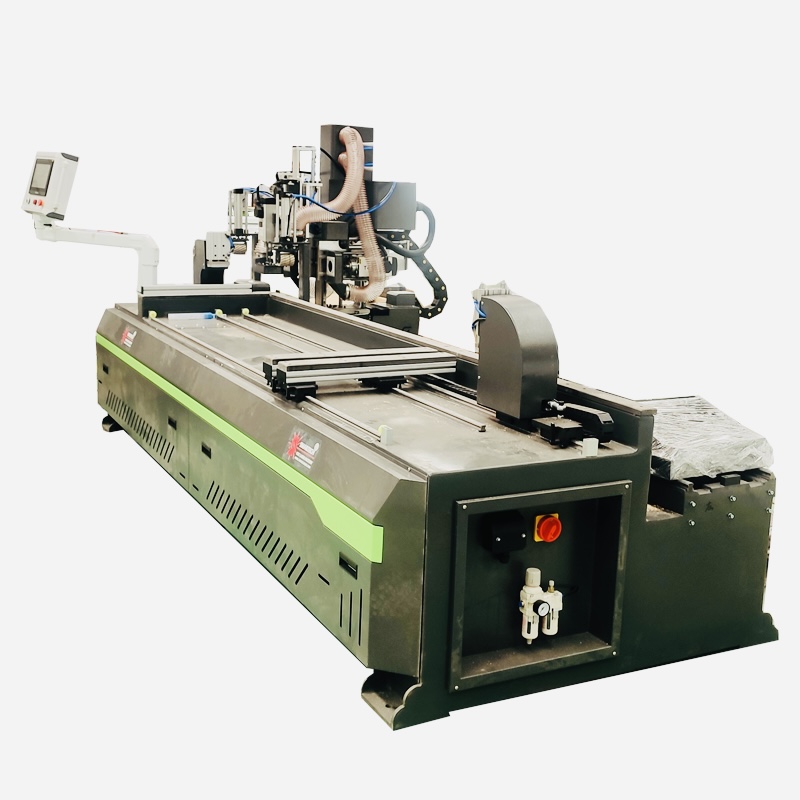

SD1530 Side drilling machine Brief Info
SMARTECH
2022 New design Side drilling machine Brief Info
300x2500mm
5.5KW
red
SD1530 Side drilling machine Brief Info
New design Side drilling machine Brief Info
#Working size: 300x2500mm
#Best inverter 5.5KW
#4 Spindles:4.5KW*3+2.2KW*1
#China high precision reducer #Rack and pinion transmission
#servo motor driver #Dedicated positioning device
#oil lubrication system
#Used for hinges,door closer,holes drilling,all kinds of door locks @Voltage:380V/220V/60HZ/50HZ
Touchwin controller (touching panel)
Automatic positioning
American original Banner Laser displacement sensor
Servo motor driver
Delivery Time | 5-7 working days after deposit |
Payment | 30% T/T advance, 70% after production |
Offer Validity | 7 Days Only |
Warranty | 3 Years |
Certificate | CE |
Functions: Side drilling holes and horizontal holes drilling For Cabinet Furnitures.
Application:
The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting
Features:
1.This professional machine is used for horizontal perforated plate furniture,Completely replace the traditional drill,get rid of the traditional punching mode.Improve working efficiency greatly. 2.High quality parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer; 3.Reasonable design: independent computer control, operation and maintenance more convenient. 4.Perfect automatic oil lubrication system, prolong the service life of the machine.
Side Drilling Machine Technical Parameter
Model | Sidle drilling machine |
Maximum work piece length | 2500mm |
Minimum work piece width | 190mm |
Work piece thickness | ≤100mm |
Y movement | Rack and pinion, gear drive/Taiwan |
Z movement | Pneumatic cylinder |
Guide | Linear 20 square/Taiwan |
Spindle power | 4.5KW*3+2.2KW*1 |
Spindle speed | 18,000rpm |
Inverter power | Best 5.5kw |
Drive motors | servo |
Working voltage | AC380V/50-60Hz, 3-phase |
Command code | G code |
Interface | USB 2.0 |
Collet | ER32- 3.175mm, 6mm, 12.7mm |
Functions | for hinges,door closer,holes drilling,all kinds of door locks |
Controls | Deltacontrolling system |
Machine dimensions | 4170 x 1920 x 1700mm |
Net weight/Gross weight | 1150/1200kg |
Packing size | 3550x1920x1700mm |
CNC Machine for door locks Model: Smart-2500
Machine PicMachine Pic
CNC New Technology VS Traditional Hand made
Control System-Multilingual
Cutting Head
Dust collection System
Door Lock holes making
Side drilling Machine working samples:
product details
machine recommendation
About SMARTECH
SMARTECH has been a professional manufacturer of CNC lasers since 2002. We have seven morden production facilities with R&D and assembly workshops. The success and strength of SMARTECH is based on the application of the latest scientific achievements andprofessional high-tech expertise. Focusing on innovative product design and processes, we strive to meet all customers demands. Our goal is to help every company improve its production efficiency through CNC laser technology!
Payment Term
Alibaba Trade Assurance
30% T/T deposit, 70% before shipment.
Paypal/Western Union
DP/LC
Why Smartech
Competitive price
Compared to those who has the same quality
Technical support
We will send engineers to your site if required anytime
24 Hours Online Live After sale Service.
Long time Life Warranty
3 Years Warranty for CNC
5 Years for Fiber Laser
On-time delivery
100% On-time delivery,Never delayed.
Support customization
We could make machines as your design
OEM/ODM is supported
Sufficient Parts
For freen components & worn spare parts are packed in package
Services
The SMARTECH Group is present in the global CNC machine market where it has developed an efficient after-sales service. SMARTECH is focused on modern ways of communication and diversification of customer support, with the thematic building of strong and solid relationships with potential and future customers. SMARTECH insists on building and maintaining a positive reputation and improving brand and customer satisfaction.
SMARTECH
takes full advantage of more than 60 offices worldwide,
builds unique service brands and improves service processes
strengthens internal management and technical level of service,
improves user experience and customer satisfaction,
requires 24/7 service support from all service offices, personnel, spare parts, tools, etc.
STRENGTHEN TRAINING
In order to improve the overall quality of the service network, SMARTECH properly formulate training plans and training support for customers to improve the quality of service and to maintain and customer satisfaction.
