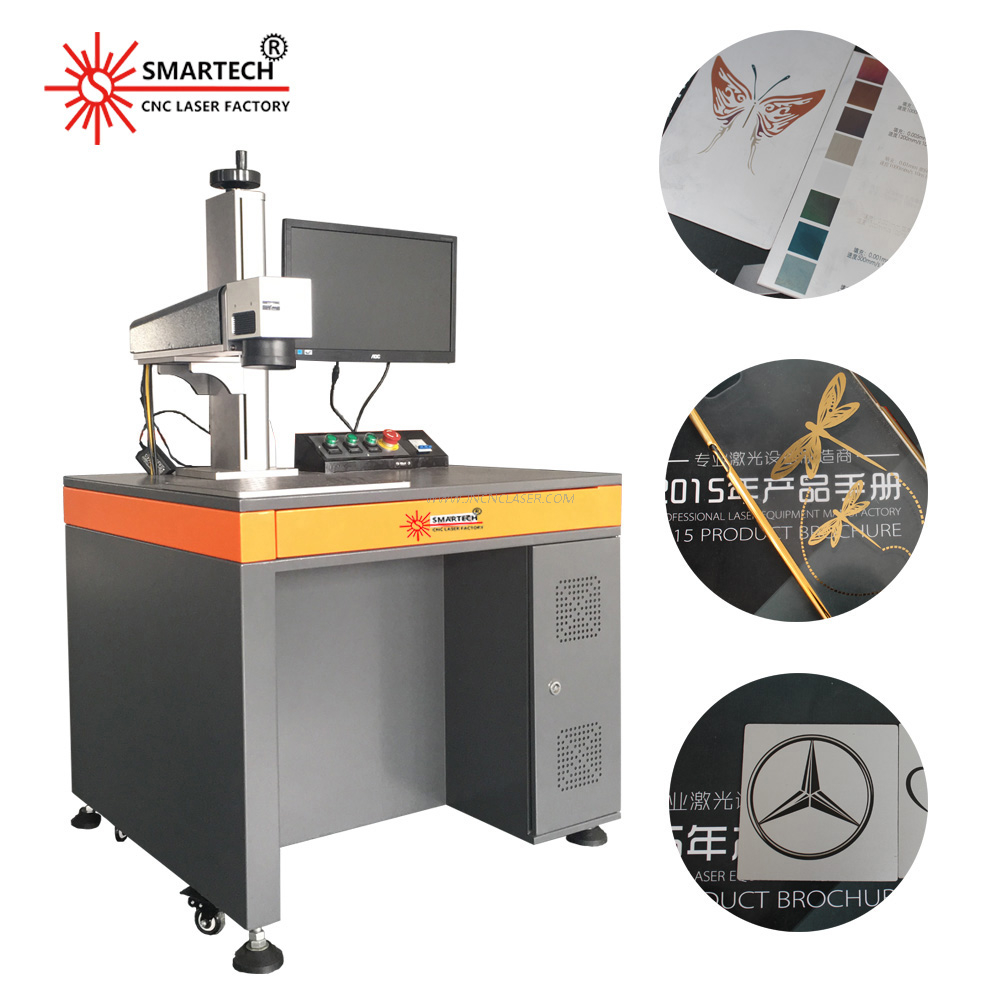

Features of desktop fiber laser marking machine | |||
• Industrial machine type, popular layout, excellent effect of dust proof. • All-in-one design of electric cabinet and working table. • High space between lifting table and working table, especially used for marking on small size work piece. • Packing size: 940*790*1550mm Net weight: 120KG | |||
Type specification | SJF10 | SJF20 | SJF30 | SJF50 |
Wave length of laser | 1064nm | |||
Laser repetition frequency | 20kHz~80kHz | |||
Laser power | 10w | 20w | 30w | 50w |
Marking scope | 50*50/70*70 /100*100 /200*200mm/300*300mm | |||
Laser sources | Fiber laser Raycus/ IPG | |||
Laser Head | High speed scanning head | |||
The minimum focus facula diameter | 20μm | |||
Minimal character | 0.01mm | |||
Marking speed | ≤7000mm/s |
20w fiber laser marking machine
The most hot sale system by lowest price advantage. Especially for marking on plastic and hard metals, it occurs perfect results. Especially suitable for auto parts, packing, kitchenware, hardware, hand tools, animal tags, bird rings, jewelry marking.
30w fiber laser marking machine
Suitable for work shops and people who needs more power for a large amount of marking. One upper level then marking towards cutting.
50w fiber laser marking machine
do deep engraving, micro cutting, marking and 3D engraving perfect. Mostly preferred by gold silver copper jewelry cutting, F 50 creates %40 more effective results according to its competitors. One of the fastest model in market.
Excellent beam quality
The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.2-1.5, the output flare diameter can achieve 10 microns.
Laser long service life
SJF series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100000 hours.
Free maintenance operation
Optical fiber laser no need for any maintenance (not including adjust or clean lens)
Computer control system
Laptop with WINDOWS operating system in English
Special marking software
Marking software in WINDOWS interface,English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.
The most advanced laser source in China.
Lifetime can be up to 100,000 hours.
Germany brand, the most popular and advanced in world market.
high speed, high precision, support flying mark.
Stable, High reliable than other brand
Good quality F theta lens
Improve the edge beam incident to detector,
make the probe on the surface of the photosensitive non-uniform illumination uniformity.
High effeciency, low work temperature
Can adjust direction by forth and back,right and left
Internal,external double red focus system
Help you easily find the focus length
When the work room light is not good,the lamp can lighting its work place.
Laser protective glass, limit siwtch, power cable, dimmer piece.
>>Application materials
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
>>Application Industry
1.Electrical Engineering and Electrical part and component
2.Mobile (Cover, battery, keyboard, IPhone Case)
3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4.Building materials,PVC pipe
5.Car motor car spare part, Instrument and meters and cutting tool
6.plastic case,aviation and aerospace,
7.military product,hardware fitting and accessory,sanitary appliance
8.food and beverage ,Medicine package and medical instrument,solar Pv industry
Gold,Silver,Jewelry,Diamond symbol Laser Engraving marking on Rings works. for the rings, bottles, etc round materials need an optional rotary device. so if you wanna to work with round materials, you need to tell us in advance so that we could deliver out the rotary device to you together. also there is other optional parts for an upgraded model such as: auto up down , auto focus, ccd camera with registration function, mopa model for colorful marking on stainless steel , auto transferring belt table for the mass production demands , we would always make machines according to your specific demands.
