Enclosed Laser Marking Machine 20W 30W 50W
You are here: Home » Laser Machines » Laser Marking Machine » Fiber Laser Marking Machine » Enclosed Laser Marking Machine 20W 30W 50W

loading

Share to:

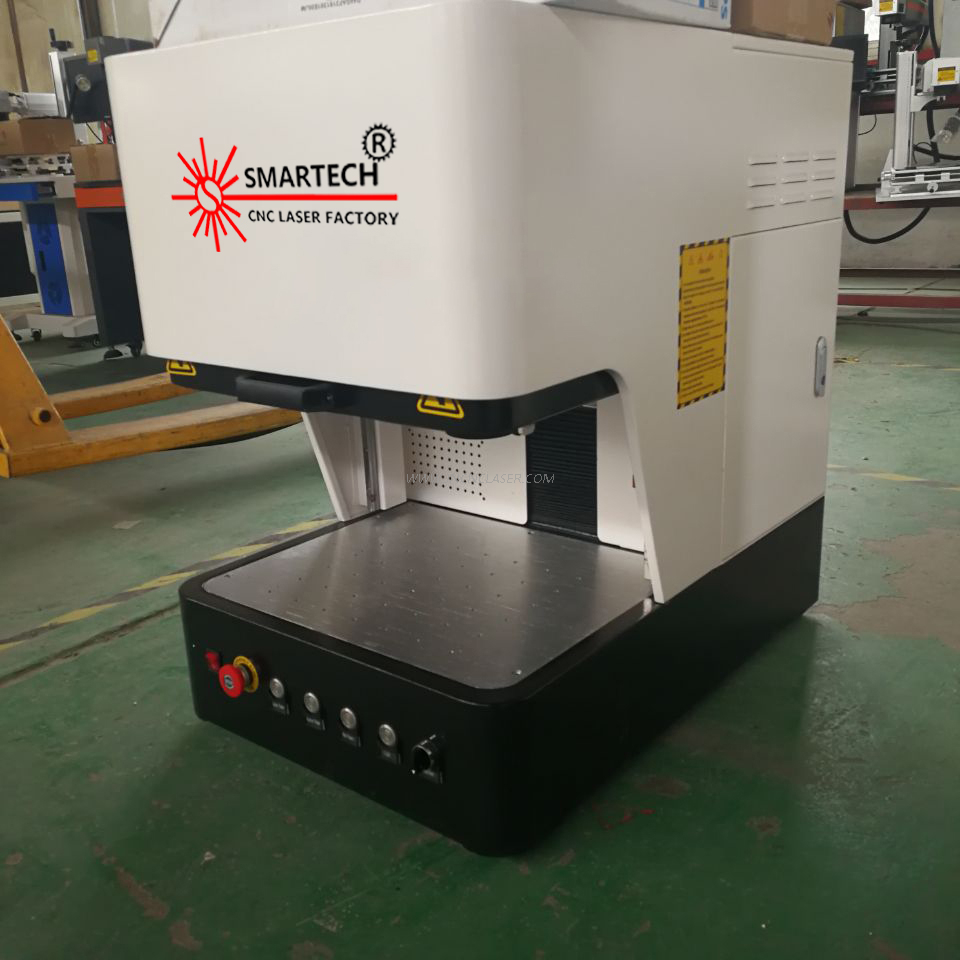

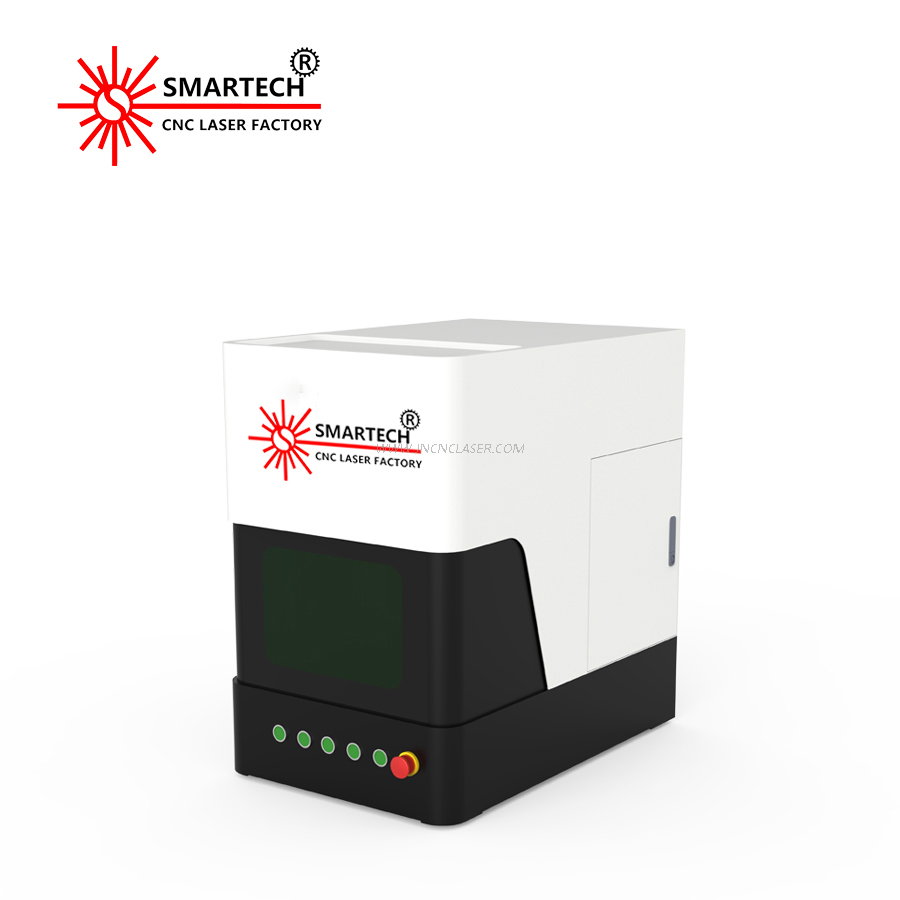

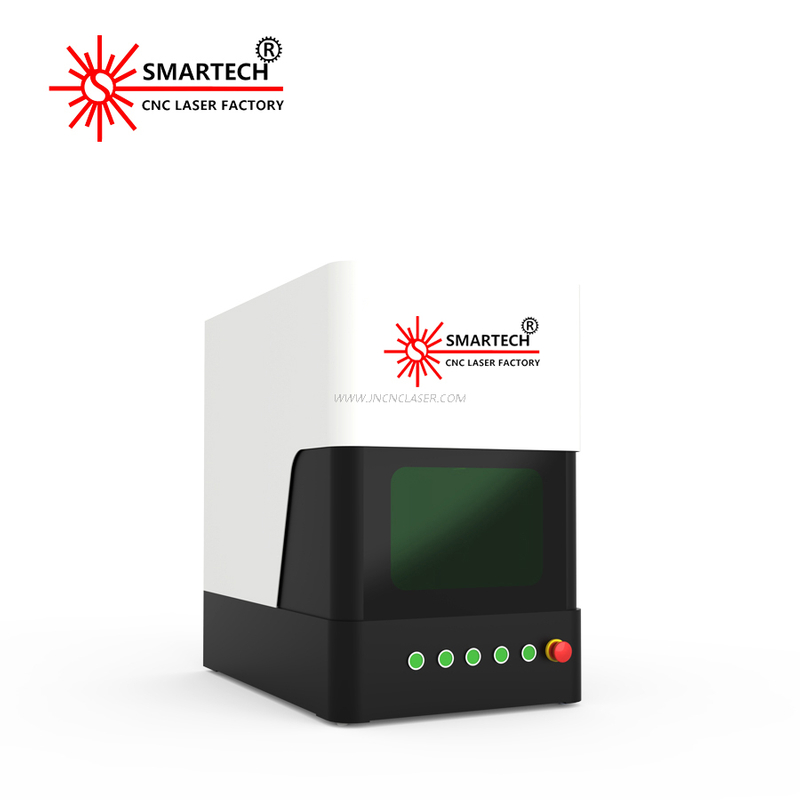

Enclosed Laser Marking Machine 20W 30W 50W

Enclosed laser marking machine 20w 30w 50w for options.enclosed laser marking machine is more safer with covers comparing with the normal laser marking machines.For the enclosed laser marking machine we could install the electrical door, auto up down , auto focus and ccd camera for the irregular materials marking works.welcome to contact us for an video freely.
price:
Availability:
  • SJF-F50

  • SMARTECH

  • 99X62X106 cm

  • 50w

  • AS YOUR PREFERENCE

Handheld laser marking machine for Silver Gold Stainless Steel Rings

Enclosed laser marking machine 20w 30w 50w for options.enclosed laser marking machine is more safer with covers comparing with the normal laser marking machines.

For the enclosed laser marking machine we could install the optional rotary device,electrical door, auto up down , auto focus and ccd camera for the irregular materials marking works.welcome to contact us for an video freely.

Optional rotary for rings https://youtu.be/czZwP1COvXA

Auto focus system for laser marking machine https://youtu.be/RUn5YeoQSX4

Auto door for the laser marking machine https://youtu.be/xd-DEd8IDXs

Laser marking machine with CCD registration https://youtu.be/RPbQ24cHyR8


Products Description
Type specification
SJF20/30/50
Wave length of laser
1064nm
Laser repetition frequency
20kHz~60kHz
Laser power
20w / 30w / 50w
Marking scope
100*100 /200*200mm/300*300mm
Laser sources
Fiber laser Raycus/ IPG
Laser Head
Sino high speed scanning head
The minimum focus facula diameter
20μm
Minimal character
0.01mm
Marking speed
≤7000mm/s
Repeated accuracy
0.0025mm
Cooling ways
Air Cooling
Power supply
220V/ 110V 50Hz-60Hz
Process Material
All kinds of metal and part of Non-metal Materials
Support format
PLT, BMP, DXF, JPG, TIF, AI etc
Package
Standard wooden box for export

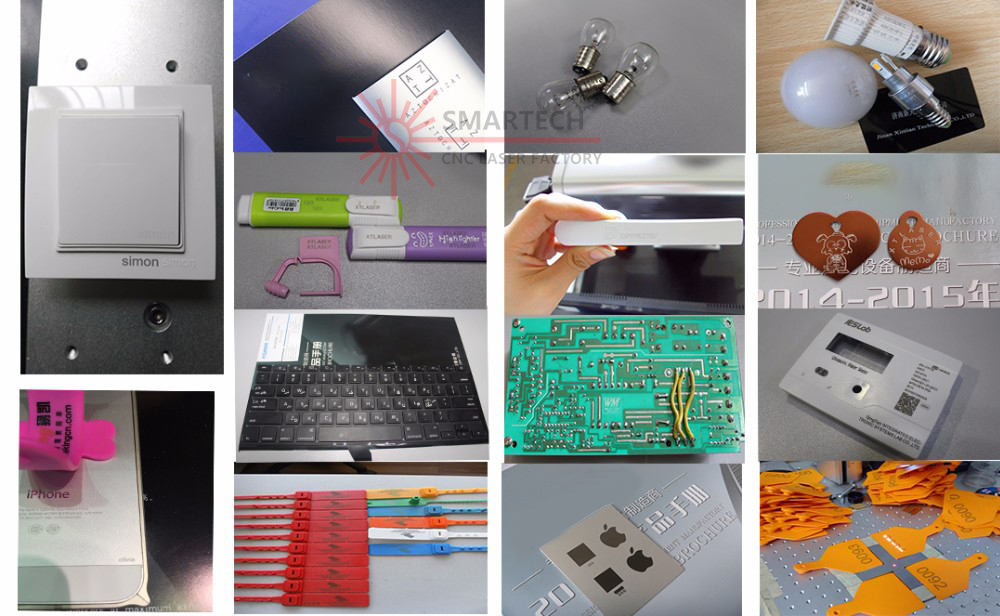

Samples

>>Application materials
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
>>Application Industry
1.Electrical Engineering and Electrical part and component
2.Mobile (Cover, battery, keyboard, IPhone Case)
3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4.Building materials,PVC pipe
5.Car motor car spare part, Instrument and meters and cutting tool
6.plastic case,aviation and aerospace,
7.military product,hardware fitting and accessory,sanitary appliance
8.food and be verage ,Medicine package and medical instrument,solar Pv industr

machine recommendation


05微信图片_20230518150638



UTB8dvlfXGrFXKJk43Ovq6ybnpXag

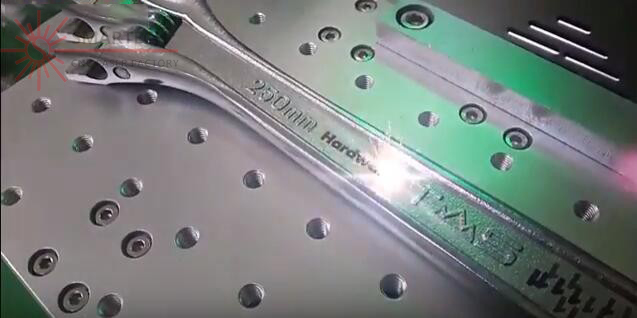

Marking on the hardwares

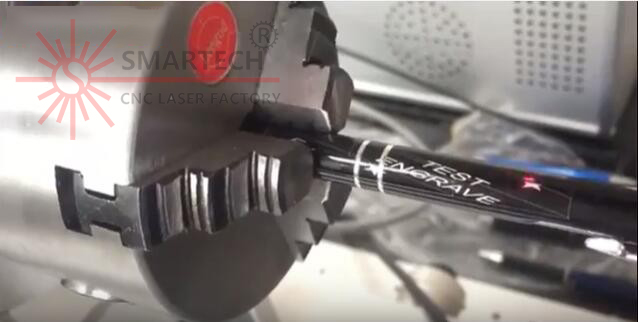

Marking machine with rotary axis on pen

UTB8ppyYXlahduJk43Jaq6zM8FXat



Markingon ABS SWICTHES










HTB1H59JQVXXXXbRXpXXq6xXFXXXe
