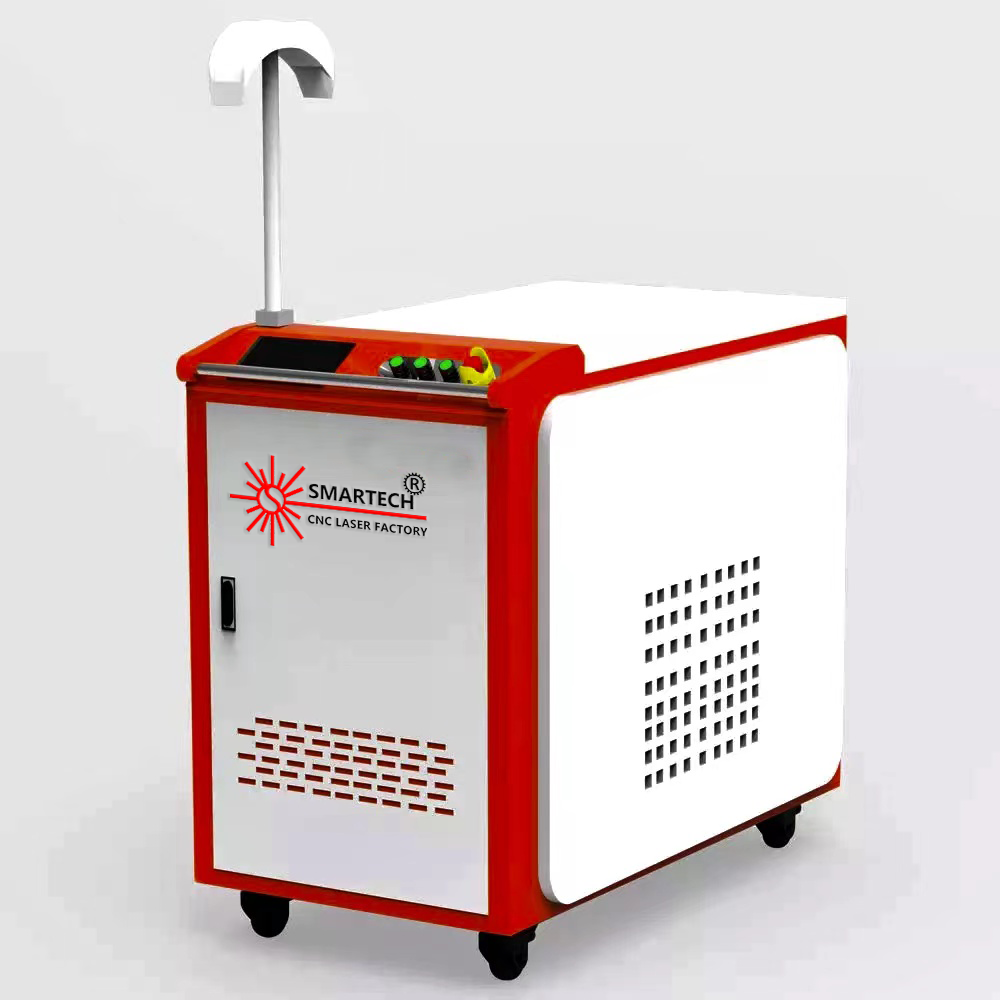

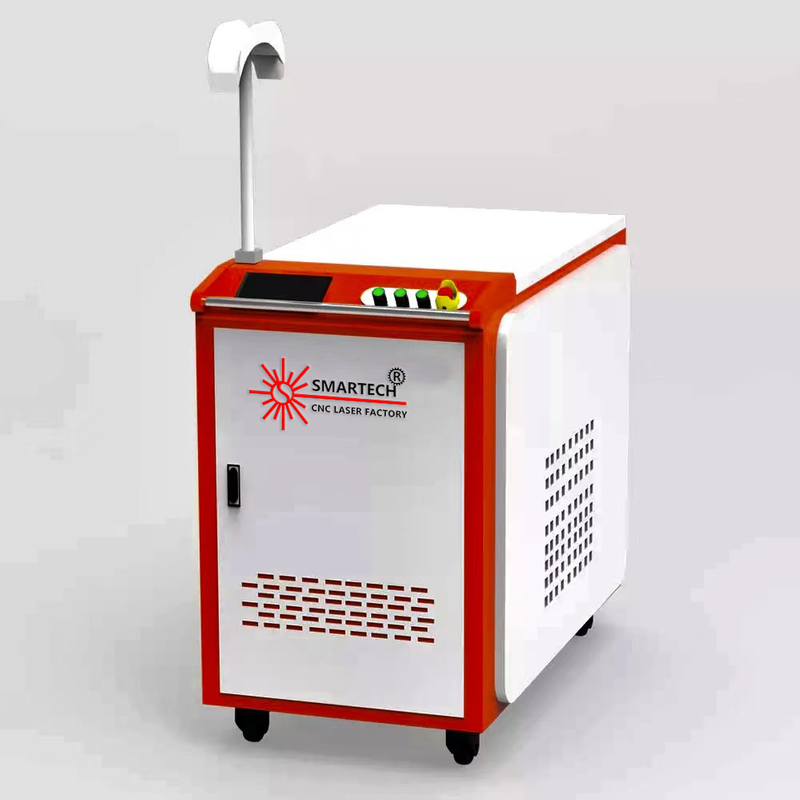

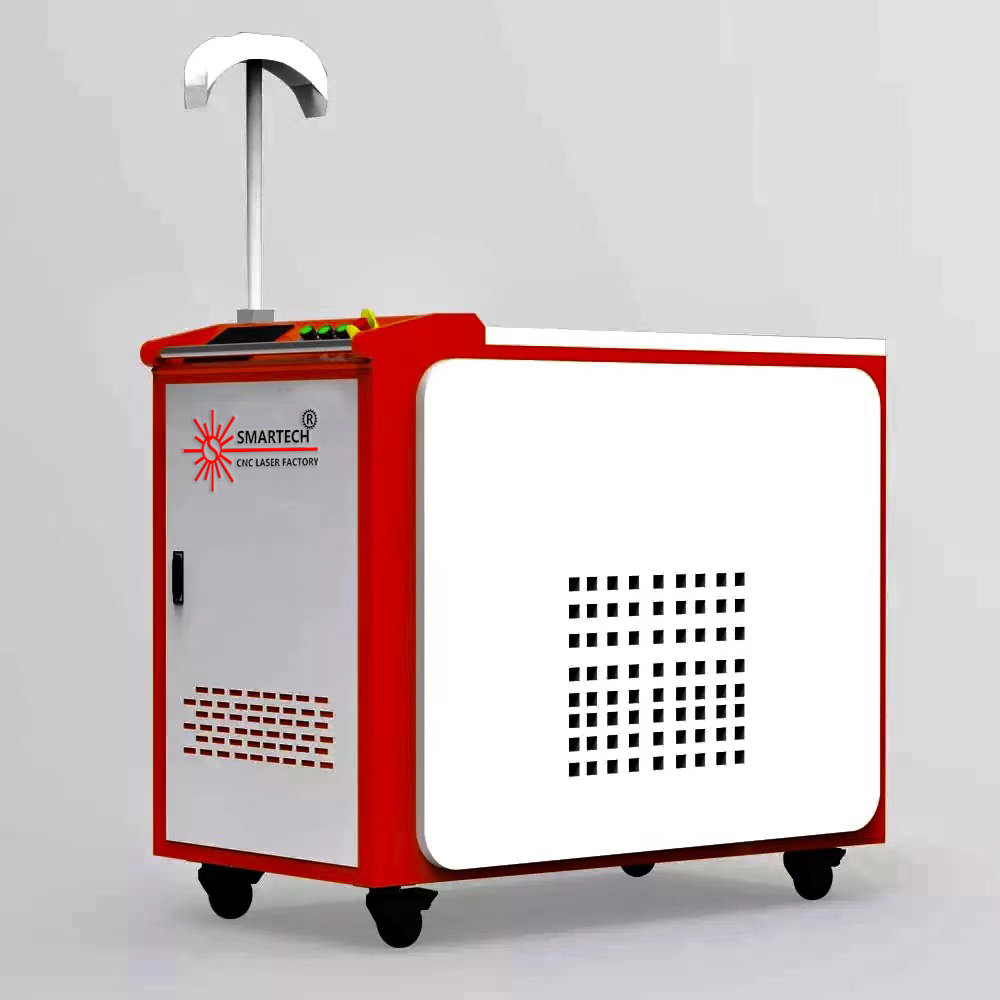

Price Portable Rust Removal Laser Cleaning Machine

Availability:
  • fiber laser
  • SMARTECH
  • Handhold
  • 1100mm×700mm×1150mm
  • 1000W/1500W/2000W
Product Description

Application

Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear
coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning.
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pre-treatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning

Advantages:

1. Non-contact cleaning 2. With universal wheels, easy to move 3. Adjustable man-machine interface parameters 4. Suitable for hand-held cleaning operations with robotic hands 5. Can be used for designated location/size cleaning 6. Will not cause damage to any metal surface 7. Water cooling system 8. High efficiency, no consumables, safety and environmental protection.
9. Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency ultrasonic cleaning, SMARTECH laser cleaning machines have obvious advantages. Wide range of applications: Laser cleaning can remove various types of contaminants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. It can also selectively clean the contaminants on the surface of the material without damaging the surface of the material. 10. Easy to operate: The SMARTECH laser can be transmitted through optical fiber, cooperate with the robot to realize long-distance operation, and can clean complex structures that are not easily reached by traditional methods. This feature also makes the safety of operators more secure in some dangerous places. 11. High cleaning efficiency: The cleaning efficiency of the SMARTECH laser cleaning machine is very high, and the laser cleaning is non-grinding, non-contact, and non-thermal. It will not produce mechanical force on the object to be cleaned, and will not cause damage to the surface of the object to be cleaned. Moreover, it does not need to use any chemicals and cleaning fluid when cleaning, and it will not pollute the environment. Green and environmental protection: No chemical agents and cleaning fluids are required. The cleaned waste is basically solid powder, small in size, easy to store, recyclable, no photochemical reaction, and no pollution. 12. Low cost: The initial investment of the SMARTECH laser cleaning system is relatively high, but it can be used stably for a long time, with a service life of up to 10 years, low operating cost, fast speed, high efficiency, time saving, and a return on investment soon. In the long run, The cost is lower than traditional cleaning methods.
Specification
Technical Parameter



Laser source
fiber laser


Laser power
1000W/1500W/2000W


Power range (%)
10-100(adjustment )
Repeat frequency (KHz)
10-50(adjustment)
Focal length (mm)
210/160 changeable


Cooling mode
Water cooling
Size
1100mm×700mm×1150mm


Weight
270Kg


Scanning width
10-80mm


Mobile mode
Handhold


Detailed Images
Portable laser head
Max or raycus power source
Touching control panel
Company Profile
Handheld 1000w 1500w 2000w fiber laser rust removal cleaning machine for Rust Paint Oil Dust 1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate. 2) The focused laser beam is capable of accurately evaporating surface objects or dirt. 3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface. 4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Machine Application
FAQ
1. What's the machine package size?
L*W*H: 1150*760*1370mm; Cross Weight:250kg

2. How to confirm the machine cleaning effect?
Please tell us your needs, we will finish the testing video for you, and we also support real-time video, You can observe the
cleaning effect of the machine more directly.

3. What are consumable parts?
Protective glass, etc, if you order, we will send it to you together with machine.

4. Which languages are supported? Is it easy to operate? Support language:Chinese French Japanese Korean Russian Spanish
CNC Control System, with clear and simple interface page Stable
Various parameters can be set by yourself

5. When I get the machine, how to operate the machine? We have machine manual, and we have professional after sale group, if you
have any questions, they can help you anytime.

6. Do the machine can be customized according to my own requirements ?
Sure, we have a strong technical team and have rich experience. Our final service goal is to let you satisfied.
