SJF60
smartech
99X62X106 cm
60w
as your preference

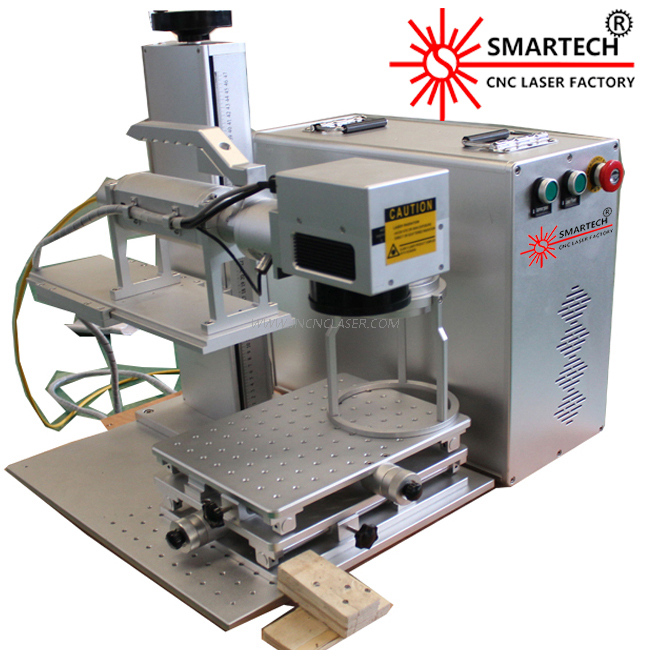

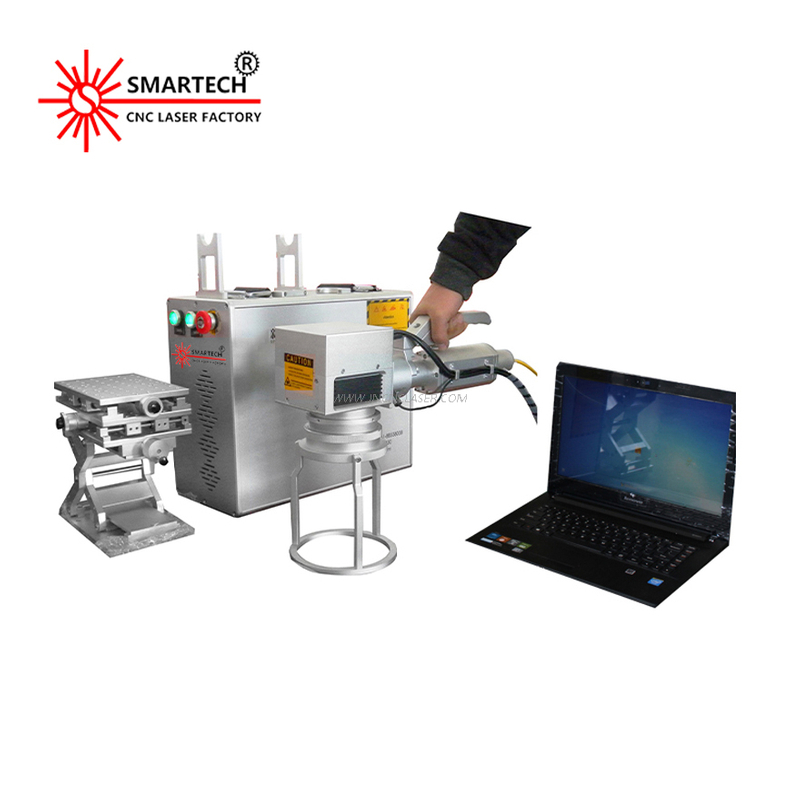

Portable handheld laser marker and engraver machine
Technical parameters and main parts:
| Machine Type | Handheld Type fiber laser marking machine |
| Laser Source | IPG, Germany brand |
| Raycus China | |
| Output Power | 10w/20w/30w/50w |
| Wavelength | 1064nm |
| Beam Quality | <2 |
| Repeat Frequency | 10khz— 100khz |
| Pulse Energy | 2mJ |
| Beam Divergence | -0.3 to +0.3mrad |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatablility | 50μ |
| Marking Scope | 110mmx 110mm/ 175mmx 175mm (optional 200*200mm, 300*300mm) |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Components | |
| Laser source | Raycus/IPG |
| Laser head | Sino |
| Software | Ezcad |
| F-theta lens | Wavelength |
| Computer | Lenovo/HP Laptop |
| Protective tool | Protective glasses |
| Working table | X-Y 2d table/Rotary device for option |
Features:
• SJF10/20/30/50
• Handheld type marking machine, all-in-one design ensure high reliability of the laser, without any optics to adjust collaborating.
• Removable integrated system design makes it more convenient for customers to use, provides the ideal solution for a variety of industrial application.
• Using environment is liberal, indoor, outdoor can be applied, easy to carry.
The laser head is removable, apply to any angle to mark.
Application:
• Handheld type fiber laser marking machine for a wide range of application, mainly for all kinds of metal and most plastic. Can be held to mark any position of some big and heavy products which can not be moved easily. Especially suitable for hardware tools, kitchenware knifes, plastic products, metal jewelry, buttons, integrate circuits, frames, plumbing fittings and other products marking. Clear, beautiful and permanent marking
Application materials:
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc;
Alloy and metal oxides: Anodized Aluminum;
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
Electrical Engineering and Electrical part and component ;
Mobile (Cover, battery, keyboard, IPhone Case) ;
Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft ;
Building materials,PVC pipe ;
Car motor car spare part, Instrument and meters and cutting tool ;
plastic case,aviation and aerospace ;
military product,hardware fitting and accessory,sanitary appliance ;
food and beverage ,Medicine package and medical instrument,solar Pv industry.
Marking samples:
Plastics and non metal samples marked by fiber laser machine

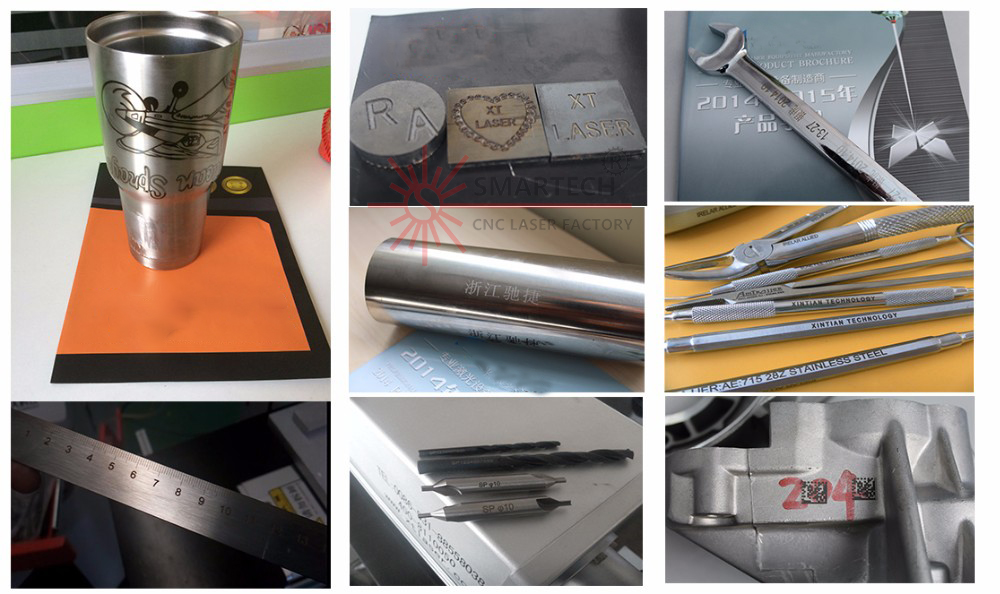

Metal samples marked by fiber laser machine
FAQ
-Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping
ways? A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome.
-Q How about your laser machine package?
A: Standard export wood package with free fumigation
-Q How about the quality guarantee period?
A:5 Years for whole machine
-Q How can you guarantee the production quality ?
A:We have 15years experience of QC team; strictly quality control system in our production process.
-Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
