Cheap small cnc router for hobby Wood Cnc Engraving Machine 6090 Pro
You are here: Home » CNC Laser Machine » CNC Router » Advertising CNC Router » Cheap small cnc router for hobby Wood Cnc Engraving Machine 6090 Pro
Share to:

Cheap small cnc router for hobby Wood Cnc Engraving Machine 6090 Pro

  • Wood Cnc Engraving Machine 6090 Pro
  • SMARTECH
  • New Product 2020
  • 1.47 * 1.05 * 0.8m
  • as your preference
Product Overview

JINAN SMART TECHNOLOGY CO., LTD. fengqi Zone,Shizhong District,Jinan,Shandong,China Skype:smartcnclaser  whats app/wechat/tel:+0086-15064149218 export@smartcnclaser.com www.jncnclaser.com    www.smartcnclaser.com   www.facebook.com/smartcnclaser
FEATURES AT A GLANCE
COMMODITY&DESCRIPTION UNIT PRICE QUAN SM0609 CNC Router 1: CE Certificate 2: Working area:600mm*900mm*100mm 3: Stepper motor and driver for XYZ axis 4:Chinese good quality spindle 2.2KW 5:Square Rail 6: x,y,Z-axis system Ball screw 7.T-slot working table 8: Complete holders and clamps 9: sensors and all parts in electrical control box, made in Japan or France. 10: Taiwan TRV Rails and gears and linear 11: Tool sensor. 12: DSP controller with USB 13:Tools one set Optional parts:
1.Water tank
2.Press Roller
3.Rotary
4.Dust collector Note:you could use directly after received machine,no need to buy other parts.
Right elevation
Left elevation

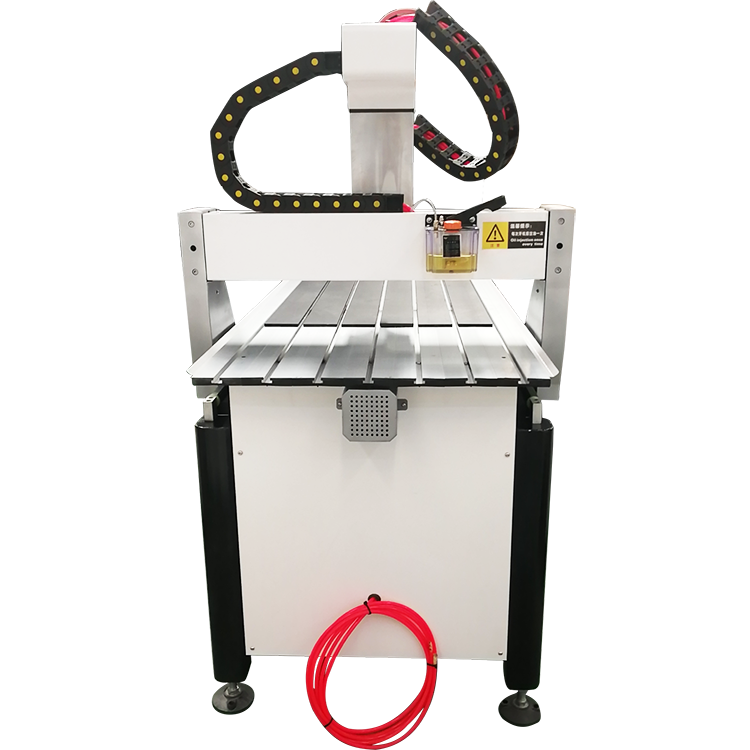

Front elevation

Wide range of 6090 CNC router Application:

advertisement engraving and cutting,stone processing,mold manufacturing,wood processing,craft manufacturing,light box cutting, indoor decoration cutting,light equipment mold processing,sign and mark manufacturing,acrylic board processing,etc. CNC router 6090 suitable materials: Stone,Wood,aluminum board,plastic,density board,wave board,PVC,PCB,acrylic,crystal,marble,aluminium,copper etc Features:  1.This machine design is very popular and won very good reputation from our worldwide customers so far.Super Cost-Effective Model. 2. It is equipped with Atlanta accuracy gear rack, and the X/Y-axis adopt high accuracy grinding rack for transmission. Assured high stability and processing accuracy. 3. Enlarged cast iron column, ensure processing steady. 4. Exclusive painting experience is as shiny as the newly purchased car. 5. With the functions of power off recovery, break point continue curving, auto-tool adjustment, re-engrave, finish position set up, etc. And support 9 coordinates positioning, true humanization design. 6. It is compatible for many software such as TYPE3, Artcam, UG,etc. 7.  The integrated electrical cabinet design,help save shipping space and customers’ space,especially good choice for the hobbies and beginners. 8.Very Easy for operating and maintenance. 9. 220V/3KW high speed water cooling motorized spindle, high power and efficiency. 10.All machine colors could be customized as your preference. 11. This machine has manual oil supply system. For easy in maintenance.Just need to press two times lubricating tank handle. 12. Very widely applications.mould,woodworking,crafts,signage,hobbies etc
PRODUCT SPECIFICATIONS
Description Parameter Model  SM0609 X,Y,Z,Working Area 600*900*100mm Table size 1100*1200mm Precision (mm)  0.07 Positioning accuracy(mm) 0.02 Frame Steel structure lathe bed, T-slot table Repeatability  0.02mm Travel speed 20m/min Processing speed 12m/min Spindle Power 2.2 KW water cooling spindle Spindle Speed 0-24000rpm Working Voltage AC 220V 50HZ Command Language G Code Computer Interface USB/Ethernet Collect ER25 X,Y Resolution <0.03mm Software Artcam software Running Environment Temperature 0-45 Centigrade Relative Humidity 30%-75% Packing Size 1.2*1.3*1.8M Net Weight 500KG Optional parts 1.Water tank +200$ 2.Press Roller+50$ 3.Rotary +200$ 4.Dust collector +150$
PRODUCT CONFIGURATION
adverting cnc router spindle
spindle with cover
 Aluminium cutting

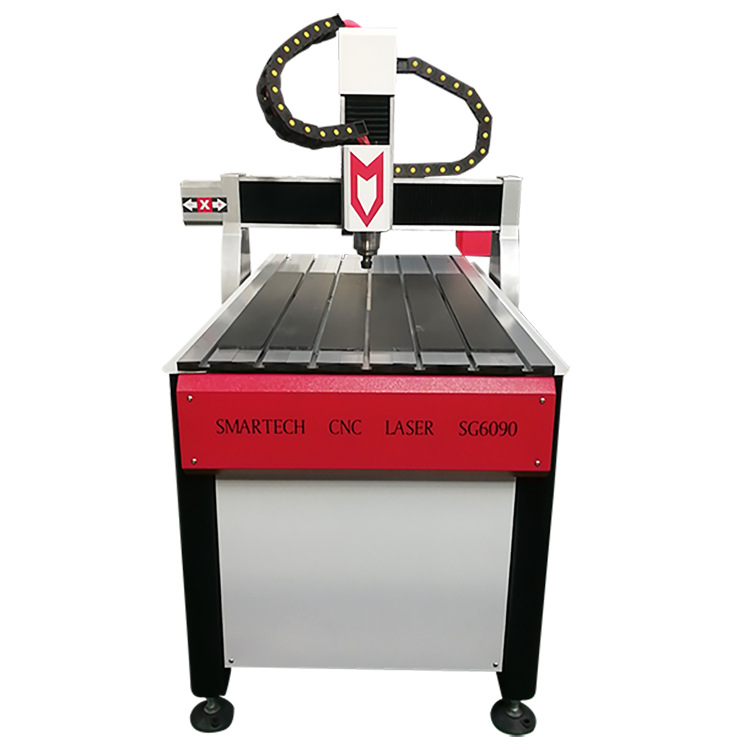

Standard model 6090
Standard model without water tank
Standard model front
different versions-side
different versions-back
different versions-right
cnc router before delivery
cnc router machine before delivery
cnc router back side version
SALES AND SERVICE NETWORK
Successful Project
plywood engraving
sign making pic
sign making
Acrylic engraving
Acrylic engraving
Acrylic engraving
SIMILAR PRODUCTS

CNC Router 0609 with water tank

FAQ
-Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
