cnc router with Camera CCD Oscillating Knife Spindle cutting cnc router 1325 for cutting signs milling solid wood aluminum

1530 CNC Router For marble stone granite Engraving
Availability:
  • smartCNC-F3

  • SMARTECH

  • 1500x3000/2000x3000mm/1300x2500mm

  • as your preference

02未标题-1

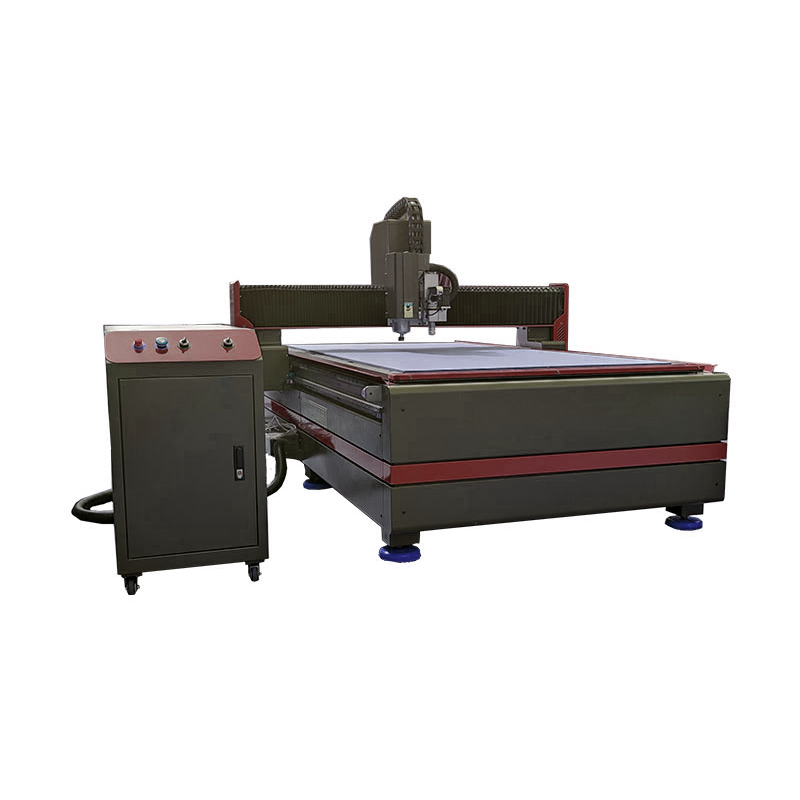

Machine can be calibrated easily, can identify JPG and other picture formats, shaped cutting and engraving integrated machine; simple suction clamp integrated platform, weighted thick bed structure / high precision rabbet / large square rail / large motor; add CCD industrial camera , can automatically fixed-point edge patrol engraving machine.

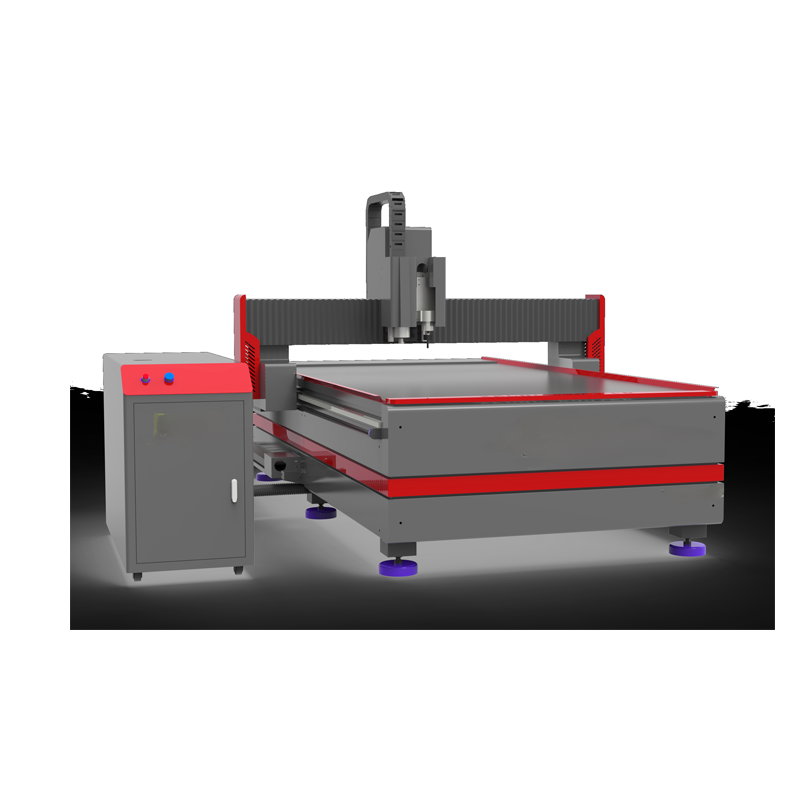

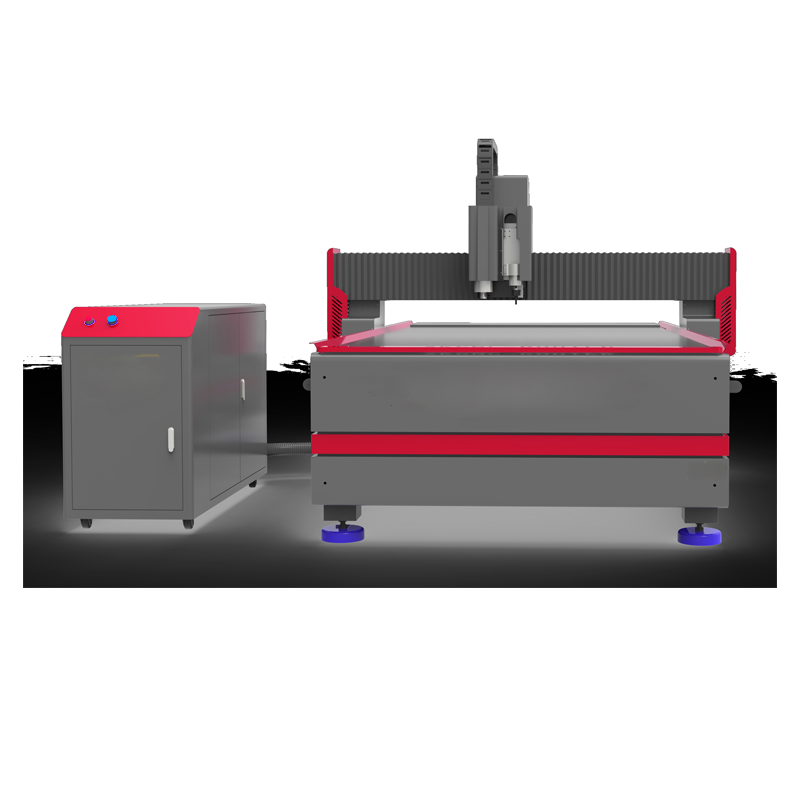

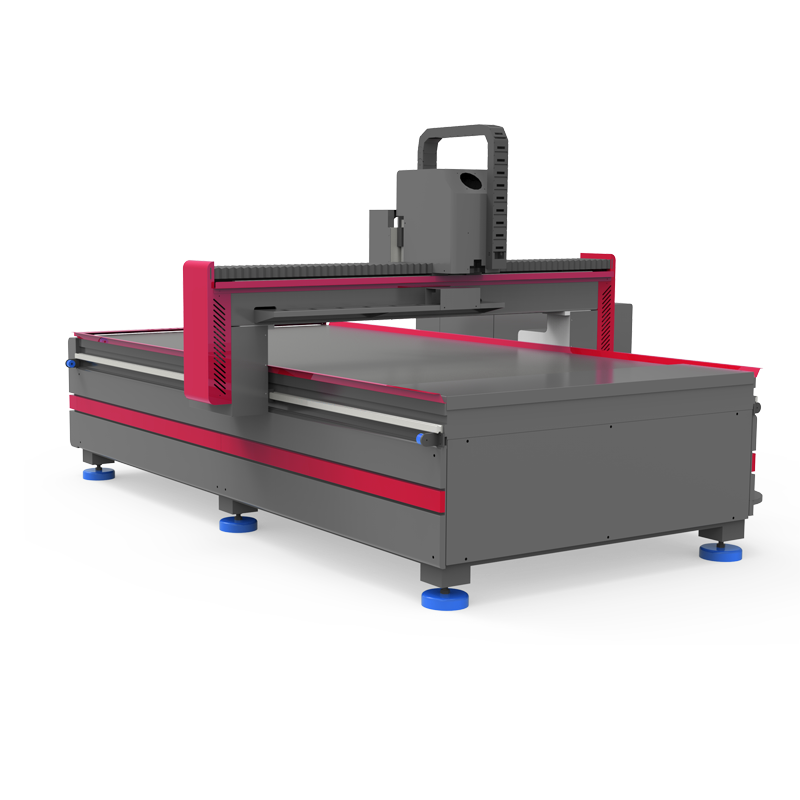

Products display

Model
smartCNC-F3
Inverter
Folinn inverter
Machine size
2200*3500*1500mm
Drive
Yako S3
Working area
1300*2500*200mm
System
Advanced edge patrol system
Spindle power
3.2 kw water cooling
Platform
Vacuum table+T-slot
Speed
24000 rmp
Cabinet
Industrial class large anti-interference cabinet
Drving mode
X, Y axis:Hiwin guide and rack Z aixs: TBI screw ball
Voltage
220V/380V
Rail
20 linear rail
accuracy
±0.02mm
Warranty
1 year
Code
G Code(*.nc.*.mmg.*.u00,etc.),eng
Software
CAD/CAM(Window98/XP/7/8/10)
Application
Advertising industry
Accessories
Mainly used in cutting the PVC, KT board after UV printing, then the products after cutting will be more smooth and no burr; It is also available in acrylic, solid wood, density board and other materials cutting.
A system can realize the edge patrol, cutting, carving function, no requirements for the computer system, can support the desktop, notebook.
smart-F3 cnc rotuer can cutting, carving of acrylic, PVC, KT board, perxiglass, board, density board, sandwich board, paper cardboard, leather, cloth, felt, velute products, plastic board, membrane products, leaves and other materials.
Product's features

1.Full-steel thickened square gantry, speed is fast

2.Thickened and weighted bed

3.Spindle and vibrating knife in one machine

4.System can recognize PDF JPG TIF PNG DXF PLT NC directly


A pplication industry
