CO2 laser marker | SJF-CS10 | SJF-CS30 | SJF-CS55 |
Wave length of laser | 10.64um | ||
Laser repetition frequency | 20kHz~80kHz | ||
Laser power | 10W | 30W | 55W |
Marking scope | 50*50mm / 70*70mm / 100*100mm / 110*110mm / 200*200mm / 300*300mm | ||
Laser sources | CO2 laser SYNRAD / CO2 laser LEIYE | ||
Laser Head | ≤7000mm/s, High speed scanning head | ||
The minimum focus facula diameter | 20μm | ||
Minimal line width | 0.015mm | ||
Minimal letter height | 0.2mm | ||
Graphic format supported | BMP,JPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,ETC | ||
Cooling system | Air /water Cooling | ||
Power supply | 0.5KW/AC220V/50Hz | ||
Enviroment requirment | 0 ~ 35 ° C, 90% or humidity |

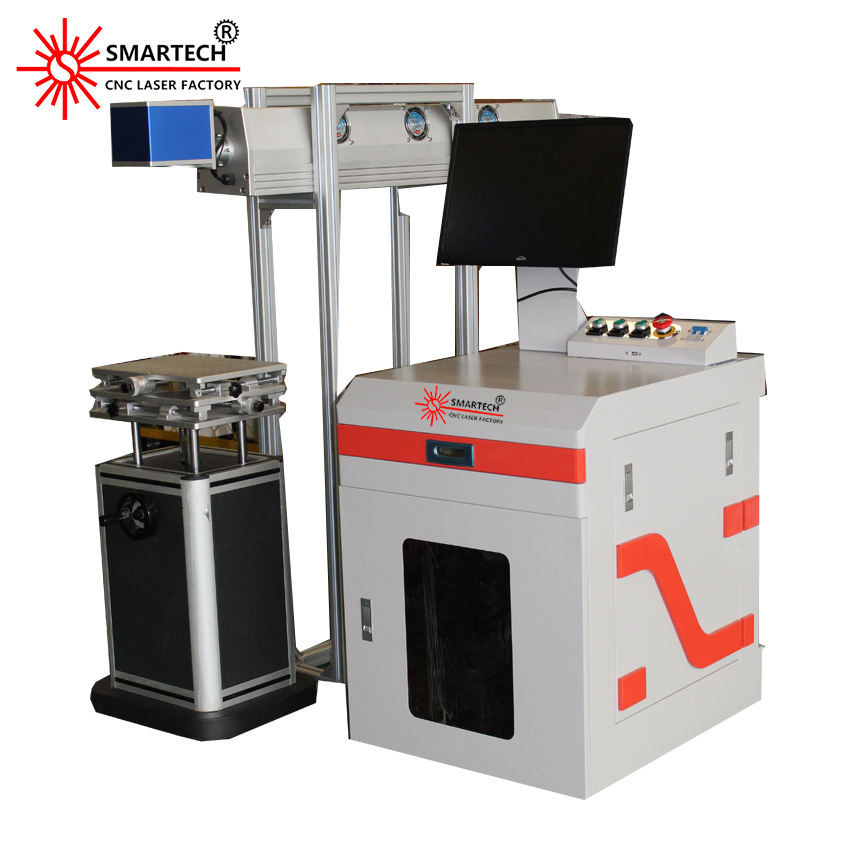

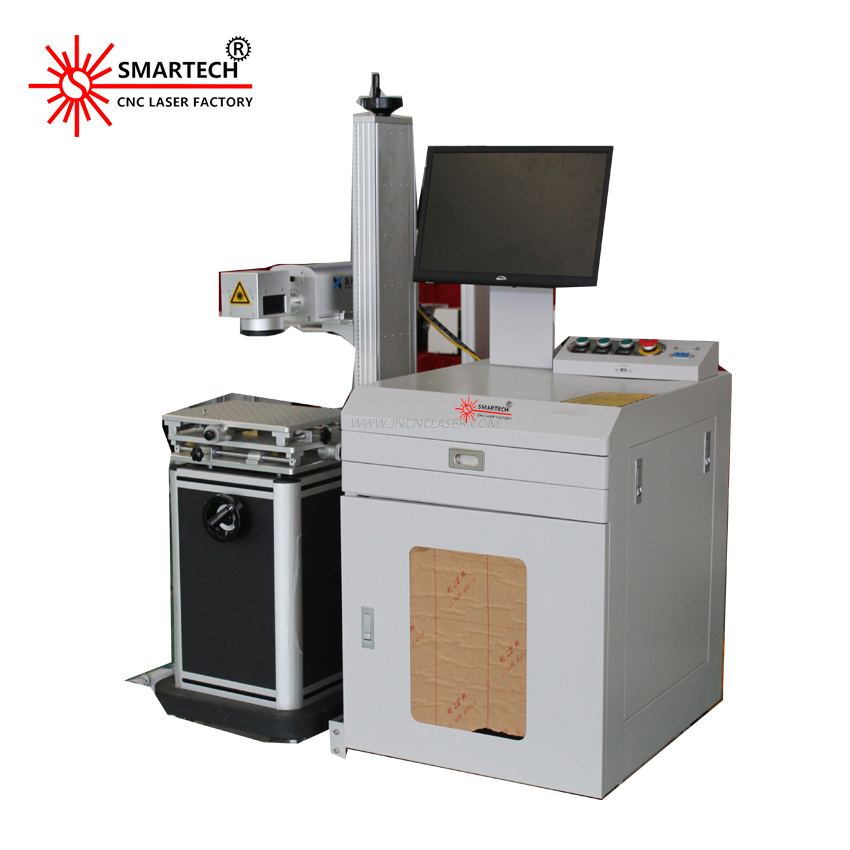

①The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
②Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.
③Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.
④Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.
⑤It can configure automatic configuration fixture, baiting production line.
⑥It can mark data, serial number & bar code automatically.
⑦Marking clearly and not easy to wear.
⑧Use the computer control, user friendly interface, easy operation.
⑨Accept customizing.
⑩The extensive equipment performance,competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.
>>Application materials
Lamp holder,Leather,food(eggs),packing carton box, beverage, cloth, electronic, meter, bottle , plastic, communication instruments, package and other industries ,can be combined with streamline for online marking
>>Application Industry
CO2 Laser Marking Machine is widely used in electronic components,instrument,garment,leather,suitcase and handbag,shoes,button,eye-glasses,medication,food and beverage,cosmetics,packing,electronic equipment,etc.
CO2 laser marking system marking plastics samples
CO2 laser marker | SJF-CS10 | SJF-CS30 | SJF-CS55 |
Wave length of laser | 10.64um | ||
Laser repetition frequency | 20kHz~80kHz | ||
Laser power | 10W | 30W | 55W |
Marking scope | 50*50mm / 70*70mm / 100*100mm / 110*110mm / 200*200mm / 300*300mm | ||
Laser sources | CO2 laser SYNRAD / CO2 laser LEIYE | ||
Laser Head | ≤7000mm/s, High speed scanning head | ||
The minimum focus facula diameter | 20μm | ||
Minimal line width | 0.015mm | ||
Minimal letter height | 0.2mm | ||
Graphic format supported | BMP,JPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,ETC | ||
Cooling system | Air /water Cooling | ||
Power supply | 0.5KW/AC220V/50Hz | ||
Enviroment requirment | 0 ~ 35 ° C, 90% or humidity |
①The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
②Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.
③Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.
④Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.
⑤It can configure automatic configuration fixture, baiting production line.
⑥It can mark data, serial number & bar code automatically.
⑦Marking clearly and not easy to wear.
⑧Use the computer control, user friendly interface, easy operation.
⑨Accept customizing.
⑩The extensive equipment performance,competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.
>>Application materials
Lamp holder,Leather,food(eggs),packing carton box, beverage, cloth, electronic, meter, bottle , plastic, communication instruments, package and other industries ,can be combined with streamline for online marking
>>Application Industry
CO2 Laser Marking Machine is widely used in electronic components,instrument,garment,leather,suitcase and handbag,shoes,button,eye-glasses,medication,food and beverage,cosmetics,packing,electronic equipment,etc.
CO2 laser marking system marking plastics samples
