SF3000W
SMARTECH CNC LASER
500W/750W/1000W/1500W/2000W/3000W
AS YOUR PREFERENCE

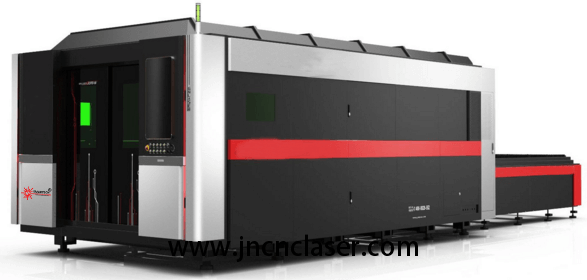

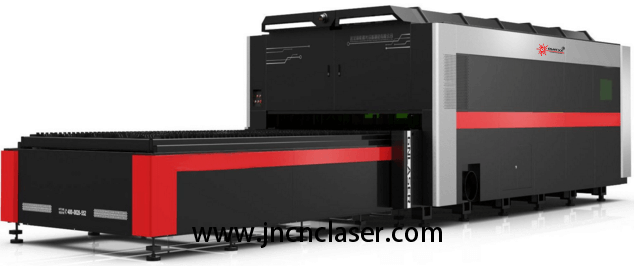

High Precision Fiber Laser Cutting Machine manufacturer 3000W
Fiber laser cutting machine Application industry
Metal cutting, electrical switch manufacturing, elevator manufacturing, household electrical appliance manufacturing,
cooking utensils, tools machining , such as a variety of machinery manufacturing and processing industry.
Laser cutting machine 3000W Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
Brass,Sheet, Bronze,Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
machine recommendation
High Precision Fiber Laser Cutting Machine manufacturer 3000W
Fiber laser cutting machine Application industry
Metal cutting, electrical switch manufacturing, elevator manufacturing, household electrical appliance manufacturing,
cooking utensils, tools machining , such as a variety of machinery manufacturing and processing industry.
Laser cutting machine 3000W Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
Brass,Sheet, Bronze,Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
machine recommendation
Technical Parameters:
Model | S-Fiber-1325 | S-Fiber-1212 | S-Fiber-1530 | S-Fiber-2040 | ||||||
Working Area | 2500X1300mm | 1200*1200mm | 3000X1500mm | 4000x2000mm | ||||||
Laser Type | Original Germany IPG /Raycus Fiber laser generator | |||||||||
Laser Power | 2000W/3000W/4000W or higher | |||||||||
Transmission | Precise pinion and rack, dual-drive transmitting | |||||||||
Beam Quality | <0.373mrad | |||||||||
Positioning Accuracy | ≤ ±0.03mm/m | |||||||||
Re-positioning Accuracy | ≤±0.02mm/m | |||||||||
Max Cutting Speed | 0-100m/min(depending on material and thickness) | |||||||||
Power Supply Rated Voltage | 3-phase 380V/50Hz | |||||||||
X-axis Stroke | 2500mm | 1200mm | 3000mm | 4000mm | ||||||
Y-axis Stroke | 1300mm | 1200mm | 1500mm | 2000mm | ||||||
Z-axis Stroke | 100mm/120mm | |||||||||
Working Table | Rack working platform | |||||||||
Laser wavelength | 1070nm | |||||||||
Control system | MPC6595 | |||||||||
Location System | Red dot indicator | |||||||||
Max load-bearing of work table | 500KG | |||||||||
Machine Weight | 3000-8000kg 5000KG | |||||||||
Machine Dimension | 3500x1800x1600mm | 1700*1700*1600mm | 4300x2500x1600mm | 5800X3500X2050mm | ||||||
Rotary device dimension | 4400*600*900(3M) / 7850*600*780(6M) | |||||||||
Power consumption of whole machine : | < 15KW (< 12KW-1 KW) | |||||||||
Rated voltage and frequency : | 380V/50Hz/60Hz/60A | |||||||||
Remark | Automatic exchange worktable, cover(option) |
