Low Cost CNC Side/horizontal Holes Drilling Machine
Functions: Side drilling holes and horizontal holes drilling For Cabinet Furnitures.
Application:
The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs
Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments
Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting
Technical Parameter:
Model | Sidle drilling machine |
Maximum workpiece length and width | 1220*1540mm |
Minimum workpiece length and width | 100*50mm |
workpiece thickness | ≤30mm |
Y movement | Rack and pinion, gear drive/Taiwan |
Z movement | Pneumatic cylinder |
Guide | Linear 20 square/Taiwan |
Max. speed | 15,000mm/min |
Max. drilling speed | 10,000mm/min |
Spindle power | 3.5kw (Chinese fan cooling) |
Spindle speed | 18,000rpm |
Inverter power | 3.7kw |
Drive motors | servo |
Working voltage | AC380V/50-60Hz, 3-phase |
Command code | G code |
Interface | USB 2.0 |
Collet | ER32- 3.175mm, 6mm, 12.7mm |
Barcode scanner | Yes |

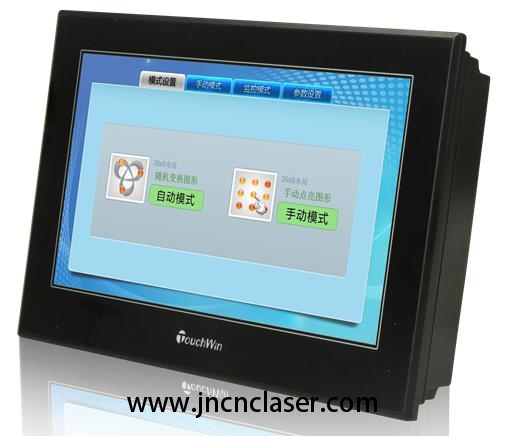

Controls | Touchwin controlling system |
Packing dimensions | 2700 x 2280 x 1500mm |
Net weight/Gross weight | 1050/ 1100kg |
Standard equipment included | 1.Dedicated positioning device 2. Manual oil lubrication system |

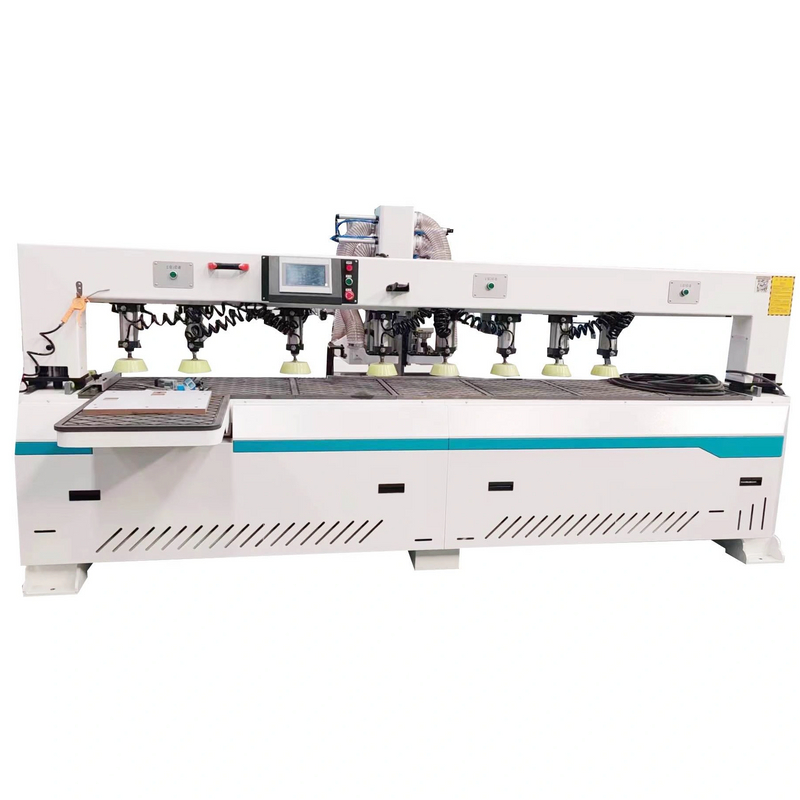

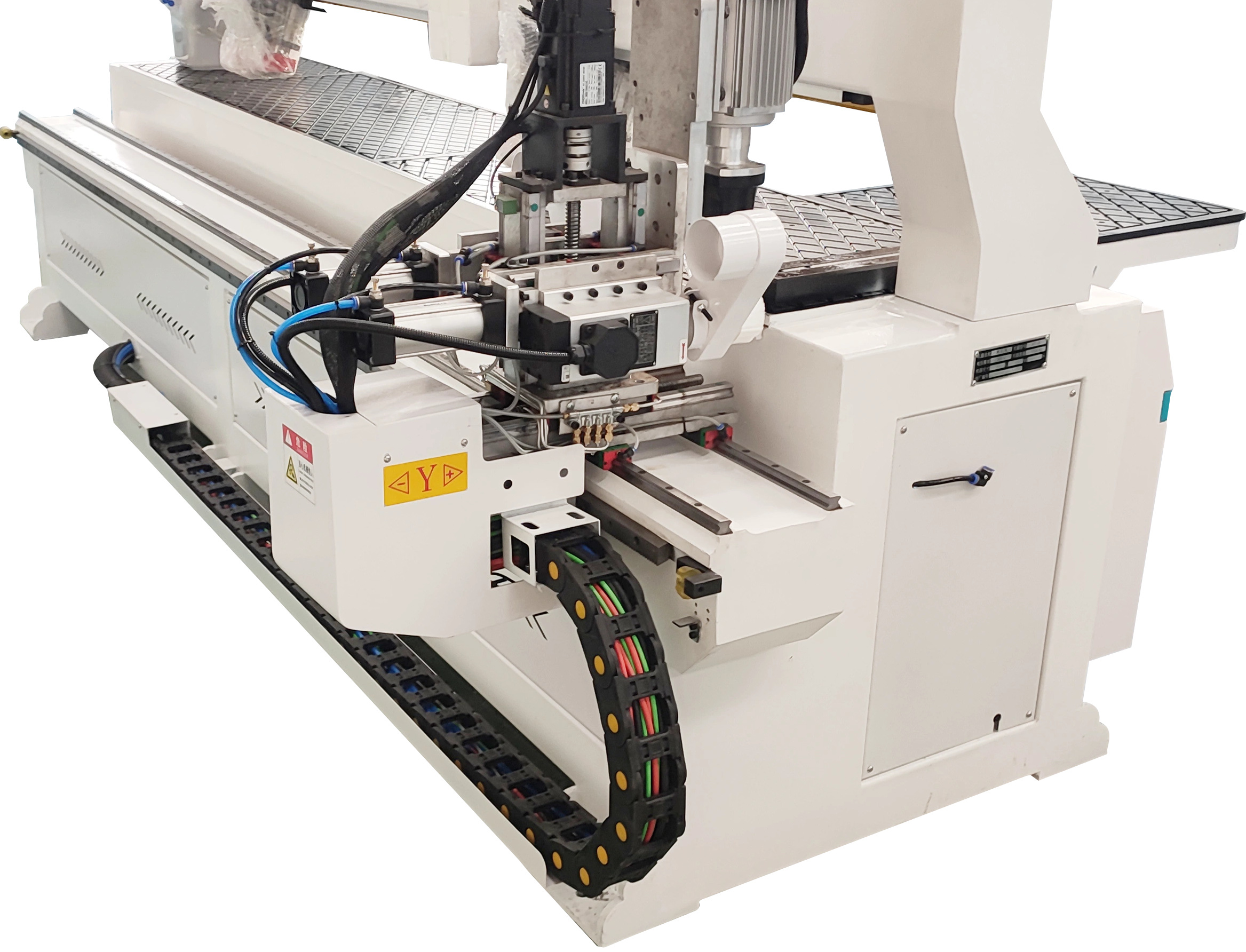

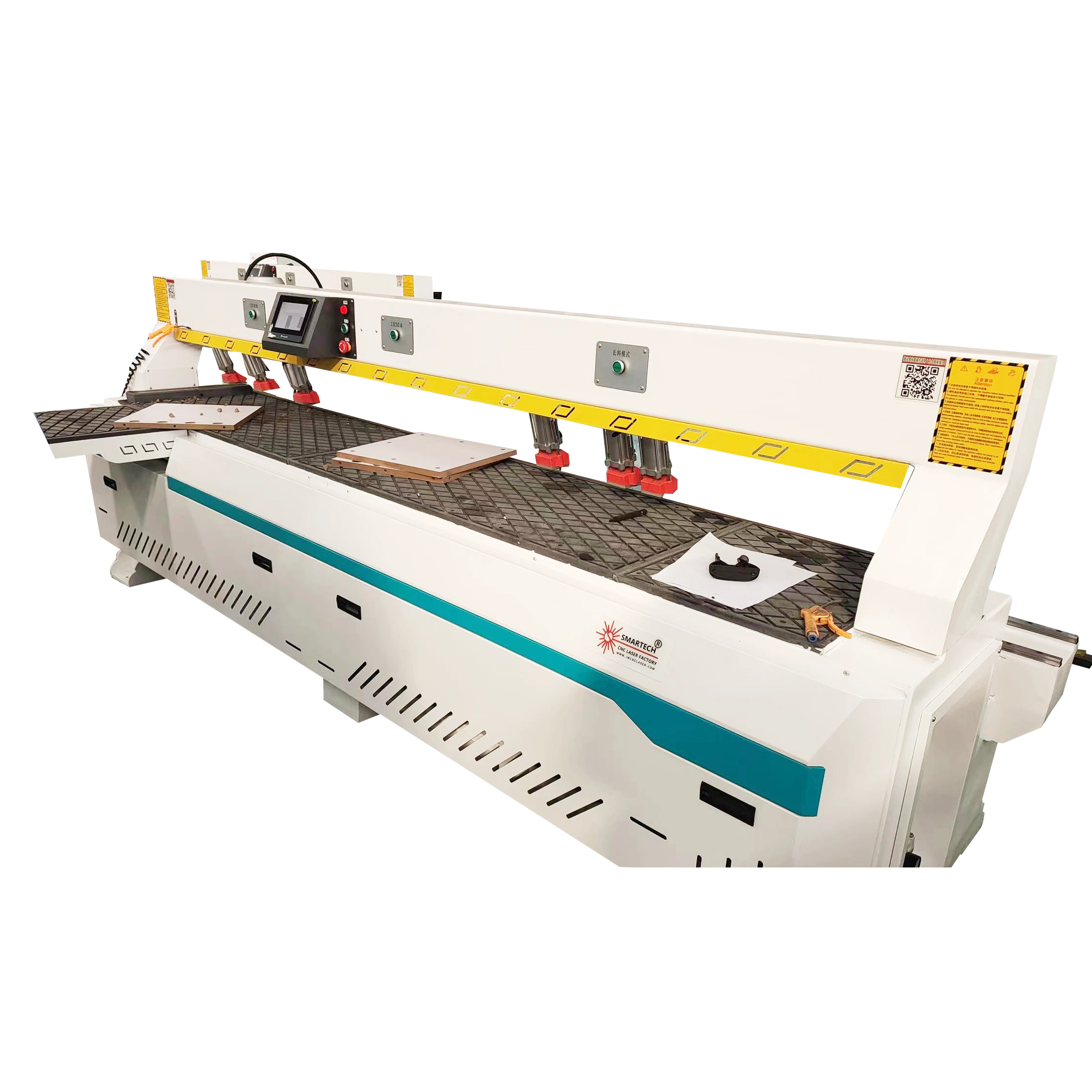

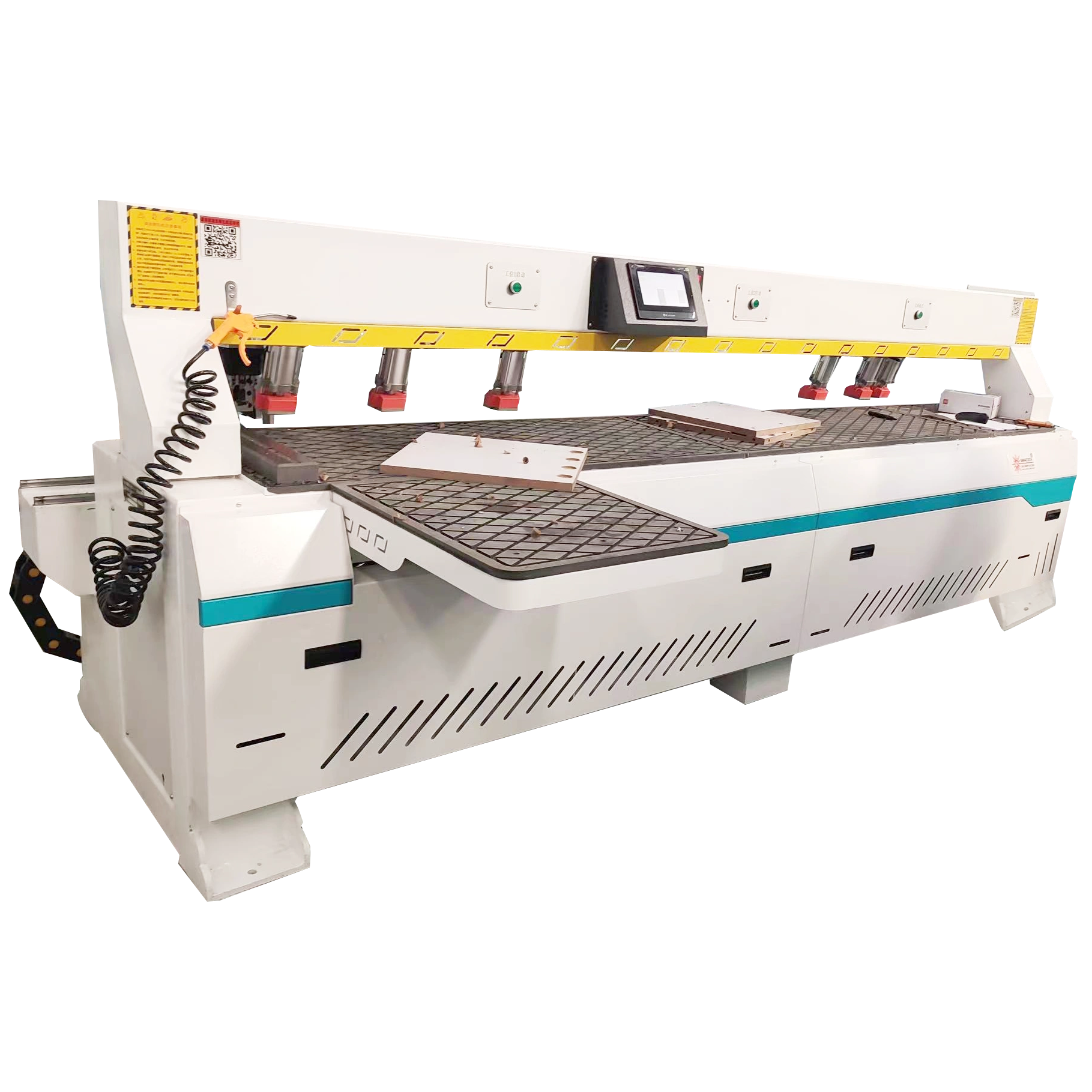

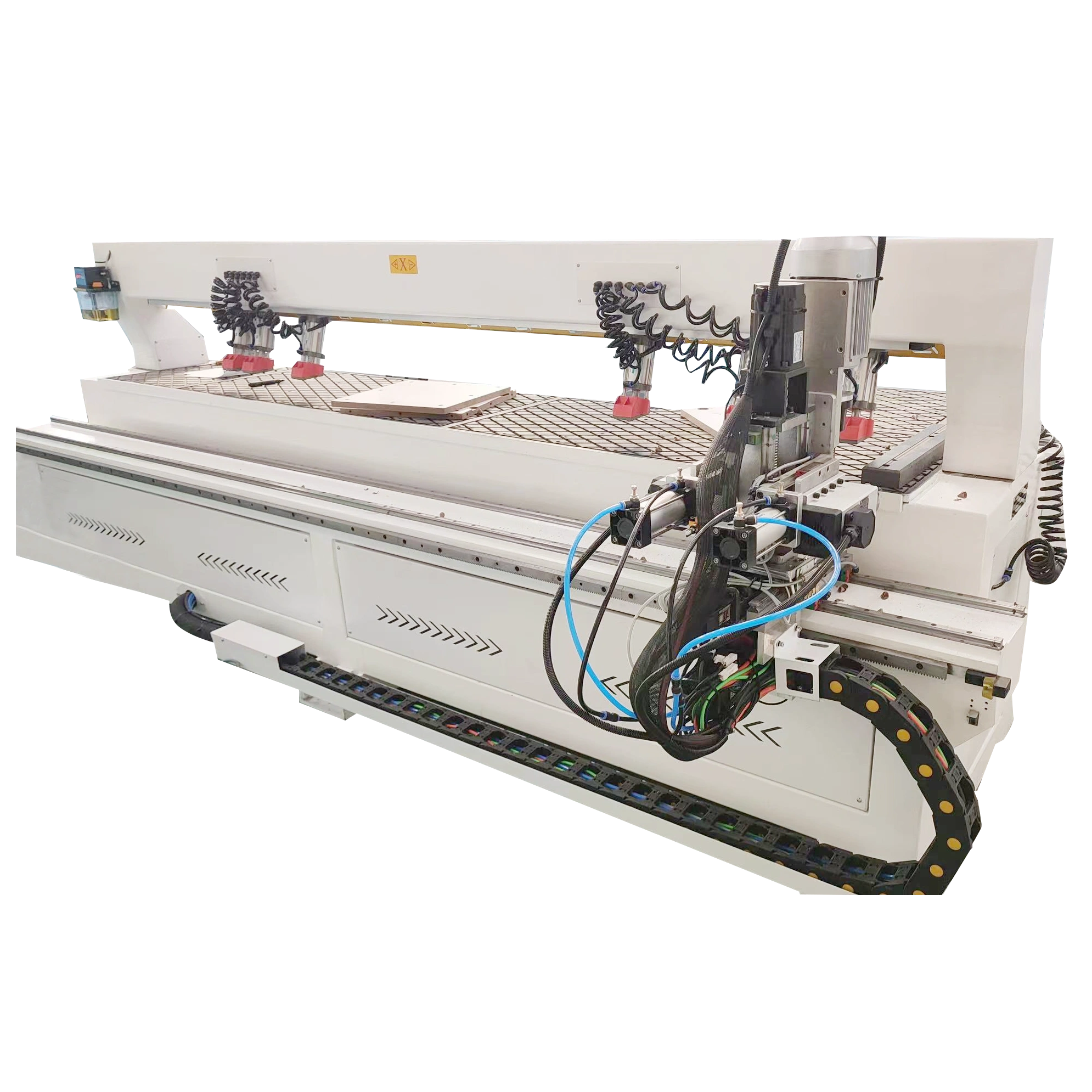

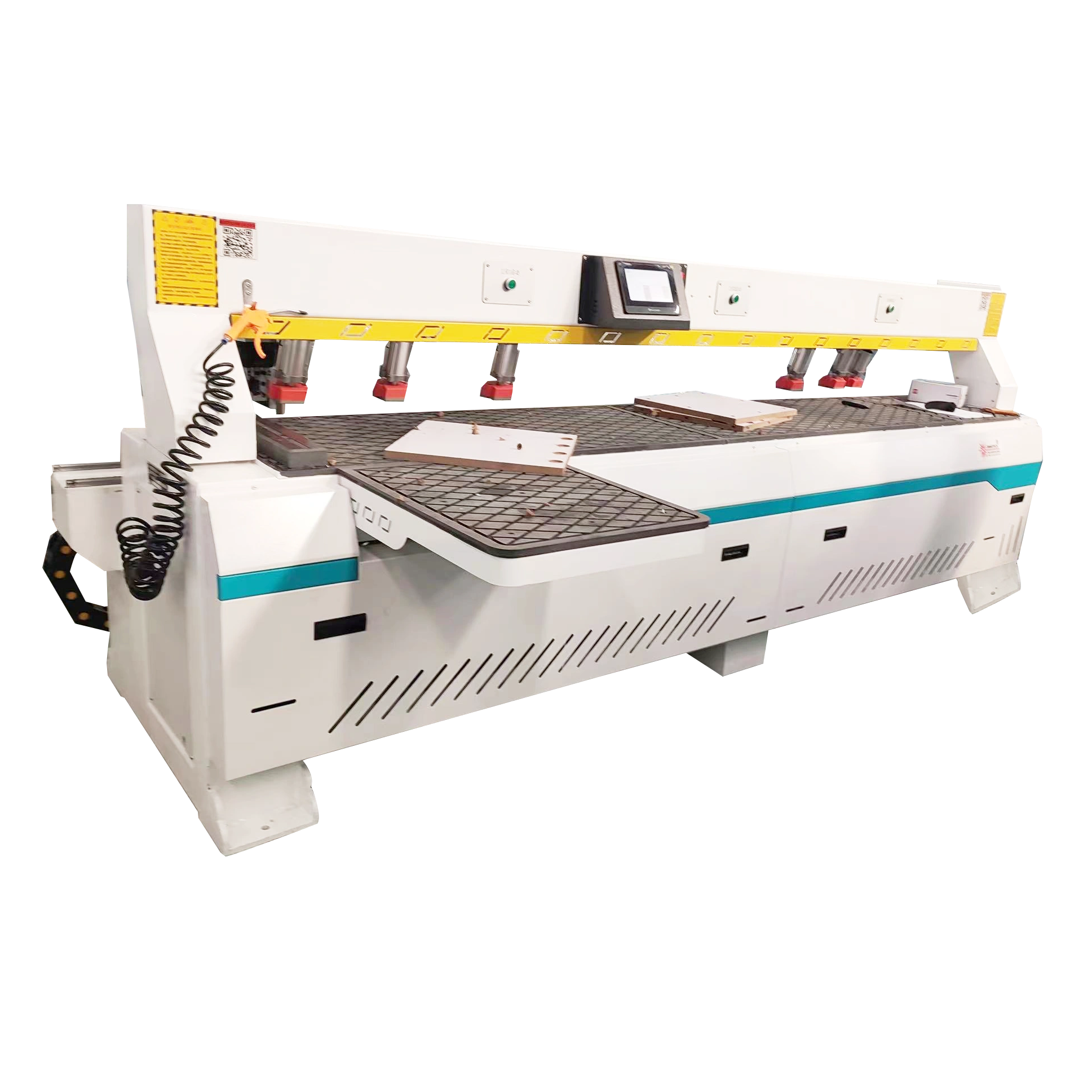

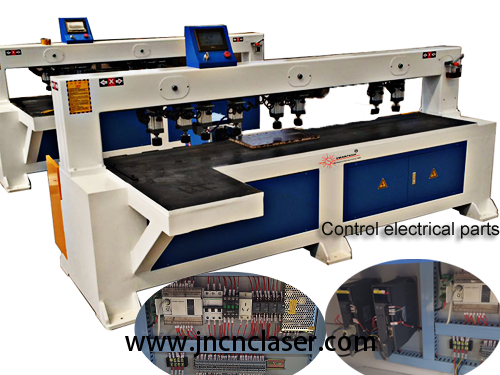

Low Cost Side/horizontal Holes Drilling pictures:

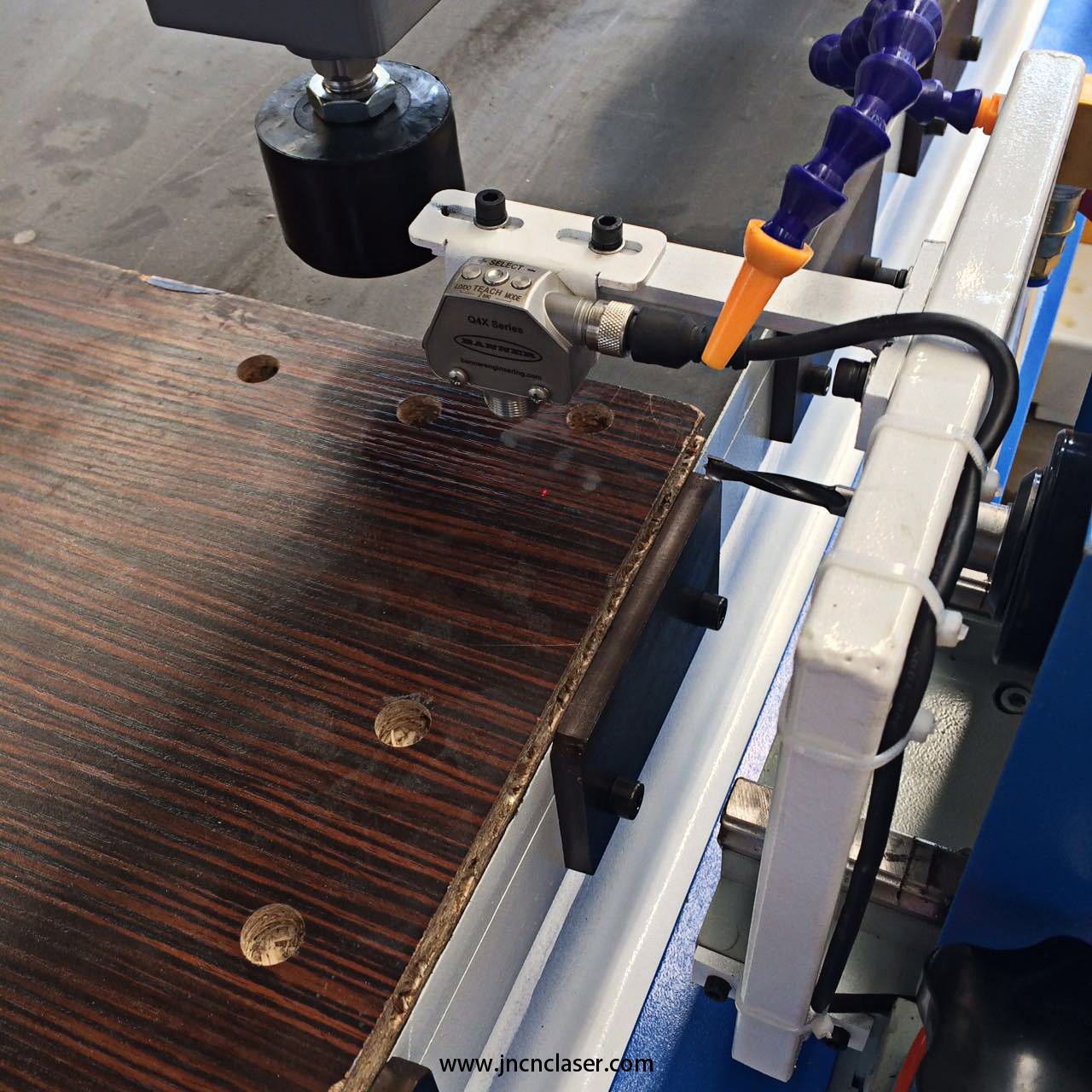

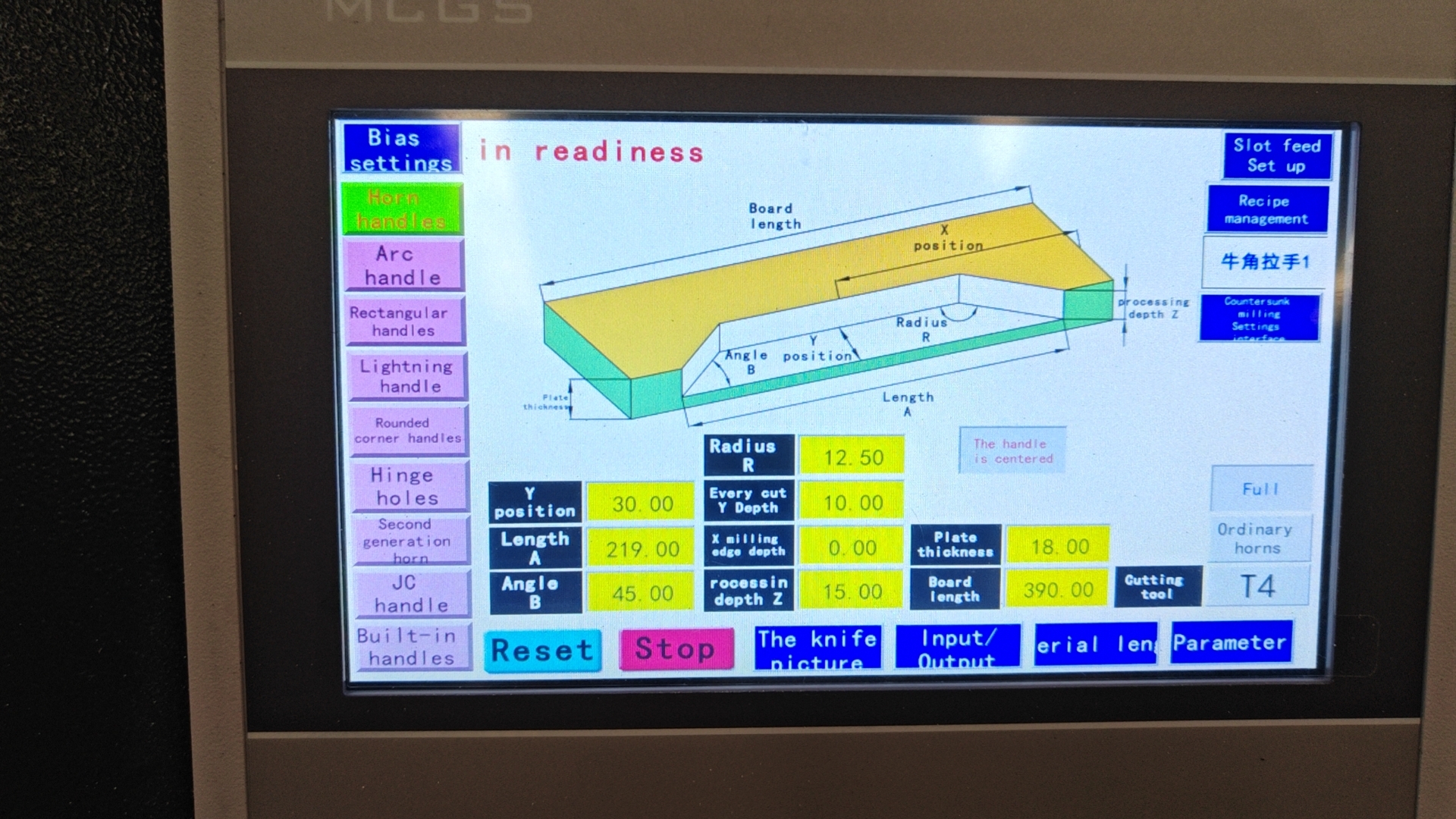

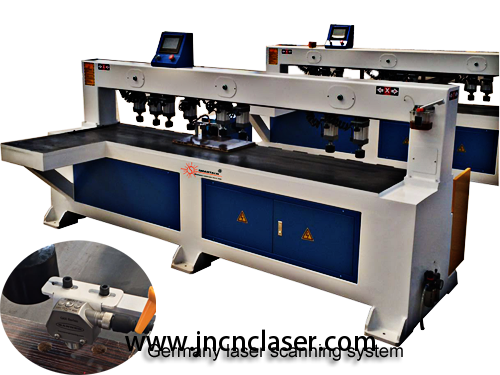

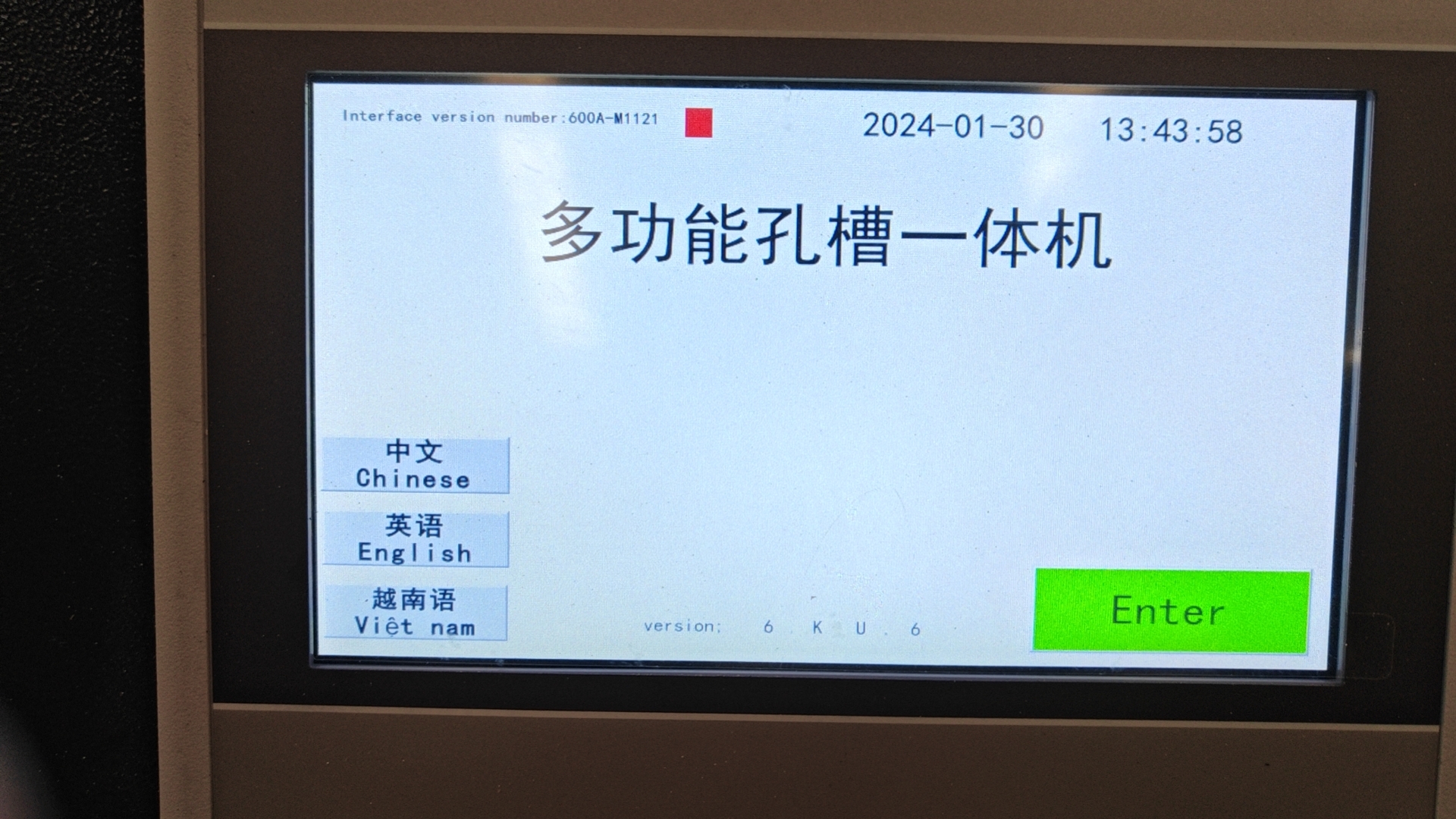

American original Banner Laser displacement sensor Auto touching control panel

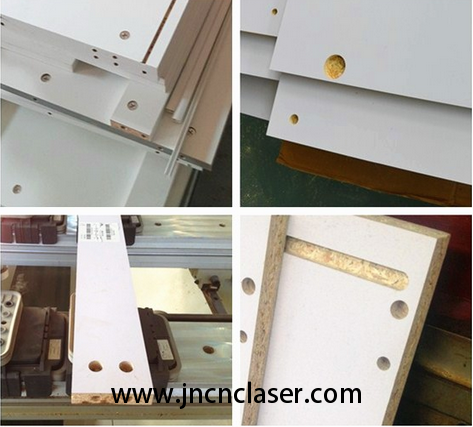

Side drilling Machine working samples:

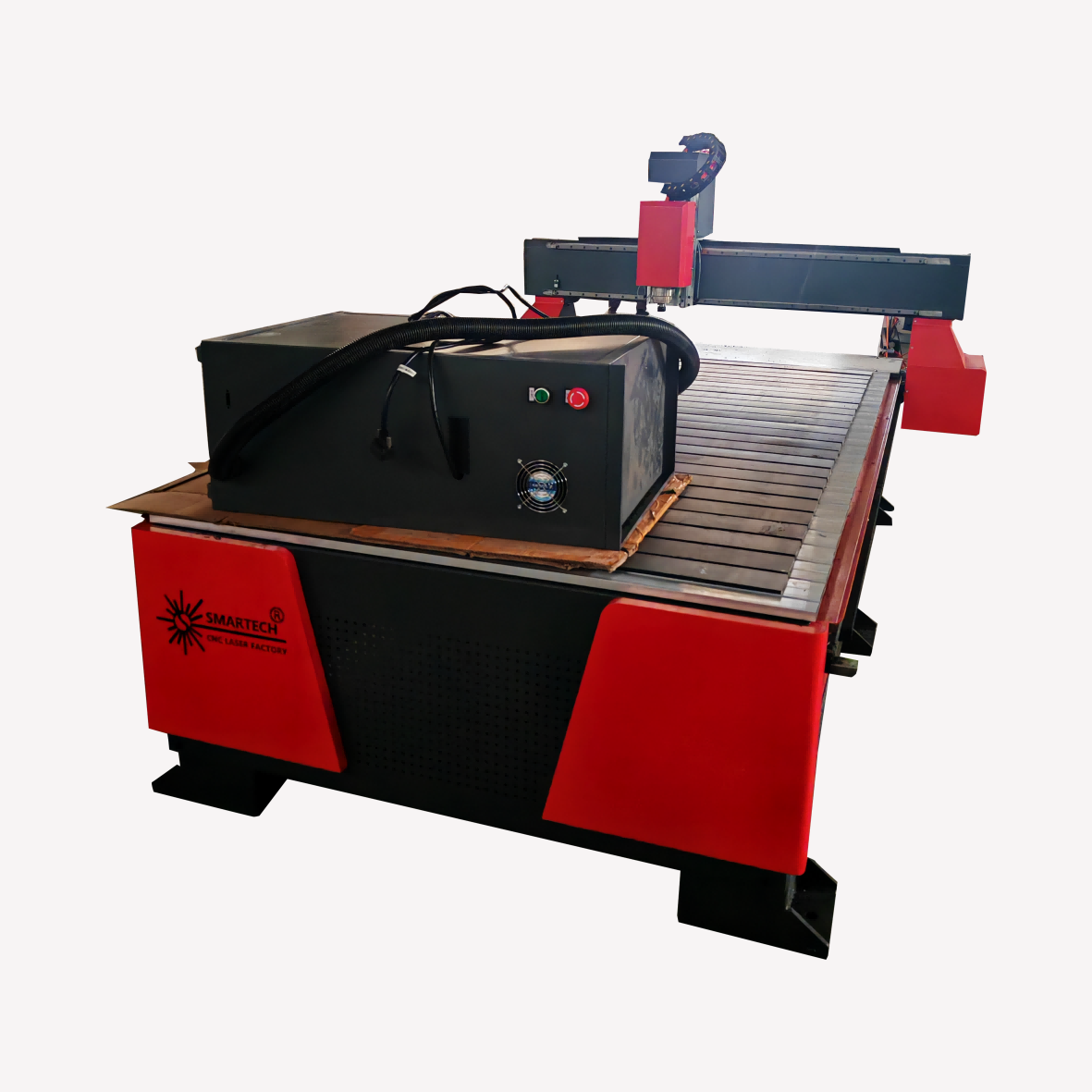

machine recommendation
CNC Side hole drilling machine video:
http://www.jncnclaser.com/videoshow-40-326-1.html
