SP1530
SMARTECH CNC LASER
5*10 FEET
45A/65A/85A/105A/120A/160A/200A
AS YOUR PREFERENCE

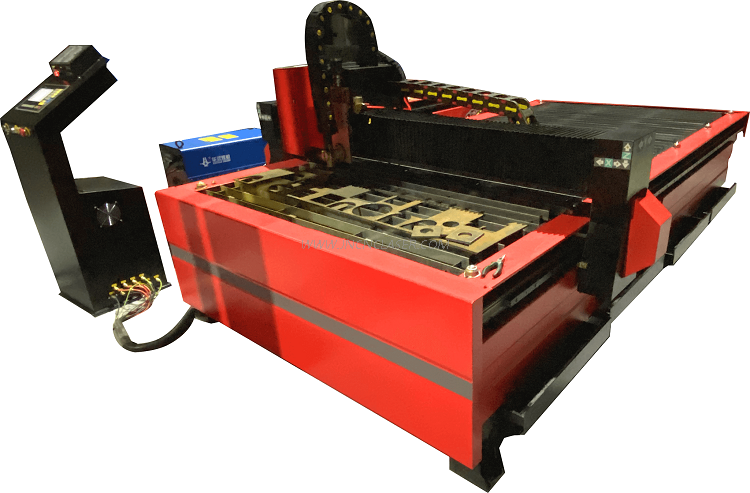

CNC Plasma Cutter for sale
Brief information of 5'x10'CNC Plasma Cutter
SSP1530 PLASMA CUTTER
Workingarea:1500x3000mm(5'*10')
---Control system:Starfire + ARC torch height control system.
---Hypertherm plasma power supply/Chinese power supply
---Gear-wheel transmission
----Square rail not round rail.
---Original TBI rails not steel plate.
----FASTCAM Control Software
------Leadshine stepper motor and drivers
----With adjustable up-down device.
---collision avoidance systerm
Parameters of 5'x10' CNC Plasma Cutting Machine
Description | SP1530 Plasma cutter | Option |
Effective cutting area(X*Y) | 1500*3000mm(5’*10’/6.6’*13’) | 4’*8’/51’’*98”etc |
Working material | Iron, steel, sheets, galvanized sheets, titanium plates etc |
|
Cutting thickness | According to materials |
|
Plasma power | Hypertherm | Chinese |
Drive Mode | Bilateral-side |
|
CNC system | Beijing START | Beijing Starfire |
Plasma cutting speed | 50-6500 mm/min |
|
Cutting torch lifting distance | 150mm |
|
Speed setting error | ≤±5% |
|
Torch height controller accuracy | ≤±1.0mm |
|
Longitudinal line accuracy | ±0.2mm/10m |
|
Motor and drivers | Stepper | SERVO |
Gearbox | Cast Iron (Better than welded) |
|
Drive Method | Rack and square rails for Y axis |
|
Rail Brand | Taiwan HIWN | PMI |
Moving Precision | 0.01mm per step |
|
Power Source | 50 Hz or 60HZ 380V | 220V/110V |
Height controller(plasma) | PHC330-Arc voltage height controller for plasma cutting |
|
Idling Cutting speed | 0-12000mm/min |
|
Input voltage | 3 phase 380V |
|
Files transfer | USB interface |
|
Arc | Untouched arc striking |
|
General machine accuracy | ±0.5mm |
|
machine recommendation
