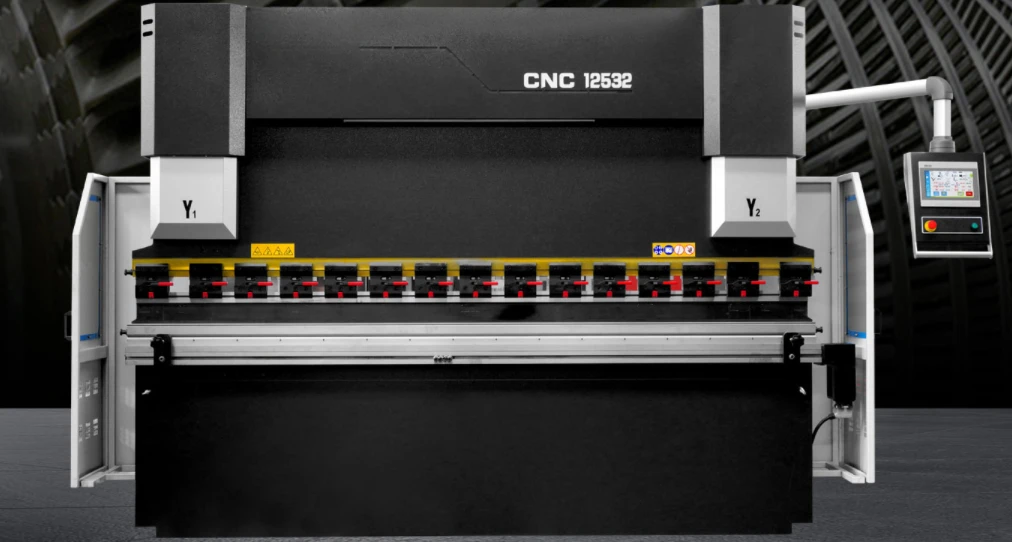

hydraulic sheet bending machine,S67K 100T3200MM iron sheet press brake bending machine

Availability:



Inquire Add to Basket

Product Description

Products Description

Parameters Table
Model	Weight	Oil Cylinder Diameter	Cylinder Stroke	Wallboard	Slider	Workbench Vertical Plate
S67K-30T1600	1.6 tons	95	80	18	20	20
S67K-40T2200	2.1 tons	110	100	25	30	25
S67K-40T2500	2.3 tons	110	100	25	30	25
S67K-63T2500	3.6 tons	140	120	30	35	35
S67K-63T3200	4 tons	140	120	30	35	40
S67K-80T2500	4 tons	160	120	35	40	40
S67K-80T3200	5 tons	160	120	35	40	40
S67K-80T4000	6 tons	160	120	35	40	45
S67K-100T2500	5 tons	180	140	40	50	50
S67K-100T3200	6 tons	180	140	40	50	50
S67K-100T4000	7.8 tons	180	140	40	50	60
S67K-125T3200	7 tons	190	140	45	50	50
S67K-125T4000	8 tons	190	140	45	50	60
S67K-160T3200	8 tons	210	190	50	60	60
S67K-160T4000	9 tons	210	190	50	60	60
S67K-200T3200	11 tons	240	190	60	70	70
WC67E-200T4000	13 tons	240	190	60	70	70
S67K-200T5000	15 tons	240	190	60	70	70
S67K-200T6000	17 tons	240	190	70	80	80
S67K-250T4000	14 tons	280	250	70	70	70
S67K-250T5000	16 tons	280	250	70	70	70
S67K-250T6000	19 tons	280	250	70	70	80
S67K-300T4000	15 tons	300	250	70	80	90
S67K-300T5000	17.5 ton s	300	250	80	90	90
S67K-300T6000	25 tons	300	250	80	90	90
S67K-400T4000	21 tons	350	250	80	90	90
S67K-400T6000	31 tons	350	250	90	100	100
S67K-500T4000	26 tons	380	300	100	110	110
S67K-500T6000	40 tons	380	300	100	120	120

Main Features:

1.Machine frame processing:A large floor boring and milling machine is used for overall processing of the bending machine frame.

2.Forced synchronization of mechanical torsion shaft: Forged material shaft body, with high rigidity and good elasticity, with fine adjustment device, weak anti-eccentric load.

3.Double servo control: Double servos each independently control Y1Y2 cylinders. The system automatically detects and corrects the position difference of Y1Y2 to achieve synchronization accuracy equivalent to electric-hydraulic servo.

4.Professional CNC system:Adopt professional CNC system: large touch screen, color display.

5.Electrical deflection compensation:Input the plate thickness and length parameters in the digital system, and the system will automatically perform deflection compensation.

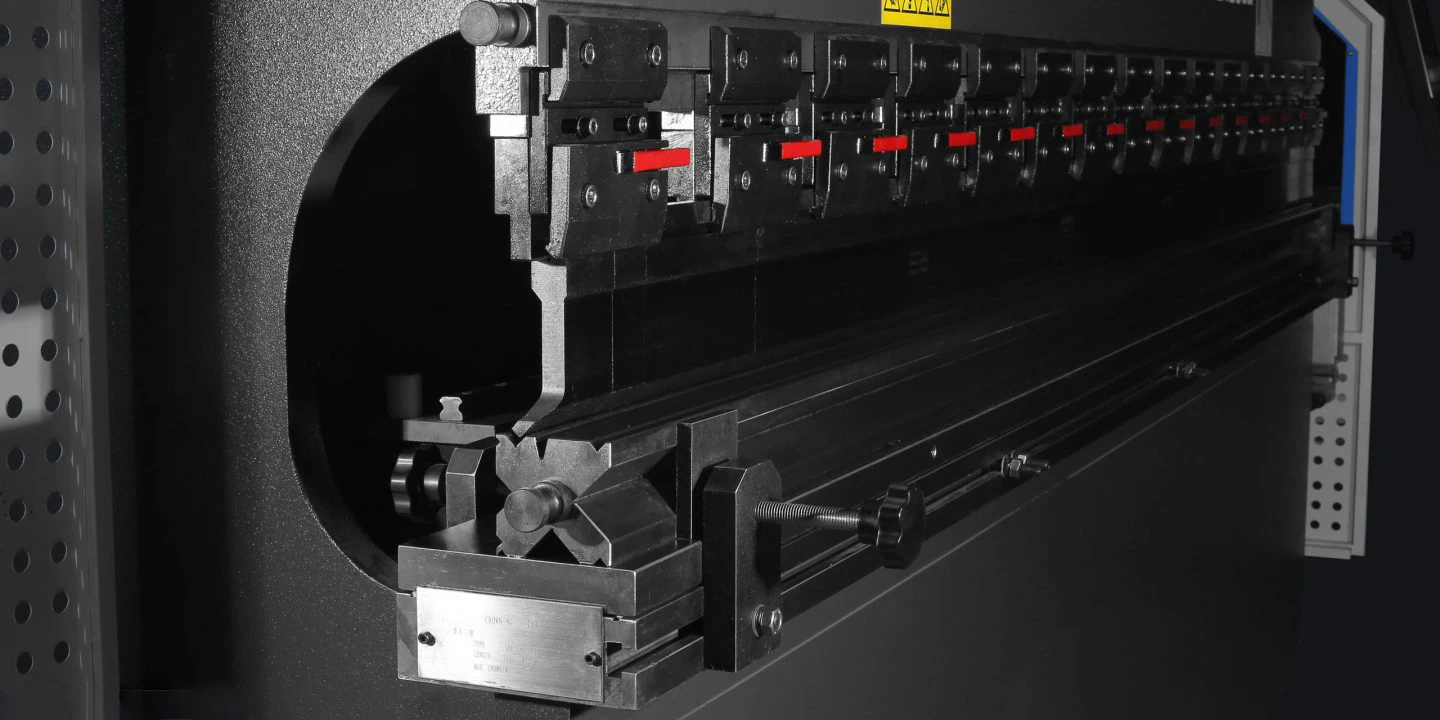

6.High-precision back gauge structure:adopts ball screw and linear guide, driven by a servo motor, the back gauge is positioned quickly and accurately.

7.The height of the finger can be adjusted manually:the height of the finger is designed by the overall adjustment, and the height of the finger can be manually adjusted.

8.Press-in mold quick clamping structure:increase the speed of mold replacement and improve work efficiency.

Product Details

Cost-effective primary CNC bending machine

Adjustable torsion shaft synchronization design, good shaft elasticity, CNC-level precision back gauge

High-quality forging die, high hardness and good toughness

The traditional forging and tempering process is used to remove air bubbles in the steel body material, and the overall hardness is improved by heat treatment.

Front pallet

Double track can be moved to improve production efficiency

Techical parameters

Item	Optional model	Manufacturer
CNC system	DA-41s/E200P/E300P	Delem/ESTUN

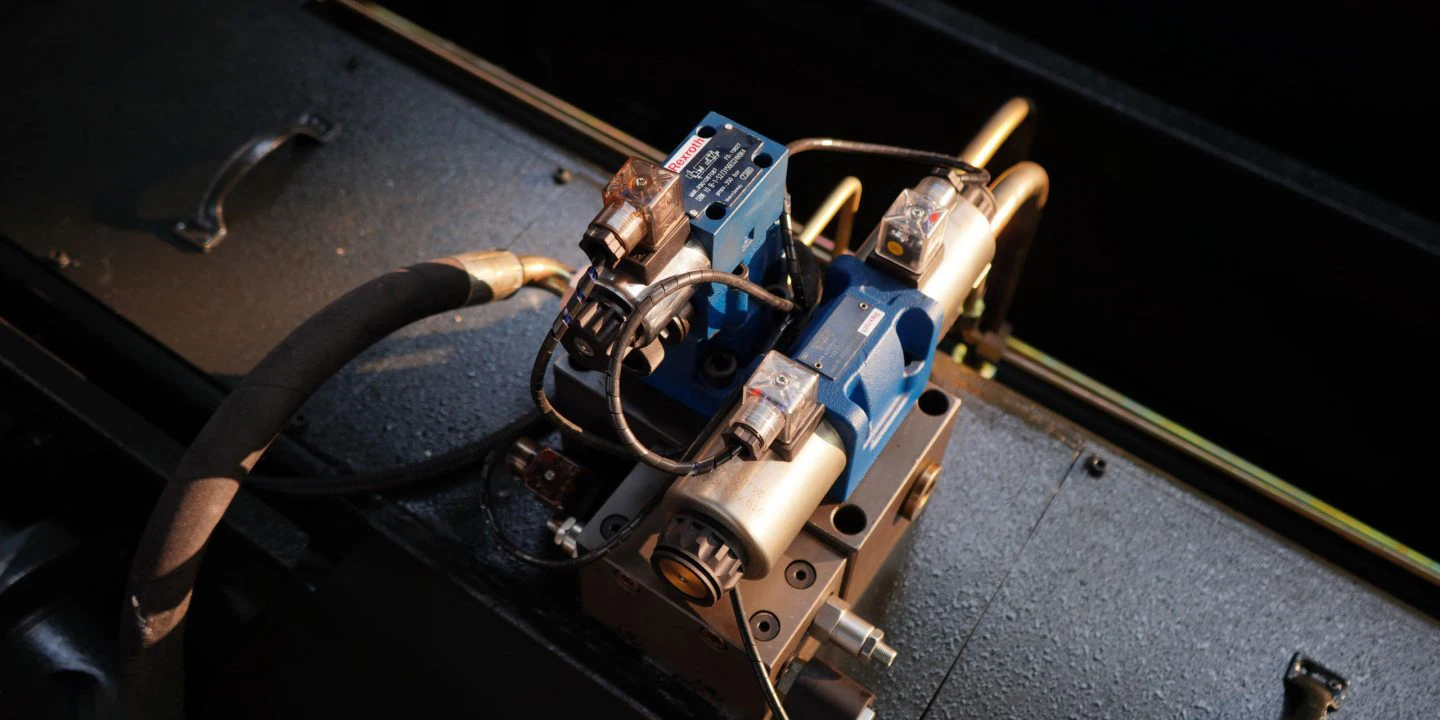

Hydraulic system	Pressure valve	Rexroth
Number of backgauge shafts	Single axis / dual axis	SMARTECH
Oil pump	Single-stage oil pump	Sunny
Main power system	AC motor	Simens/NW
Front support	Simple fixed type / single track movable type / double track movable type	SMARTECH
Security	Side (guardrail) + rear (guardrail) / side (guardrail + light curtain protection) + rear (guardrail)	SMARTECH
Deflection compensation	Electrical deflection compensation/manual mechanical deflection compensation	SMARTECH
Mold clamping	Hand pressure type upper mold clamping	SMARTECH
Electric	Schneider Relay	Schneider
Foot switch	Korea Kaikun vertical switch	Kaikun

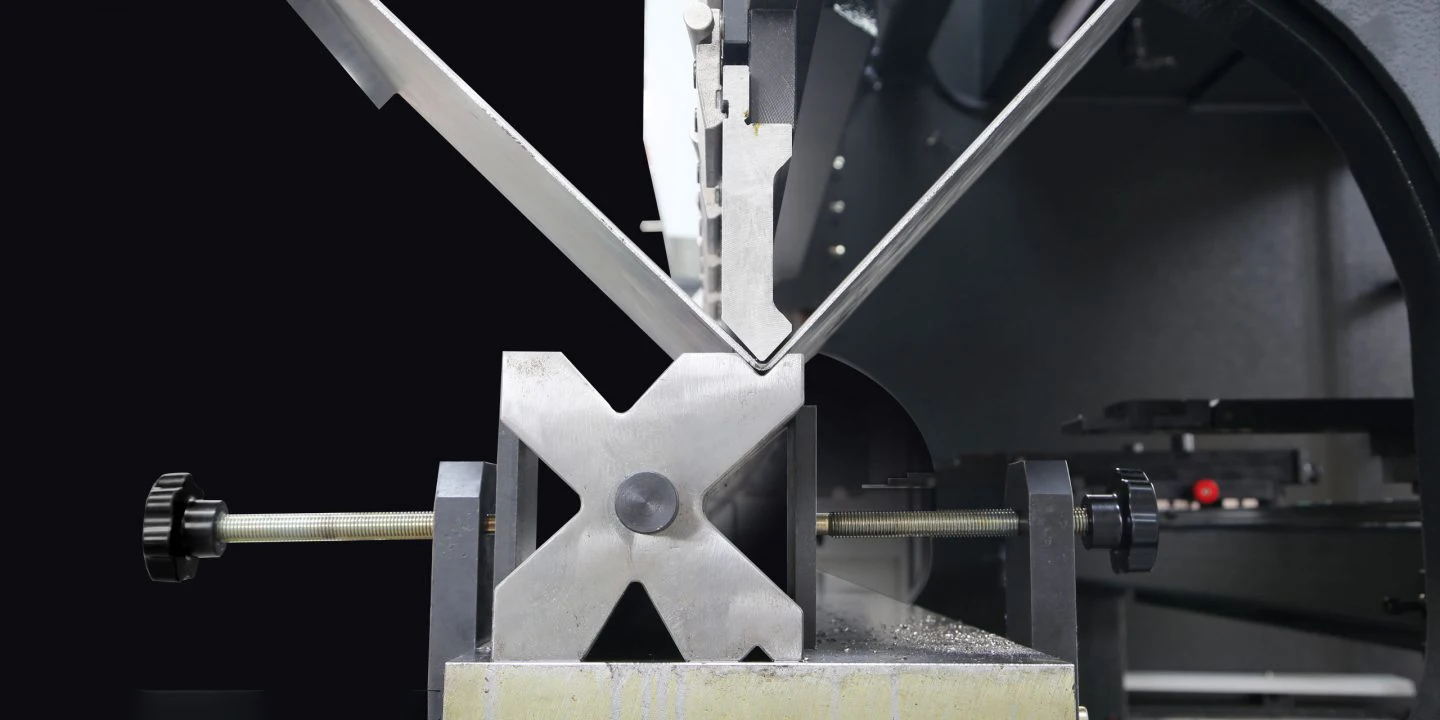

Die	Multi-V die/Dual V co-core die	SMARTECH
