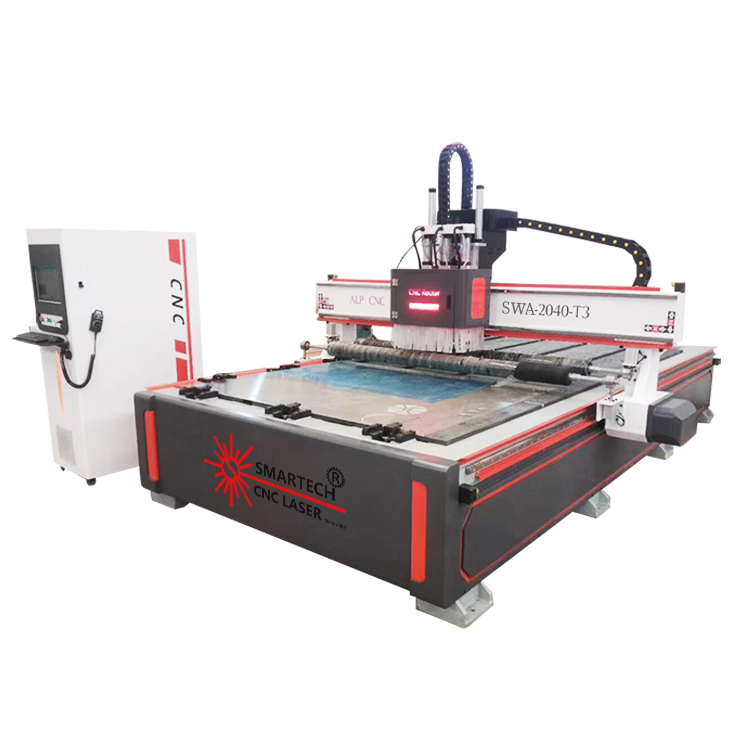

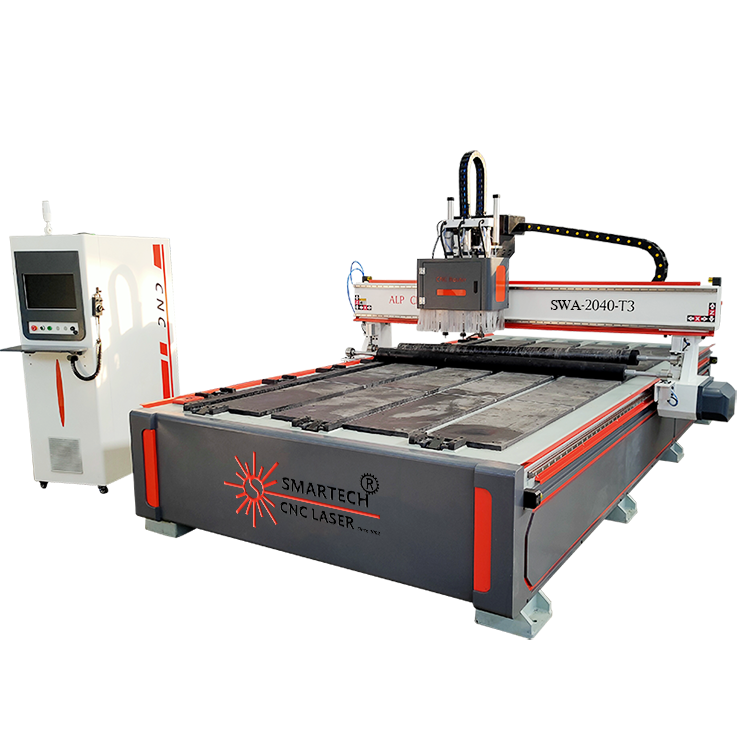

New Arrival Auto Tool Change CNC Router Aluminium SMARTECH CNC Router

  • SWP Series 1325-4 3 Axis CNC Router
  • SMARTECH
  • New Product 2020
  • 2500x1300x200mm
  • 4 * 6KW / 380V
  • red
Product Description
Application industry: Plate-type furniture,cabinet bureau,office furniture. Rough shape cutting and vertical punching process of custom furniture.
Title goes here.
SWP Series 1325-4 3 Axis CNC Router #CE standard #Working area:1300*2500*250mm #Strong Seamless Steel frame #Gear-wheel transmission for X,Y axis #Ball screw transmission imported from Germany For Z axis #servo motor and driver #3.5KW,3.5KW,3.5KW &4.5KW Air cooling spindle by pneumatic up and down #Fuling Inverter #Original NC-Studio controller #Computer one set #Schneider electronic parts for the whole machine #Dust collector(double bags with dust hood) #Lubricating system #French schneider contactor  #Tools and tool box one set #Router bit one whole box #Japan Omron limit switch #Tool Sensor(Helpful for positioning) #Pop-pin on table #Including Artcam software #Combination of T-Slot and Vacuum table #Grey air vacuum pump 5.5KW

Machine features:

1.The machine from auto loading,optimize rough shape cutting ,vertical punching to auto unloading without stopping. Working process without interruption,achieve the max efficiency output. 2.The control interface of the machine design humanization,quite easy operation.the operator can operate it just with few hours training. The machine motion agility high speed and high efficiency. It can help you achieve off-take potential leap. 3.Stable performance,it adopts some import parts,such as high-power air cooling spindle,Japan Servo drive system,Planetary Reducer,France Schneider electrical components and so on. 4.The table is double-deck vacuum suck table,it can tightly suck different area materials.
5.Could finish one whole design from the beginning to the end without stop.especially suitable for the furniture doors making.
6.Machine comes with auto pushing system,which could send toward to the front after its cutting or engraving finish.
7.Auto tool sensor could detect the cutters automatically which is much more easier for operation.
Vacuum table with pop-pin system for materials location                Strong heavy duty body                           auto feeding roller
High precision Rack gear pinion         Auto fixing clamps for aluminium plate, with Automatic obstacle avoidance function
Big towing chains                                      3 pieces special spindle for aluminium cutting        auto oiling system with cover
Auto pressor for higher precision                                                       Auto tool sensor for easier operation
Yaskawa big torque motor
Taiwan Syntec Controller
Woodworking/aluminium cutters
Specification
No. Configurations Qty Options Equipment ALP Series CNC Router for Aluminum cutting machine Machine Body: Steel Structure.Thickening of lathe bed,With high temperature heat treatment, high precision, long life Working area:1300*2500/1500x3000/2000x4000MM Weight:            2600KG      /2800KG      /3000KG PMI Rail for 3 axis   Helical tooth rack Original TBI Ball screw Speed:Idling 60-80m/min  Working speed:20m/min Rail:Y axis3.0  X,Z Axis 2.5 Yaskawa servo motor driver from Japan Fuling inverter 1 set               Delta Inverter Original ShanLong controller  1 set Standard huge computer control box 1 set Spindle power 3*7.5 KW/380V Could be customized according to your request. Spindle:air cooling (easier operation,especially for woodworking) standard Electricity parts: Original Schneider Table Special table with automatic obstacle avoidance function Ancillary attachment Standard tool sensor,Manual lubricating system     1 set level adjustment tools 6 sets Software:1 set Electricity parts: Original Schneider Collet 6 2 pieces;Collet 4 2 pieces;Spanners 2 sets 6 sets Voltage 380V/220V 1 phase/3 phase standard Package 1.Fixed film--->2.Thick protective film--->3.Standard Plywood Carton standard
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
-Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
