English
 |
SM0404
SMARTECH
8456110090
400*400MM
Features of Metal engraivng cnc machine :
1.The machine tools adopt the resin sand of high-standard stress relieving cast iron.
2.The whole body is gantry frame structure.
3.The linear lead rail of 3-axis may match x-axis.
4.The velocity of movement is fast and the reaction is sensitive.
5.Equipping with the delicated system of high speed engrave milling machine and high speed constant power electric spindle.This makes high precision of processing and good smoothness.
6.Geometric precision and motion precision all proceeded strict laser detect and ball sensing instrument of searching circle detect to guarantee the quality of machine tools.
7.The machine adopts high precision ball screws of Taiwan,straight line rolling lead rail,locking screw nuts,importation twin axletrees and coupler.The retentivity is good.
8.The reaction is sensitive with big torque force of drive motor.
9.It is fit for processing rough,refined and high speed machining.
Application of cnc machine for engraving:

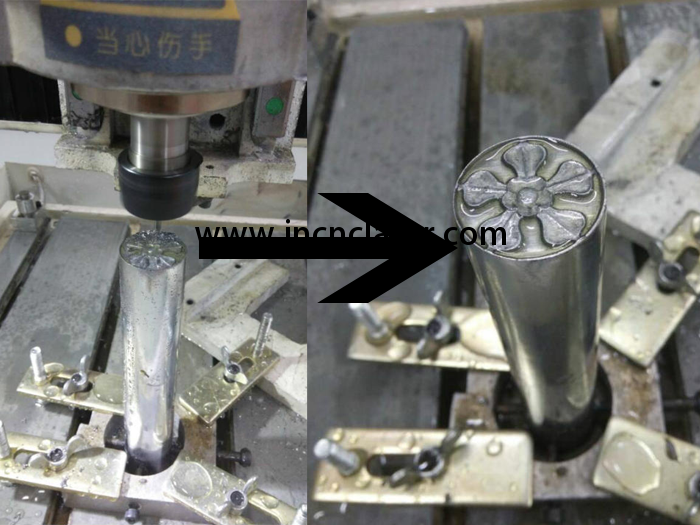

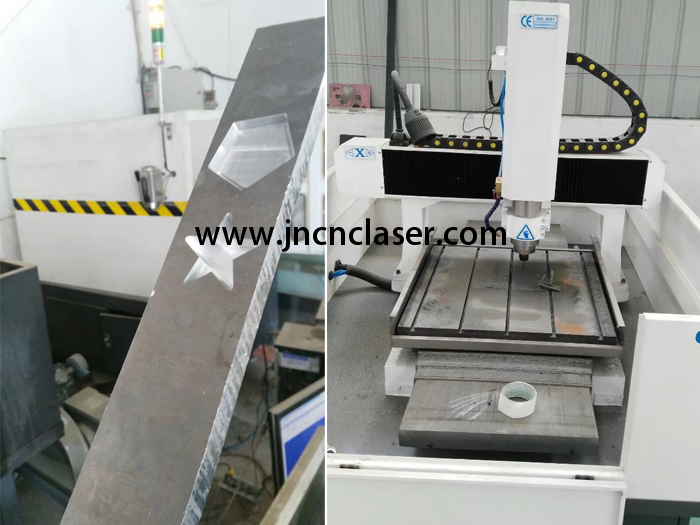

1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2.It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3.Especially designed for engraving and milling molds,eyeglasses,watch,panel,badge,brand, graphics and words of three-dimensional
and outside surface's sleeking of large size.
CNC Moulding Machine parameters:
No | Description | Parameter | Option |
1 | X,Y,Z Working Area | 400*400*350mm(400mm) | 600x600mm |
2 | Table size | 450*450mm | 650x650mm |
3 | X,Y,Z Working Area | ±0.03/300mm |
|
4 | X,Y,Z reposition Accuracy | ±0.02mm |
|
5 | Table Surface | T-slot Extrusions |
|
6 | Frame | Cast steel |
|
7 | X, Y Structure | Ball Screw |
|
8 | Z Structure | Taiwan HIWIN Rail Linear Bearings and Ball Screw |
|
9 | Spindle | 3.0KW | 4.5/5.5KW/ATC Spindle |
10 | Spindle speed | 24000rpm | 28000RPM |
11 | Max. Rapid Travel Rate | 4500mm/min |
|
12 | Max. Working Speed | 4000mm/min |
|
13 | Drive Motors | Stepper motor | Servo motor |
14 | Working Voltage | AC220V/50HZ/60HZ | AC380/50HZ/60HZ |
15 | Command Language | Command HPGL,G code,u00*,mmg,plt |
|
16 | Operating System | DSP | Weihong NK200 |
17 | Interface | USB |
|
18 | Flash Memory | 128M( U Disk) |
|
19 | Collet | ER16 | Er25 |
20 | X,Y Resolution | <0.01mm |
|
21 | Software Compatibility | Original Type3 software |
|
22 | Running Environment | Temperature: 0°C~45°C |
|
23 | Packing Size | 910X880X850mm for SM0404-1
| 1120X880X1050mm for SM0404-2 |
24 | Net weight | 900kg for SM0404-1
| 1500kg for SM0404-2 |
>>>>>>Fill in the below form to get more information !!!
>>>>>>
