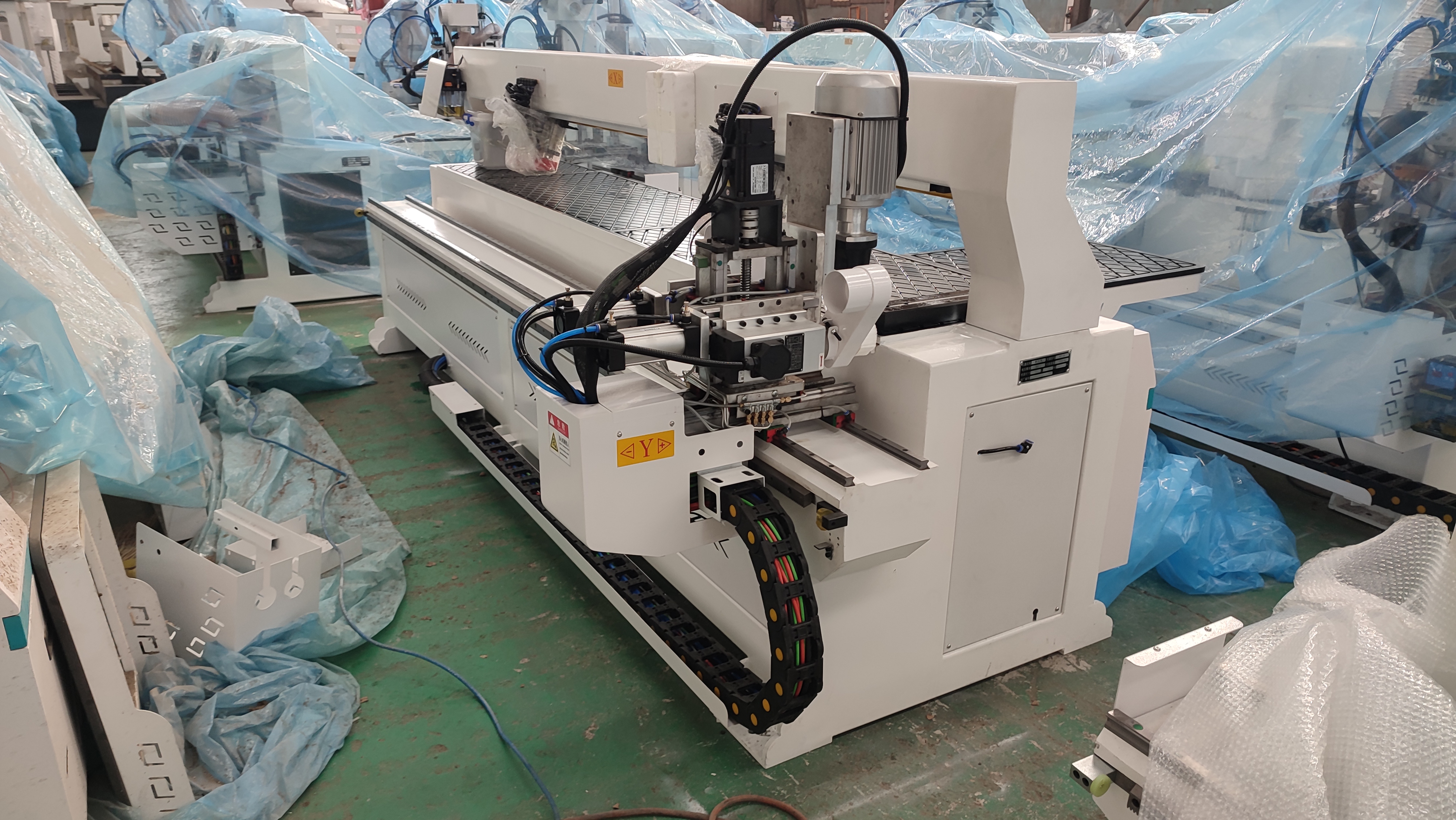

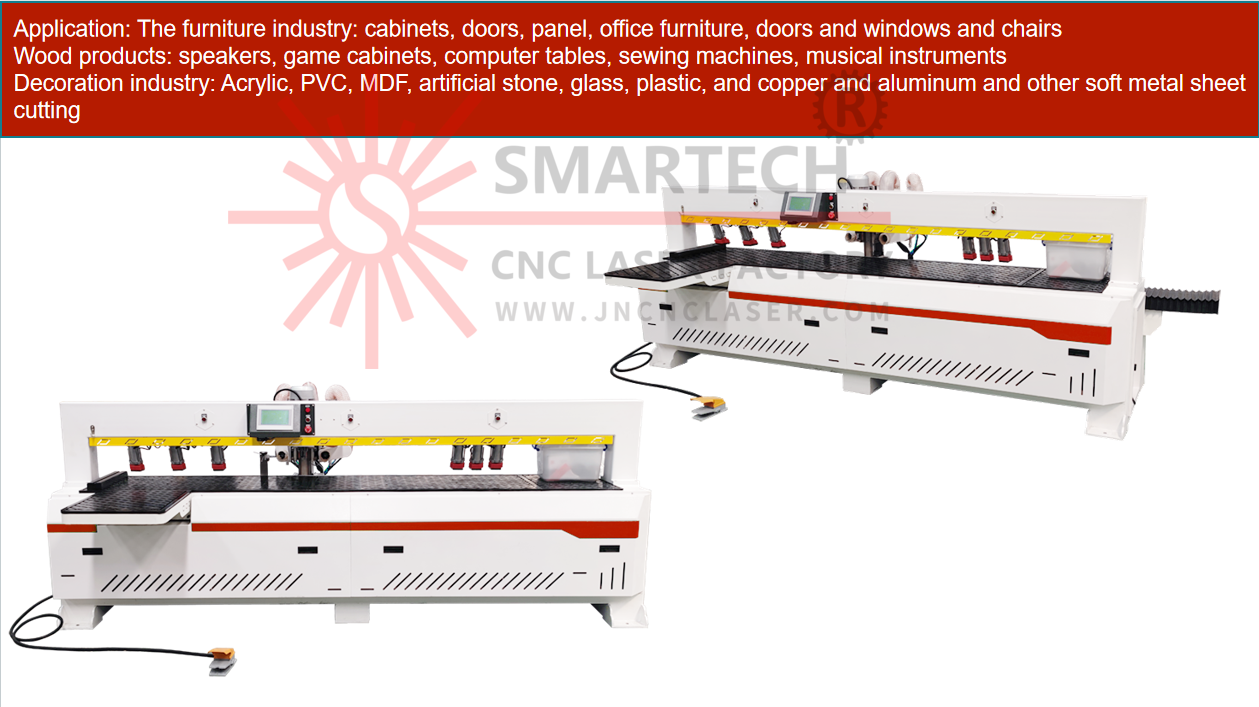

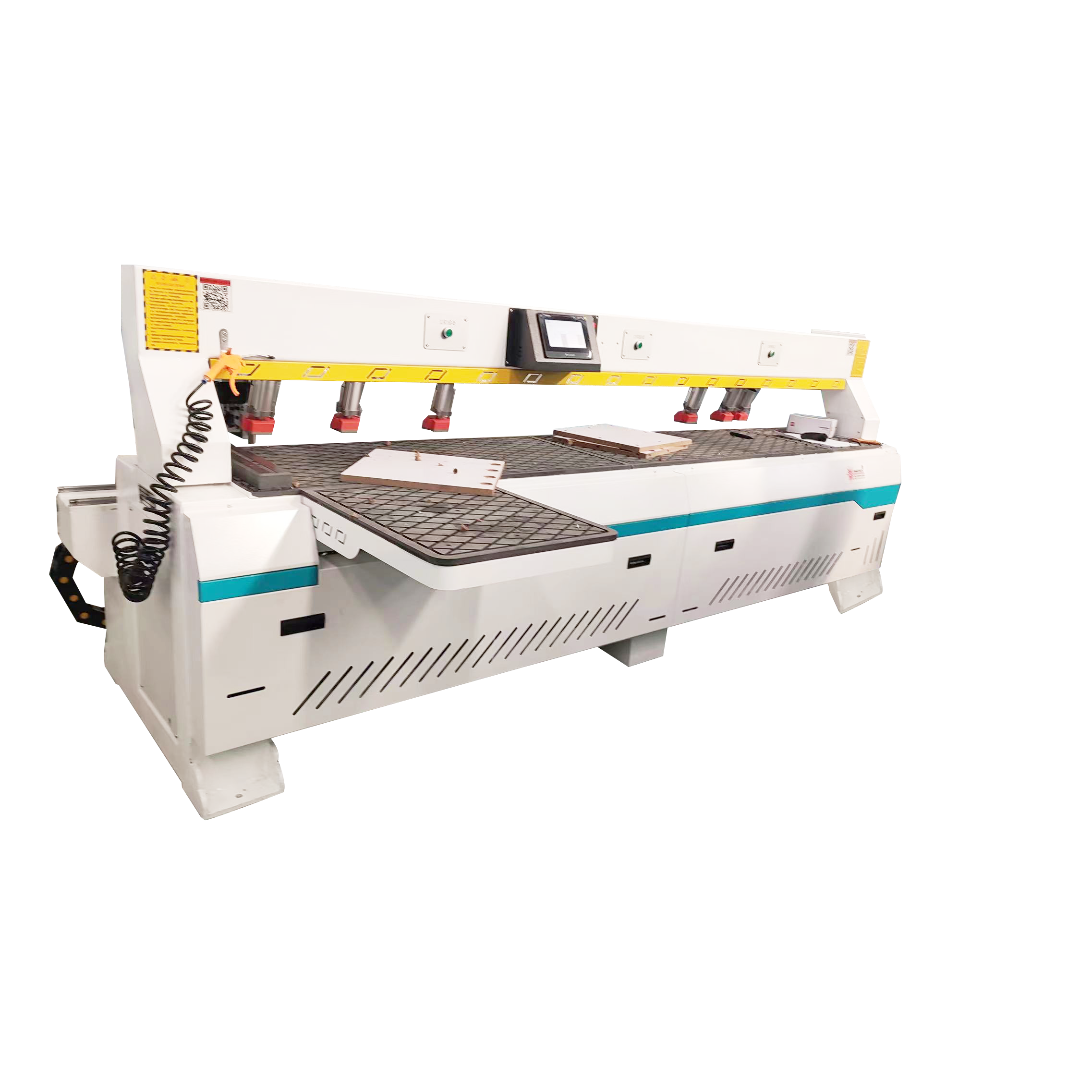

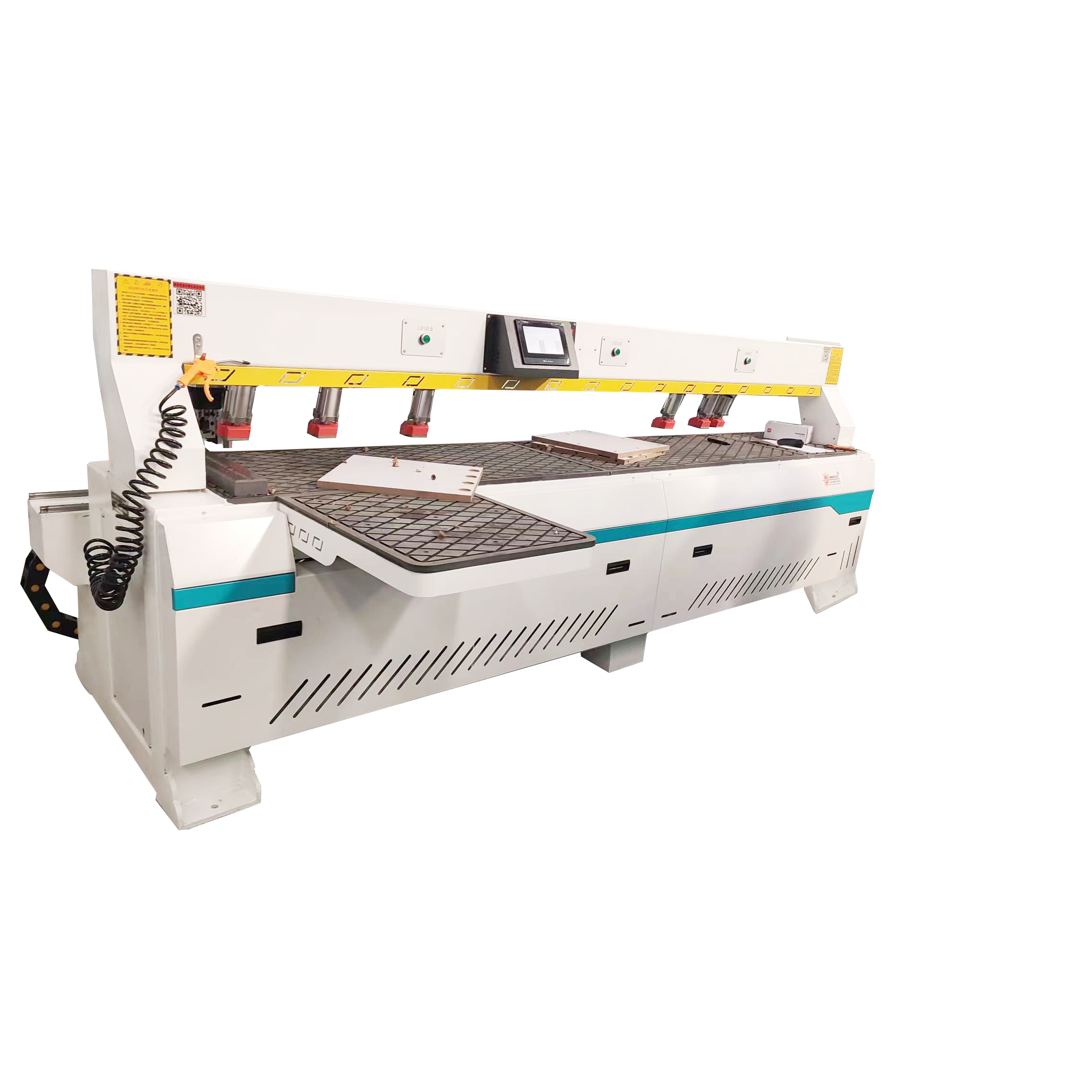

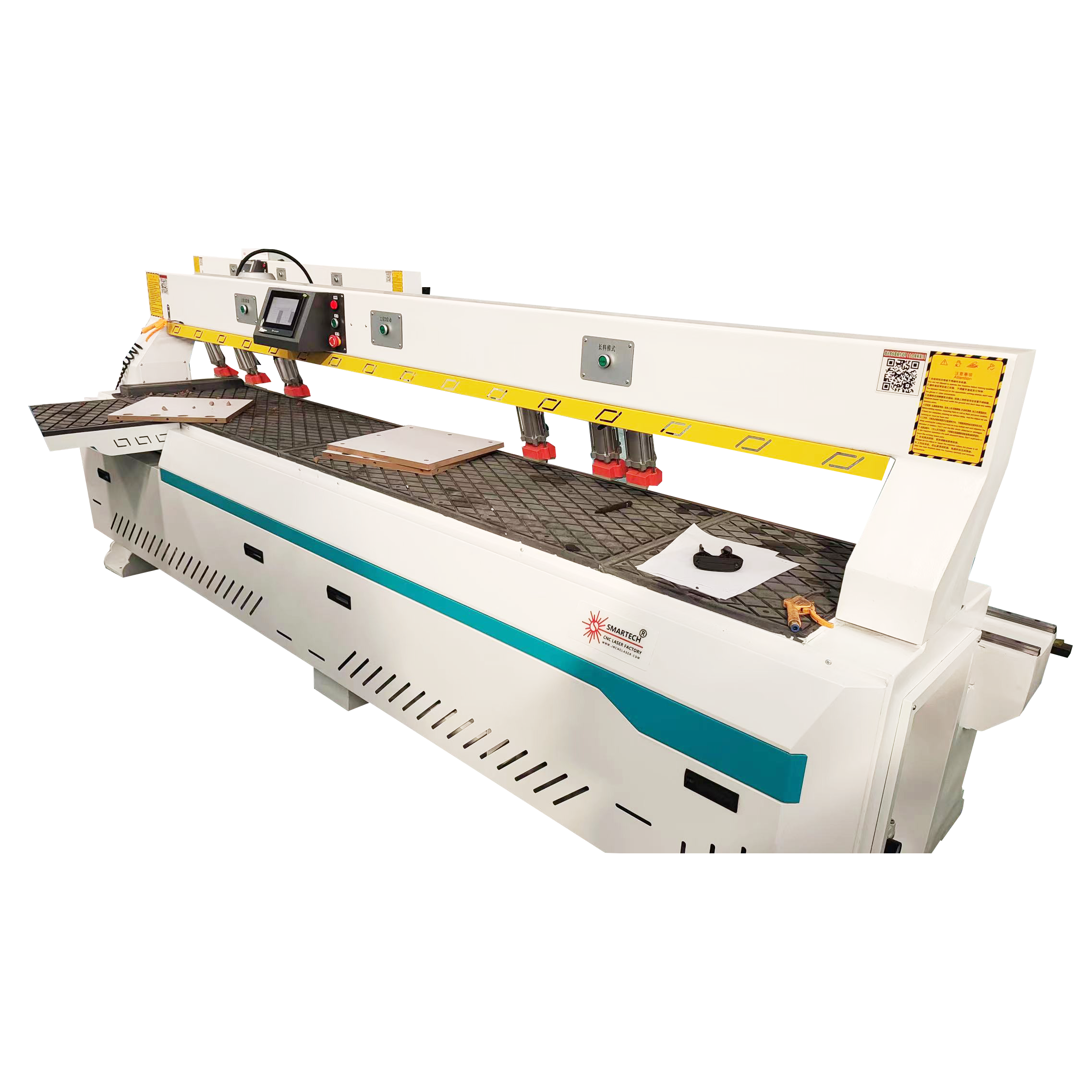

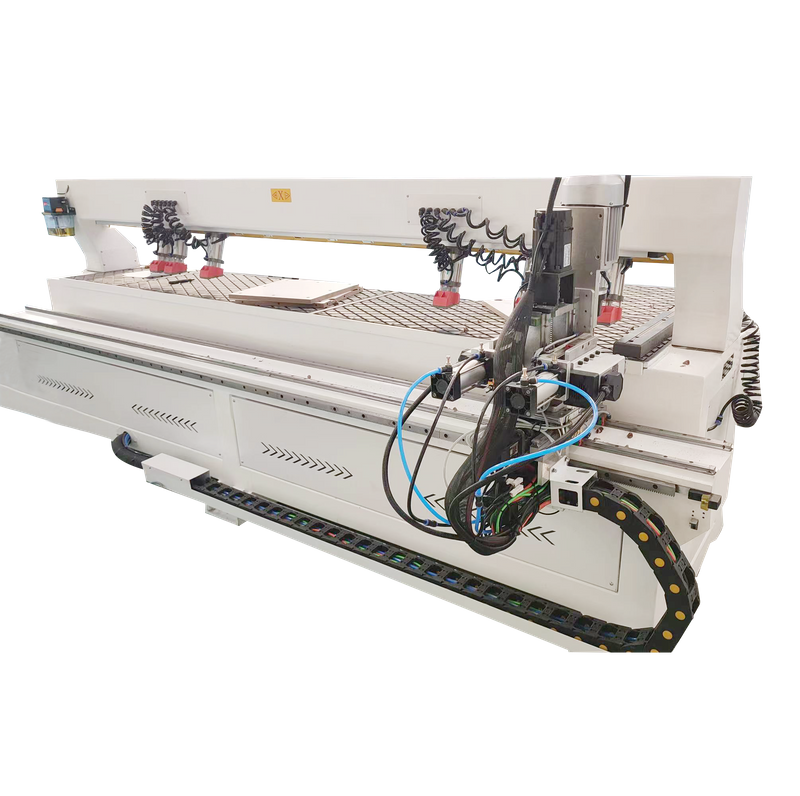

All In One -Side Punching Hinge Drilling machine

COMMODITY&DESCRIPTION

SD1528 All In One Side punch vertical drilling machine Brief Info

Machine working Length:2800 mm

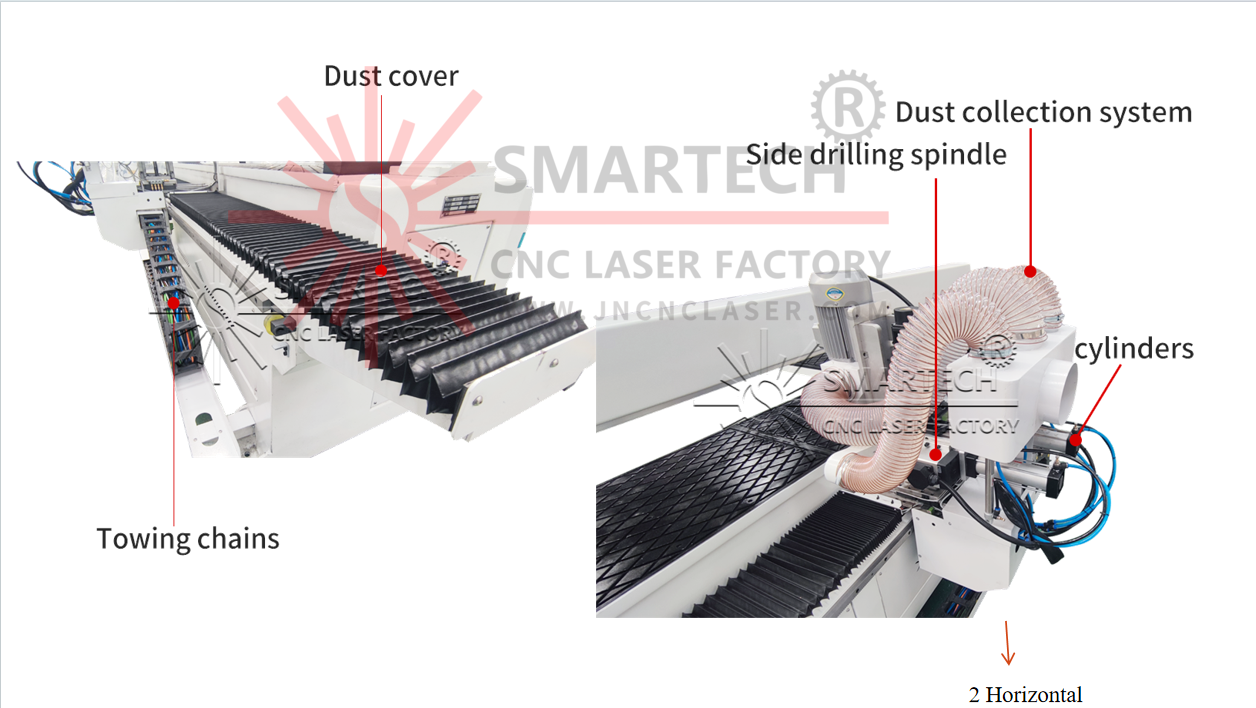

2 Horizontal head+1 vertical hinge head

Minimum work piece length and width:100*50mm

3.5 KW Spindle x 2 pieces

3.7KW Fuling inverter

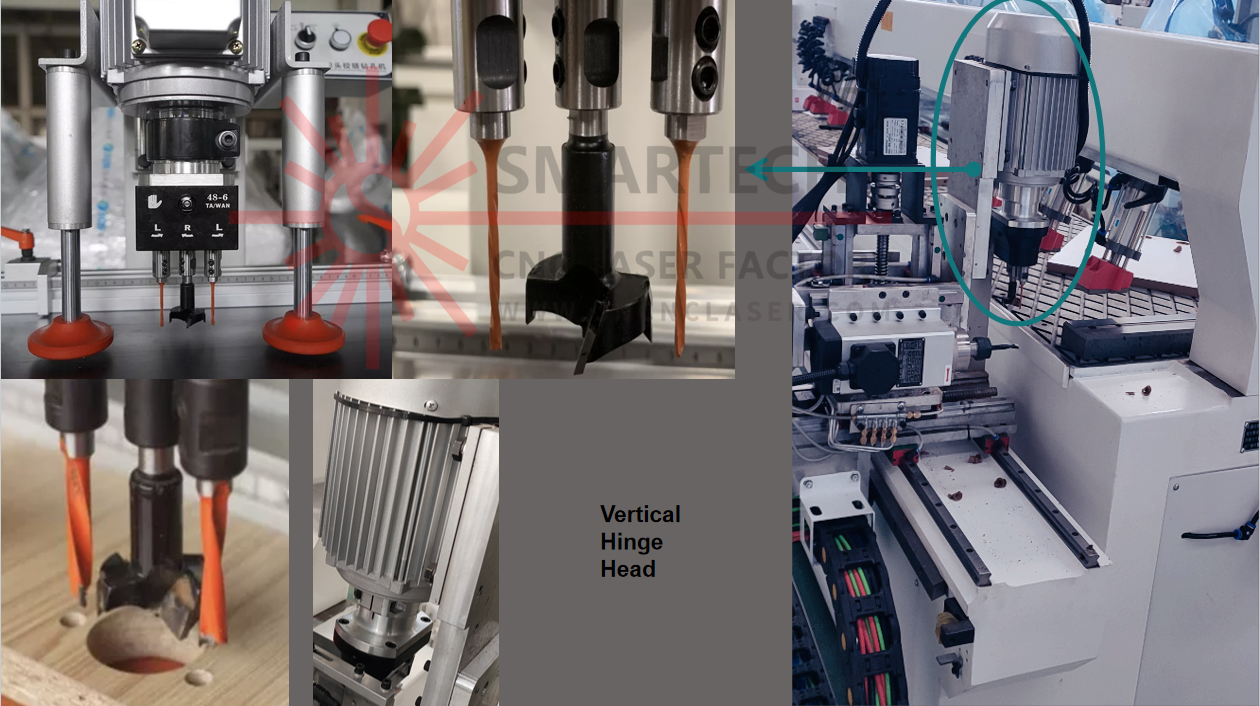

Vertical Hinged Drilling Head

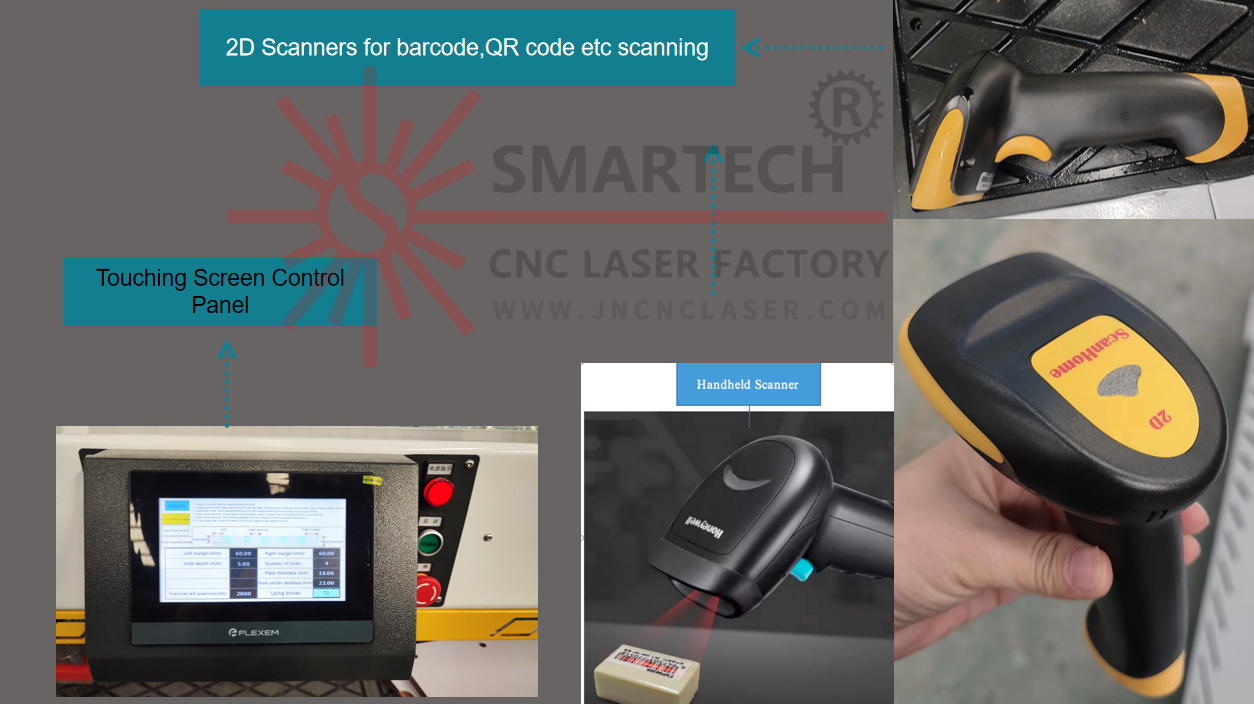

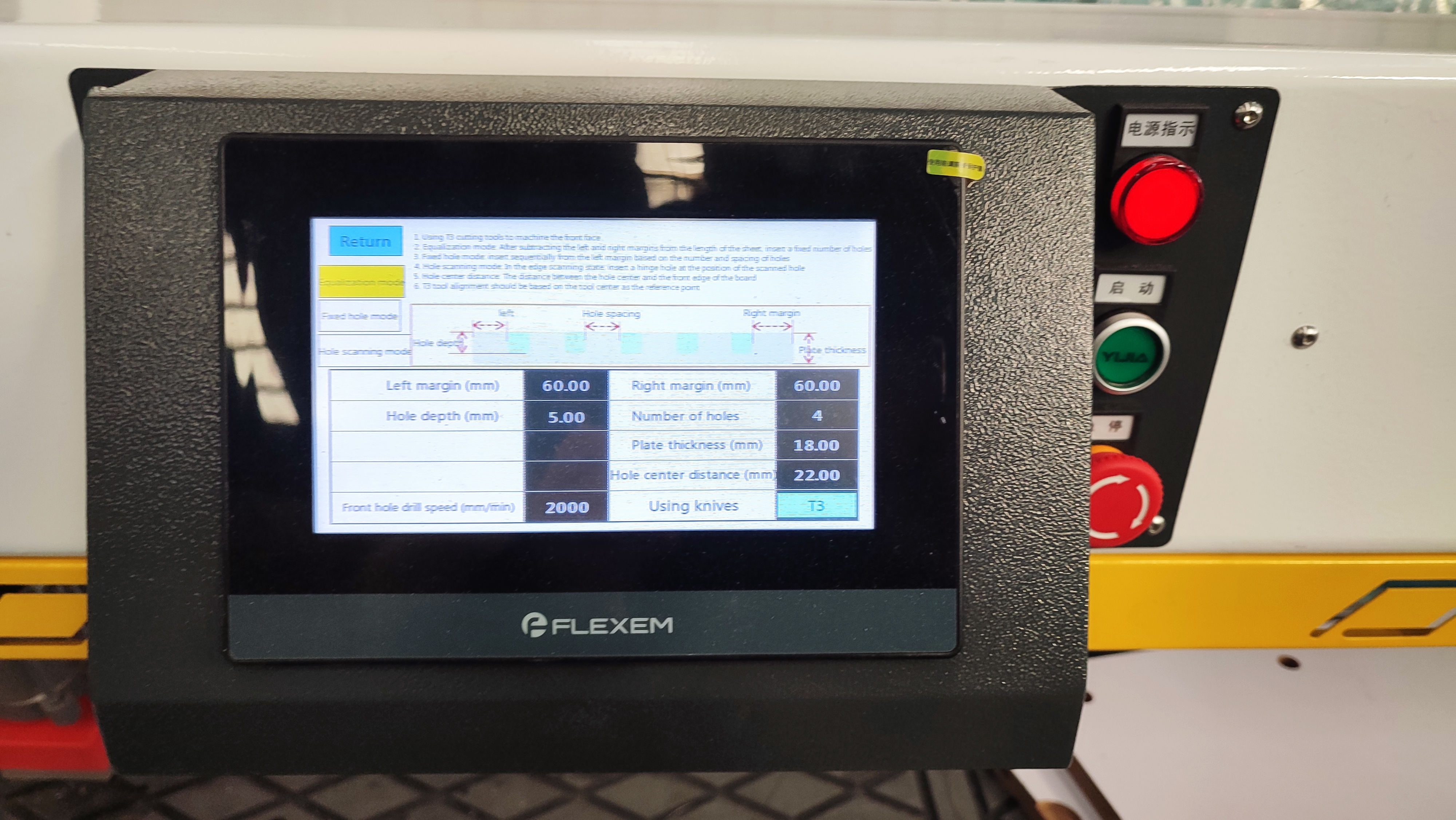

Touchwin controller (touching panel)

Automatic positioning

American original Banner Laser displacement sensor

Servo motor driver

Y movement: Rack and pinion, gear drive/Taiwan

Z movement:Pneumatic cylinder

Dedicated positioning device

oil lubrication system

Laser Scanner
