Applicable materials
Leather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, acrylic board, rubber, cloth, fabric,
gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, carpets materials, car mat materials, sponge, PU, EVA, XPE, PVC, PP,
PE, PTFE, ETFE and composites.
Advantages

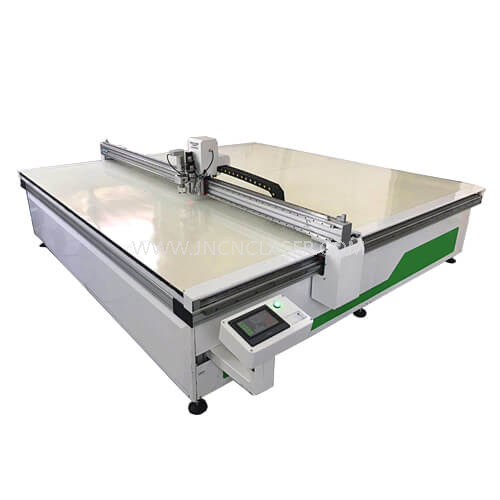

SMARTECH CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining
speed and accuracy.
The machine adopts blade cutting,@ fast speed, @environmentally friendly smoke-free,@ no odor during processing,@ light-colored materials will not
change color on the focal side, and can @ completely replace the laser cutting machine!
Model | SO-1625 | |
FOB Qingdao price | ? Contact us for price. | |
Knife tools include | Oscillating knife；V-cut；Increasing tool；CCD camera,Milling tool,universal cutting tool,kiss cutting tool,driven rotary tool,pneumatic oscillating cutting tool for options. | |
Working table | Fixed working table | |
Working area | 1600*2500mm | |
Material fixed way | Vacuum suction system | |
Cutting speed | 0-1,500mm/s(according to different cutting materials) | |
Cutting thickness | ≤25mm | |
Cutting accuracy | ≤0.1mm | |
Drive system | Yaskawa servo motor and driver | |
Transmission system | PMI linear square rail and Megaoyne belt | |
Instruction system | HP-GL compatible format | |
Vacuum pump power | 9.0KW | |
Graphic format supported | PLT, DXF, AI, etc. | |
Compatible | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. | |
Safety device | Infrared sensors and emergency stop devices double protection. | |
Connection | Network port | |
Working voltage | AC 220V±10%, 50Hz/60Hz | |
Package | Wooden case | |
Machine size | 3350×2100×1200mm | |
Packing Size | 3500×2180×1400mm | |
Net weight | 1500KGS | |
Gross weight | 1600KGS | |
Wide kinds of knife cutting machine working samples
