SJ1325/1530/2030
SMARTECH
AS YOUR PREFERENCE

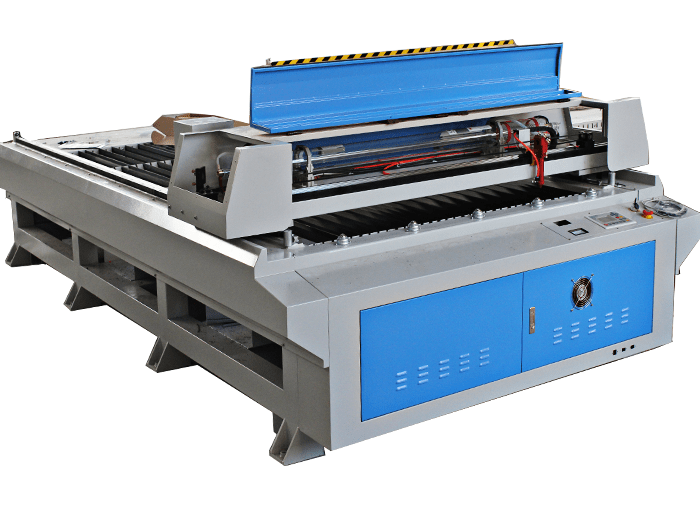

Big Size Laser Cutting Engraving Machine Information:
Application industries:
art gift,advertisement decoration,toy,electron element,cutting template,paper product,stamp and other industries
Application materials:
bamboo,paper,plexiglass,acrylic,marble,jade,crystal.acrylic sheet,paper and so on
Big size laser cutting machine details:
Control box :
Mirrors--lighting system
Guide rails:
water proof to protect operators' safety
details power switch
Lubricating system
Strong structure:
Big Size Laser Cutting Engraving Machine Parameters:
NO. | Description | Parameter | |
1 | Working area | 1300X2500/1500x3000/2000x3000/2000x4000mm | |
2 | Laser power | 80/100/130/150/260/280W | |
3 | Cooling Mode: | Circulating-water-cooling | |
4 | Power Adjustment | 0-100% controlling, no segment and adjusting by software | |
5 | Machine Control and Drive | Ruida controller with WIFI internet, Leadshine stepper | |
6 | Repeating Location | 0.001mm | |
7 | Max Power | 750W | |
8 | Adjustable Up-down Distance of Laser Head | 30mm | |
9 | Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) | |
10 | Engraving speed | 0-60000mm/min | |
11 | Engraving Depth | 0-3.5mm | |
12 | Minimum shaping character | " Chinese: 0.2×0.2mm English: 0.05×0.05mm" | |
13 | Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages | |
14 | Resolution ratio | 0.025mm | |
15 | Power supply | AC220V± 15%，50Hz | |
16 | Resetting positioning accurate | <0.01mm | |
17 | Number of hanged line | 68Line | |
18 | Operating system | RD Works/laser cut | |
19 | Gross Power | 1.6Kw | |
20 | Operating temperature | 0-45℃ | |
21 | Operating humidity | 5-80%(free of condensed water) | |
22 | Graphic format supported | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting | |
23 | Optional parts | *Rotary Device *Up down table | |
24 | Packing | *Firstly Packed the machine with plastic sheet for clearing and damp proofing. *Secondly Then put the machine in the plywood case for safety. *Thirdly Transport the plywood case into the container. |
machine recommendation
Machine working video link here:
http://www.jncnclaser.com/videoshow-41-76-1.html
