Laser welding technology has become increasingly popular in metal fabrication due to its advantages of high precision, fast welding speed, low deformation, and excellent weld appearance.
However, during actual operation, many users may encounter a common issue:
“Why does my laser welding machine produce black smoke during welding?”
Black smoke not only affects the working environment but may also indicate incorrect welding parameters, material contamination, improper gas protection, or optical component problems. Understanding the causes and solutions can help improve welding quality and extend machine lifetime.
During laser welding, the high-energy laser beam melts the metal surface and forms a molten pool. Under normal conditions, laser welding produces a stable welding process with minimal spatter and smoke.
However, excessive heat input, surface contamination, or unstable welding conditions can cause excessive metal vaporization and oxidation, resulting in black smoke or welding fumes.
The main causes include:
Cause | Explanation |
|---|---|
Excessive Laser Power | Too much energy causes excessive metal evaporation and produces more smoke |
Low Welding Speed | Long heat exposure increases material vaporization |
Dirty Material Surface | Oil, rust, paint, and oxide layers burn during welding |
Incorrect Shielding Gas | Insufficient gas protection allows oxidation |
Damaged Protective Lens | Reduces laser transmission and affects welding stability |
Improper Focus Position | Causes unstable energy distribution |
One of the most common reasons for black smoke is incorrect parameter settings.
When laser power is too high or welding speed is too slow, excessive heat is concentrated in the welding area. The material may evaporate rapidly, creating a large amount of metal vapor and smoke.
Problem | Result |
|---|---|
Laser power too high | Excessive melting and vaporization |
Welding speed too slow | More heat accumulation |
Incorrect focus position | Unstable welding pool |
Wrong wire feeding speed | Poor weld formation |
✓ Reduce laser power appropriately
✓ Increase welding speed
✓ Adjust focus position
✓ Test parameters according to material thickness

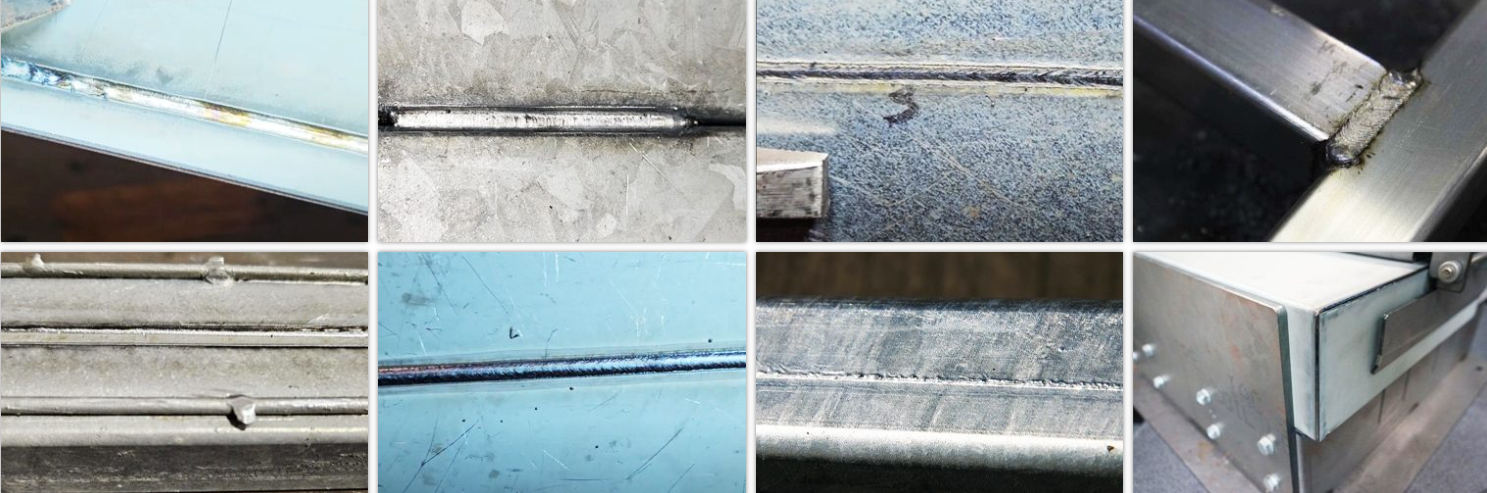

The cleanliness of the welding material directly affects welding quality.
Oil, dust, rust, paint, and oxide layers can burn during laser welding and create black smoke.
Common contaminated materials:
Stainless steel with oil residue
Aluminum with oxide film
Galvanized steel with zinc coating
Painted metal surfaces
For example, galvanized steel can generate significant fumes because the zinc coating vaporizes at a much lower temperature than steel.
Before Welding | Benefit |
|---|---|
Remove oil and grease | Reduce smoke generation |
Clean oxide layers | Improve weld stability |
Remove coating near weld area | Reduce vaporization |
Keep materials dry | Improve welding quality |
Shielding gas plays an important role in protecting the molten pool from oxygen contamination.
Incorrect gas flow can cause:
Increased oxidation
Dark weld appearance
More smoke generation
Reduced weld strength
Gas | Application | Features |
|---|---|---|
Argon (Ar) | Stainless steel, aluminum | Excellent protection and stable welding |
Nitrogen (N₂) | Some stainless steel applications | Cost-effective protection |
Helium (He) | High-performance welding | Better heat transfer |
✓ Check gas pressure regularly
✓ Ensure correct nozzle position
✓ Avoid insufficient gas coverage
✓ Keep gas flow stable

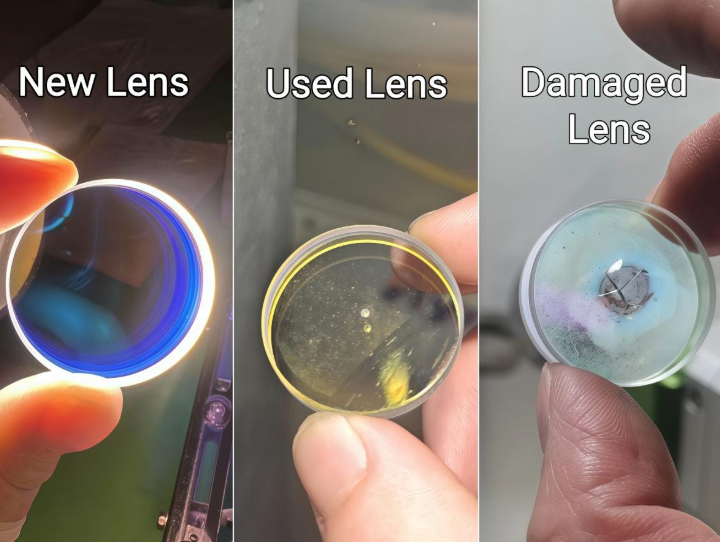

The protective lens inside the welding head is a critical optical component.
When smoke, dust, or welding spatter contaminates the lens:
Laser energy transmission decreases
Welding becomes unstable
More heat accumulates
Black smoke may appear
Maintenance Item | Frequency |
|---|---|
Check protective lens | Daily |
Clean lens surface | According to working environment |
Replace damaged lens | Immediately |
Inspect welding head | Regularly |
Keeping optical components clean helps maintain stable laser output.
To achieve clean and stable laser welding, follow these practices:
Remove:
✓ Oil
✓ Rust
✓ Dust
✓ Paint
✓ Oxide layers
Clean materials create better weld appearance and reduce smoke.

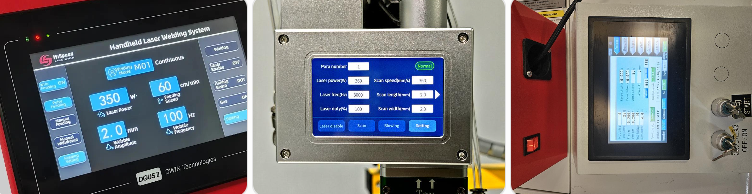

Correct parameter adjustment is essential.
Recommended adjustments:
Situation | Adjustment |
|---|---|
Too much smoke | Reduce power or increase speed |
Poor penetration | Increase power gradually |
Dark weld surface | Improve shielding gas protection |
Unstable welding | Check focus and nozzle position |

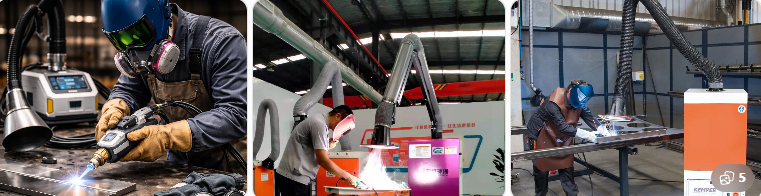

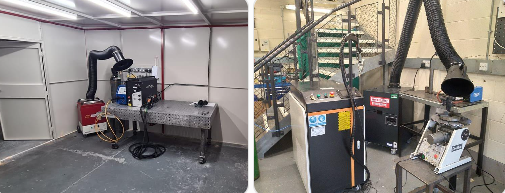

Even with optimized parameters, laser welding can generate fine particles and fumes. A local extraction system helps remove airborne contaminants directly from the welding area.
Benefits:
Cleaner working environment
Better operator protection
Reduced contamination of machine components
Improved visibility during welding

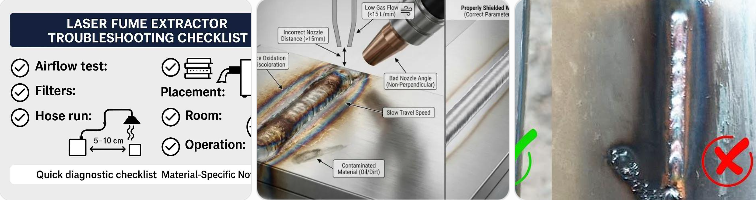

When black smoke appears, check the following:
Check Item | Solution |
|---|---|
Material surface | Clean oil, rust, and coating |
Laser power | Adjust to suitable range |
Welding speed | Increase if heat input is too high |
Gas flow | Check pressure and direction |
Protective lens | Clean or replace |
Focus position | Adjust laser focus |
Smartech Laser provides professional fiber laser welding solutions designed for efficient and stable metal processing.
Feature | Benefit |
|---|---|
Intelligent Control System | Easy parameter adjustment |
Stable Laser Source | Consistent welding performance |
High Precision Welding Head | Better weld quality |
Low Maintenance Design | Reduced operating costs |
Professional Technical Support | Reliable global service |
Whether welding stainless steel, carbon steel, aluminum, or other metals, Smartech Laser helps customers achieve cleaner welding, higher efficiency, and better production results.
Black smoke during laser welding is usually caused by:
✓ Incorrect welding parameters
✓ Dirty material surfaces
✓ Poor shielding gas protection
✓ Lens contamination
✓ Excessive heat input
By optimizing parameters, preparing materials properly, maintaining equipment, and using effective fume extraction, manufacturers can significantly reduce smoke and achieve high-quality laser welding results.
