When it comes to laser welding, terms such as weld pool, fusion zone, heat input, and heat-affected zone (HAZ) are frequently mentioned.
But what exactly is the HAZ?
The Heat-Affected Zone (HAZ) is the area of the base material close to the weld that does not melt, but is heated enough to cause changes in its microstructure or material properties. It is located between the fusion zone and the unaffected base material.
Understanding the HAZ is important because it directly affects weld strength, appearance, distortion, hardness, toughness, and the overall quality of a welded component.
For manufacturers looking for high-precision and low-distortion welding, controlling the HAZ is one of the key advantages of laser welding.

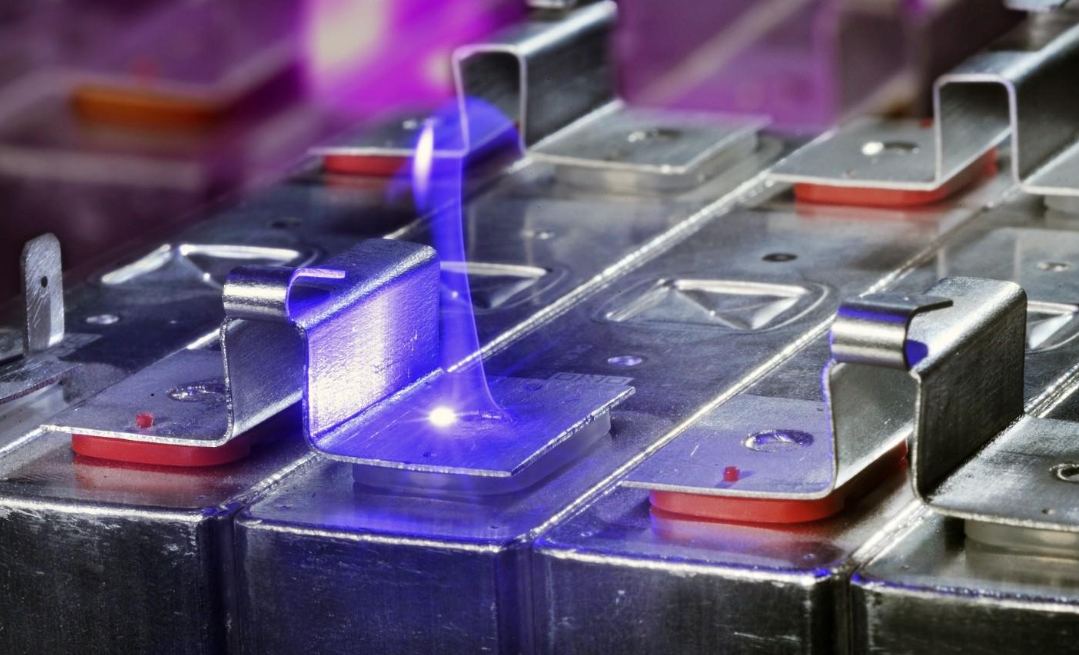

During welding, the laser beam concentrates energy onto a small area of the workpiece.
The material directly exposed to sufficient energy melts and forms the weld pool or fusion zone. However, the surrounding material may become very hot without reaching its melting temperature.
This surrounding area is called the Heat-Affected Zone (HAZ).

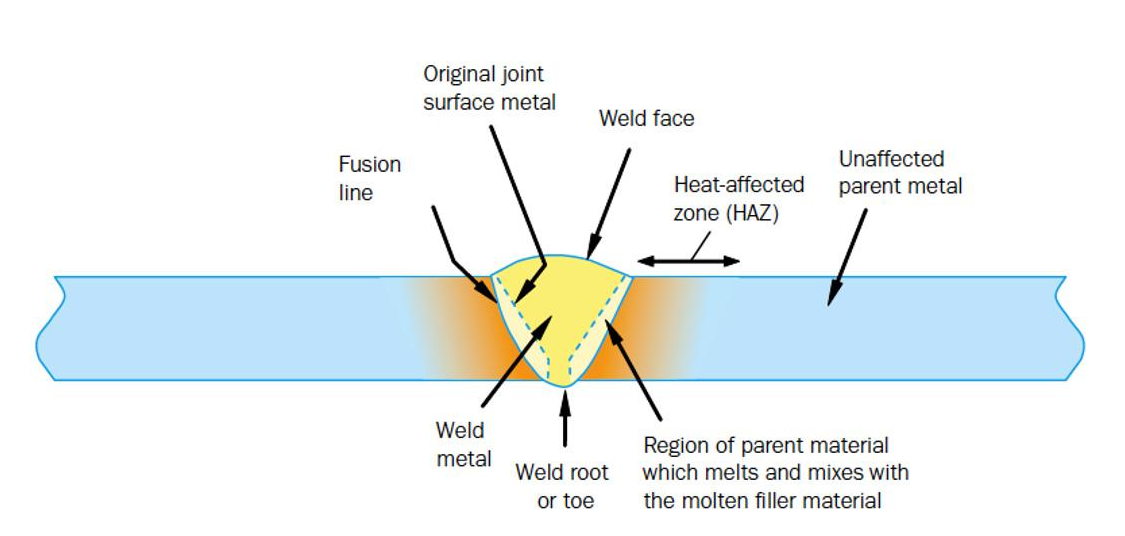

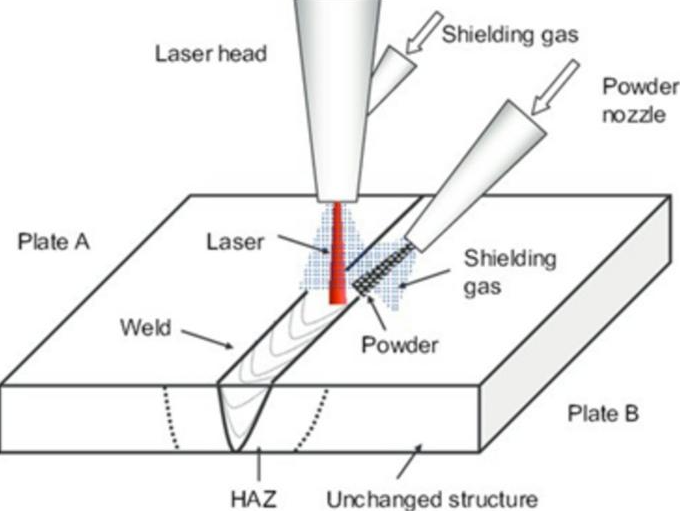

A simplified cross-section of a laser-welded joint can be divided into three main areas:
Weld Metal / Fusion Zone → Heat-Affected Zone → Base Metal
The HAZ has not melted, but its microstructure and properties may change because of the thermal cycle during welding.
Depending on the material and welding conditions, the HAZ may experience changes in hardness, grain structure, toughness, residual stress, or corrosion resistance.

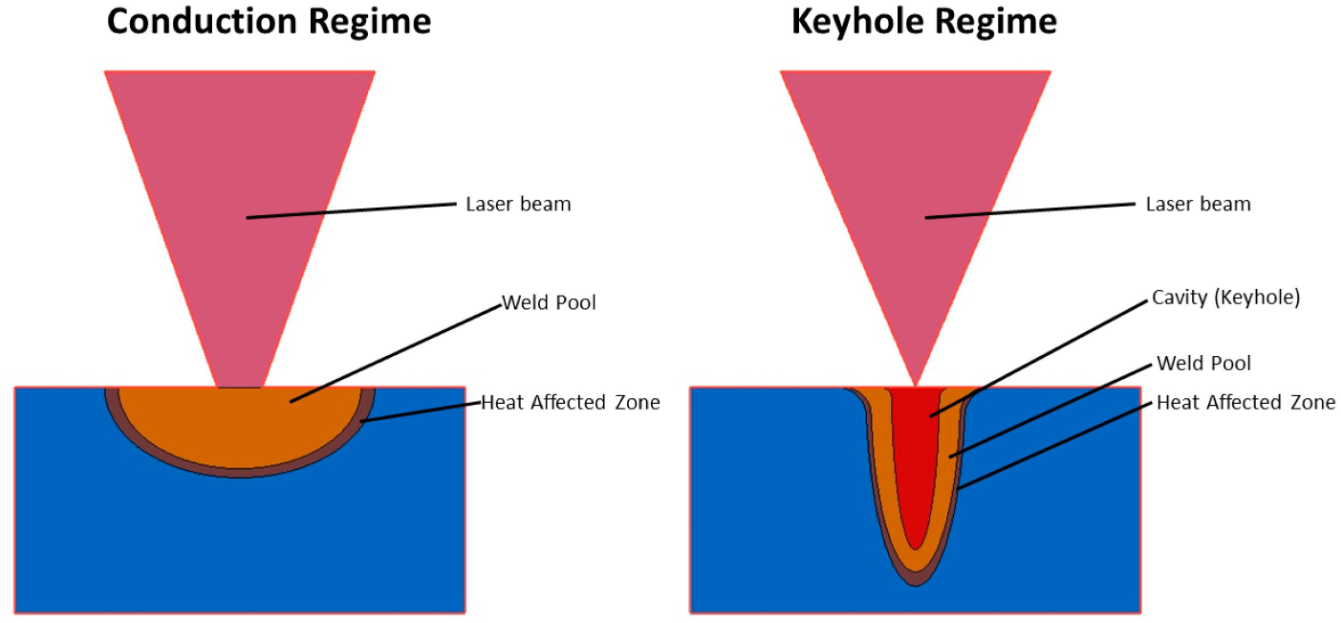

Although laser welding is a highly concentrated welding process, heat cannot remain completely confined to the laser spot.
When the laser beam heats and melts the material, some heat transfers from the molten pool into the surrounding base metal.
The thermal cycle can be simplified as:
Laser Energy → Local Heating → Melting → Heat Conduction → Rapid Cooling
The area closest to the weld receives the greatest thermal exposure, while the temperature gradually decreases farther away from the weld.
As a result, different areas of the material experience different thermal histories.
The HAZ is therefore an almost unavoidable part of fusion welding. The objective is not necessarily to eliminate the HAZ completely, but to control its size and thermal impact.
One of the major advantages of laser welding is its high energy density and highly localized heat input.
A focused laser beam can concentrate energy into a very small area, allowing the material to be heated and melted quickly.

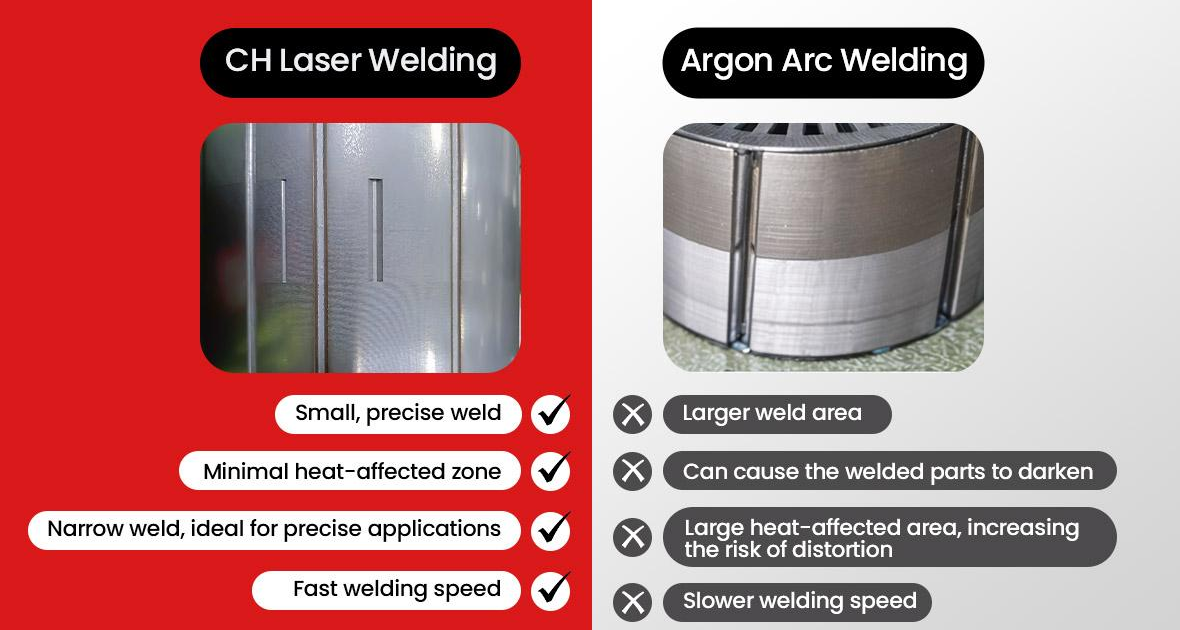

Compared with conventional arc welding processes, laser welding can produce:
Lower overall heat input
Faster heating and cooling

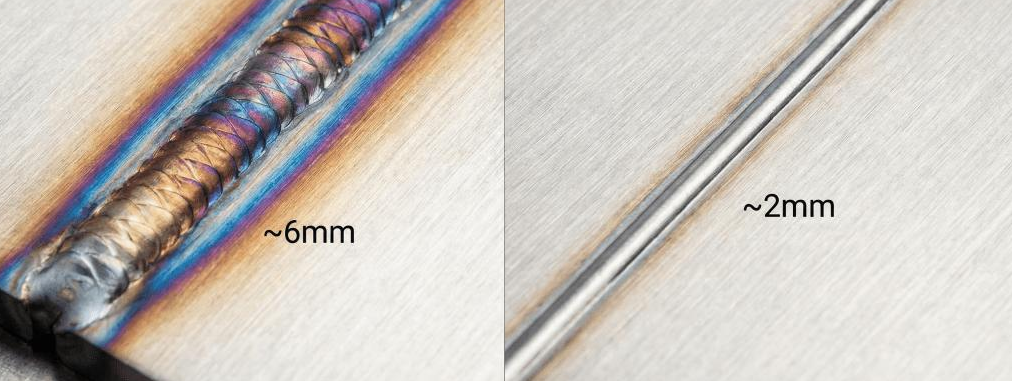

Narrower welds
Smaller HAZ
Less thermal distortion
Better dimensional accuracy
A review of modern laser beam welding processes identifies a narrow HAZ and low welding distortion among the key advantages of laser welding.
However, the actual HAZ size depends on the material and process parameters. It should not be assumed that every laser weld will automatically produce the same HAZ.

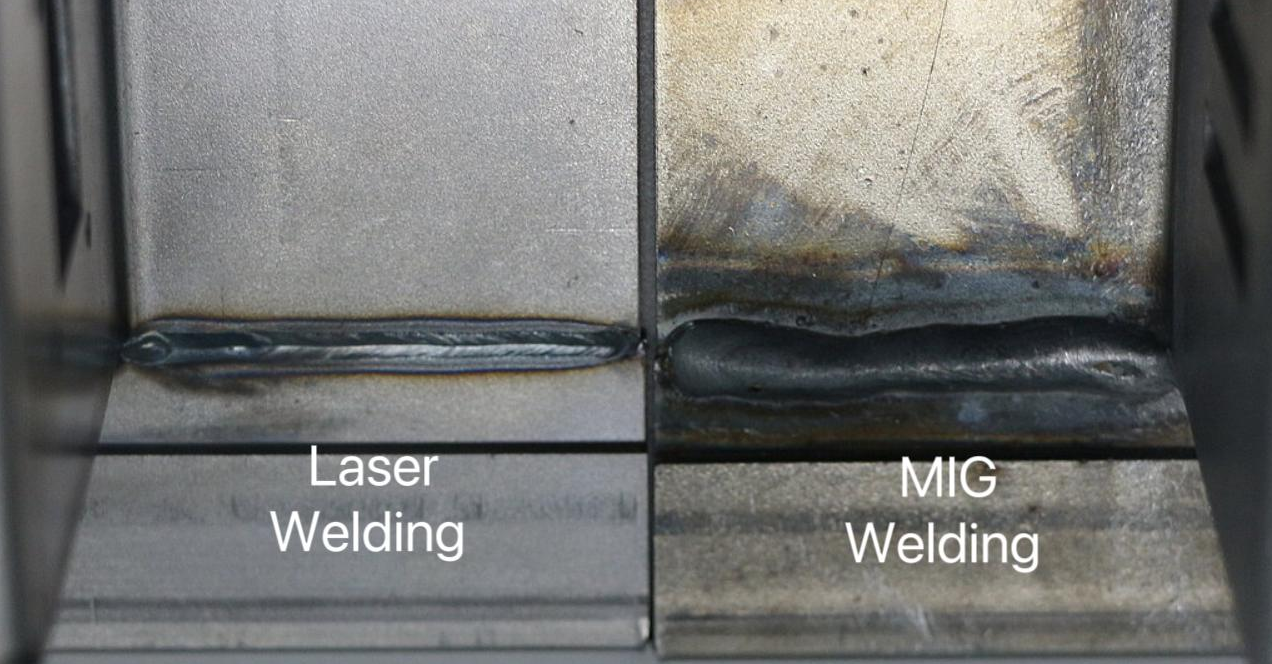

Feature | Laser Welding | Conventional Arc Welding |
|---|---|---|
Heat Input | Generally low and highly concentrated | Generally higher and more distributed |
Energy Density | Very high | Relatively lower |
HAZ | Usually narrow | Usually wider |
Thermal Distortion | Generally low | Can be higher |
Welding Speed | High | Moderate |
Precision | High | Depends strongly on process |
Suitable Applications | Precision parts, thin sheets, automotive, electronics, etc. | General fabrication, heavy structures, repair work, etc. |
The exact comparison depends on the material, thickness, joint design, and welding parameters.
A HAZ is not necessarily a defect. However, excessive thermal exposure can negatively affect the welded component.
Excessive heat can cause the material to expand and contract unevenly.
This may result in:
Warping
Bending
Shrinkage
Dimensional changes
For precision components, excessive distortion can increase the need for post-welding correction.
The thermal cycle can change the grain structure and phase composition of some materials.
Depending on the alloy and cooling conditions, the HAZ may become:
Harder
Softer
More brittle
Less tough
More susceptible to certain forms of corrosion
High heat input can promote grain coarsening in some steels, while rapid cooling and low heat input can also create material-specific risks.
Rapid heating and cooling create thermal expansion and contraction.
When these changes are restrained by the surrounding material, residual stresses can develop.
Laser welding's localized heat input can help reduce overall thermal distortion and residual stress compared with processes that introduce more heat into the workpiece.
Not necessarily.
A smaller HAZ is often desirable for precision welding because it can help reduce distortion and limit unnecessary thermal exposure.
However, the smallest possible HAZ does not automatically mean the best weld.
A good welding process must balance:
Penetration
Weld width
Welding speed
Heat input
Weld strength
Material microstructure
Surface appearance
Distortion
Residual stress
For example, reducing heat input too much may cause insufficient penetration or incomplete fusion.
Therefore, the goal should be to find an optimized welding process window, rather than simply minimizing the HAZ as much as possible.
TWI also notes that laser welding's narrow weld and low heat input are major advantages, but accurate joint fit-up is important because the focused laser beam has less tolerance for large gaps.
The size and characteristics of the HAZ depend on several factors.
Higher laser power generally introduces more energy into the workpiece.
If the power is excessive for a specific application, thermal exposure may increase and enlarge the HAZ.
However, power cannot be considered independently. Welding speed, focus position and material thickness must also be considered.
Welding speed determines how long the laser interacts with a particular section of the material.
Higher welding speed → Shorter thermal exposure
Lower welding speed → Longer thermal exposure
Therefore, welding speed is an important parameter for controlling heat input and HAZ.
The position of the laser focus directly affects energy density.
An incorrect focus position can reduce energy concentration and increase unnecessary heat transfer into the surrounding material.
Proper focus adjustment helps maintain stable penetration and controlled heat input.
A smaller, well-focused spot can concentrate energy into a smaller area.
A larger spot distributes the laser energy over a wider area.
The appropriate spot size depends on the material, thickness, joint configuration and required penetration.
For handheld laser welding machines, beam oscillation or wobble parameters can significantly affect the weld width and heat distribution.
Important parameters may include:
Wobble width
Wobble frequency
Welding speed
Laser power
Focus position
Excessive oscillation can spread energy over a larger area and increase thermal exposure.
[Image Suggestion: Laser welding control panel showing power, welding speed, wobble width and frequency]
Different metals respond differently to heat.
For example:
Stainless steel
Carbon steel
Aluminum
Copper
Brass
Titanium
all have different thermal and metallurgical characteristics.
Material thickness also influences heat conduction and cooling behavior.
Therefore, the same laser welding parameters should not automatically be applied to different materials.
The key is to control total thermal exposure while maintaining sufficient penetration and weld quality.
1. Optimize laser power
Use sufficient power for penetration without excessive thermal input.
2. Optimize welding speed
A suitable welding speed can reduce unnecessary heat accumulation.
3. Adjust the focus position
Keep the laser energy concentrated in the correct location.
4. Optimize the wobble parameters
Use an appropriate wobble width and frequency according to the required weld width.
5. Avoid unnecessary repeated passes
Multiple passes can increase cumulative heat input.
6. Use appropriate shielding gas
Correct shielding helps protect the weld area and maintain stable welding conditions.
7. Ensure proper joint fit-up
A well-fitted joint helps prevent excessive energy from being used to bridge gaps.
8. Test the parameters on the actual material
The same parameter settings may produce different results on different materials or thicknesses
HAZ control becomes particularly important when welding:
Stainless steel sheets
Aluminum components
Automotive parts
Kitchen equipment
Metal cabinets
Electronic components
Medical equipment
Precision machinery
Decorative metal products
Thin-wall structures
For these applications, excessive heat can cause visible deformation or changes in material properties.
Laser welding offers a highly concentrated heat source, making it suitable for applications where welding precision, appearance and dimensional stability are important.
The Heat-Affected Zone (HAZ) is an important part of almost every fusion welding process.
It is the area of base material that does not melt but experiences enough heat to change its microstructure or properties.
Laser welding can produce a relatively narrow HAZ because its highly concentrated beam delivers energy to a localized area and enables rapid heating and cooling.
However, HAZ size and its effects depend on:
Material
Material thickness
Laser power
Welding speed
Focus position
Spot size
Wobble parameters
Shielding gas
Joint design
Therefore, the best laser welding process is not simply the one with the smallest HAZ. It is the process that achieves the right balance between penetration, strength, appearance, speed and controlled heat input.
For manufacturers seeking precision, efficiency and reduced thermal distortion, laser welding provides a powerful solution.
