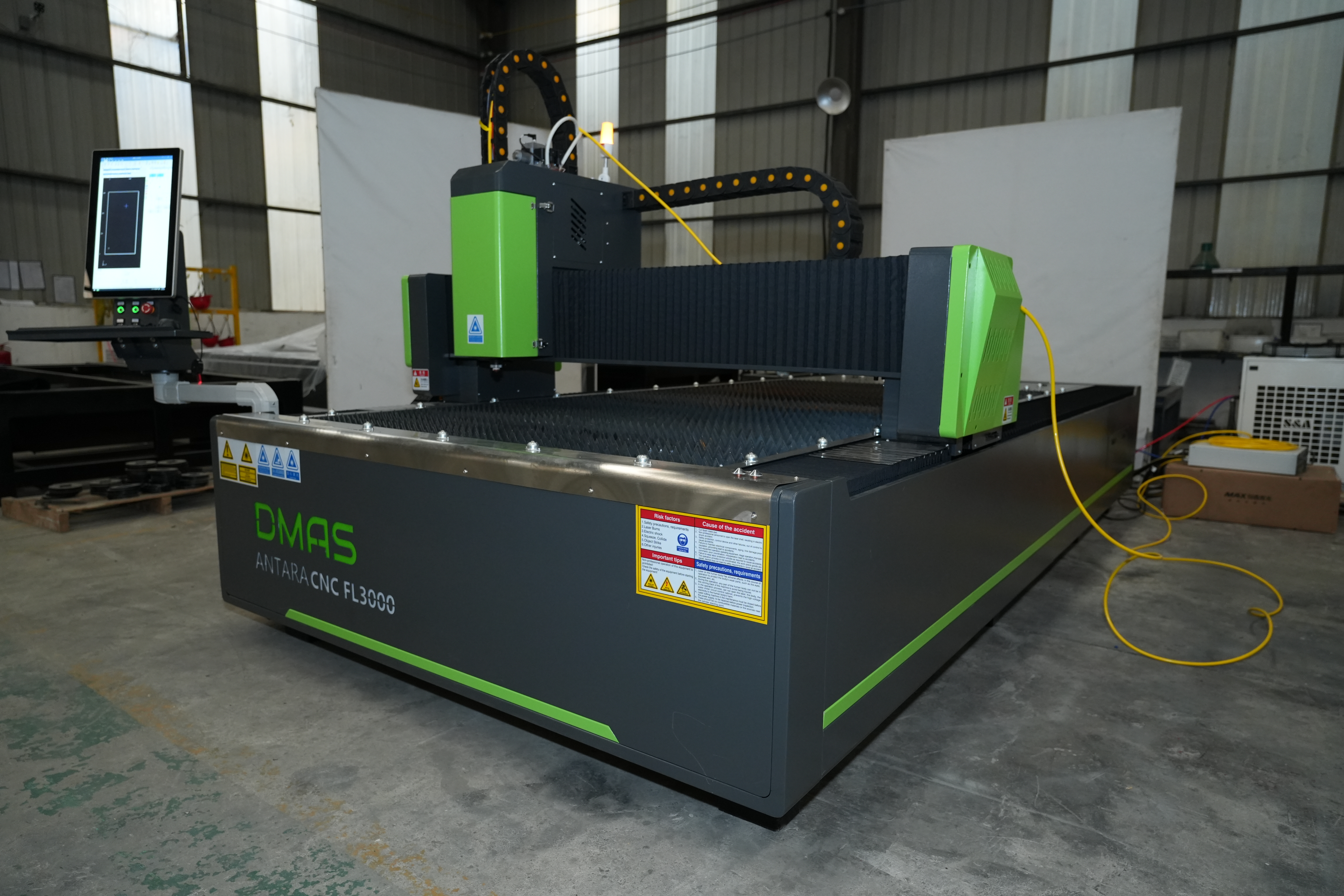

The rack and pinion system in a fiber laser cutting machine is the mechanical transmission system that controls the movement of the laser cutting head. It consists of linear guide rails, racks, gears, servo motors, and reducers. Its precision directly affects cutting accuracy, cutting speed, machine stability, and long-term performance.

When purchasing a fiber laser cutting machine, many customers focus on laser power, laser source brands, and cutting heads. However, the mechanical transmission system is equally important.

A powerful laser source cannot achieve high-quality cutting if the rack and pinion system has poor accuracy, excessive backlash, or insufficient rigidity.

1. What Is a Rack and Pinion System in a Laser Cutting Machine?

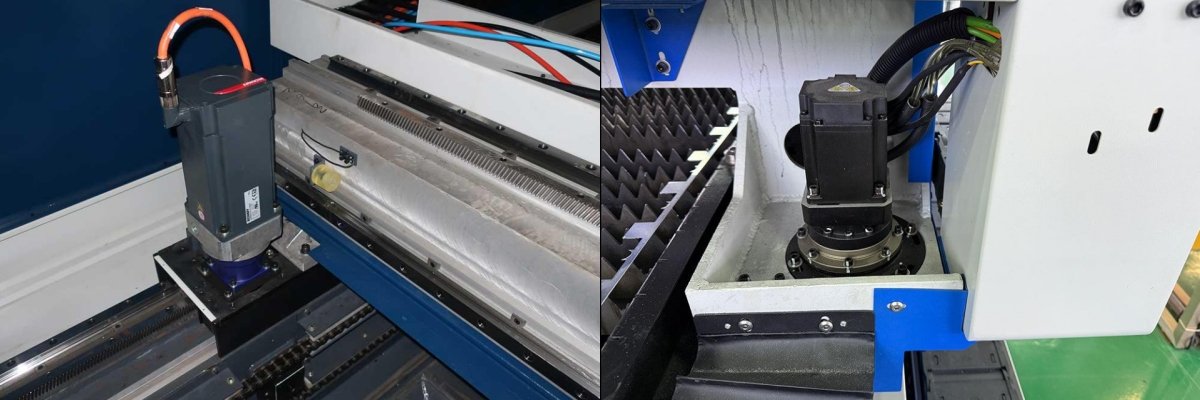

A rack and pinion system is a mechanical transmission structure that converts the rotary motion of a servo motor into the linear movement of the laser cutting head.

The working process is:

Servo Motor → Reducer → Gear → Rack → Linear Guide Rail → Laser Cutting Head

The function of each part:

• Servo motor: Provides precise movement power.

• Reducer: Improves torque and positioning accuracy.

• Gear: Transfers rotational force.

• Rack: Converts rotary motion into linear movement.

• Linear guide rail: Ensures smooth and stable movement.

The entire system determines how accurately and smoothly the laser head moves during cutting.

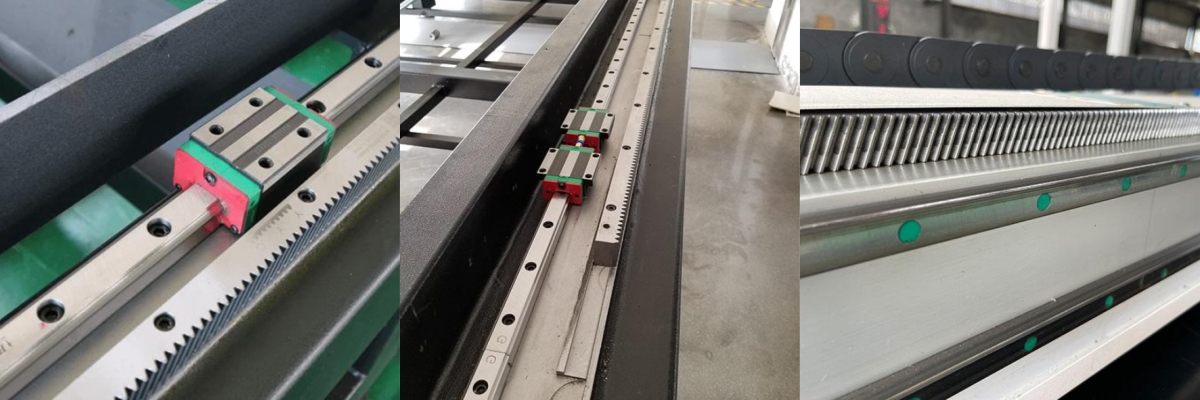

2. Main Components of a Rack and Pinion System

3. Why Do Fiber Laser Cutting Machines Use Rack and Pinion Systems?

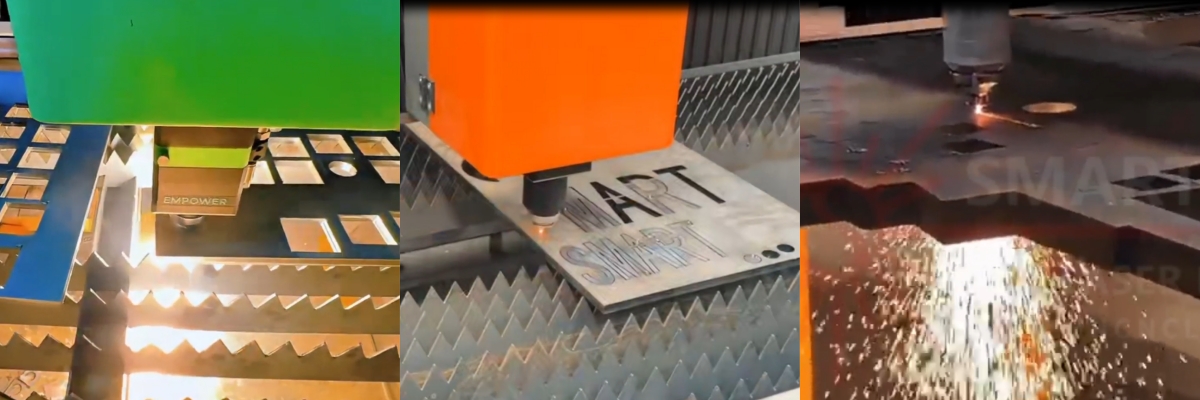

Fiber laser cutting machines require extremely fast and accurate movement.

During operation, the cutting head needs to perform:

• High-speed straight-line cutting

• Complex contour cutting

• Small hole processing

• Sharp corner turning

• Continuous industrial production

A high-quality transmission system must provide:

• High movement speed

• Low positioning error

• Excellent repeatability

• Long-term mechanical stability

Rack and Pinion vs Ball Screw

4. How Does the Rack and Pinion System Affect Cutting Accuracy?

4.1 Rack Precision Determines Cutting Dimension Accuracy

Laser cutting accuracy depends not only on the laser beam but also on the mechanical movement system.

For example:

A customer needs to cut:

100mm × 100mm square holes

If the rack system has problems such as:

• Poor manufacturing accuracy

• Incorrect installation

• Gear wear

• Excessive backlash

The final cutting result may include:

• Incorrect dimensions

• Deformed circles

• Uneven corners

• Different results during repeated cutting

5. What Is Backlash and Why Does It Matter?

Backlash is the small clearance between the gear teeth and rack teeth. Excessive backlash causes positioning errors when the cutting direction changes.

Example:

Forward movement → Stop → Reverse movement

If backlash is too large:

The cutting head cannot immediately respond after changing direction.

Possible problems:

• Corner deformation

• Poor small-hole accuracy

• Reduced engraving quality

• Visible cutting errors

For precision laser cutting, minimizing backlash is critical.

6. Helical Rack vs Straight Rack: Which One Is Better?

Industrial fiber laser cutting machines usually use helical racks instead of straight racks.

Advantages of Helical Rack:

• Smoother gear engagement

• Lower vibration

• Lower operating noise

• Better high-speed performance

Helical racks are especially suitable for:

• 3000W+ fiber laser cutting machines

• Large working areas

• High acceleration machines

• Long-hour production environments

7. Relationship Between Rack System and Acceleration

Many customers ask:

"My engineer requires 3G acceleration. What does it mean?"

3G acceleration means the cutting head can accelerate and decelerate extremely quickly during operation.

Typical acceleration:

Higher acceleration requires:

• Higher precision racks

• Stronger machine frames

• Better servo motors

• More rigid linear guides

Otherwise, the machine may experience:

• Mechanical vibration

• Cutting marks

• Corner deformation

• Reduced accuracy

8. Real Industrial Example: Why Do Similar Laser Cutting Machines Have Different Prices?

Many customers find that two machines have:

• The same laser power

• The same laser source brand

• The same cutting head

But the prices can still be very different.

One important reason is the mechanical structure.

Example:

Customer application:

5mm stainless steel sheet cutting

Requirements:

• 10 hours continuous operation per day

• High production volume

• Many small holes and complex shapes

A lower-cost machine may experience:

• Rack wear after long-term use

• Reduced cutting accuracy

• Frequent mechanical adjustment

A professional industrial machine uses:

• Precision helical racks

• High-quality linear guide rails

• Servo motors

• High-rigidity machine frames

Result:

Stable cutting performance for years.

9. How to Check Rack and Pinion Quality Before Purchasing?

Before buying a fiber laser cutting machine, ask these questions:

10. Maintenance Tips for Rack and Pinion Systems

To maintain long-term accuracy:

• Clean dust and metal particles regularly

• Apply proper lubrication

• Check gear engagement

• Prevent excessive cutting dust accumulation

• Perform regular accuracy calibration

Conclusion: The Rack and Pinion System Determines Long-Term Laser Cutting Performance

The laser source determines cutting capability, but the rack and pinion system determines whether the machine can maintain stable performance over years of operation.

When choosing a fiber laser cutting machine, buyers should compare not only:

• Laser power

• Laser source brand

• Maximum cutting thickness

But also:

• Rack precision

• Linear guide quality

• Servo motor system

• Machine frame rigidity

• Motion control performance

A truly industrial-grade fiber laser cutting machine is the combination of:

Laser Source + Optical System + Control System + Precision Mechanical Structure
