As handheld fiber laser technology becomes more popular, more manufacturers are replacing traditional MIG, TIG, and arc welding with laser welding systems. The biggest reason is simple: laser welding is faster, cleaner, easier to learn, and requires less post-processing.

However, many buyers focus only on the laser source while overlooking one of the most important components—the handheld laser welding head.

A high-quality laser welding head directly affects weld quality, operating comfort, equipment reliability, and even whether the machine can perform additional processes such as laser cleaning.

This article explains how a dual-wobble handheld laser welding head works, why it is better than traditional designs, and what features you should consider before purchasing a handheld laser welding machine.

What Is a Dual-Wobble Laser Welding Head?

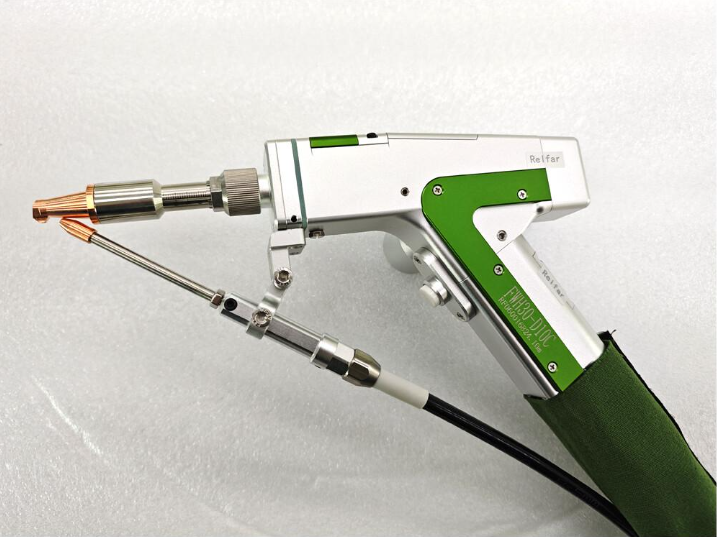

A handheld laser welding head is the component that guides the laser beam onto the workpiece. Inside the welding head are precision optical lenses and galvanometer motors that control the movement of the laser beam.

Traditional handheld welding heads usually use single-axis wobble technology, where the laser moves only in one direction.

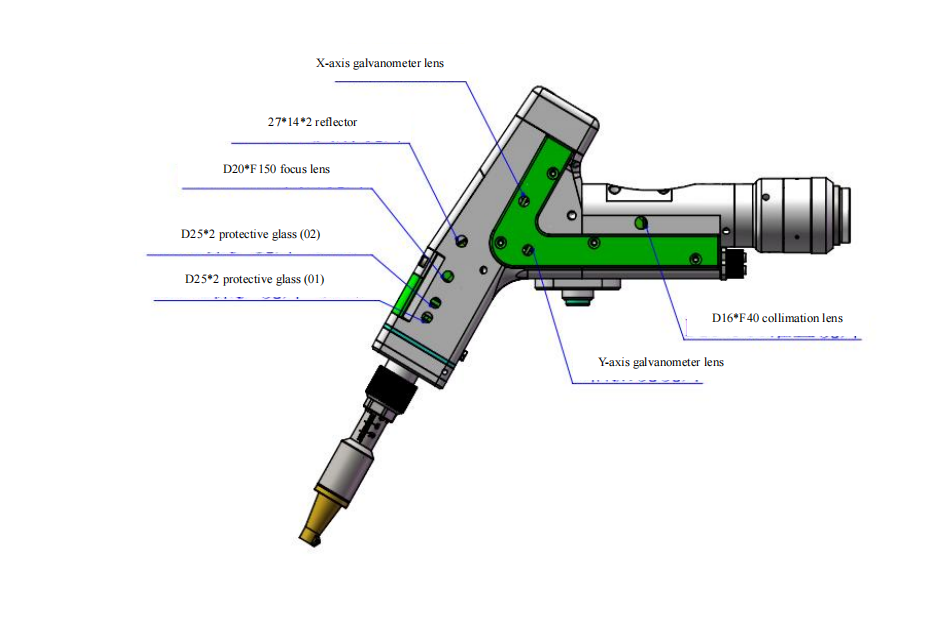

A dual-wobble laser welding head uses two independent galvanometer motors (X-axis and Y-axis), allowing the laser beam to move freely in two dimensions.

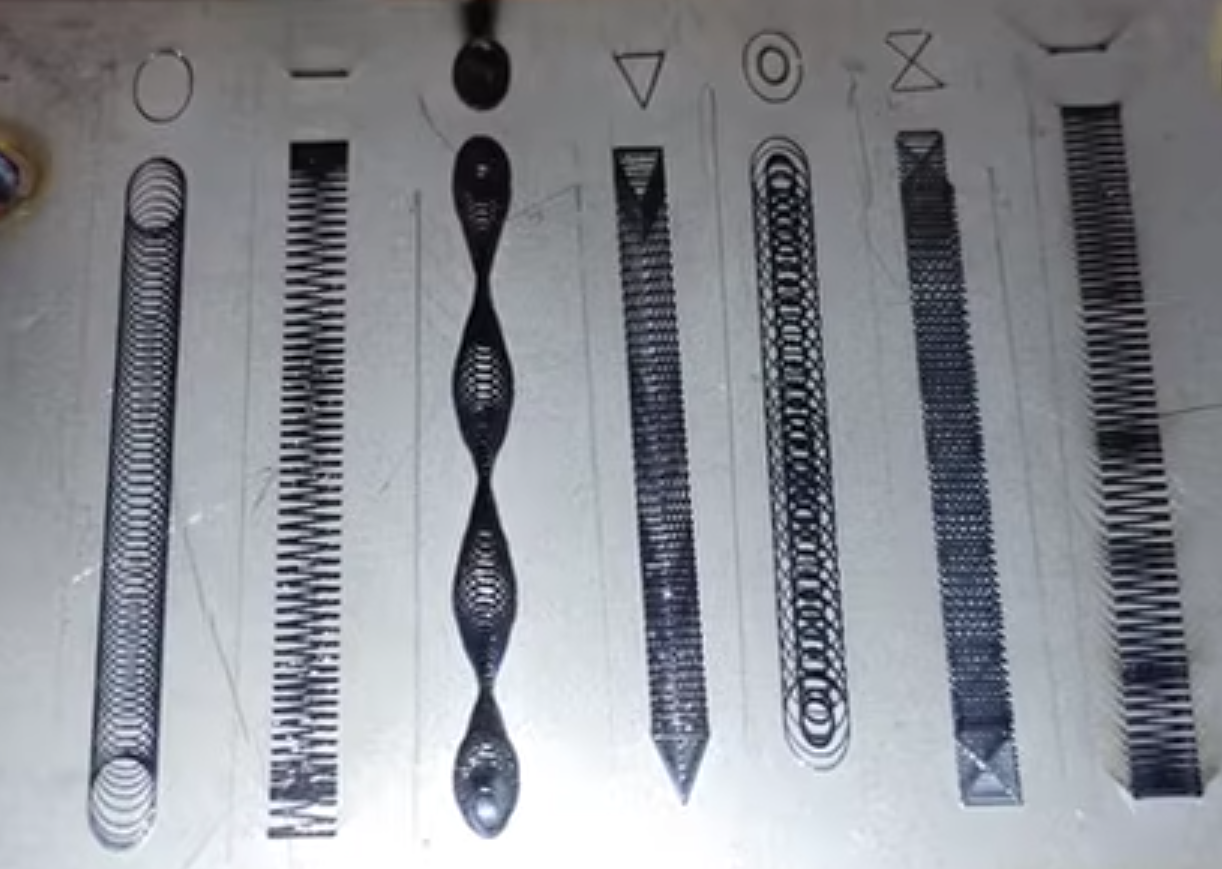

Instead of simply moving left and right, the laser can generate different beam patterns such as:

• Straight line

• Circle

• Oval

• Figure-8

• Triangle

• Spiral

This wider range of beam motion creates a more stable molten pool, improves penetration, reduces defects, and produces smoother weld seams.

Why Is Dual-Wobble Better Than Single-Wobble?

The biggest advantage lies in beam control.

With a single-axis system, the laser beam only oscillates sideways, making it difficult to weld:

• Large joint gaps

• Uneven materials

• Thick plates

• Complex weld seams

Dual-axis movement allows the laser energy to be distributed more evenly across the weld.

Benefits include:

• Better gap bridging

• Reduced burn-through on thin sheets

• More consistent penetration

• Stronger weld fusion

• Better appearance with less spatter

• Higher welding tolerance

This makes dual-wobble technology suitable for both beginners and experienced operators.

One Handheld Tool for Welding and Laser Cleaning

Modern dual-wobble laser heads are no longer designed only for welding.

Many systems support multiple laser processing functions by changing the front-end optical module and switching the operating mode in the control software.

A single machine can typically perform:

• Laser welding

• Weld seam cleaning

• Rust removal

• Oxide removal

• Paint removal

• Surface preparation before welding

For many workshops, this means one machine can replace multiple dedicated pieces of equipment, reducing investment costs and saving valuable floor space.

Key Features of a Modern Dual-Wobble Welding Head

1. Lightweight Design

Because operators often work continuously for hours, lightweight construction greatly improves comfort.

Modern handheld welding heads are designed with:

• Compact housing

• Balanced weight distribution

• Ergonomic grip

• Reduced operator fatigue

This helps improve productivity during long production shifts.

2. Intelligent Beam Control

Unlike traditional manual adjustment, today's systems allow operators to select different welding patterns directly from the touchscreen.

Common adjustable parameters include:

• Laser power

• Wobble width

• Wobble frequency

• Focus position

• Wire feeding speed

• Gas delay

• Welding mode

This makes it much easier to optimize welding quality for different materials and thicknesses.

3. Adjustable Focus

Different materials require different focal positions.

Modern laser heads typically allow focus adjustment over a relatively wide range, making it easier to weld:

• Thin sheet metal

• Thick steel plates

• Aluminum

• Stainless steel

• Galvanized steel

• Copper

Proper focus adjustment improves penetration while reducing excessive heat input.

4. Efficient Water Cooling

Laser optics generate heat during operation.

A built-in water-cooling circuit helps maintain stable temperatures for:

• Galvanometer motors

• Optical lenses

• Internal components

Stable cooling protects expensive optical components and improves long-term reliability.

5. Modular Optical Design

One of the biggest improvements in modern laser heads is modular maintenance.

Instead of disassembling the entire welding head, operators can quickly replace:

• Protective lenses

• Collimating lenses

• Focusing lenses

This significantly reduces maintenance time and lowers service costs.

Built-In Safety Features

Laser equipment operates at extremely high energy levels, making safety essential.

Modern handheld welding heads typically include several protection systems:

Temperature Monitoring

Sensors continuously monitor the temperature of critical optical components.

If overheating is detected, the system automatically stops laser output.

Safety Contact Protection

The laser can only be activated when the welding nozzle properly contacts the workpiece.

This prevents accidental laser emission and improves operator safety.

Cooling Protection

If cooling water stops flowing or the temperature becomes too high, the machine automatically shuts down laser output to protect internal components.

Gas Monitoring

Shielding gas pressure is monitored to ensure stable weld quality and prevent oxidation.

Smart Control Makes Operation Easier

Today's handheld laser welding systems are becoming increasingly intelligent.

Many machines now support multiple control methods:

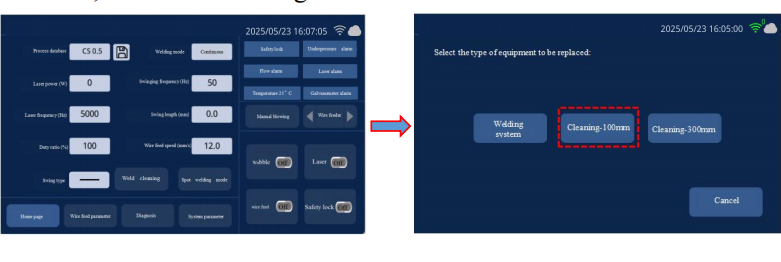

Touchscreen Interface

Operators can quickly adjust welding parameters, monitor alarms, and switch operating modes through an intuitive touchscreen.

Mobile App

Some systems allow wireless connection via Wi-Fi.

Users can:

• Adjust process parameters

• View machine status

• Monitor alarms

• Access operation guides

without standing beside the machine.

Cloud Management

For factories operating multiple laser welding machines, cloud platforms enable:

• Equipment monitoring

• Remote diagnostics

• Parameter backup

• Maintenance records

• Production management

This improves efficiency across the entire workshop.

Routine Maintenance Tips

The optical system is the most valuable part of a handheld laser welding head.

Proper maintenance greatly extends equipment life.

Recommended practices include:

• Replace protective lenses whenever contamination becomes visible.

• Use only lint-free swabs and optical-grade alcohol for cleaning.

• Avoid touching optical surfaces directly.

• Keep cooling water clean.

• Install air filters to prevent moisture and oil contamination.

• Inspect the fiber connector regularly for dust.

Preventive maintenance costs far less than replacing damaged optical components.

Typical Applications

Dual-wobble handheld laser welding systems are widely used in:

Metal Fabrication

• Stainless steel fabrication

• Sheet metal processing

• Cabinets

• Elevator panels

• Kitchen equipment

Structural Manufacturing

• Steel structures

• Machinery frames

• Agricultural equipment

• Construction equipment

Automotive Industry

• Vehicle repair

• Battery trays

• Aluminum components

• Automotive accessories

Hardware Manufacturing

• Furniture

• Doors and windows

• Railings

• Metal enclosures

Laser Cleaning

• Rust removal

• Oxide removal

• Weld seam cleaning

• Paint stripping

• Mold cleaning

How to Choose a Dual-Wobble Handheld Laser Welding Machine

When evaluating different machines, don't focus only on laser power.

Also pay attention to:

• Beam control technology

• Cooling performance

• Optical protection

• Ease of maintenance

• Intelligent control functions

• Ergonomic design

• Safety systems

• Multi-function capability

A well-designed dual-wobble laser head can significantly improve welding quality while reducing operating costs over the long term.

Conclusion

A dual-wobble handheld laser welding head represents a major advancement in handheld laser processing technology. By combining two-axis beam control, intelligent operation, modular maintenance, advanced safety features, and optional laser cleaning functions, it offers greater flexibility and higher productivity than conventional handheld welding systems.

Whether you are upgrading from traditional welding methods or investing in your first fiber laser machine, understanding how the welding head works will help you choose equipment that delivers better weld quality, lower maintenance costs, and a faster return on investment.
