In today’s advanced manufacturing industry, automation and precision are no longer optional—they are essential. One of the most important innovations in welding technology is the robot laser welding machine, which combines industrial robotics with high-power laser welding systems to deliver fast, accurate, and consistent welding results.
This article explains what a robot laser welding machine is, how it works, its advantages, applications, and why it is becoming a key solution in smart factories.

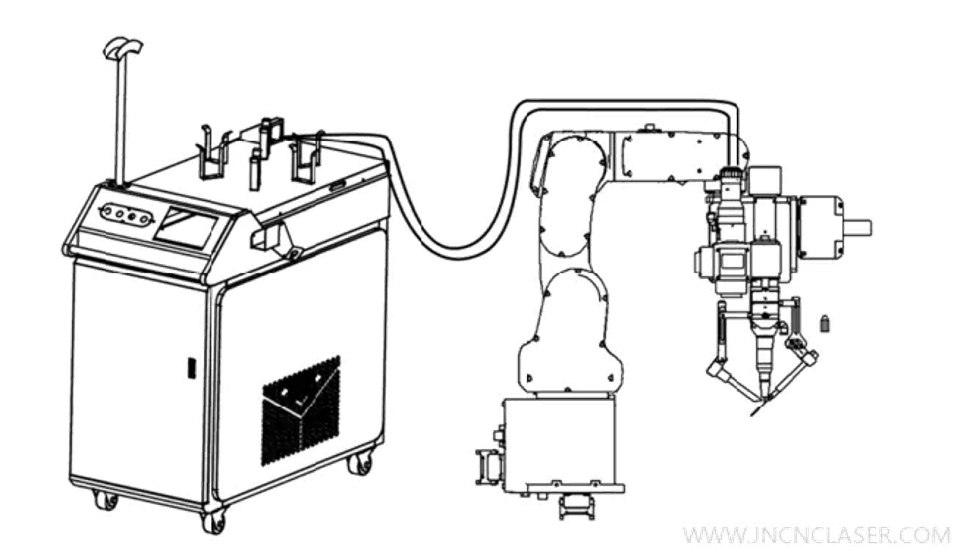

A robot laser welding machine is an automated welding system that integrates:
An industrial robotic arm
A fiber laser welding source
A laser welding head
A control system
Instead of manual welding, the robotic arm follows pre-programmed paths while the laser beam performs high-energy welding on metal surfaces.
This combination allows manufacturers to achieve high precision welding with minimal human intervention.
The working process of a robot laser welding system is highly automated and consists of several steps:
Engineers program the robot’s welding path using offline software or a teaching pendant.
The material is fixed using jigs or fixtures to ensure stable positioning during welding.
The fiber laser generates a concentrated high-energy beam that is delivered through the welding head.
The laser melts the metal at the joint area, and the material solidifies quickly to form a strong weld seam.
The robot repeats the process with high consistency across multiple parts.
Laser welding is significantly faster than traditional MIG or TIG welding, making it ideal for mass production.
The laser beam creates a narrow heat-affected zone, resulting in clean, smooth, and strong weld seams.
Industrial robots ensure repeatable accuracy, making every weld identical.
Automation reduces dependency on skilled welders and lowers long-term production costs.
Robotic systems can easily handle curved, angled, and 3D welding paths that are difficult for manual welding.
Robot laser welding systems are widely used across multiple industries, including:
Automotive manufacturing (car body, chassis, battery trays)
Sheet metal fabrication
Metal furniture production
Electrical enclosures
Industrial machinery
Elevator and steel structure manufacturing
New energy industry (especially EV battery systems)
As industries move toward automation and electrification, demand for robot laser welding continues to grow rapidly.
A complete system typically includes:
Industrial robot arm
Fiber laser source (1000W–3000W or higher)
Laser welding head (fixed or wobble type)
Cooling system (water chiller)
Control system (CNC/PLC interface)
Safety enclosure or protective cabin
Each component plays a critical role in ensuring welding stability and safety.
Feature | Robot Laser Welding | Traditional Welding |
|---|---|---|
Speed | Very fast | Moderate |
Precision | Extremely high | Depends on operator |
Heat impact | Low | High |
Labor requirement | Low | High |
Consistency | Excellent | Variable |
This comparison clearly shows why many factories are upgrading to laser-based automation systems.
The future of robot laser welding is moving toward:
AI-based welding path recognition
Vision-guided automatic seam tracking
Flexible production for small batch manufacturing
Integration with smart factory systems (Industry 4.0)
These improvements will further enhance productivity and reduce human intervention.
A robot laser welding machine is not just an upgraded welding tool—it represents a shift toward intelligent manufacturing.
By combining robotics and laser technology, manufacturers can achieve:
Higher efficiency
Better welding quality
Lower production costs
Greater automation
As global industries continue to modernize, robot laser welding will play a central role in the future of metal fabrication.
