For jewelry manufacturing, jewelry repair, and precision welding of precious metals, pulse energy stability is an important factor that affects welding consistency and quality.
When working with gold, platinum, silver, and other precious metals, the welding area is often very small and requires precise heat control. Significant fluctuations in laser pulse energy can affect the size and depth of the molten pool, potentially resulting in inconsistent welding performance.
Therefore, when selecting a jewelry laser welding machine, buyers should look beyond laser power and maximum pulse energy. Pulse energy stability, pulse width, frequency, cooling performance, and optical quality should also be considered.
This article explains what pulse energy stability means, how it can be tested, and how to understand xenon lamp aging and energy compensation in a jewelry laser welding machine.
Pulse energy stability refers to how consistently a laser system delivers energy from one pulse to the next during continuous operation.
For example, suppose the laser welding machine is set to a pulse energy of 1.50 J.
Ideally, each laser pulse should be close to 1.50 J. However, in real-world operation, the actual output energy may fluctuate slightly due to factors such as the laser source, xenon lamp, power supply, optical system, cooling conditions, and operating environment.
For example, a pulse energy test may show:
Minimum measured energy: 1.43 J
Maximum measured energy: 1.54 J
Average measured energy: 1.48 J
These values can be used to evaluate the stability of the laser's pulse output.
Jewelry welding is generally a high-precision application.
When repairing an 18K gold ring, platinum jewelry, a chain, or a bracelet, the welding area may be only a few millimeters or even smaller.
If the energy of individual laser pulses varies significantly, the amount of heat delivered to the workpiece can also change. This may result in inconsistent weld penetration, molten pool size, or welding strength.
An excessively large molten pool
Deeper-than-required penetration
Excessive heat input
Surface damage or discoloration
Deformation of delicate jewelry components
Incomplete melting
Insufficient penetration
Weak welds
Incomplete fusion
Inconsistent welding results
Stable pulse energy provides a more consistent heat input, making it easier for operators to control the welding process accurately.
A pulse energy stability test typically involves continuously firing the laser for a large number of pulses and measuring the actual output energy using a professional laser energy meter.
A complete test can include the following parameters:
Test Parameter | Result |
|---|---|
Set Energy | 1.50 J |
Test Pulses | Approx. 60,000 |
Minimum Measured Energy | 1.43 J |
Maximum Measured Energy | 1.54 J |
Average Measured Energy | 1.48 J |
Energy Stability | Within ±5% |
For a more complete test report, it is also recommended to record the pulse width (ms) and frequency (Hz), because these parameters affect the operating conditions of the laser system.
A complete pulse energy test report may therefore include:
Set energy (J)
Pulse width (ms)
Frequency (Hz)
Number of test pulses
Minimum measured energy (J)
Maximum measured energy (J)
Average measured energy (J)
Energy stability (%)
This makes the test results easier to understand and compare.
The following is an example of an actual pulse energy stability test performed on a jewelry laser welding machine.
Set Energy: 1.50 J
The laser was operated continuously for approximately 60,000 pulses.
The measured results were:
Minimum energy: 1.43 J
Maximum energy: 1.54 J
Average energy: 1.48 J
The maximum positive and negative deviations can then be calculated based on the preset energy of 1.50 J.
The maximum measured energy was 1.54 J, while the set energy was 1.50 J.
Therefore, the maximum positive deviation was approximately:
+2.67%
The minimum measured energy was 1.43 J.
Therefore, the maximum negative deviation was approximately:
−4.67%
Based on these measurements, the actual pulse energy varied approximately within:
−4.67% to +2.67%
Therefore, the pulse energy stability in this test can be described as being within ±5% of the preset energy.
It is important to note that "within ±5%" does not mean that every pulse was exactly 1.50 J. It means that the measured maximum positive and negative deviations from the preset energy remained within the ±5% range during the test.
This is a common question when evaluating a traditional jewelry laser welding machine.
First, an important distinction needs to be made:
The remaining service life of a xenon lamp cannot normally be quantified as precisely as a smartphone battery percentage.
For example, a smartphone can display a battery level of 50% because its battery management system estimates the remaining battery capacity.
A xenon lamp in a laser welding machine works differently. Its actual condition and service life can be affected by multiple factors, including:
Operating frequency
Pulse energy
Operating time
Discharge conditions
Cooling conditions
Power supply conditions
Actual condition of the xenon lamp
Therefore, it is not technically accurate to simply state that:
"The xenon lamp has exactly 50% of its service life remaining."
For the same reason, "50% lamp life" should not be treated as a precise trigger point for automatic energy compensation.
A xenon lamp is an important consumable component in many traditional jewelry laser welding systems.
Over extended use, its discharge characteristics may gradually change. This can affect the operating condition of the laser system.
For this reason, when evaluating long-term laser stability, it is more meaningful to focus on measurable laser output performance rather than trying to determine an exact remaining percentage of xenon lamp life.
The key question is:
Does the laser continue to deliver stable pulse energy during long-term operation?
This is one of the reasons why pulse energy stability testing is valuable.
The specific energy control and compensation method depends on the design of the laser source, power supply, control system, and overall machine configuration.
Some laser systems use their power supply and control systems to adjust operating conditions in order to maintain stable laser output.
However, it is not recommended to make an absolute statement such as:
"The machine automatically compensates when the xenon lamp reaches 50% of its lifetime."
The reason is that the exact "50% lifetime" point cannot normally be measured precisely.
A more technically accurate description is:
The laser power supply and control system are designed to maintain stable laser output. As the operating condition of the xenon lamp changes, the system can make corresponding adjustments to help maintain consistent welding performance.
Ultimately, actual laser output measurements provide a more meaningful reference for evaluating long-term stability.
A short test involving only a few hundred pulses provides limited information about the long-term stability of a laser welding machine.
A test involving approximately 60,000 laser pulses allows the system to operate through a much larger number of repeated laser discharges.
The test data can be summarized as follows:
Test Item | Result |
|---|---|
Set Energy | 1.50 J |
Number of Test Pulses | Approx. 60,000 |
Minimum Energy | 1.43 J |
Maximum Energy | 1.54 J |
Average Energy | 1.48 J |
Maximum Positive Deviation | +2.67% |
Maximum Negative Deviation | −4.67% |
Energy Stability | Within ±5% |
The results show that the measured pulse energy remained relatively close to the preset energy throughout the test.
Not necessarily.
Pulse energy stability is an important factor, but it is not the only factor that determines welding quality.
Actual jewelry welding results can also be affected by:
Precious metal type
Material thickness
Surface condition
Joint gap
Filler wire material
Filler wire diameter
Pulse width
Pulse frequency
Spot size
Focus position
Argon shielding
Operator experience
Therefore, two laser welding machines with similar energy stability may still produce different welding results.
A high-quality jewelry laser welding machine requires good coordination between the laser source, pulse control system, optical system, cooling system, and mechanical structure.
When purchasing a jewelry laser welder, it is important not to focus only on the laser's wattage.
The following specifications should also be considered.
Maximum pulse energy determines how much energy can be delivered in a single pulse. It is particularly important for applications requiring deeper penetration or larger welds.
Pulse width determines how long the laser energy is applied to the workpiece and has an important influence on heat input and molten pool formation.
Pulse frequency determines the number of laser pulses delivered per second. It affects welding speed and heat accumulation.
Stable pulse energy helps maintain consistent heat input during continuous welding and makes process control easier.
An effective cooling system helps maintain stable operating conditions during extended use.
The quality of the optical system directly affects beam transmission, focusing performance, and welding precision.

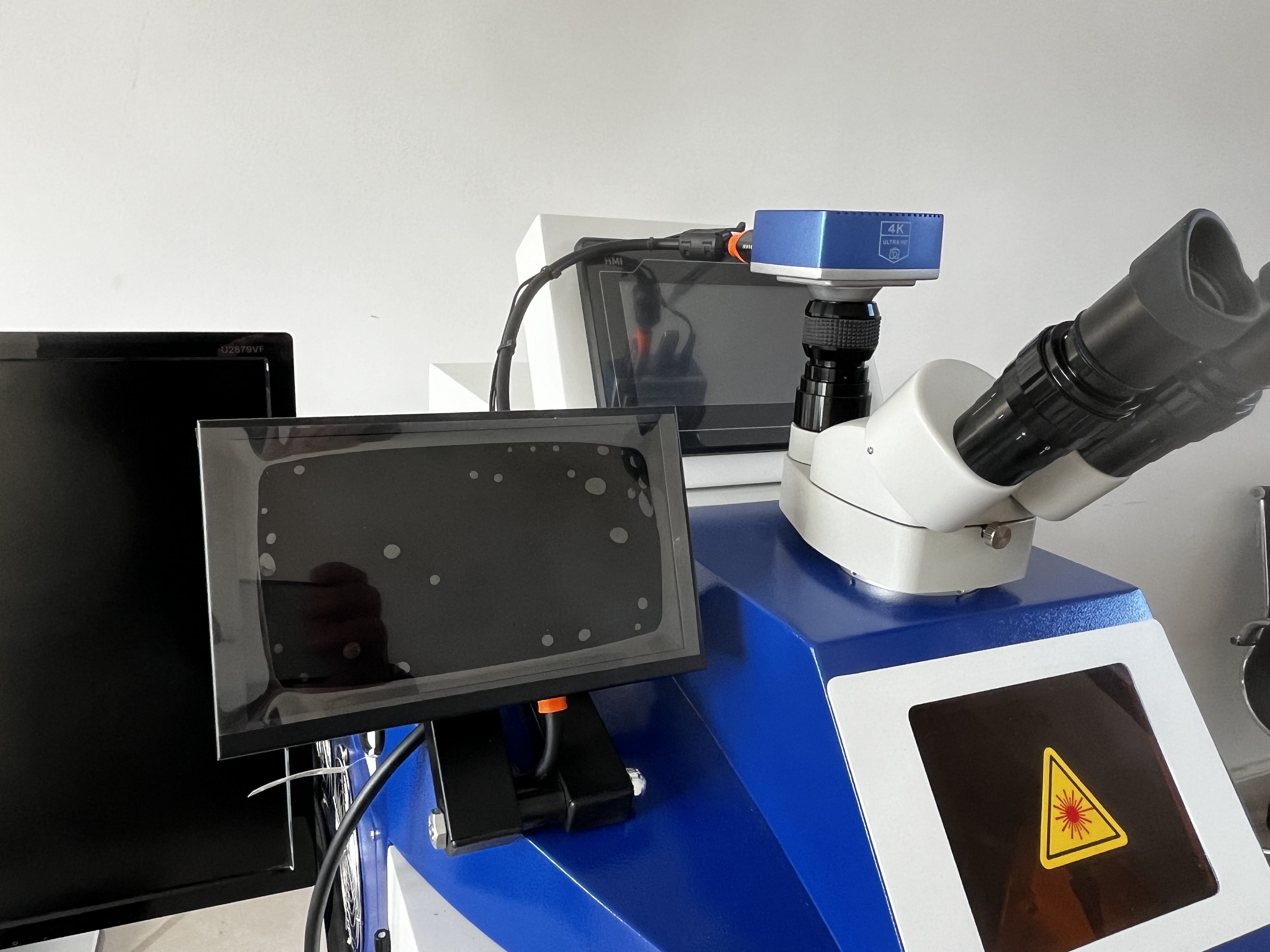

Jewelry repair often requires extremely precise positioning. A clear microscope and CCD imaging system can help operators accurately observe and control small welding areas.
A stable pulsed laser output can be used for a wide range of jewelry manufacturing and repair applications, including:
Gold ring repair
18K gold welding
Platinum jewelry repair
Silver jewelry welding
Chain repair
Bracelet repair
Earring repair
Prong repair
Crack repair
Small component joining
Jewelry surface defect repair
Precision filler-wire welding
For precious metals such as 18K gold and platinum, precise heat control is especially important because excessive heat input may affect the surrounding material.
For a jewelry laser welding machine, pulse energy stability is an important indicator of laser output consistency and welding performance.
Rather than relying only on the nominal specifications of a laser source, conducting an actual pulse energy test over a large number of pulses provides a more practical way to evaluate the stability of the system.
In the test example discussed in this article, the set energy was 1.50 J, and approximately 60,000 laser pulses were tested. The minimum measured energy was 1.43 J, the maximum was 1.54 J, and the average energy was 1.48 J.
Based on the measured maximum and minimum values, the energy deviation was approximately −4.67% to +2.67%, keeping the measured pulse energy within ±5% of the preset energy.
At the same time, xenon lamp life should not simply be described as "50% remaining," because the remaining service life of a xenon lamp cannot normally be quantified as precisely as a battery percentage.
For buyers evaluating a jewelry laser welder, it is therefore better to consider measurable performance indicators such as pulse energy, pulse width, frequency, energy stability, cooling performance, optical quality, and microscope/CCD performance.
Together, these factors contribute to a stable, precise, and repeatable laser welding process for jewelry manufacturing and repair.
