How to Protect Your Laser Cutting Machine from Freezing in Winter

Winter can be challenging for water-cooled laser cutting machines, especially when the workshop temperature drops below 0°C.

For fiber laser cutting machines, the cooling system is critical to the stable operation of the laser source and cutting head. If the cooling liquid freezes, it expands and may put excessive pressure on cooling pipes, pumps, connectors, the laser source and other components.

The good news is that most winter freezing problems can be prevented with proper preparation and regular maintenance.

In this guide, Smartech Laser explains the main risks of freezing and practical ways to protect your laser cutting machine during cold weather.

1. Why Can a Laser Cutting Machine Freeze in Winter?

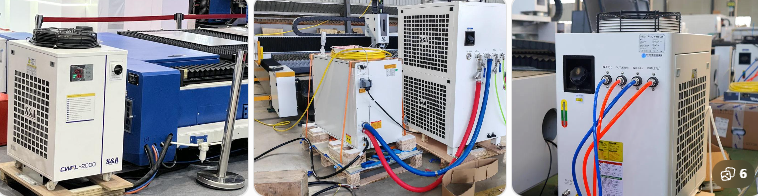

Most high-power fiber laser cutting machines use a water chiller to circulate cooling liquid through the laser source and cutting head.

During normal operation, the cooling system continuously removes heat generated by the laser.

However, when the ambient temperature falls below the freezing point, water or other unsuitable cooling liquids may freeze.

This can happen when:

• The machine is installed in an unheated workshop

• The workshop temperature drops below 0°C

• The machine is shut down overnight

• The factory closes for weekends or holidays

• A power outage stops the water chiller

• The machine is stored for a long period

• Residual water remains inside the cooling pipes or laser source

When water freezes and expands, it can damage internal cooling circuits and cause leaks or component failure.

2. Which Parts Are Most Vulnerable to Freezing?

The water chiller is not the only component that contains cooling liquid.

Depending on the machine configuration, coolant may also remain inside the:

One important point is that draining the visible water from the chiller does not necessarily mean that the entire cooling circuit is empty.

Residual coolant may remain inside pipes, the laser source, pump and cutting head.

3. The 3 Main Ways to Prevent Freezing

There are three common methods for protecting a laser cutting machine in winter:

Method 1: Keep the Workshop Above Freezing

Maintaining a suitable workshop temperature is one of the simplest solutions.

For cold regions, a heated workshop can protect not only the cooling system but also:

• Laser source

• CNC controller

• Electrical cabinet

• Cutting head

• Optical components

• Water chiller

The exact operating temperature should always follow the specifications of the laser source, chiller and complete machine.

Method 2: Use Manufacturer-Approved Antifreeze

If the workshop temperature may fall below 0°C and continuous heating or circulation cannot be guaranteed, an appropriate antifreeze solution may be required.

However, antifreeze must be compatible with:

• Laser source

• Water chiller

• Cooling pipes

• Seals

• Pump

• Other components in the cooling circuit

Do not select antifreeze simply because it has the lowest freezing point.

The correct product and concentration should be confirmed according to the equipment manufacturer's recommendations.

Method 3: Drain the Cooling System

For long-term shutdown in extremely cold conditions, completely draining the cooling system can be an effective method of preventing freezing damage.

This is particularly important during:

• Long holidays

• Factory shutdowns

• Long-term machine storage

• Unreliable power supply

• Extremely cold weather

4. Keep the Workshop Temperature Stable

If possible, maintaining a suitable indoor temperature is one of the easiest ways to protect your laser cutting machine.

A machine may be installed indoors, but an unheated warehouse can still become extremely cold overnight.

For example:

Daytime: +8°C → Night: -5°C

The machine may be protected from snow and rain, but the cooling water can still freeze.

For this reason, winter protection should focus not only on the machine itself, but also on the working environment.

Recommended Measures

• Keep doors and windows closed during extremely cold weather

• Avoid placing the machine close to open loading doors

• Install suitable workshop heating if necessary

• Monitor the temperature near the laser source and chiller

• Avoid sudden temperature changes whenever possible

5. Should You Keep the Water Chiller Running?

In some cold environments, keeping the water chiller running continuously can help maintain coolant circulation.

However, this method depends on a reliable power supply.

If a power outage stops the chiller, the cooling liquid may stop circulating and freezing risk can increase.

Therefore, continuous chiller operation should not be considered the only winter protection method.

For areas with frequent power interruptions, operators should prepare an alternative solution such as:

• Workshop heating

• Manufacturer-approved antifreeze

• Proper drainage before shutdown

Always follow the operating instructions provided for your specific chiller and laser source.

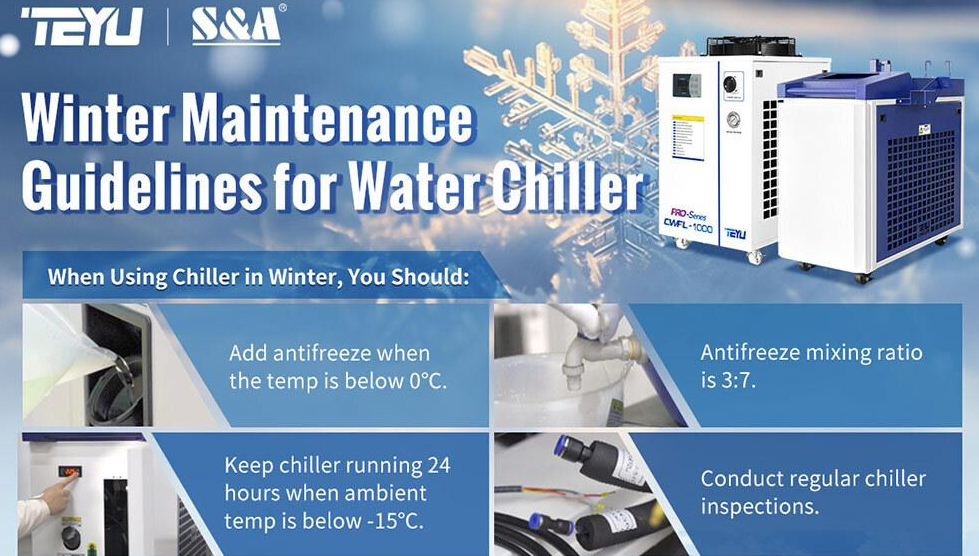

6. Can You Add Antifreeze to a Laser Cutting Machine?

In cold environments, antifreeze can be used in some laser cooling systems.

However, the correct antifreeze is extremely important.

Different laser sources and chillers may have different requirements.

Before Adding Antifreeze, Check:

1. Laser source manufacturer's requirements

2. Water chiller manufacturer's requirements

3. Recommended antifreeze type

4. Recommended concentration

5. Minimum expected ambient temperature

6. Compatibility with hoses and seals

Important:

Do not assume that automotive antifreeze is suitable for a laser cooling system.

Some products may contain additives that are not appropriate for laser equipment.

The safest approach is to use the coolant or antifreeze specifically recommended or approved by the relevant equipment manufacturer.

7. How Much Antifreeze Should You Add?

There is no universal antifreeze ratio for every laser cutting machine.

The required concentration depends on:

• Antifreeze type

• Lowest local temperature

• Laser source

• Water chiller

• Cooling system design

• Manufacturer requirements

Some manufacturers provide specific antifreeze concentration charts according to the expected minimum temperature.

For example, different glycol/water concentrations can provide different freezing points.

However, a higher concentration is not automatically better.

Too much antifreeze can increase viscosity and may reduce heat-transfer performance or create compatibility problems.

Therefore:

Always follow the recommended antifreeze type and mixing ratio for your specific laser system.

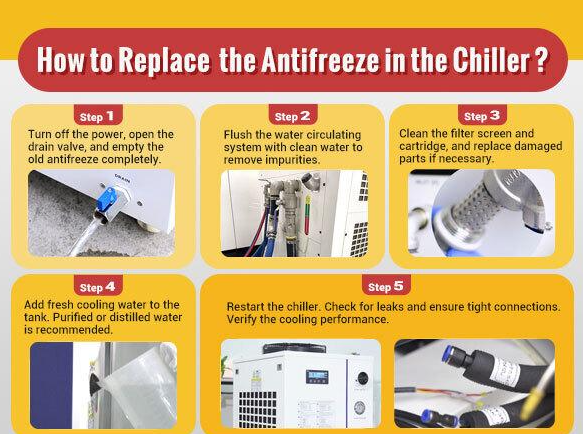

8. Antifreeze Is Not Usually a Year-Round Solution

Another common mistake is to add antifreeze in winter and leave it in the cooling system throughout the entire year.

Many laser cooling systems normally use purified, distilled or deionized water under suitable operating conditions.

After the cold season, the cooling system may need to be:

1. Drained

2. Flushed

3. Cleaned

4. Refilled with the manufacturer's recommended cooling liquid

This helps maintain stable cooling performance and reduces the potential long-term effects associated with unsuitable coolant.

Seasonal Maintenance

Winter

Use approved antifreeze when freezing protection is required.

↓

Spring

Drain and flush the cooling system.

↓

Normal Operating Season

Return to the manufacturer's recommended cooling liquid.

9. How to Drain a Laser Cutting Machine Before Long-Term Shutdown

If a laser cutting machine will remain unused for an extended period during winter, simply switching off the main power is not enough.

The cooling system should be properly drained according to the machine manufacturer's instructions.

Step 1 — Shut Down the Machine

Follow the normal shutdown procedure.

Step 2 — Turn Off the Chiller

Make sure the cooling system is safely stopped.

Step 3 — Drain the Cooling Liquid

Drain the liquid from the water chiller and accessible cooling pipes.

Step 4 — Remove Residual Liquid

Depending on the machine design, residual liquid may remain inside:

• Laser source

• Cooling pipes

• Pump

• Cutting head

• Filters

• Low points in the cooling circuit

Some manufacturers specify using clean compressed air to remove residual liquid.

Important: The air pressure and drainage procedure must follow the equipment manufacturer's instructions. Excessive air pressure can damage sensitive components.

Step 5 — Inspect the Cooling System

Check:

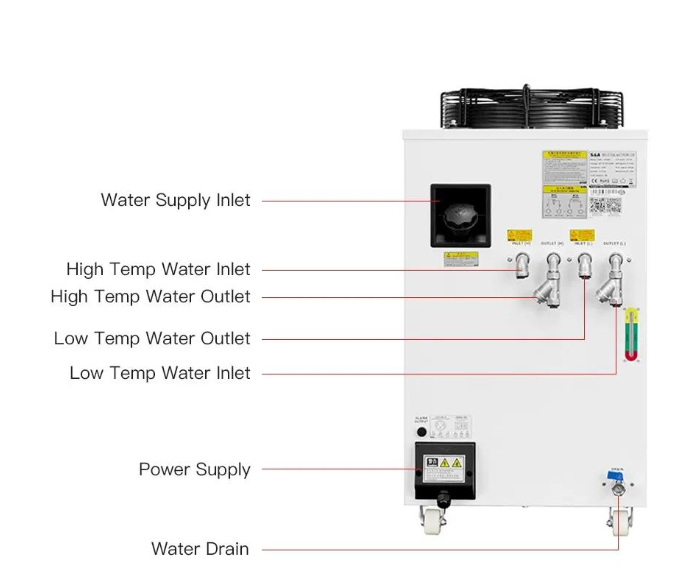

• Water inlet

• Water outlet

• Cooling pipes

• Connectors

• Pump

• Filters

• Water chiller

Step 6 — Protect the Water Ports

After drainage, protect or reconnect the water ports according to the manufacturer's instructions to prevent dust and contamination from entering the cooling system.

10. What Should You Do Before Restarting the Machine?

Winter protection does not end when the temperature rises.

Before restarting a machine after a long shutdown, perform a complete inspection.

Check the Following:

• Is the cooling system completely free of ice?

• Are the cooling pipes intact?

• Are there any leaks?

• Is the coolant at the correct level?

• Is the water circulation normal?

• Is the chiller operating normally?

• Are there any temperature or flow alarms?

• Are the laser source and cutting head ready for operation?

If the cooling system is frozen, do not immediately start the pump or laser.

The frozen area should be safely thawed according to the equipment manufacturer's procedure before restarting.

11. Winter Maintenance Checklist

Before Winter

•  Check the minimum operating temperature

•  Inspect cooling pipes and connectors

•  Check coolant condition and level

•  Confirm the correct antifreeze if required

•  Prepare workshop heating if necessary

•  Check power supply reliability

During Winter

•  Monitor workshop temperature

•  Monitor chiller temperature

•  Check coolant circulation

•  Check for water-flow alarms

•  Inspect the cooling system regularly

•  Pay special attention during holidays and weekends

Before Long-Term Shutdown

•  Shut down the machine correctly

•  Turn off the chiller

•  Drain the cooling system if required

•  Remove residual coolant

•  Inspect all water connections

•  Protect the water ports

After Winter

•  Check pipes and connectors

•  Check for leaks

•  Flush the cooling system if required

•  Replace coolant according to manufacturer requirements

•  Confirm stable water circulation

   Check the chiller for alarms

12. How Smartech Laser Helps You Prepare for Winter

At Smartech Laser, we understand that reliable machine operation is just as important as cutting performance.

Our laser cutting solutions are designed with an integrated cooling system to help maintain stable operating temperatures for the laser source and cutting head.

For customers operating in cold regions, we recommend preparing for winter in advance.

Depending on the local climate and machine configuration, our technical team can help customers determine:

• Suitable cooling solutions

• Winter operating requirements

• Antifreeze requirements

• Long-term shutdown procedures

• Cooling system maintenance

• Restart procedures after winter

Whether you need a 1200W, 1500W, 2000W, 3000W or higher-power fiber laser cutting machine, proper winter preparation can help reduce unexpected downtime and protect important components.

Conclusion

Winter freezing is a preventable risk for water-cooled laser cutting machines.

The most important areas to focus on are the water chiller, cooling pipes, laser source, cutting head and overall workshop temperature.

Depending on the local climate and operating conditions, the main protection methods include:

Keep the workshop warm → Use approved antifreeze when necessary → Drain the cooling system during long-term shutdown

Most importantly, always follow the specific recommendations of your laser source, water chiller and laser cutting machine manufacturer.

Proper winter maintenance can help protect your equipment, reduce unexpected downtime and keep your laser cutting production running smoothly throughout the year.
