Winter Maintenance Guide for Fiber Laser Cutting Machines

Winter can be challenging for laser cutting machines, especially in regions where temperatures can fall below 0°C (32°F).

For water-cooled fiber laser cutting machines, low temperatures can create a serious risk: the cooling water or coolant may freeze and expand inside the cooling system.

This can potentially damage cooling pipes, pumps, connectors, heat exchangers, laser sources and other critical components.

The good news is that most winter freezing problems can be prevented with proper preparation and regular maintenance.

In this guide, we will explain why laser cutting machines freeze in winter, which components are most vulnerable, how to prevent freezing, and what to do before a long shutdown.

1. Why Can a Laser Cutting Machine Freeze in Winter?

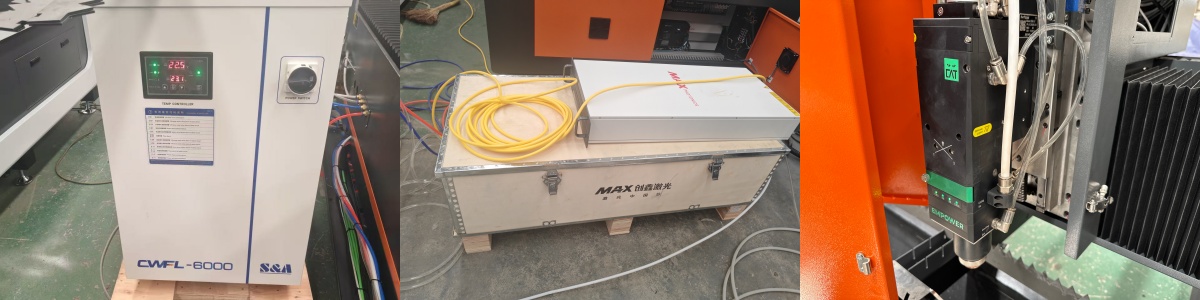

Most high-power fiber laser cutting machines use a water chiller to control the temperature of the laser source and cutting head.

During normal operation, coolant continuously circulates through the cooling system to remove heat generated by the laser.

When the ambient temperature drops below the freezing point, however, the coolant may freeze.

This risk is particularly high when:

• The machine is installed in an unheated workshop.

• The workshop temperature falls below 0°C.

• The machine is shut down overnight.

• The machine is not used during weekends or holidays.

• A power outage stops the water chiller.

• The machine will be stored for an extended period.

• Residual water remains inside the cooling pipes or laser source.

When water freezes, its volume increases. This expansion can put pressure on pipes, pumps, connectors and other components in the cooling circuit.

Therefore, winter maintenance is not simply about keeping the machine warm. It is mainly about preventing coolant from freezing inside the cooling system.

2. Which Parts of a Laser Cutting Machine Are Most at Risk?

The cooling system contains coolant in more places than just the water chiller.

Depending on the machine design, coolant may also remain inside the laser source, cooling pipes, pump, filters and cutting head.

Important: An empty-looking water tank does not necessarily mean that the entire cooling system is free of water.

Residual coolant can remain inside pipes and components.

3. The Three Main Ways to Prevent Freezing

There are three common approaches to winter protection:

① Keep the Workshop Above Freezing

② Use Manufacturer-Approved Antifreeze When Necessary

③ Drain the Cooling System During Long-Term Shutdown

The best method depends on the local climate, workshop conditions and the machine manufacturer's recommendations.

4. Keep the Workshop Temperature Stable

For many laser cutting machines, maintaining a suitable workshop temperature is the simplest and most reliable winter protection method.

If the workshop is heated, the temperature around the machine can be kept above the freezing point.

This is particularly important for machines operating in regions with long, cold winters.

A temperature-controlled workshop can also help protect other sensitive components, including:

• Laser source

• Electrical cabinet

• CNC controller

• Cutting head

• Optical components

• Cooling system

Always check the operating and storage temperature requirements specified by your laser source and chiller manufacturers.

Why Is Workshop Temperature Important?

A machine may be installed indoors, but an unheated warehouse or workshop can still reach sub-zero temperatures overnight.

For example:

Daytime: +8°C
Night: -5°C

Even though the machine is indoors, the cooling water may still freeze.

5. Should You Keep the Water Chiller Running?

In some cold environments, keeping the chiller operating can help maintain coolant circulation and reduce the risk of freezing.

Some manufacturers recommend continuous circulation when reliable power and suitable operating conditions are available.

However, there is an important limitation:

A running chiller cannot protect the machine if a power outage stops the cooling system.

Therefore, continuous operation should not be considered the only winter protection method in areas with unreliable electricity.

For long holidays or extended shutdowns, properly draining the cooling system may be a safer solution.

6. Can You Add Antifreeze to a Laser Cutting Machine?

Yes, antifreeze can be used in certain cold environments, but it must be selected carefully.

If the workshop temperature may fall below 0°C and the machine cannot be continuously heated or drained, an antifreeze solution approved for laser cooling systems may be necessary.

However, you should always check the requirements of:

• The laser source manufacturer

• The water chiller manufacturer

• The laser cutting machine manufacturer

Different cooling systems may have different coolant requirements.

Do Not Use Automotive Antifreeze Without Confirmation

This is one of the most common winter maintenance mistakes.

Automotive antifreeze is formulated for vehicle cooling systems and may contain additives that are not suitable for laser cooling circuits.

Laser equipment manufacturers commonly recommend dedicated laser antifreeze or a compatible glycol-based coolant instead.

The correct coolant should be:

• Compatible with the laser source

• Compatible with the water chiller

• Compatible with hoses and seals

• Suitable for the expected temperature

• Approved or recommended by the equipment manufacturer

Do not choose antifreeze simply because it has the lowest freezing point. Compatibility with the cooling system is more important.

7. How Much Antifreeze Should You Add?

There is no universal antifreeze ratio that applies to every laser cutting machine.

The correct concentration depends on:

• The type of antifreeze

• The laser source

• The chiller

• The cooling system

• The lowest expected ambient temperature

Some laser equipment manufacturers provide specific mixing ratios based on local temperatures. For example, certain guidance recommends different antifreeze/water ratios for temperatures ranging from approximately -5°C to -25°C.

Therefore:

Always follow the antifreeze manufacturer's freeze-point chart and your laser equipment manufacturer's instructions.

Do not increase the concentration simply because you want a lower freezing point.

An excessive concentration may negatively affect cooling performance and system compatibility.

8. Antifreeze Is Not a Year-Round Replacement for Deionized Water

Another common misconception is:

“If I add antifreeze in winter, I can use it throughout the year.”

This is generally not recommended.

Many laser systems are designed to use purified or deionized water under normal operating conditions.

Antifreeze can change the cooling characteristics of the fluid and may affect long-term system performance.

After the cold season, many manufacturers recommend draining the antifreeze, flushing the cooling system and returning to the specified coolant.

Recommended Seasonal Approach

Winter

Use the manufacturer-approved antifreeze solution if freezing protection is required.

↓

Spring

Drain and flush the cooling system.

↓

Normal Season

Return to the manufacturer's recommended purified or deionized water/coolant.

9. What Should You Do Before a Long Winter Shutdown?

This is one of the most important procedures for laser cutting machines in cold climates.

If the machine will remain unused for several days or weeks, simply switching off the power is not enough.

Step 1: Shut Down the Machine

Follow the normal shutdown procedure provided by the machine manufacturer.

Step 2: Turn Off the Chiller

Make sure the cooling system is safely shut down before draining the coolant.

Step 3: Drain the Cooling Water

Drain the coolant from the water chiller and accessible cooling pipes.

Step 4: Remove Residual Water

Water may remain inside:

• Cooling pipes

• Laser source

• Water pump

• Filters

• Cutting head

• Other low points in the cooling circuit

Manufacturers may recommend using clean compressed air to remove residual water from the cooling circuit.

Step 5: Check All Connections

Inspect:

• Water inlet

• Water outlet

• Pipes

• Connectors

• Pump

• Filters

• Chiller

Make sure there is no remaining water that could freeze.

Step 6: Protect the Open Connections

After drainage, follow the machine manufacturer's instructions for sealing or reconnecting the water ports to prevent dust or contamination from entering the cooling system.

10. What If the Laser Cutting Machine Has Already Frozen?

If you suspect that the cooling system has frozen, do not immediately start the machine.

Starting a machine while ice remains inside the cooling circuit may cause abnormal coolant circulation and potentially damage the pump or other components.

Instead:

1. Stop the machine.

2. Do not force the chiller to start.

3. Allow the equipment to gradually return to a suitable temperature.

4. Check the cooling pipes and connectors.

5. Check for cracks or leaks.

6. Confirm that the coolant can circulate normally.

7. Check the chiller for alarms.

8. Contact the machine or component manufacturer if damage is suspected.

Never Try to Thaw the Machine With Uncontrolled High Heat

Sensitive laser and electrical components should not be exposed to sudden or excessive heat.

Allow the system to warm up gradually under suitable environmental conditions.

11. Don't Forget About Condensation

Freezing is not the only winter-related problem.

Condensation can also be dangerous for laser equipment.

When cold equipment is suddenly exposed to warm and humid air, moisture may form on surfaces or sensitive components.

Condensation can potentially affect:

• Laser sources

• Optical components

• Electrical cabinets

• Cutting heads

• Electronic components

For this reason, avoid immediately powering on equipment that has been exposed to extremely cold conditions.

Allow the machine to reach a suitable temperature first, according to the manufacturer's requirements.

12. Common Winter Maintenance Mistakes

❌ Mistake 1: “The machine is indoors, so it cannot freeze.”

An unheated workshop can still fall below 0°C.

Solution: Monitor the actual workshop temperature.

❌ Mistake 2: “There is no ice in the chiller tank, so everything is fine.”

Residual water may still remain inside the cooling circuit.

Solution: Check and drain the complete cooling system when necessary.

❌ Mistake 3: “Any antifreeze can be used.”

Different antifreeze products have different compositions and compatibility.

Solution: Use only coolant approved for your laser cooling system.

❌ Mistake 4: “More antifreeze means better protection.”

Not necessarily.

An incorrect concentration may affect cooling performance and system compatibility.

Solution: Follow the manufacturer's recommended concentration.

❌ Mistake 5: “I can start the machine after it freezes.”

This can cause serious damage if ice remains inside the cooling system.

Solution: Allow the system to thaw completely and confirm normal coolant circulation before operation.

13. Winter Maintenance Checklist for Laser Cutting Machines

Before Winter

• Check the minimum operating temperature of the laser source.

• Check the operating temperature requirements of the water chiller.

• Inspect cooling pipes and connectors.

• Check the coolant level and condition.

• Determine whether antifreeze is required.

• Confirm the approved type of antifreeze.

• Prepare workshop heating if necessary.

• Check the reliability of the power supply.

During Winter

• Monitor workshop temperature.

• Monitor chiller temperature.

• Check coolant circulation.

• Check for chiller alarms.

• Pay extra attention during weekends and holidays.

• Prepare a backup plan for power outages in extremely cold regions.

Before Long-Term Shutdown

• Shut down the machine correctly.

• Turn off the chiller.

• Drain the cooling system if required.

• Remove residual coolant from pipes and components.

• Check all water connections.

• Protect the machine from extremely low temperatures.

After Winter

• Inspect the complete cooling system.

• Check pipes and connectors for leaks.

• Flush the system if required.

• Replace the coolant according to the manufacturer's requirements.

• Confirm stable coolant circulation.

• Check the chiller for alarms before production.

14. Final Thoughts

Winter freezing is a preventable problem, but it should never be underestimated.

For a water-cooled fiber laser cutting machine, the cooling system plays an essential role in maintaining stable operation of the laser source and cutting head.

The most suitable winter protection method depends on the local climate and machine operating conditions.

In a Mild Winter

Maintain a suitable workshop temperature and regularly monitor the cooling system.

In a Cold Workshop

Consider workshop heating, continuous coolant circulation where appropriate, or a manufacturer-approved antifreeze solution.

During Long-Term Shutdown

Properly drain the cooling system and remove residual coolant according to the machine manufacturer's instructions.

Most Importantly

Always follow the technical requirements provided by your specific laser source, water chiller and laser cutting machine manufacturer.

A few hours of winter preparation can help prevent expensive component damage, unexpected downtime and unnecessary repair costs.

Proper winter maintenance protects your laser cutting machine and helps keep your production running reliably throughout the year.

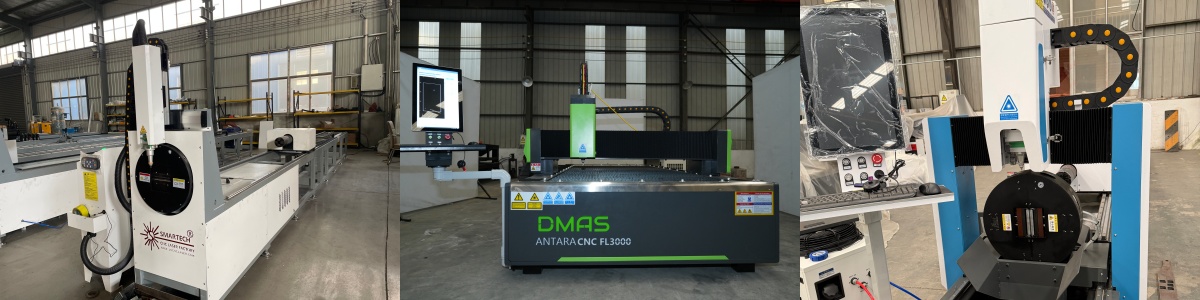

About Our Laser Cutting Machines
