Stainless steel is widely used in industries such as automotive, kitchen equipment, medical devices, architecture, and machinery manufacturing due to its excellent corrosion resistance, strength, and attractive appearance.
However, cutting stainless steel requires high precision and advanced technology to achieve smooth edges, minimal deformation, and high production efficiency.
A fiber laser cutting machine has become one of the most effective solutions for stainless steel processing. So, how does a laser cutting machine cut stainless steel?
Laser cutting uses a high-energy laser beam to melt and vaporize stainless steel materials. Compared with traditional cutting methods, fiber laser cutting offers higher accuracy, faster speed, and better surface quality.
Advantage | Description |
|---|---|
High Precision | Laser beam provides micron-level cutting accuracy, suitable for complex designs and precision parts |
Smooth Cutting Edge | Produces clean edges with minimal burrs, reducing post-processing requirements |
High Efficiency | Fast cutting speed improves production capacity and reduces labor costs |
Low Material Waste | Narrow kerf width helps maximize material utilization |
Minimal Deformation | Non-contact cutting reduces heat impact on stainless steel sheets |
The stainless steel laser cutting process mainly includes four steps:

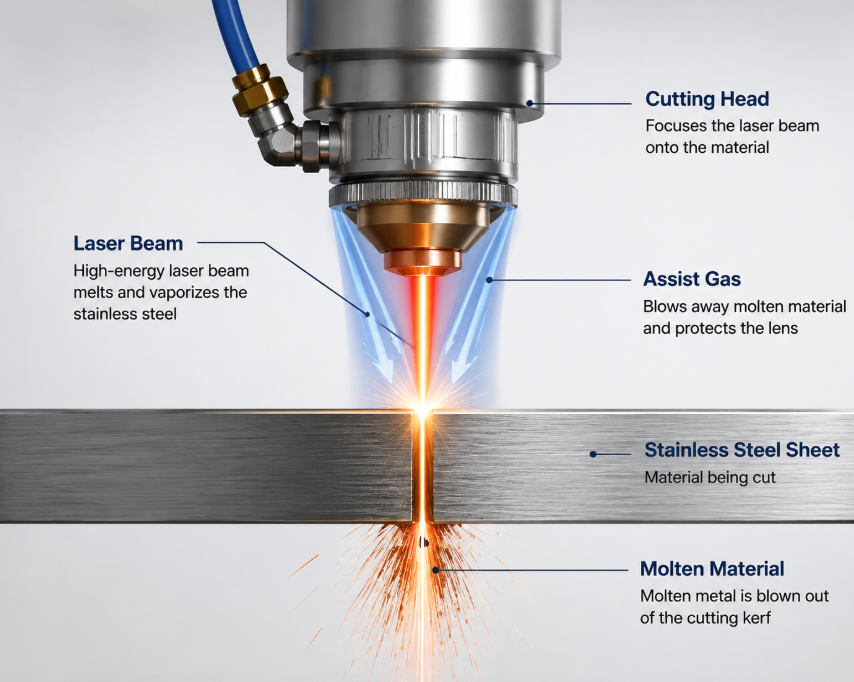

The fiber laser source generates a powerful laser beam. The beam is transmitted through the fiber system and focused by the cutting head into a very small point.
When the focused laser beam contacts the stainless steel surface, the extremely high energy density quickly melts the metal.
Assist gas, usually nitrogen or oxygen, blows away the molten metal from the cutting area, forming a clean cutting gap.
The CNC control system moves the cutting head according to the programmed design, creating accurate shapes and patterns.
The cutting quality depends on several important parameters:
Factor | Function | Impact on Cutting Result |
|---|---|---|
Laser Power | Determines cutting ability | Higher power allows thicker stainless steel cutting |
Cutting Speed | Controls processing efficiency | Too fast may cause incomplete cutting; too slow may increase heat effect |
Focus Position | Controls laser energy concentration | Correct focus improves edge quality |
Assist Gas | Removes molten metal | Nitrogen provides clean edges without oxidation |
Gas Pressure | Controls slag removal | Proper pressure ensures smooth cutting surface |
Nozzle Selection | Affects gas flow stability | Correct nozzle improves cutting consistency |
Different assist gases create different cutting effects.
Assist Gas | Features | Cutting Result | Application |
|---|---|---|---|
Nitrogen (N₂) | Non-reactive gas, prevents oxidation | Bright and smooth cutting edge | Stainless steel appearance parts, kitchen equipment, decorative products |
Oxygen (O₂) | Supports combustion, increases cutting speed | Faster cutting but slight oxidation | Thick stainless steel plates where edge appearance is less critical |
For stainless steel laser cutting, high-purity nitrogen is usually the preferred choice when a clean and oxidation-free edge is required.

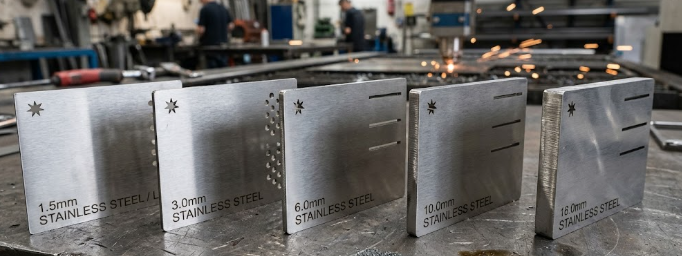

Example parameters for SUS304 stainless steel:
Stainless Steel Thickness | Recommended Laser Power | Assist Gas | Cutting Speed |
|---|---|---|---|
1mm | 1000W-1500W | Nitrogen | 25-35 m/min |
2mm | 1500W-2000W | Nitrogen | 15-25 m/min |
3mm | 2000W-3000W | Nitrogen | 8-15 m/min |
5mm | 3000W-4000W | Nitrogen | 4-8 m/min |
8mm | 4000W-6000W | Nitrogen | 2-4 m/min |
10mm | 6000W-8000W | Nitrogen | 1-2 m/min |
Note: Actual parameters may vary depending on laser source, machine configuration, material quality, and cutting requirements.

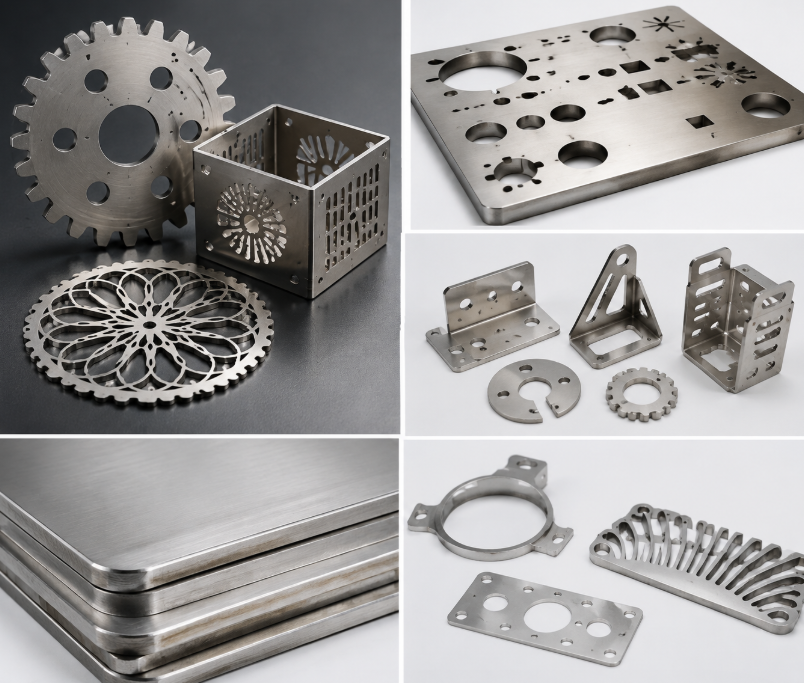

Laser-cut stainless steel parts are widely used in many industries:
Industry | Application Examples |
|---|---|
Kitchen Equipment | Stainless steel cabinets, sinks, countertops |
Automotive Industry | Precision metal components and covers |
Elevator Manufacturing | Decorative stainless steel panels |
Machinery Manufacturing | Structural parts and machine components |
Architecture | Metal decoration and facade panels |
Advertising Industry | Stainless steel letters and signs |
To achieve better cutting performance, manufacturers should pay attention to:
✓ Use high-quality stainless steel sheets
✓ Keep the laser lens and nozzle clean
✓ Select suitable laser power according to thickness
✓ Adjust focus position correctly
✓ Use high-purity assist gas
✓ Maintain regular machine calibration
Proper operation and maintenance can significantly improve cutting accuracy and machine lifetime.
Smartech Laser provides advanced fiber laser cutting solutions designed for high-efficiency stainless steel processing.

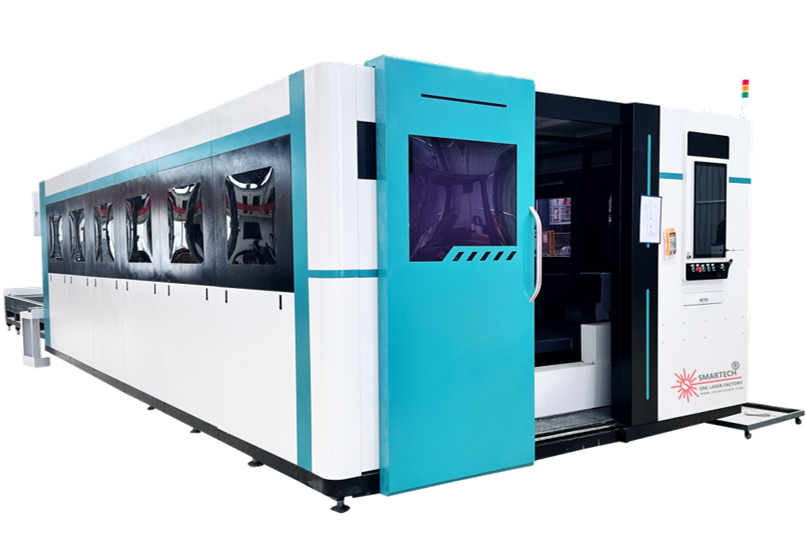

Our laser cutting machines feature:
Feature | Benefit |
|---|---|
High-Power Fiber Laser Source | Powerful cutting performance for different thicknesses |
Full Enclosure Design | Safer operation and cleaner working environment |
High Precision CNC System | Stable and accurate cutting quality |
Fast Cutting Speed | Increased productivity and reduced processing costs |
Professional Support | Complete service for global customers |
With reliable performance, advanced technology, and customized solutions, Smartech Laser helps manufacturers achieve smarter and more efficient metal processing.
