When selecting a pulsed fiber laser, many buyers focus on laser power (100W, 200W, 300W, etc.). However, maximum single pulse energy is often the more critical parameter that determines whether a laser is suitable for cleaning or precision marking.

Although laser cleaning and laser marking both rely on pulsed lasers, they have very different requirements for pulse characteristics. Understanding the role of single pulse energy can help you choose the right laser source and avoid costly mistakes.

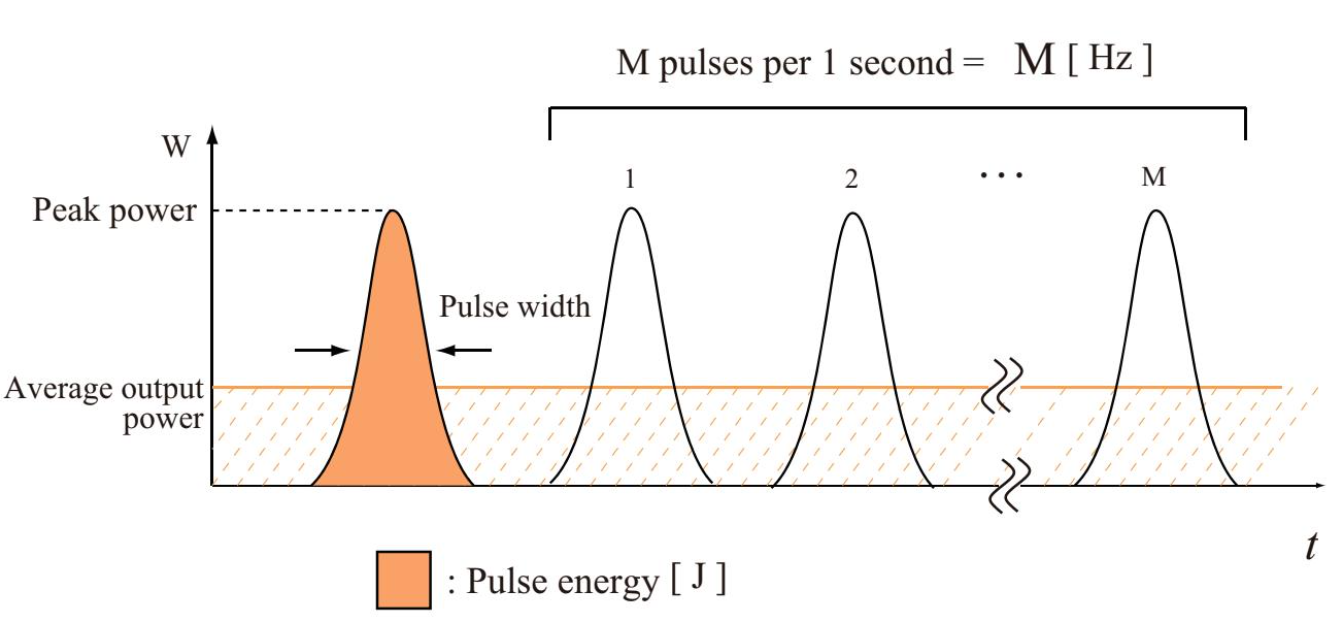

What Is Maximum Single Pulse Energy?

Maximum single pulse energy refers to the amount of energy contained in one individual laser pulse.

It is usually expressed in millijoules (mJ).

The relationship can be simplified as:

Pulse Energy (mJ) = Average Laser Power (W) ÷ Pulse Frequency (kHz)

For example:

This means that the same laser power can produce very different processing results depending on pulse frequency and pulse energy.

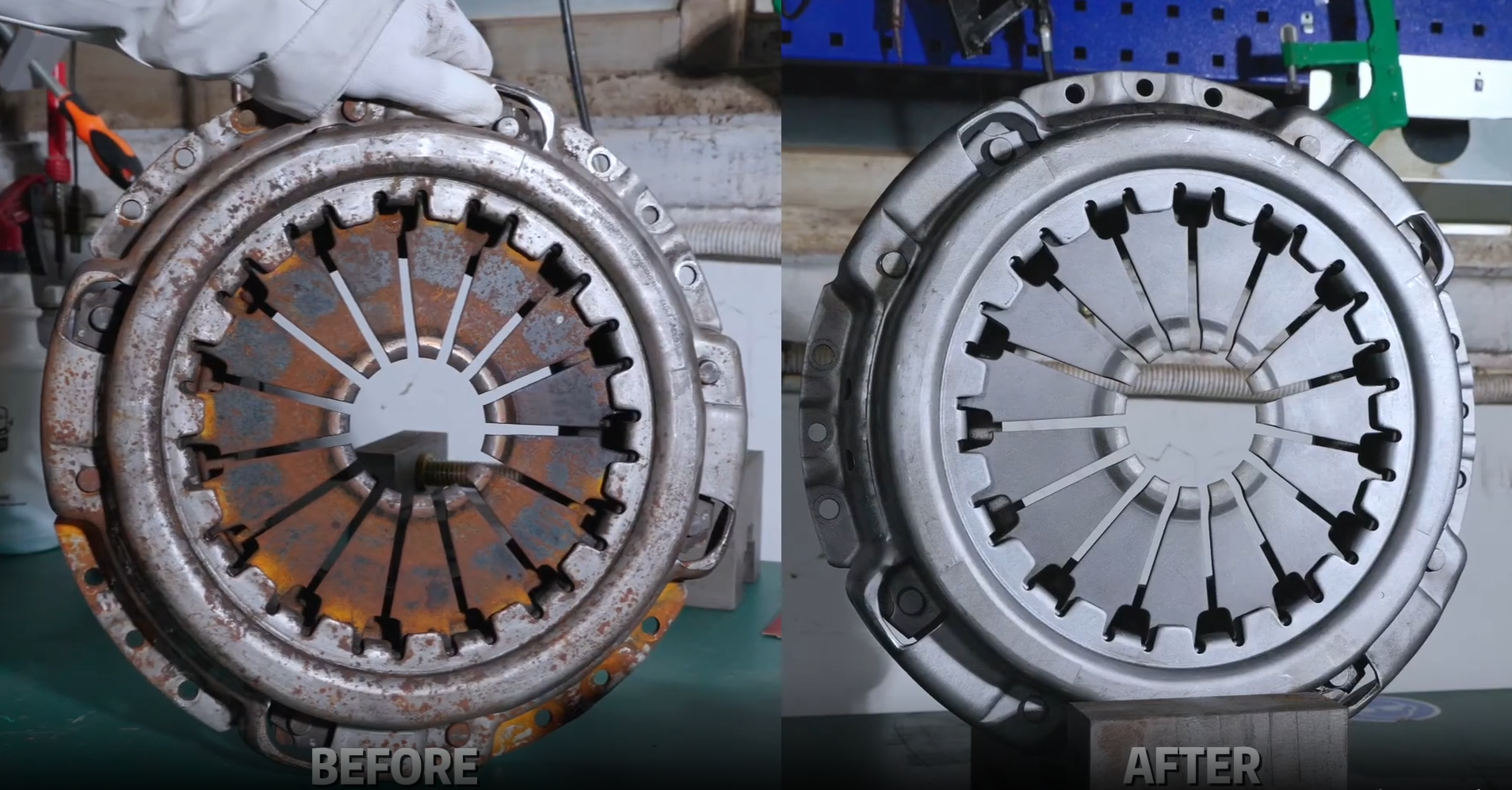

Why High Single Pulse Energy Is Better for Laser Cleaning

Laser cleaning removes contaminants through rapid thermal expansion and ablation.

The objective is to quickly break the bond between the contaminant and the substrate.

High single pulse energy provides several advantages:

1. Stronger Impact Force

Each laser pulse delivers a large amount of energy in an extremely short time.

This creates a powerful shock effect that efficiently removes:

• Rust

• Oxide layers

• Thick paint

• Oil contamination

• Surface coatings

2. Faster Cleaning Speed

Higher pulse energy means more material is removed with every pulse.

As a result:

• Higher efficiency

• Lower processing time

• Reduced operating costs

This is particularly important in industrial applications.

3. Better Performance on Thick Contaminants

Heavy rust and thick coatings require sufficient energy to break the adhesion.

Low-energy pulses may only heat the surface without removing the contamination effectively.

High pulse energy lasers can strip multiple layers much faster.

Why High Single Pulse Energy Is Not Ideal for Laser Marking

Laser marking has completely different objectives.

Instead of removing thick material, marking requires:

• Extremely precise energy control

• Small heat-affected zone

• Fine details

• Smooth edges

• High resolution

When pulse energy becomes too high, several problems may occur.

1. Excessive Heat Input

Too much energy concentrated into one pulse causes:

• Material melting

• Carbonization

• Surface burning

• Larger heat-affected zones

Instead of producing sharp markings, the result may become rough or distorted.

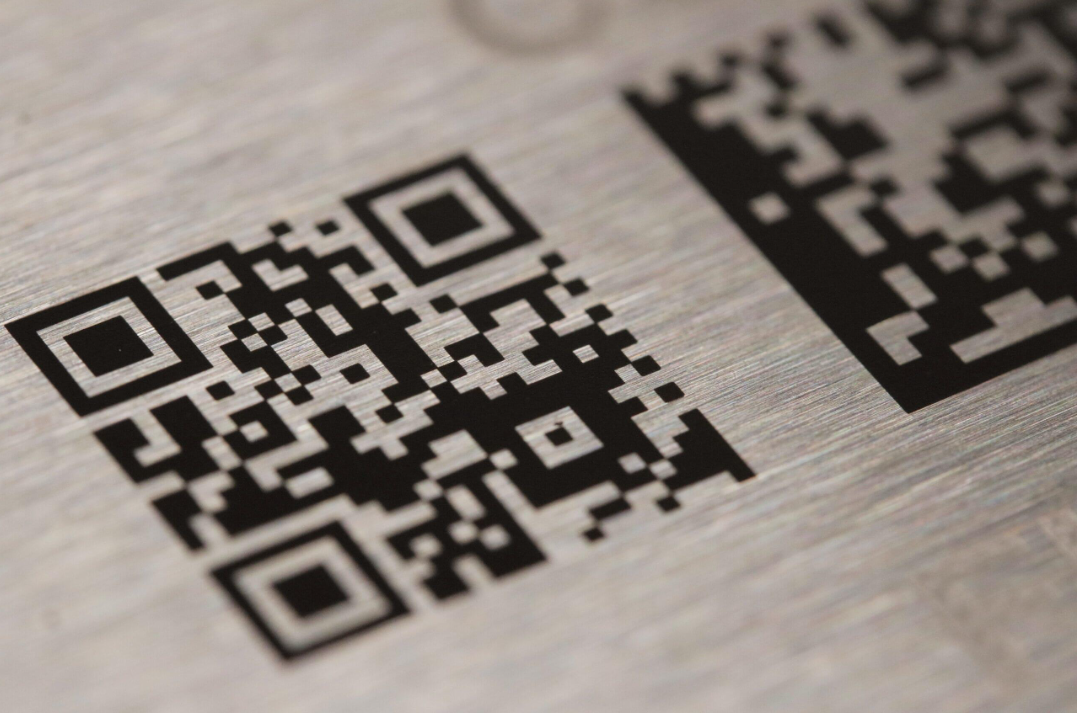

2. Reduced Precision

Fine graphics such as:

• QR codes

• Logos

• Small text

• Serial numbers

require stable, high-frequency pulses with lower energy.

High pulse energy makes it difficult to control tiny details.

3. Increased Risk of Material Damage

Sensitive materials such as:

• Stainless steel

• Aluminum

• Plastics

• Electronics

can easily be overprocessed by excessive pulse energy.

This may lead to:

• Surface deformation

• Deep engraving

• Burn marks

• Color inconsistency

The Best Laser for Marking Uses Lower Pulse Energy with Higher Frequency

Professional laser marking sources generally feature:

• Higher repetition frequency

• Narrow pulse width

• Better beam quality (lower M²)

• Lower single pulse energy

• More stable energy output

This combination allows precise material removal while minimizing thermal damage.

The Best Laser for Cleaning Uses Higher Pulse Energy

Industrial laser cleaning systems typically emphasize:

• High single pulse energy

• Lower repetition frequency

• Larger cleaning spot

• Strong ablation capability

These characteristics maximize cleaning efficiency rather than engraving precision.

A Practical Example

Consider the JPT YDFLP-CL2-300-10 pulsed fiber laser.

Its maximum single pulse energy reaches 15 mJ, making it ideal for industrial cleaning applications such as:

• Rust removal

• Paint stripping

• Oxide removal

• Mold cleaning

• Heavy-duty surface preparation

However, because this laser is designed around low frequency and high pulse energy, it is not optimized for high-precision laser marking or fine engraving.

Even if software parameters are adjusted, it cannot fully replicate the performance of a dedicated marking laser designed with:

• Higher frequency

• Smaller pulse energy

• Better beam quality

• Narrower pulse width

Cleaning Laser vs. Marking Laser

How to Choose the Right Laser Source

There is no universally "better" laser—only the one that best matches your application.

Choose a high single pulse energy laser if you need:

• Rust removal

• Paint removal

• Heavy-duty cleaning

• Surface preparation

• Industrial maintenance

Choose a low single pulse energy, high-frequency laser if you need:

• Fine marking

• High-speed engraving

• QR codes

• Logos

• Precision manufacturing

Conclusion

Maximum single pulse energy is one of the most important specifications when selecting a pulsed fiber laser.

A laser with high single pulse energy delivers stronger cleaning capability and higher efficiency but sacrifices precision.

Conversely, a low pulse energy, high-frequency laser provides superior marking quality with minimal thermal damage.

Before purchasing a laser system, always evaluate your application rather than focusing solely on average power. The right balance of pulse energy, frequency, pulse width, and beam quality will determine the final processing performance.
