How Regular Maintenance Improves Cutting Performance, Accuracy, and Machine Reliability

A fiber laser cutting machine is a long-term investment for any metal fabrication business. However, purchasing a high-quality machine is only the first step. Proper maintenance plays a critical role in maintaining cutting accuracy, reducing downtime, and extending the service life of the equipment.

Many users experience problems such as:

• Reduced cutting quality

• Increased consumable costs

• Lower cutting speed

• Frequent machine alarms

after several years of operation. In most cases, these issues are not caused by the machine itself, but by insufficient daily maintenance.

A well-maintained fiber laser cutter can provide stable performance for many years while helping manufacturers reduce operating costs.

1. Why Does a Fiber Laser Cutting Machine Need Regular Maintenance?

A fiber laser cutting machine is a precision industrial system consisting of multiple components:

Each component directly affects cutting performance.

For example:

Regular maintenance helps detect small problems before they become expensive repairs.

2. Laser Cutting Head Maintenance: Protect the Most Important Component

The laser cutting head is one of the most precise and sensitive parts of a fiber laser cutter.

During metal cutting, smoke, dust, and molten particles can accumulate on the protective lens and nozzle, affecting cutting quality.

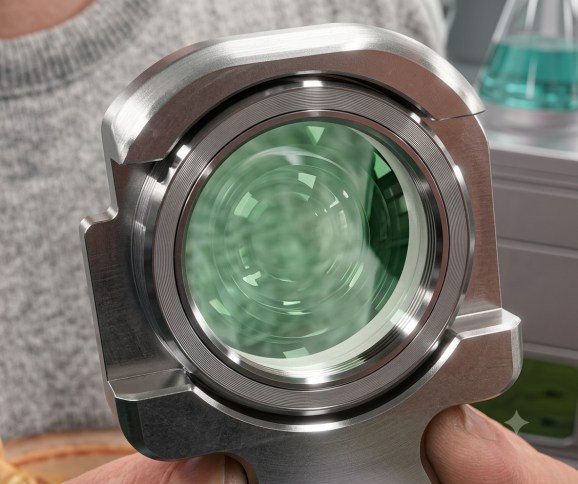

① Check and Clean the Protective Lens

The protective lens prevents contamination from entering the internal optical system.

A dirty protective lens may cause:

• Reduced laser transmission efficiency

• Lower cutting performance

• Excessive heat accumulation

• Lens damage

Recommended maintenance:

✔ Inspect the protective lens regularly
✔ Clean it with professional lens cleaning tools
✔ Replace damaged lenses immediately

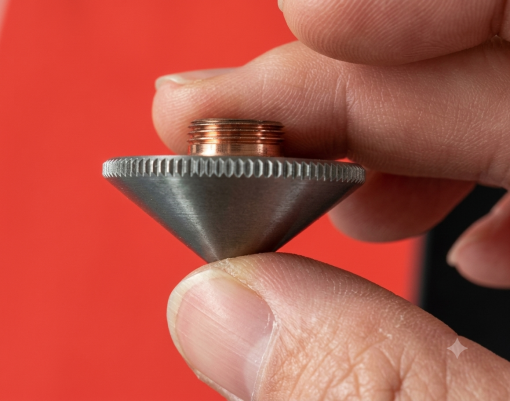

② Inspect the Cutting Nozzle

The nozzle controls:

• Assist gas flow

• Cutting stability

• Cutting edge quality

A damaged or blocked nozzle can lead to:

• Uneven cutting

• Excessive slag

• Poor edge quality

Recommended practice:

• Check nozzle condition before production

• Replace deformed or damaged nozzles in time

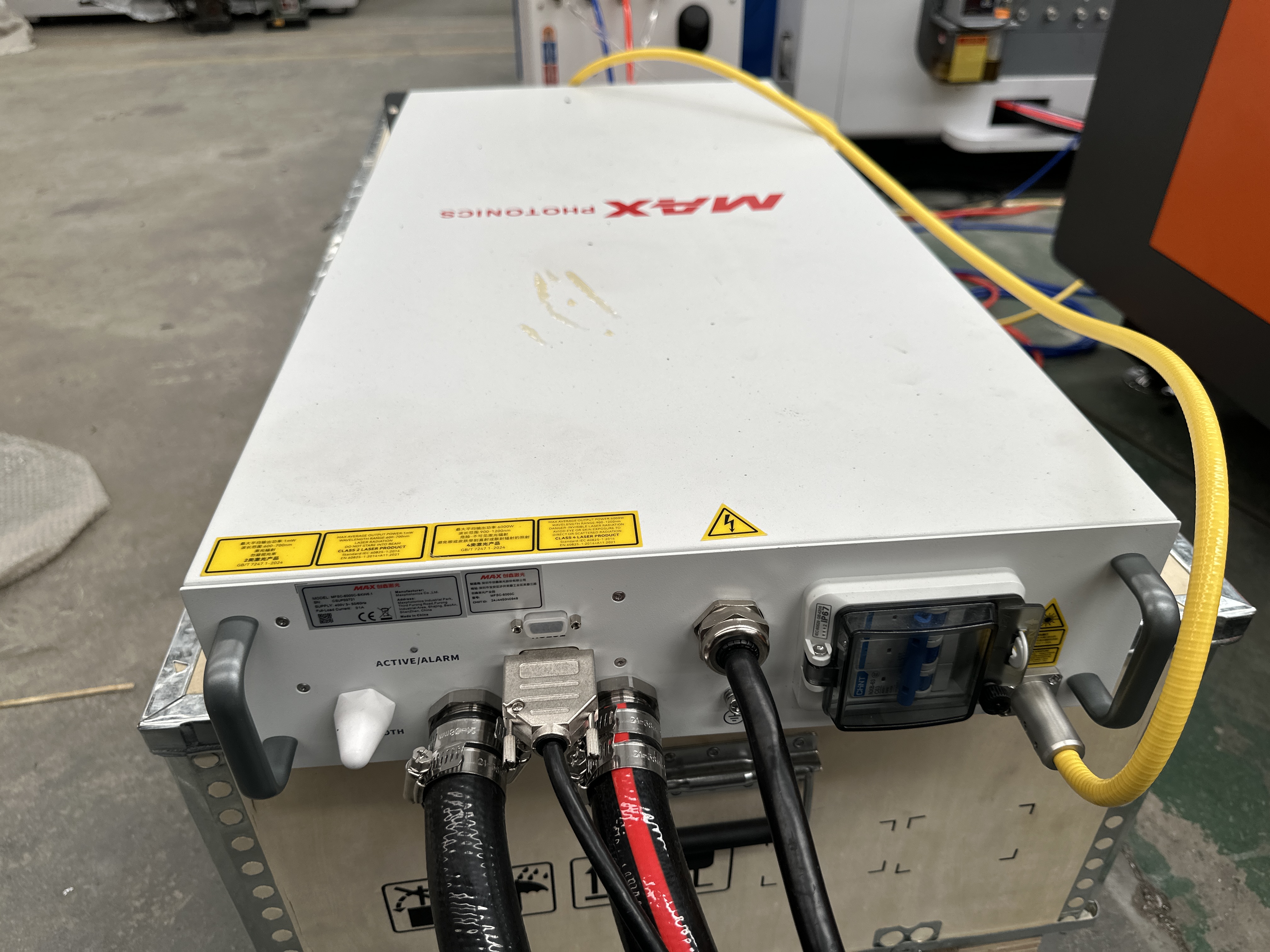

3. Fiber Laser Source Maintenance: Ensure Stable Laser Output

Modern fiber laser sources are designed for long service life. However, proper operating conditions are essential for maintaining stable laser output.

① Keep the Working Environment Clean

Avoid excessive:

• Metal dust

• Oil mist

• High humidity

These contaminants may affect electronic components and shorten equipment lifespan.

Recommended:

• Maintain good workshop ventilation

• Clean dust around the machine regularly

② Maintain the Cooling System

The cooling system is responsible for controlling the temperature of the laser source.

Regularly check:

• Water temperature

• Water level

• Cooling circulation

• Alarm signals

Cooling problems may result in:

• Laser power reduction

• Machine shutdown

• Damage to laser modules

4. Guide Rail, Rack and Motion System Maintenance

5

Many users focus mainly on the laser source brand, but the mechanical system is equally important for cutting accuracy.

The motion system includes:

• Linear guide rails

• Rack and pinion

• Servo motors

• Reduction systems

Long-term lack of maintenance may cause:

• Lower positioning accuracy

• Increased machine vibration

• Cutting dimension errors

Guide Rail Maintenance

Recommended actions:

✔ Remove dust and metal particles regularly
✔ Apply suitable lubrication oil
✔ Check slider movement condition

Avoid using unsuitable oils because they may attract dust and create abrasive residue.

Rack and Pinion Maintenance

The rack system transfers motor power into machine movement.

Regular inspection helps maintain:

• Smooth operation

• High acceleration performance

• Repeat positioning accuracy

Check:

• Rack surface cleanliness

• Lubrication condition

• Mechanical clearance

5. Electrical System Inspection: Prevent Unexpected Downtime

5

A fiber laser cutting machine contains many electrical components:

• CNC controller

• Servo drives

• Power supply units

• Wiring terminals

Recommended inspection schedule:

Metalworking environments usually contain a large amount of dust, which can affect electrical cooling and reliability.

6. Gas System Maintenance: Improve Cutting Quality

Assist gases include:

• Oxygen (O₂)

• Nitrogen (N₂)

• Compressed Air

Gas quality directly affects cutting results.

Check Gas Pressure

Incorrect pressure may cause:

Maintain Air Filters

Regularly remove:

• Water

• Oil

• Dust particles

Clean gas improves cutting stability and protects the cutting head.

7. Recommended Fiber Laser Machine Maintenance Schedule

8. Common Maintenance Mistakes to Avoid

❌ Only Use the Machine Without Maintenance

Some operators think:

"The machine is still working, so maintenance is unnecessary."

However, small problems accumulate over time and may lead to:

• Expensive replacement parts

• Long production downtime

• Increased operating costs

❌ Ignoring Consumable Replacement

Components such as:

• Protective lenses

• Cutting nozzles

are normal consumables.

Continuing to use damaged consumables may increase:

• Scrap rate

• Cutting instability

• Equipment risk

❌ Incorrect Lubrication

Using improper lubrication methods can cause:

• Dust accumulation

• Rail wear

• Reduced accuracy

Always follow manufacturer recommendations.

9. How to Maximize the Lifespan of Your Fiber Laser Cutter?

Besides regular maintenance, correct operation is equally important.

Recommended practices:

✅ Select suitable laser power according to material thickness
✅ Avoid continuous overload operation
✅ Use stable power supply conditions
✅ Perform regular accuracy calibration
✅ Train operators properly

A high-quality fiber laser cutting machine with proper maintenance can maintain excellent performance for many years.

Conclusion: Maintenance Creates Long-Term Value

A fiber laser cutting machine is not just equipment — it is a long-term production investment.

Regular maintenance provides:

✅ Higher productivity
✅ Lower repair costs
✅ Longer machine lifespan
✅ More stable cutting quality

From the laser head and protective lens to the guide rails, rack system, and cooling unit, every component affects the final cutting performance.

For manufacturers, establishing a professional maintenance routine is always more economical than repairing failures after they happen.
