Can laser cleaning damage metal? This is one of the most common questions asked by manufacturers before investing in a laser cleaning machine.
Laser cleaning is widely used for removing rust, paint, oil, grease, oxide layers, carbon deposits, and other contaminants from metal surfaces. Compared with traditional methods such as sandblasting, grinding, and chemical cleaning, laser cleaning offers a non-contact and highly controllable way to clean metal surfaces.
But because a laser uses concentrated energy, an important question remains:
Can laser cleaning damage the underlying metal?
The short answer is: Yes, improper laser parameters can damage metal. However, when the laser parameters are correctly selected, laser cleaning can achieve highly selective and low-damage surface cleaning.
The key is not simply the laser itself, but how the laser energy is matched to the substrate and the contaminant.
Laser cleaning works by taking advantage of the different physical and optical properties of contaminants and the underlying metal.

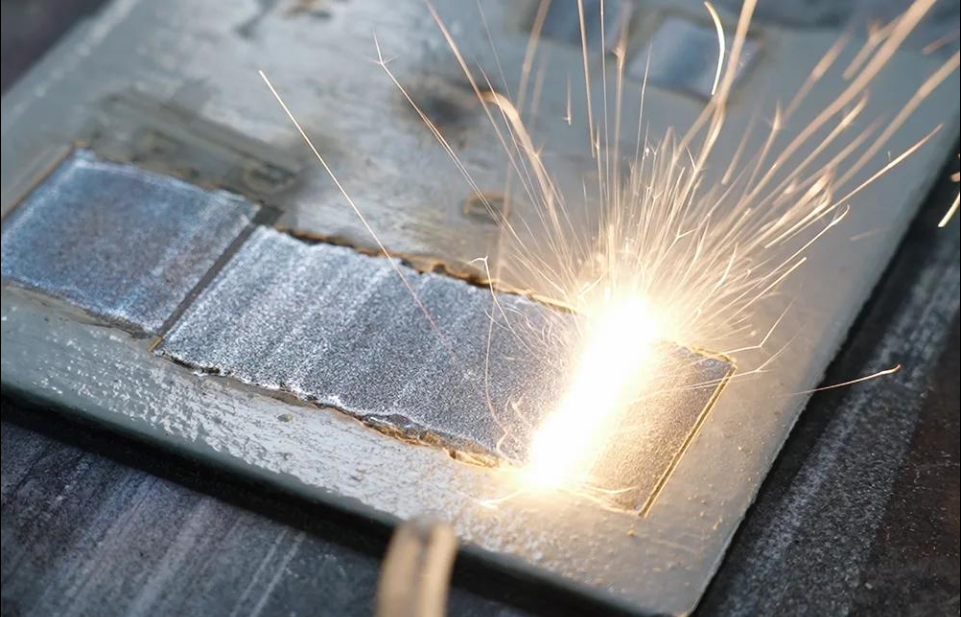

When a laser beam is directed onto a contaminated metal surface, materials such as rust, paint, oil, grease, and oxide layers absorb laser energy.
As the absorbed energy increases, the contaminants can rapidly heat up, expand, vaporize, decompose, or detach from the surface.
At the same time, the laser parameters can be carefully controlled so that the energy delivered to the underlying metal remains below its damage threshold.
This creates a selective cleaning process:
Laser energy → Contaminant absorbs energy → Contaminant is removed → Metal substrate remains largely unaffected
This is one of the most important advantages of laser cleaning.
Unlike mechanical cleaning, the laser does not need to physically touch the workpiece. Instead, it uses controlled laser energy to remove unwanted materials from the surface.
No.
It is important to make this distinction.
Laser cleaning should not be described as a process that can never damage metal under any circumstances.
A laser is a high-energy light source. If excessive energy is delivered to the substrate, the metal surface can also absorb enough energy to cause thermal effects.
Depending on the material and laser parameters, excessive laser energy may cause:
Surface discoloration
Micro-melting
Increased surface roughness
Localized ablation
Micro-pits
Secondary oxidation
Surface structure changes
In severe cases, cracks or other forms of damage
Therefore, the goal of professional laser cleaning is to find a suitable process window between the contaminant removal threshold and the substrate damage threshold.
In simple terms:
Contaminant removal threshold < Laser energy < Substrate damage threshold
When the laser parameters remain within this window, efficient cleaning can be achieved while minimizing damage to the metal substrate.
Metal laser cleaning is not controlled by laser power alone.
Several parameters work together to determine cleaning performance and substrate safety.
Laser power determines how much energy the system can deliver over time.
If the power is too low, contaminants may not be completely removed.
If the power is too high, excessive energy may be transferred to the substrate, increasing the risk of thermal damage.
Therefore, the optimal power depends on:
Metal type
Contaminant type
Contaminant thickness
Cleaning speed
Required surface quality
Higher power does not always mean better cleaning.
For pulsed laser cleaning machines, pulse frequency determines how many laser pulses are delivered per unit of time.
Frequency needs to be matched with pulse energy and scanning speed.
If the combination is not properly adjusted, the same area may receive excessive laser energy, resulting in heat accumulation.
This can increase the possibility of discoloration or substrate damage.
Pulse width determines how long each laser pulse interacts with the material.
Short-pulse laser systems can deliver energy within a very short period, which provides precise control over the interaction between the laser and the contaminant.
The appropriate pulse width depends on the material, contaminant, and required cleaning result.
For precision applications, controlling pulse characteristics is particularly important because excessive thermal input should be avoided.
Scanning speed is another critical parameter.
If the scanning speed is too high:
Insufficient energy → Incomplete cleaning
If the scanning speed is too low:
Excessive energy accumulation → Increased thermal effect → Higher risk of substrate damage
For this reason, operators normally adjust scanning speed together with laser power, frequency, and other parameters.
The laser beam normally scans across the surface rather than remaining in one fixed position.
If adjacent scanning lines overlap excessively, certain areas may receive repeated laser exposure.
This can increase:
Heat accumulation
Surface temperature
Cleaning intensity
Surface roughness
Risk of substrate modification
Proper scan spacing and overlap are therefore important for consistent cleaning.
Pulsed laser cleaning machines are widely used for applications where protecting the underlying metal surface is important.
A pulsed laser delivers energy in short bursts rather than continuously.
This allows the operator to control parameters such as:
Pulse energy
Pulse frequency
Pulse width
Scanning speed
Scan width
Repetition rate
With appropriate parameter selection, contaminants can be removed while minimizing unnecessary heat transfer to the substrate.
Pulsed laser cleaning is therefore commonly considered for applications such as:
Precision mold cleaning
Automotive component cleaning
Aerospace component cleaning
Stainless steel cleaning
Aluminum alloy cleaning
Copper component cleaning
Pre-welding surface preparation
Paint and coating removal
Precision rust removal
However, the correct parameters still need to be determined according to the specific material and application.
Stainless steel can generally be cleaned effectively using laser technology.
Typical applications include:
Rust removal
Oxide removal
Oil and grease removal
Paint removal
Weld preparation
Surface contamination removal
However, stainless steel can show visible discoloration if excessive heat is introduced.
Therefore, when cleaning stainless steel surfaces where appearance is important, the laser power, scanning speed, frequency, and other parameters should be carefully optimized.
For high-precision applications, it is recommended to perform a cleaning test before full-scale production.
Aluminum requires particularly careful parameter selection.
Aluminum has high reflectivity for commonly used laser wavelengths and a relatively low melting point compared with many industrial metals.
This means that excessive laser energy can potentially cause surface modification.
Depending on the process parameters, excessive energy may result in:
Surface melting
Micro-pits
Roughness changes
Discoloration
Localized material removal
For aluminum cleaning, operators should normally start with conservative parameters and gradually optimize the cleaning process.
Copper can also be cleaned using laser technology, but its high reflectivity needs to be taken into consideration.
The appropriate laser wavelength, power, pulse parameters, and scanning conditions should be selected according to the specific copper material and contaminant.
For applications such as oxide removal, oil removal, and surface preparation, testing is recommended before production.
The same laser parameters should not automatically be applied to copper simply because they work well on steel.

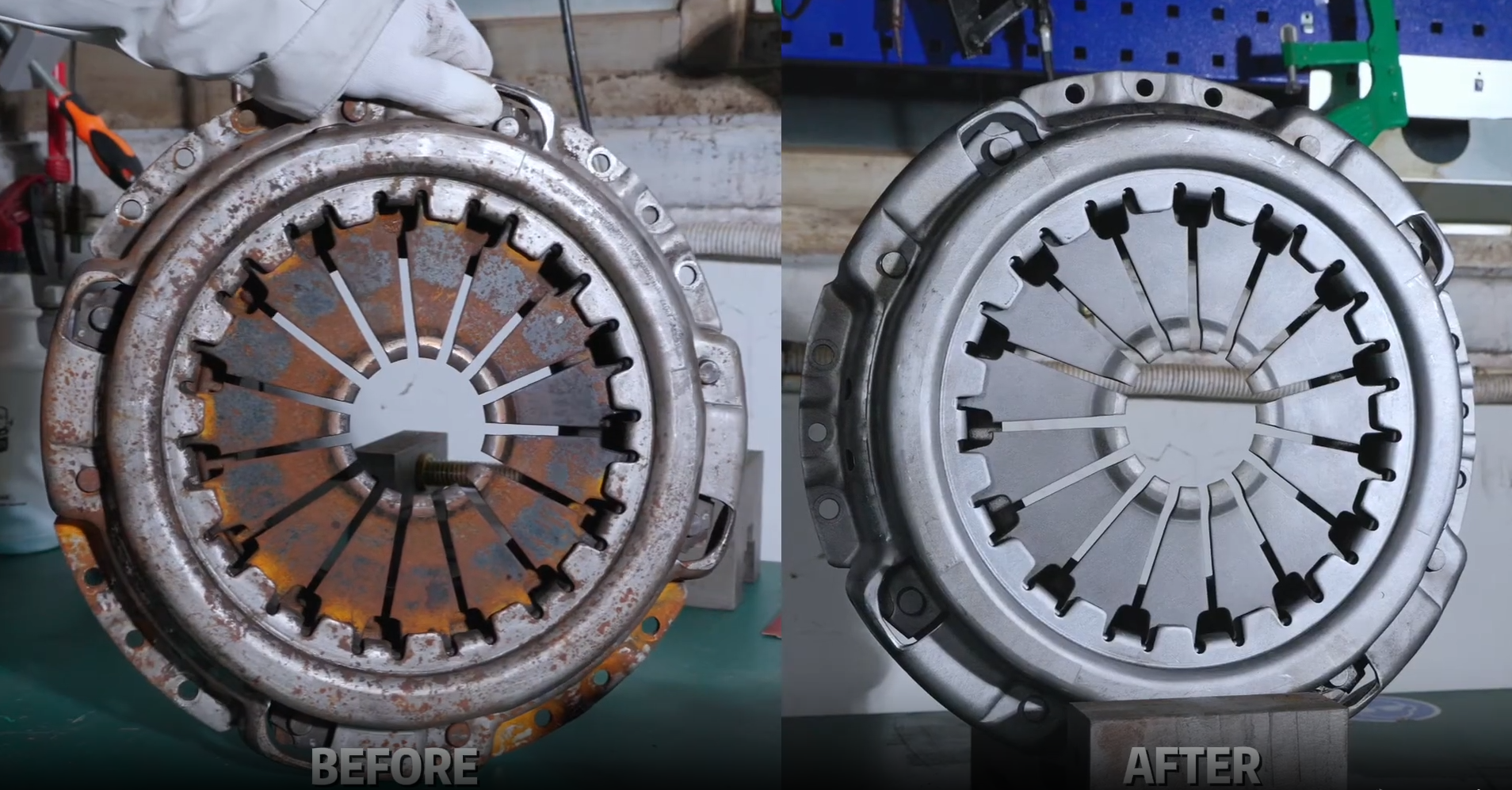

Carbon steel is one of the most common materials for laser rust removal.
Typical applications include:
Rust removal
Oxide scale removal
Paint removal
Oil removal
Welding preparation
Surface preparation before coating
Carbon steel generally provides a relatively wide process window for many cleaning applications.
However, excessively high energy or very slow scanning can still cause localized thermal effects.
The correct parameters should therefore be selected according to the thickness and type of contamination as well as the required surface finish.
Yes, it can happen if the laser parameters are not properly controlled.
When the metal surface receives excessive thermal energy, oxidation or other surface changes may occur.
This can be particularly noticeable on materials such as:
Stainless steel
Titanium
Aluminum alloys
Other metals with sensitive surface finishes
For example, a metal surface may show slight discoloration even when the contaminant has already been completely removed.
This is why professional laser cleaning should focus not only on whether the contamination is removed, but also on whether the original substrate surface is preserved.
The safest approach is to establish the correct cleaning parameters through testing.
First determine the substrate material:
Carbon steel
Stainless steel
Aluminum
Copper
Brass
Titanium
Other alloys
Different metals have different optical and thermal properties.
The type of contamination is equally important.
Common contaminants include:
Rust
Oil
Grease
Paint
Oxide
Carbon deposits
Welding slag
Protective coatings
The thickness and composition of the contamination can also affect the required laser parameters.
Do not immediately use the maximum available laser power.
A better approach is:
Low energy → Test → Observe → Gradually increase → Find the optimal cleaning window
This approach reduces the risk of unnecessary substrate damage.
Do not evaluate the process only by asking:
"Is the contamination gone?"
Also check:
Has the color changed?
Is there any melting?
Are there visible pits?
Has the surface roughness changed?
Is there evidence of excessive heat?
Has the original surface finish been preserved?
For high-precision applications, additional inspection methods such as microscopy and surface roughness measurement can be used.
Traditional mechanical cleaning methods include:
Sandpaper
Wire brushes
Grinding
Sandblasting
Abrasive tools
These methods remove contaminants through direct mechanical force.
As a result, they may also:
Remove part of the substrate
Change surface roughness
Create scratches
Produce dust
Wear out abrasive tools
Laser cleaning is different because it is a non-contact cleaning process.
The laser head does not physically rub against the workpiece. Instead, controlled laser energy is used to remove contaminants from the surface.
This makes laser cleaning particularly attractive for applications where surface integrity and process repeatability are important.
The biggest advantage of laser cleaning is not simply saying:
"Laser cleaning never damages metal."
A more accurate explanation is:
Laser cleaning allows the operator to precisely control laser energy so that contaminants can be removed while the energy delivered to the substrate remains below its damage threshold.
In other words, laser cleaning is about selective energy control.
The ideal process is:
Remove the contaminant efficiently while minimizing the energy absorbed by the substrate.
This is what makes laser cleaning suitable for many precision industrial applications.
Yes, improper laser cleaning parameters can damage metal. But properly controlled laser cleaning can achieve highly selective and low-damage surface cleaning.
The key factors include:
Laser wavelength
Laser power
Pulse energy
Pulse width
Frequency
Scanning speed
Scan width
Scan overlap
Material properties
Contaminant type
Contaminant thickness
Therefore, the right question is not:
"Can a laser damage metal?"
The better question is:
"Can the laser parameters be controlled to remove the contaminant without exceeding the damage threshold of the metal?"
In many industrial applications, the answer is yes.
If you are considering a laser cleaning machine, the most reliable approach is to test your actual material and contamination before purchasing.
Provide the supplier with:
Metal type + Contaminant type + Contaminant thickness + Required cleaning result
A professional supplier should be able to recommend suitable laser parameters and, whenever possible, provide a sample cleaning test.
The final cleaning result should always be verified through practical testing on the actual workpiece.
Yes. With appropriate laser parameters, rust can be removed while minimizing the effect on the underlying metal. The exact parameters depend on the metal type, rust thickness, laser source, and required surface finish.
Yes. Laser cleaning is widely used for stainless steel. However, excessive laser energy can cause discoloration or other surface changes, so proper parameter adjustment is important.
Yes. Laser cleaning can be used to remove many types of paint and coatings from metal surfaces. The laser parameters should be adjusted according to the coating and substrate.
Pulsed laser cleaning can be particularly suitable for precision applications because the pulse energy and other parameters can be carefully controlled, helping reduce unnecessary heat input.
It can, depending on the material and laser parameters. Proper process optimization can minimize unwanted changes in surface roughness.
The best method is to perform a sample test using the actual material and contamination. This allows the cleaning efficiency and substrate condition to be evaluated before production.
Laser cleaning is not about using the highest possible laser power. It is about using the right amount of energy for the right material and the right contaminant.
When the process parameters are properly optimized, laser cleaning can provide an efficient, precise, non-contact, and low-damage solution for industrial metal surface cleaning.
