Can a Laser Tube Cutting Machine Cut Angle Steel, C Channel and Other Profiles? What Really Determines the Result?

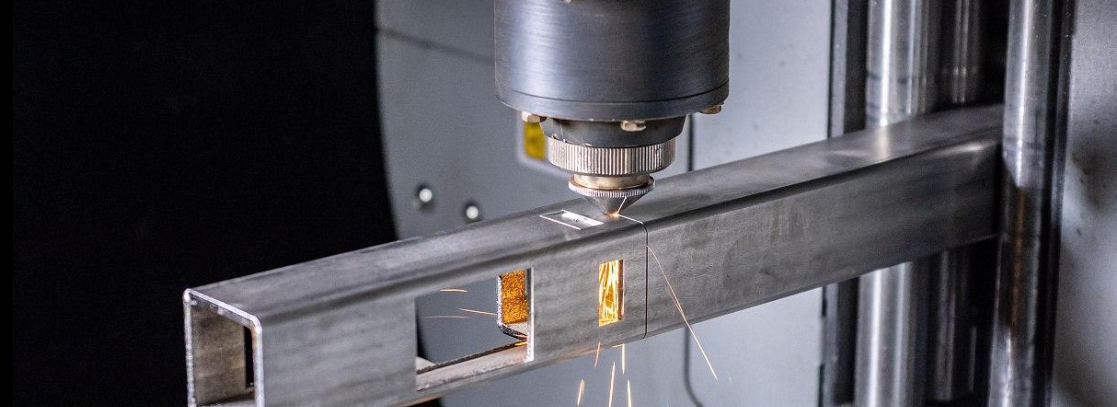

When customers look for a laser tube cutting machine, one of the most common questions is:

Can this machine cut angle steel, C channel, square tube, rectangular tube and other metal profiles?

The short answer is yes, but not every tube laser cutting machine can do it well.

Many buyers assume that if a machine can cut round tubes and square tubes, it should also be able to cut angle steel or channel steel without any problem. In reality, profile cutting is much more demanding than standard tube cutting. Whether the machine can process these materials efficiently and accurately depends on several key factors, including machine structure, chuck design, control system, software functions and laser power.

In this article, we will explain what really determines whether a laser tube cutting machine is suitable for angle steel, C channel, channel steel and other open profiles.

1. What materials are we talking about?

In tube laser cutting, common materials can generally be divided into two groups:

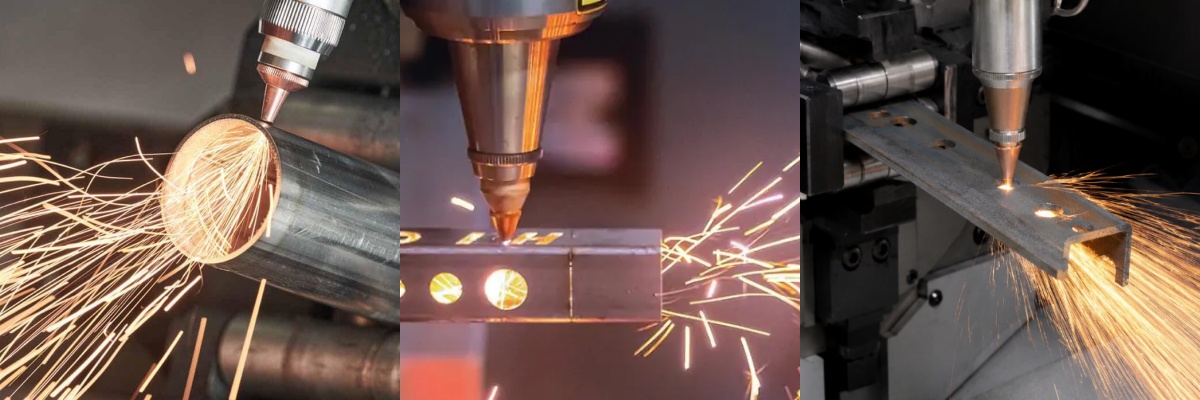

1) Closed tubes

These are the easiest and most common materials for tube laser cutting machines:

• Round tube

• Square tube

• Rectangular tube

• Oval tube

2) Open profiles or special profiles

These are more challenging and require a more capable machine configuration:

• Angle steel

• C channel

• U channel

• Channel steel

• L-shaped profiles

• Some customized open-section profiles

Compared with round or square tubes, these profiles are more difficult to clamp, rotate and position during cutting. That is why a machine that cuts normal tubes well may not necessarily perform well on angle steel or C channel.

2. Can a laser tube cutting machine cut angle steel and C channel?

Yes, a laser tube cutting machine can cut angle steel, C channel and many other profiles — but only if the machine is properly configured for profile processing.

If the machine is only designed for standard round and square tubes, it may face problems such as:

• unstable clamping

• inaccurate positioning

• vibration during rotation

• poor cutting consistency

• collision risks during cutting

• limited software support for profile paths

So the real question is not simply “Can it cut?”
The better question is:

“Can it cut these profiles stably, accurately and efficiently in real production?”

That depends on the following factors.

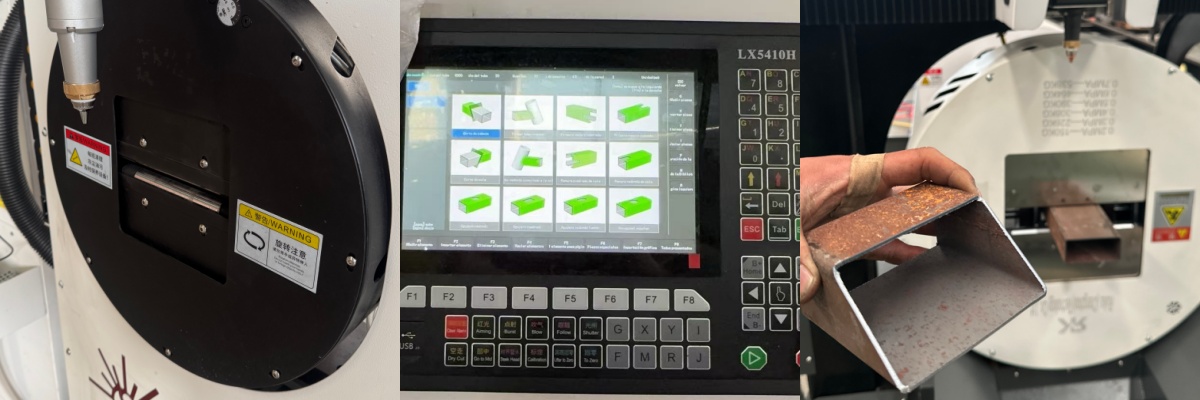

3. Factor No.1: Whether the control system supports profile cutting

This is one of the most important points.

A laser tube cutting machine is not only a mechanical device. Its cutting performance also depends heavily on the tube cutting control system and nesting software. When processing angle steel, channel steel or C channel, the system must be able to handle more complex profile paths and different cutting positions.

A suitable system should be able to:

• support different tube and profile shapes

• generate cutting paths for open-section materials

• optimize cutting sequence

• reduce empty travel and unnecessary motion

• coordinate rotation and feeding movement accurately

• improve cutting efficiency for complicated profile geometry

If the system is weak, even a machine with decent hardware may still struggle with angle steel or channel cutting.

In short, profile cutting is not only about laser power — it is also about software and motion control capability.

4. Factor No.2: Chuck design and clamping ability

When cutting round tubes or square tubes, clamping is relatively straightforward because the shape is symmetrical and stable.
But angle steel and C channel are different.

They are often open-section materials, which means:

• the center of gravity may not be balanced

• the material shape is irregular

• rotation is less stable

• clamping force distribution becomes more complicated

If the chuck is not suitable, the machine may experience:

• slipping during rotation

• inaccurate cutting position

• deformation of thinner profiles

• vibration at higher speed

• unstable cutting quality at corners or edges

For profile cutting, a good chuck system should have:

• strong and stable clamping force

• good adaptability to different profile shapes

• reliable centering performance

• enough flexibility for irregular sections

• stable rotation during high-speed cutting

This is why profile cutting machines usually require more careful chuck selection than standard tube cutting machines.

5. Factor No.3: Machine structure and mechanical stability

When a machine cuts open profiles such as angle steel or channel steel, the mechanical requirements become higher.

Why?

Because these materials do not rotate as smoothly as round tubes. During processing, the machine has to control:

• feeding movement

• rotational movement

• cutting head motion

• position accuracy

• collision avoidance

If the machine bed is not rigid enough, or if the transmission system lacks stability, the cutting result may be affected by:

• vibration

• rotation deviation

• poor hole consistency

• inaccurate contour cutting

• reduced repeatability

For customers who want to process angle steel, C channel or similar profiles regularly, machine rigidity and structural stability matter a lot. A stronger machine frame and a reliable motion system usually lead to better cutting performance and longer-term stability.

6. Factor No.4: Whether the machine is suitable for open profiles, not only standard tubes

Some tube laser cutting machines are mainly optimized for:

• round tube

• square tube

• rectangular tube

That does not automatically mean they are ideal for angle steel or channel steel.

Open profiles create extra challenges:

• edge positioning is more complex

• cutting path changes more frequently

• support during rotation may be less stable

• collision risk can be higher depending on profile orientation

So before recommending a machine, the supplier should confirm:

• what profile types need to be cut

• what the maximum and minimum sizes are

• whether the material is open-section or closed-section

• whether bevels, holes, slots or complex contours are required

If the buyer only says “I need a tube laser cutting machine,” that information is not enough for accurate machine selection.

7. Factor No.5: Laser power still matters — but it is not the only factor

Power is important, but it is only one part of the answer.

When customers ask, “Can your tube laser cutting machine cut 12 mm carbon steel angle steel?”, laser power is definitely relevant. In general, thicker materials require higher power for stable cutting efficiency and edge quality.

However, for angle steel and channel steel, power alone does not solve everything.

Even if the laser source is powerful enough, poor cutting results may still happen if:

• the chuck cannot hold the profile stably

• the system does not support the profile path well

• the machine structure lacks rigidity

• the feeding and rotation coordination is not accurate

So the correct way to evaluate a machine is not only to ask for wattage, but to consider the whole cutting configuration.

8. What information should buyers provide before choosing a machine?

If a customer wants to cut angle steel, C channel or other profiles, the supplier should collect more detailed information before making a recommendation.

The most important details include:

Material type

For example:

• carbon steel

• stainless steel

• aluminum

• galvanized steel

Material shape

For example:

• round tube

• square tube

• rectangular tube

• angle steel

• C channel

• U channel

Wall thickness or material thickness

This directly affects power selection and cutting efficiency.

Maximum and minimum profile size

The supplier needs to know the size range of the material to check whether the chuck and machine structure are suitable.

Material length

For example:

• 6 meters

• 9 meters

• 12 meters

Required cutting details

For example:

• holes

• slots

• contour cutting

• corner cuts

• special openings

• high precision requirements

Production volume

Is the machine for occasional cutting, or for long-term batch production?
This affects the required machine level, automation configuration and efficiency expectations.

9. So how do you know whether a machine is really suitable?

The most reliable way is to evaluate the machine based on actual profile samples and real processing requirements, not just a simple yes-or-no answer.

A professional supplier should first check:

1. What material do you want to cut?

2. What profile shape do you use?

3. What is the thickness?

4. What is the maximum length and section size?

5. Do you need holes, slots, bevels or complex contour cuts?

6. What production efficiency do you expect?

Only after confirming these details can the supplier judge whether a certain machine configuration is suitable.

10. Final conclusion

So, can a laser tube cutting machine cut angle steel, C channel and other profiles?

Yes — but the result depends on much more than laser power alone.

To cut these profiles well, the machine should have:

• a control system suitable for profile cutting

• a chuck with stable clamping ability

• a rigid and reliable machine structure

• good coordination of feeding, rotation and cutting motion

• a proper power configuration based on material and thickness

If you mainly process round tube and square tube, a standard tube laser cutting machine may be enough.
But if you plan to cut angle steel, C channel, channel steel and other open profiles regularly, it is much safer to choose a machine configuration that is specifically suitable for profile processing.
