CO2 Laser Engraving Cutting Machine

Views: 60003     Author: Site Editor     Publish Time: 2023-07-26      Origin: Site

Laser cutting machine application

CO2 laser cutting machine application is widely.such as Wood,MDF,leather,plexiglass,acrylic,marble,jade,crystal.acrylic sheet,paper bamboo,paper ,fabric,thin metal etc

machine parameter

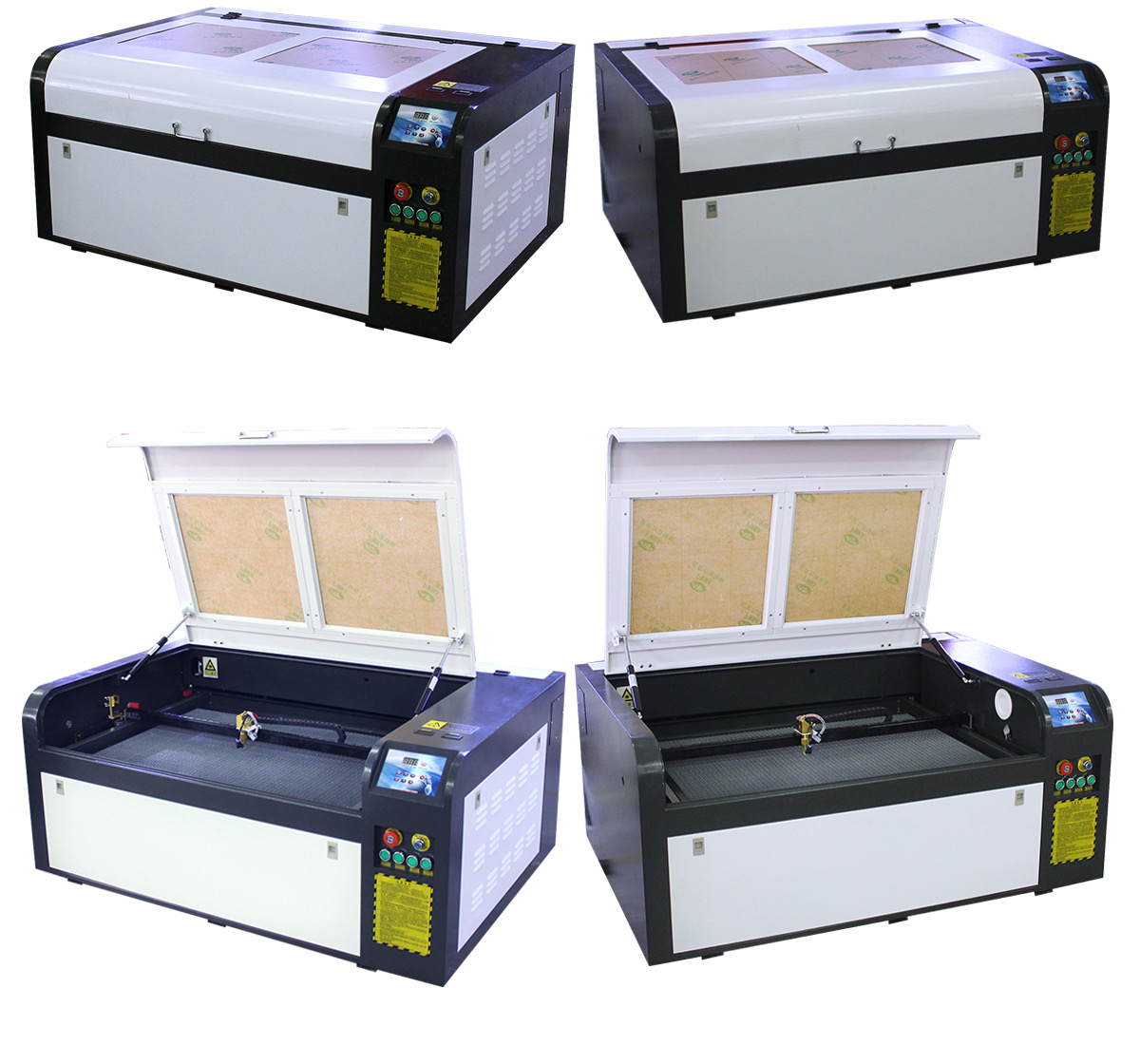

K6040 Laser Machine Latest Version Main parts : *Work area: 600 * 400mm  *Blade table  * Reci W4 (130w-150w) laser tube* *Power supply *Ruida (LCD panel, English control board)  *Leadshine motors and drivers (best in China) *Rails imported from Taiwan *Red beam dot *USA II-IV Lens and mirrors *Water protection switch *emergency stop switch *exhaust fan *Best belt *limit switch (Japan Omron) *air compressor *Standard tool box *Filter to avoid electromagnetic induction *Software  LaserDRW/CorelDRAW *Water chiller

photobank(1)

Optional parts you might be interested in

Name
Function
Rotary device
Used for round materials’ works
Up down table
For thick materials and necessary part for rotary
Auto focus
Need to be equipped together with up down table
Smoke purifying
Help clean smoke by laser machines.
Spare mirrors
Recommend you to change each 3-5 months

Technical data

NO.
Description
Parameter
1
Engraving area
600×400mm
2
Laser power
80/100/130/150WFor options
3
Cooling Mode:
Circulating-water-cooling
4
Power Adjustment
0-100% controlling, no segment and adjusting by software
5
Machine Control and Drive
Ruida controller with WIFI internet, Leadshine stepper
6
Repeating Location
0.001mm
7
Max consumption Power
750W(save your electricity cost)
8
Adjustable Up-down Distance of Laser Head
30mm
9
Max Cutting Speed
800mm/min(when cutting 10mm thick of acrylic)
10
Engraving speed
0-70000mm/min
11
Engraving Depth
0-3.5mm
12
Minimum shaping character
" Chinese: 0.2×0.2mm English: 0.05×0.05mm"
13
Working Travel Area
600x400mm


14
Machine size
1860*1350*1100 mm
15
Up-down Range of Working Table Mechanical
300mm/ 250-300mmfor option
16
Controlling Software Language
English, Simplified Chinese, Traditional Chinese
17
Resolution ratio
0.025mm
18
Power supply
AC220V± 15%,50Hz
19
Resetting positioning accurate
<0.01mm
20
Number of hanged line
68Line
21
Operating system
RD Works/laser cut
22
Gross Power
1.6Kw
23
Operating temperature
0-45℃
24
Operating humidity
5-80%(free of condensed water)
25
Graphic format supported
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw
26
Packingweight
320KG/390KGS(Single head/ Double heads)
27
Package Dimensions(mm)
1970*1500*1245mm/2000*1530*1270mm(Single /Double heads)


Parts Details


Machine parts
Brand
Origin
STRUCTURE SECTION
2023 NEW DESIGN
SMARTECH
BEST IN CHINA
OPTICAL SECTION
LASER TUBE
RECI
BEST IN CHINA
LENS MIRRORS
II-IV
USA
CONTROL SECTION
CONTROL SYSTEM
RUIDA
BEST IN CHINA
POWER
MEANWELL
TAIWAN
SOFTWARE
RDWORKS
RUIDA
MECHNICAL SECTION
LIMIT SWITCH
OMRON
JAPAN
RAILS
THK/HIWIN
JAPAN
WATER PROTECTION
CHNT
BEST IN CHINA
ELECTRICITY PARTS
SCHNEIDER
FRANCE
MOTOR DRIVER
LEADSHINE
BEST IN CHINA
COOLING SYSTEM
WATER CHILLER
S&A
BEST IN CHINA

machine parts


Laser head The high-precision laser head has a long service life and is equipped with a red light indicator for easy positioning. It is equipped with a blowing flame-retardant device, which is flammable during cutting and has a flame-retardant effect.

Anti-skew

Mirror Holder Fixed nut, stable laser does not shift

Fixed nut, stable laser does not shift.
operation panel Push-button control for more convenient controller The operation regulation current has high precision, and the operation Simple design is more humanized
High quality laser tube High-quality laser tube, high quality, high output power, small spot, strong penetration, high power, more stable output, good heat resistance, high temperature resistance
