Availability: | |
---|---|
Smart -2500
SMARTECH
3930X2200mm x 1700mm

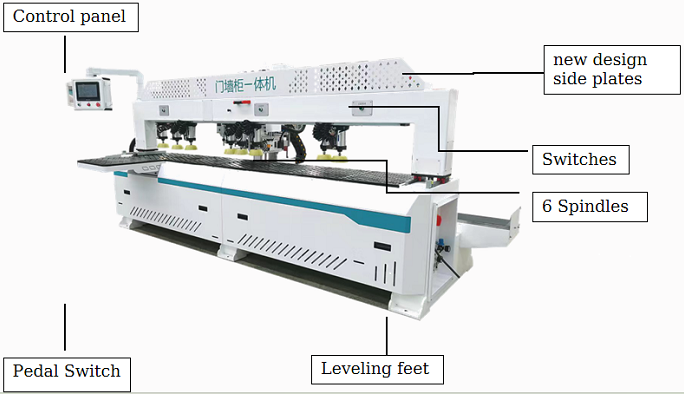

Spindle power 6 Spindles:6KW*1+4.5KWx5 pieces (2 Horizontal+4 vertical)

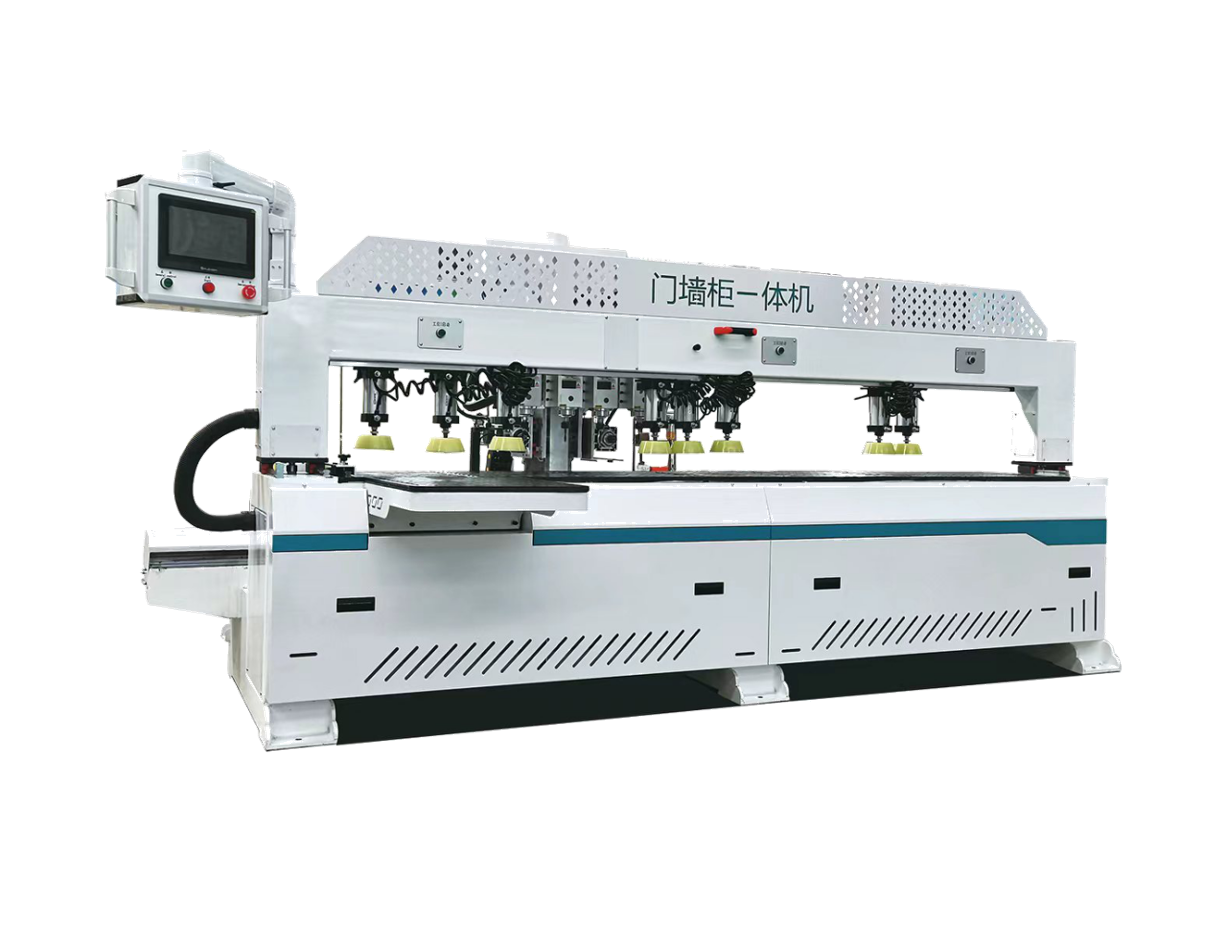

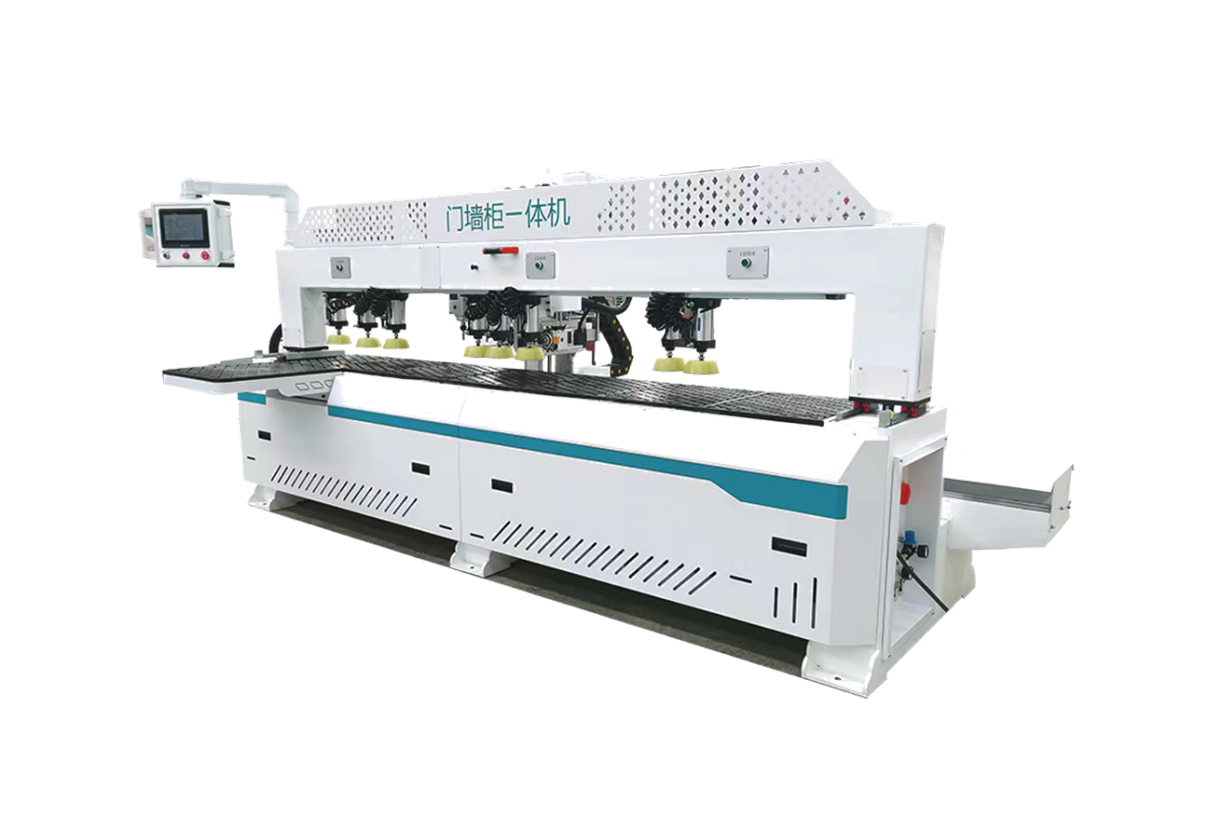

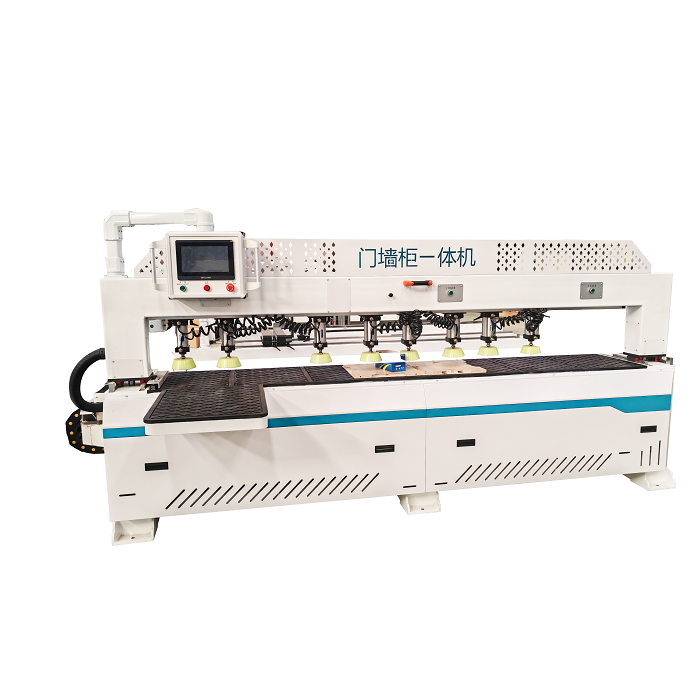

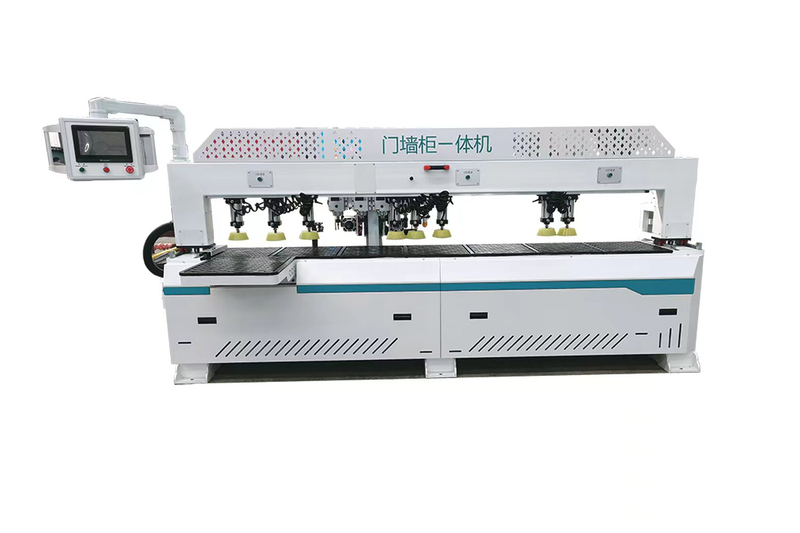

2024 New design Side drilling machine Brief Info
Machine size: 3930X2200mm 2800x150mm(X axis/Y axis)
Processing thickness:60mm
Best inverter: 7.5KW
6 Spindles:6KW*1+4.5KWx5 pieces (2 Horizontal+4 vertical) Rack and pinion transmission servo motor driver Shimpo reducer Dedicated positioning device Movable Beam gantry position oil lubrication system
Voltage:380V/220V/60HZ/50HZFunctions:Three-in-one, invisible parts, blind hole mode, slotting mode, combination graphics, invisible handle, straightener, hinge drill, door lock, hinge, file
Certificate:CE
Model | Sidle drilling machine |
Maximum work piece length | 2800mm |
Minimum work piece width | 150mm |
Work piece thickness | ≤60mm |
Y movement | Rack and pinion, gear drive/Taiwan |
Z movement | Pneumatic cylinder |
Guide | Linear 20 square/Taiwan |
Spindle power | 6 Spindles:6KW*1+4.5KWx5 pieces (2 Horizontal+4 vertical) |
Spindle speed | 18,000rpm |
Inverter power | Best 7.5kw |
Drive motors | servo |
Working voltage | AC380V/50-60Hz, 3-phase |
Command code | G code |
Interface | USB 2.0 |
Collet | ER32- 3.175mm, 6mm, 12.7mm |

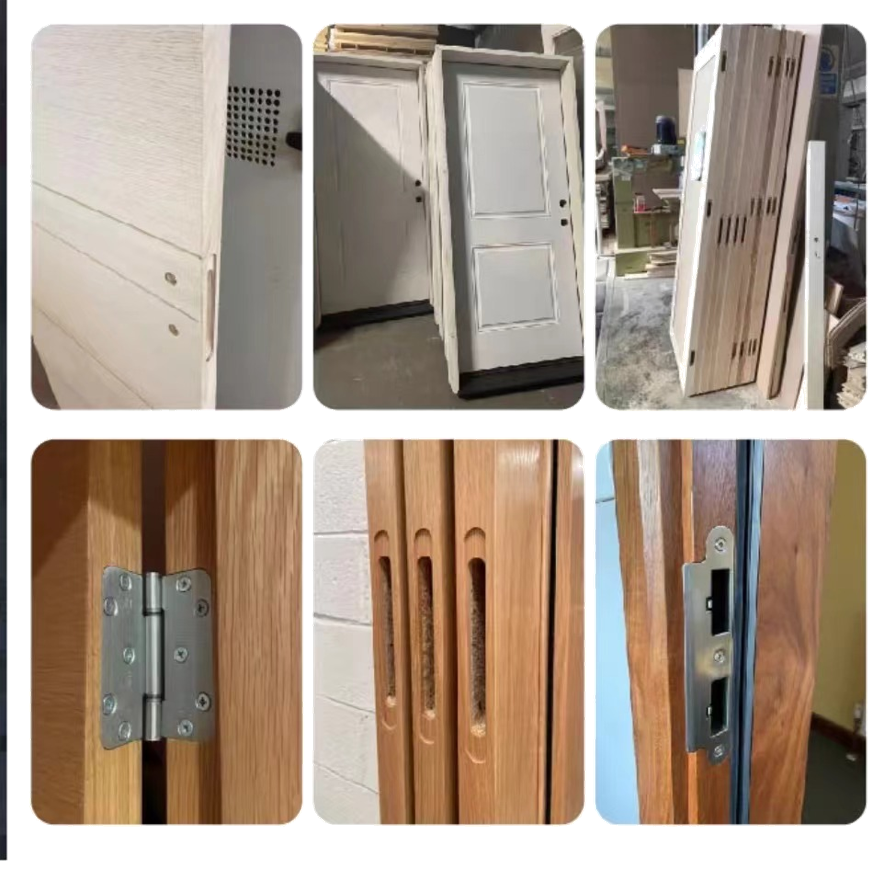

Functions | for hinges,door closer,holes drilling,all kinds of door locks,cabinets,wall boards |
Controller | Flexem |
Machine dimensions | 3930X2200mm x 1700mm |
Net weight/Gross weight | 1450/1500kg |
Packing size | 4050x2250x1800mm |

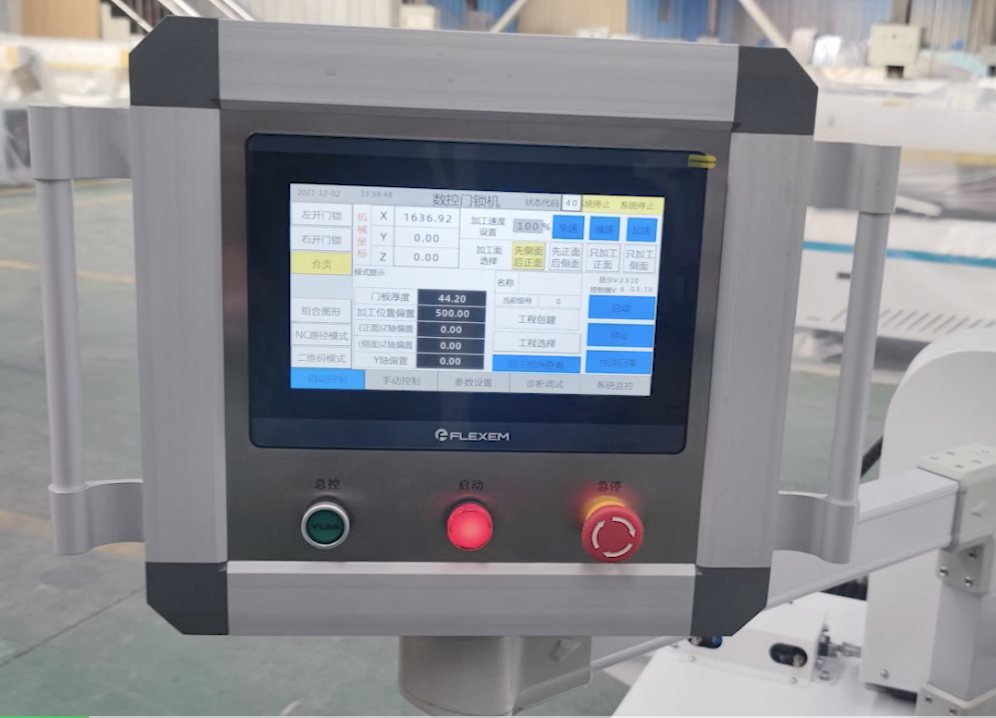

Control System-Multilingual
Cutting Head

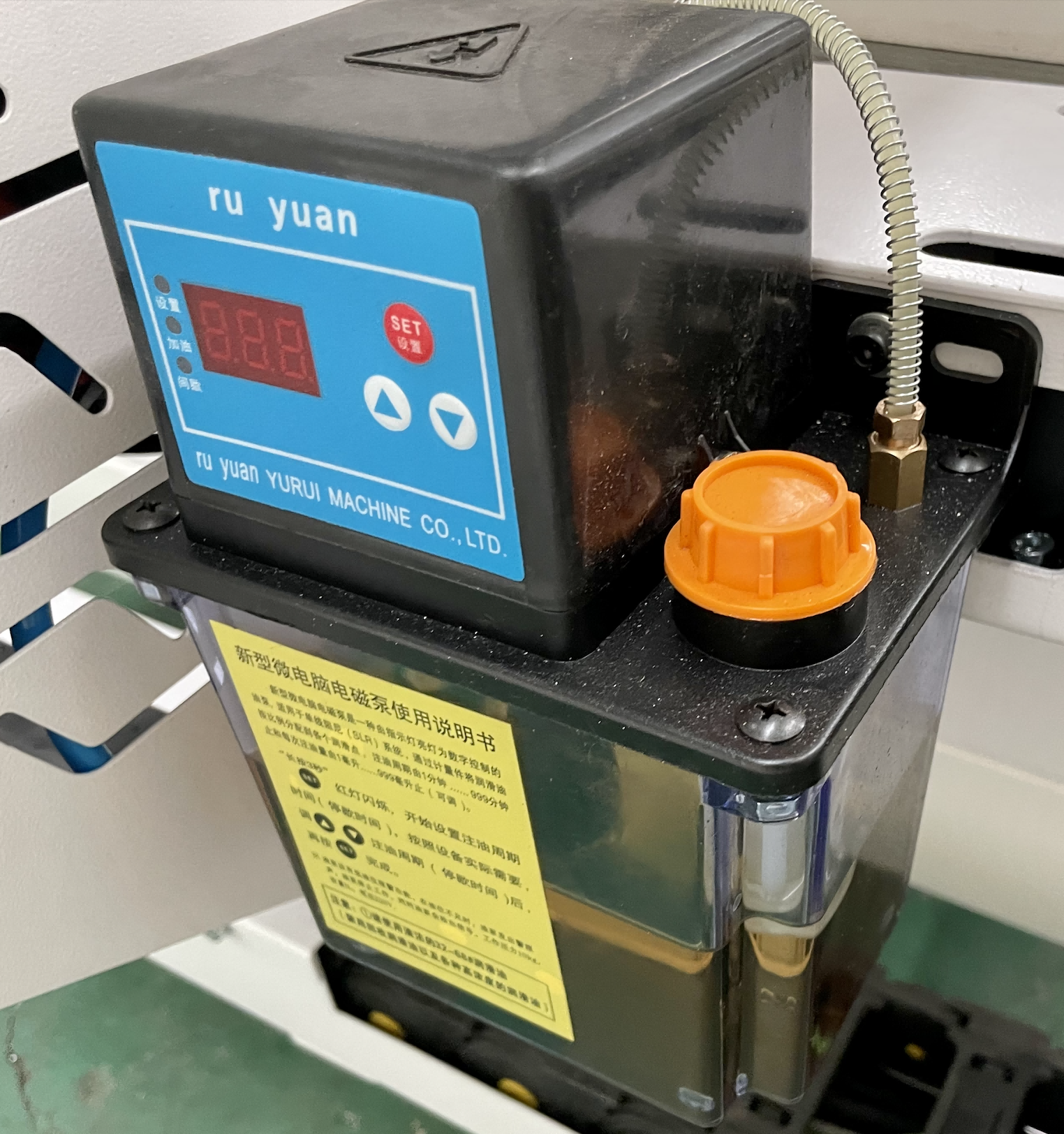

Lubricating
Tool Sensor System
Dust collection System

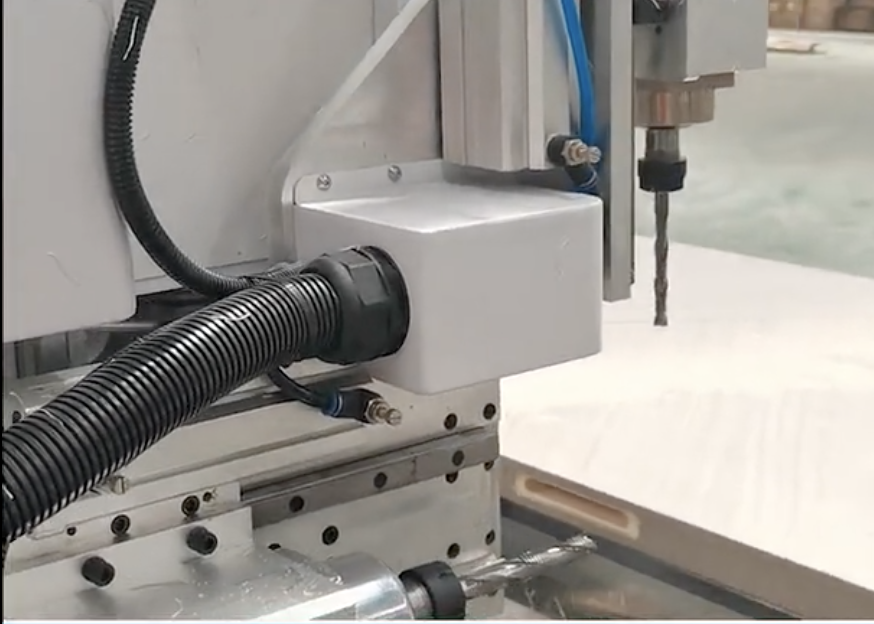

Door Lock holes making
Features:
1.This professional machine is used for horizontal perforated plate furniture,Completely replace the traditional drill,get rid of the traditional punching mode.Improve working efficiency greatly.
2.High quality parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer;
3.Reasonable design: independent computer control, operation and maintenance more convenient.
4.Perfect automatic oil lubrication system, prolong the service life of the machine.

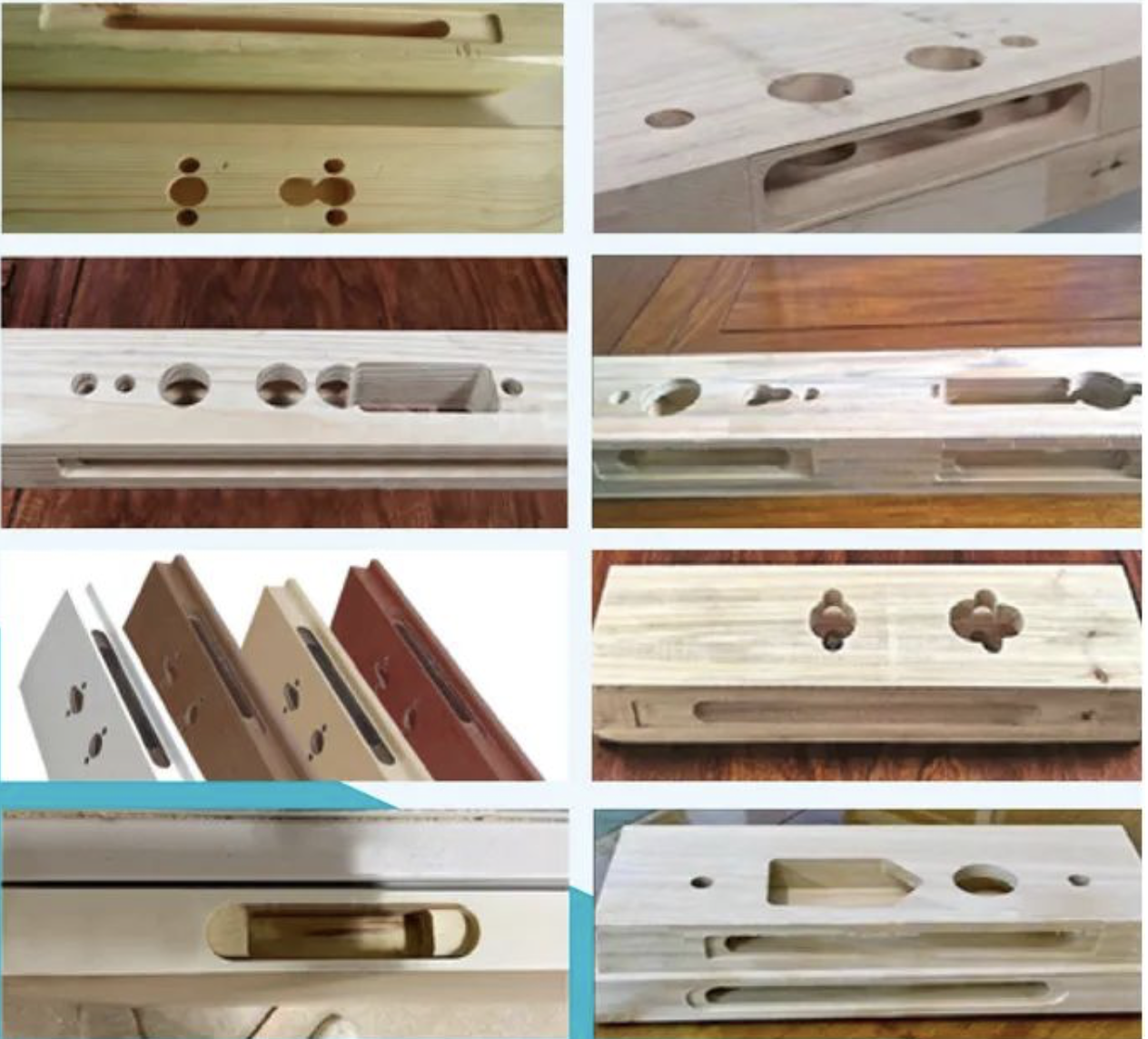

Sample
2024 New design Side drilling machine Brief Info
Machine size: 3930X2200mm 2800x150mm(X axis/Y axis)
Processing thickness:60mm
Best inverter: 7.5KW
6 Spindles:6KW*1+4.5KWx5 pieces (2 Horizontal+4 vertical) Rack and pinion transmission servo motor driver Shimpo reducer Dedicated positioning device Movable Beam gantry position oil lubrication system
Voltage:380V/220V/60HZ/50HZFunctions:Three-in-one, invisible parts, blind hole mode, slotting mode, combination graphics, invisible handle, straightener, hinge drill, door lock, hinge, file
Certificate:CE
Model | Sidle drilling machine |
Maximum work piece length | 2800mm |
Minimum work piece width | 150mm |
Work piece thickness | ≤60mm |
Y movement | Rack and pinion, gear drive/Taiwan |
Z movement | Pneumatic cylinder |
Guide | Linear 20 square/Taiwan |
Spindle power | 6 Spindles:6KW*1+4.5KWx5 pieces (2 Horizontal+4 vertical) |
Spindle speed | 18,000rpm |
Inverter power | Best 7.5kw |
Drive motors | servo |
Working voltage | AC380V/50-60Hz, 3-phase |
Command code | G code |
Interface | USB 2.0 |
Collet | ER32- 3.175mm, 6mm, 12.7mm |
Functions | for hinges,door closer,holes drilling,all kinds of door locks,cabinets,wall boards |
Controller | Flexem |
Machine dimensions | 3930X2200mm x 1700mm |
Net weight/Gross weight | 1450/1500kg |
Packing size | 4050x2250x1800mm |
Control System-Multilingual
Cutting Head
Lubricating

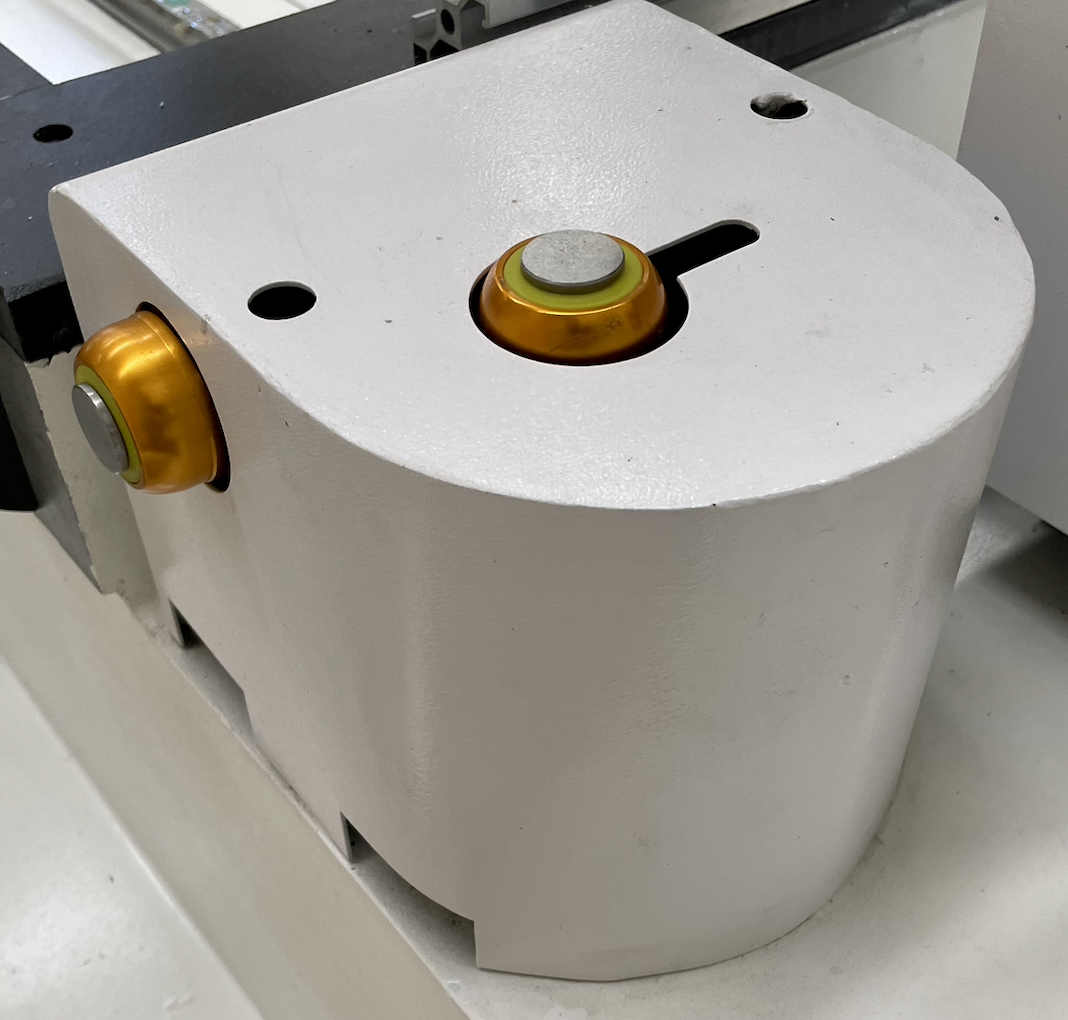

Tool Sensor System
