aluminum cutting machine
SMARTECH
3000*140mm
380V/50Hz
red
Product Description
*Power supply: 380V/50Hz
*Spindle power: 4.5Kw
* Spindle speed: 24000rpm
*Working pressure: 0.5-0.6MPa
*X-axis travel; 550MM
*Y-axis travel: 400mm
*Z-axis travel: 300mm
*Motor: Leadshine Stepper
*Driver:Leadshine
*Control System: Red sea
*Power Supply: Meanwell from Taiwan
*Inverter: Best
*Electricity brand: Delix
*Package: Plywood carton *Warranty: 3 years
Features:
1. Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles
*The system adopts Red Sea CNC System
*Using electric spindle, high precision, good safety and high reliability
*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission, stable transmission and high precision
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
*The table is flipped 180°. -90~0°~+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision
Machine Structure
Technical data
Parts Item | Parameters | Part Item | Parameters |
CNC machine system | Customized system english | Power supply | 380V/50Hz |
Motor | Leadshine | Spindle power | 4.5Kw*2 |
Driver | Leadshine | Spindle Rotating | 18000/24000RPM |
Power Supply | CHNT | Working pressure | 0.5-0.6MPa |
Limit Switch | Omron | X axis travel | 550MM |
Rack Pinion | High Precision | Y axis travel | 400mm |
Rails | HIWIN from Taiwan | Z-axis travel | 300mm |
Spindle | HQD | Power source | CHNT |
Spindle quantity | Double | Tool holder | ER20,ER25 |
Inverter | Best | Turning angle | 180°. -90~0°~+90° |
Cylinder | Hansanhe pneumatic | Weight | 300KG |
Electromagnetic valve | Delixi | Processing range | 1000*120mm |
Control System-Multilingual
Cutting Head-high speed air cooling spindle

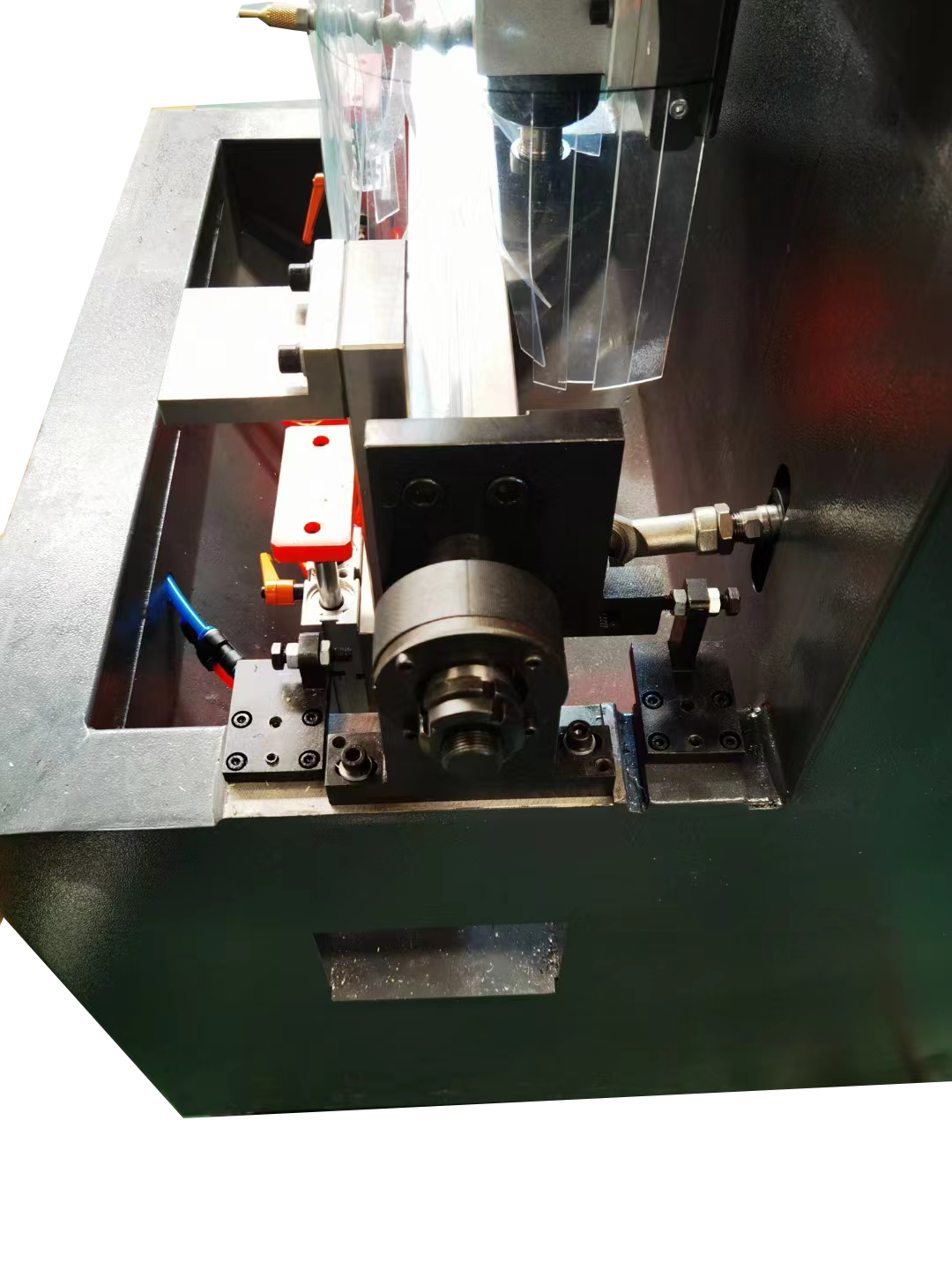

180 rotate Cylinder clamping aluminum table
Worktable can be rotated to 180°
(-90° -0°- +90°),
Clamping profile one time,
three sides processing.
it can process deep
and special-shaped holes
through workbench;
high efficiency and precision.
Taiwan HIWIN Rails Rack pinion
Imported Taiwan TBI guide rail,
sliding block, X axis adopt high precision oblique
gear and rack driving. Y and Z axis adopts high p
Electricity system
The main electrical parts: circuit breakers,
AC contactor are all
SCHNEIDER or Delix famous brands.
Samples
About SMARTECH
Payment Term
Alibaba Trade Assurance
30% T/T deposit, 70% before shipment.
Paypal/Western Union
DP/LC
Why Smartech
Competitive price
Compared to those who has the same quality
Technical support
We will send engineers to your site if required anytime
24 Hours Online Live After sale Service.
Long time Life Warranty
3 Years Warranty for CNC
5 Years for Fiber Laser
On-time delivery
100% On-time delivery,Never delayed.
Support customization
We could make machines as your design
OEM/ODM is supported
Sufficient Parts
For freen components & worn spare parts are packed in package
Services
The SMARTECH Group is present in the global CNC machine market where it has developed an efficient after-sales service. SMARTECH is focused on modern ways of communication and diversification of customer support, with the thematic building of strong and solid relationships with potential and future customers. SMARTECH insists on building and maintaining a positive reputation and improving brand and customer satisfaction.
SMARTECH
takes full advantage of more than 60 offices worldwide,
builds unique service brands and improves service processes
strengthens internal management and technical level of service,
improves user experience and customer satisfaction,
requires 24/7 service support from all service offices, personnel, spare parts, tools, etc.
STRENGTHEN TRAINING
In order to improve the overall quality of the service network, SMARTECH properly formulate training plans and training support for customers to improve the quality of service and to maintain and customer satisfaction.
Jinan Smart Technology Co.,ltd (SMARTECH)
100 meters south of fengqi,Shizhong District,Jinan,Shandong China
Whats App:+0086-15064149218
Official Website:
https://www.jncnclaser.com
https://smartcnc.en.alibaba.com/
https://www.facebook.com/smartcnclaser/
https://www.instagram.com/smartcnclasermachine/
https://twitter.com/SmartCNCLaser
https://www.youtube.com/channel/UC_KHu77gwdXcP0xStzYIPAg
https://www.pinterest.com/chinasmartech/
To Improve Your Business Is Our Business Goal!——21 Years' Manufacturing experience!
