PVC Vacuum Membrane Press Machine

Standard applications include:
Kitchen & Bath door and drawer fronts
Closet & Garage door and drawer fronts
Store Fixture and Display components
Office and Hospitality Furniture
Healthcare and Architectural components
Any application where paint can be replaced by 3DL
It has also been used in some non-wood applications where heat and pressure, along with the ability to form to a contour, have made it a perfect solution for laminating

  • STM2040
  • SMARTECH CNC LASER
  • as your preference

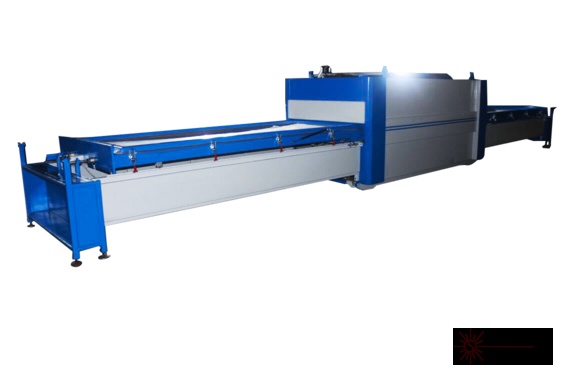

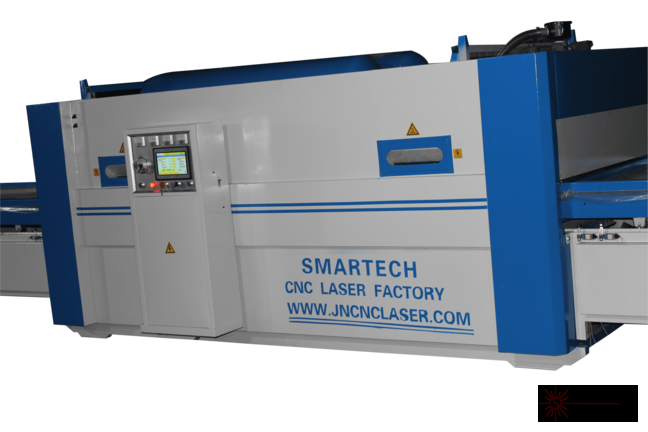

As one of the vacuum membrane press machine manufacturers in china,We are introducing the Double table full automatically vacuum membrane press machine as below:

[Here is the Technical parameters of the vacuum membrane machine:]

1) External dimensions: 9,000 x 1,800 x 1,300mm

2) Worktable dimensions: 2,550 x 1,150 (1,300) x 50mm

3) Max. processing height: 80mm

4) PVC thickness:0.1-0.45mm;

5)Max vacuum press:-0.1Mpa;

6) Total power: 20kW

7) Actual power:5kW

8)Total weight: 1,500kg

Standard applications include:

    • Kitchen & Bath door and drawer fronts

    • Closet & Garage door and drawer fronts

    • Store Fixture and Display components

    • Office and Hospitality Furniture

    • Healthcare and Architectural components

    • Any application where paint can be replaced by 3DL

    • It has also been used in some non-wood applications where heat and pressure, along with the ability to form to a contour, have made it a perfect solution for laminating



[Features of the Vacuum membrane press machine:

1. Fast speed.high light and ordinary piece into the host to work out a cycle of 2 minutes, plus or minus ordinary laminated 2-4 times the efficiency of Asia equipment;

2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.

It is double layers heating preservation system instead of single which could preserve heating wonderfully.

3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.

4. This machine uses top 2X series vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also adopt for German-made vacuum pump, which is strong and tough).

5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.

6.Save time.This machine has 2 work table,The electronic part is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.

7.Low energy consumption: the local heating power of 18KW, a peer device power half; Start the main heatin power of 15KW, average hourly power consumption of about 5 degrees;

8.Configuring High: key components of the machine equipment in Germany, Japan, Taiwan original parts, the configuration of high performance stability.

9.10'' Large LED screen control system makes operation much more easier and more friendly. you just need to understand english words, you could operate this machine very well. no need high requirements for the operators education.



Samples Pictures:

laminating machinelaminating machine samples



                                        vacuum press machine



Click here for membrane machine working video
