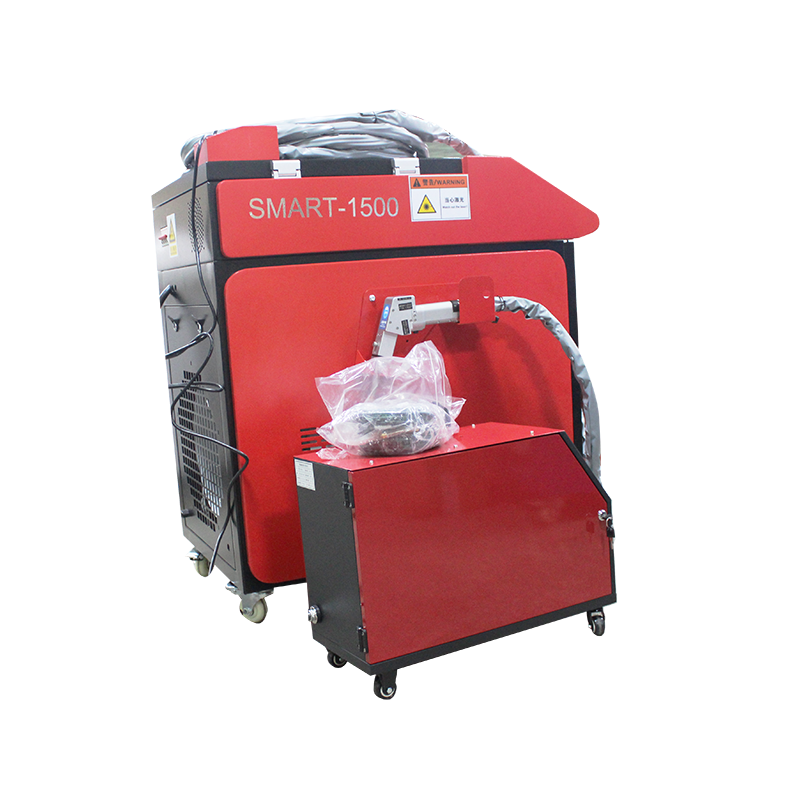

Factory Supply Low Price Portable 1500w Laser Handheld Welding Machine For Stainless Steel

Availability:
  • HW-F1500
  • SMARTECH
  • Continuous fiber laser
  • 1200*600*1300mm 680*590*1140mm
  • 2000w
Product Description
Laser is a new light source, its coherence, monochromaticity, direct and high output power characteristics, which are unmatched by other light sources. Focusing the laser to a point, the power density on the focal plane can reach 105-1013w/cm2. Laser welding uses the excellent direct high power density of the laser beam to work. The laser is generated by the laser, by Flexible fiber optic light Road transmission, after focusing by the focusing lens in the welding head, it acts on the welding seam between the processed materials, and with the assistance of shielding gas (to prevent the material from being oxidized), the material is liquefied to form a specific molten pool, thereby achieving the purpose of welding.
The complete set of hand held fiber laser welding machine is mainly composed of continuous fiber laser and transmission fiber,Hand held laser welding head,Wire feeding system, chiller, control system and cabinet.It consists of several parts.It has many new ideas based on humanization and work effectiveness in terms of equipment shape, structure and man-machine interface suitable for operation. The equipment adopts integrated design, compact and beautiful structure, with good beam pattern, stable energy, stable performance, reliable use, fast welding speed, wide range of suitable welding, long service life of consumables and consumable parts, etc., while fully considering the equipment In the various parameters of mass production, the key parameters can be adjusted in detail and the data is displayed in a closed loop.
Model
HW-F1000
HW-F1500
HW-F2000
Laser type
Continuous fiber laser
Rated output power
1000W
1500W
2000W
Power adjustment range
10%~100%
Laser center wavelength
1080±3nm
output method
Continuous/modulation
Maximum modulation frequency
50kHz
Power instability
<3%
Fiber output interface
QBH
Indicating system
Red light
Fiber core
20μm
30μm
50μm
Fiber length
15mm
Torch cable length
10m
Torch type
Swing galvanometer welding head left and right
Collimated focal length
50mm
Focus focal length
80mm/120mm
Wire feed diameter
0.8, 1.0, 1.2, 1.6
Torch weight
1.1kg
Protective gas method
Coaxial protection
Adjustable weld width
0~6 mm
Water flow
>12L/min
>15L/min
>25L/min
product structure
All-in-one
Split
Product size L*D*H
1200*600*1300mm
1200*600*1300mm
680*590*1140mm
product weight
160kg
250kg
Working temperature
10~40℃
Working environment humidity
<70%
Operating Voltage
Single phase 220VAC
Three-phase five-wire 380VAC
Single phase 220VAC
Total power
<5kw
<7kw
<9.5kw
Parameter item
Typical value
model
FSC 1000
FSC 1500
FSC 2000
Maximum output power
1000W
1500W
2000W
Power adjustment range
10%-100%
Beam output
1 beam
optical fiber
Core diameter20/30/50um length 15m Connector QBH
Energy instability
≤±3%
Laser wavelength
1080nm±10nm
Spot quality
≤2mm.mrad
Continuous working time
24 Hour
Control mode
External RS232/External AD/Hyper Terminal
Cooling medium
Water cooling
Cooling water flow
>12(L/min)
>15(L/min)
>25(L/min)
Calibration system
Red light indicator
powered by Voltage
twenty two0V
Three-phaseAC380V
Maximum power consumption
4KW
6KW
8KW
Environmental requirements
Temperature 10-40℃ Humidity 10-70%
External dimensions mm
483*191*740mm
483*214*850mm
weight
60Kg
80Kg
Product Advantage
●hand Sustain operation Welding, flexible&convenient,It can be welded in any shape &any angle; ●The device is small and easy to move. Not only convenient Long distance for large workpieces Welding, also Can outdoor welding; ●Simple operation, easy to get started, no need for professional welders; ●The welding speed is fast, and the efficiency is more than 5 times that of arc welding; ●The weld seam is beautiful and the deformation is small, saving the cost of subsequent grinding and shaping;Performance characteristics ●Adapt to welding of various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials; ●The light can be emitted continuously or pulsed, not only for thermal conductivity welding, but also for continuous deep penetration welding. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, etc. ●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours; ●Fast processing speed; ●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials); ●It can process parts with complex shapes and small parts, and can also be processed in vacuum; ●and Robotic arm and other automated institutions Combined, the processing can be automated; ●Can realize filler wire welding,Due to advanced processing methods, existing product structures and materials can be improved.
