Cabinet Making Kitchen Furnitures 5 axis cnc router atc guitar making rotary

Availability:



Inquire Add to Basket

Product Description

Product Description

 Application industry: Plate-type furniture,cabinet bureau,office furniture. Rough shape cutting and vertical punching process of custom furniture.

Title goes here.

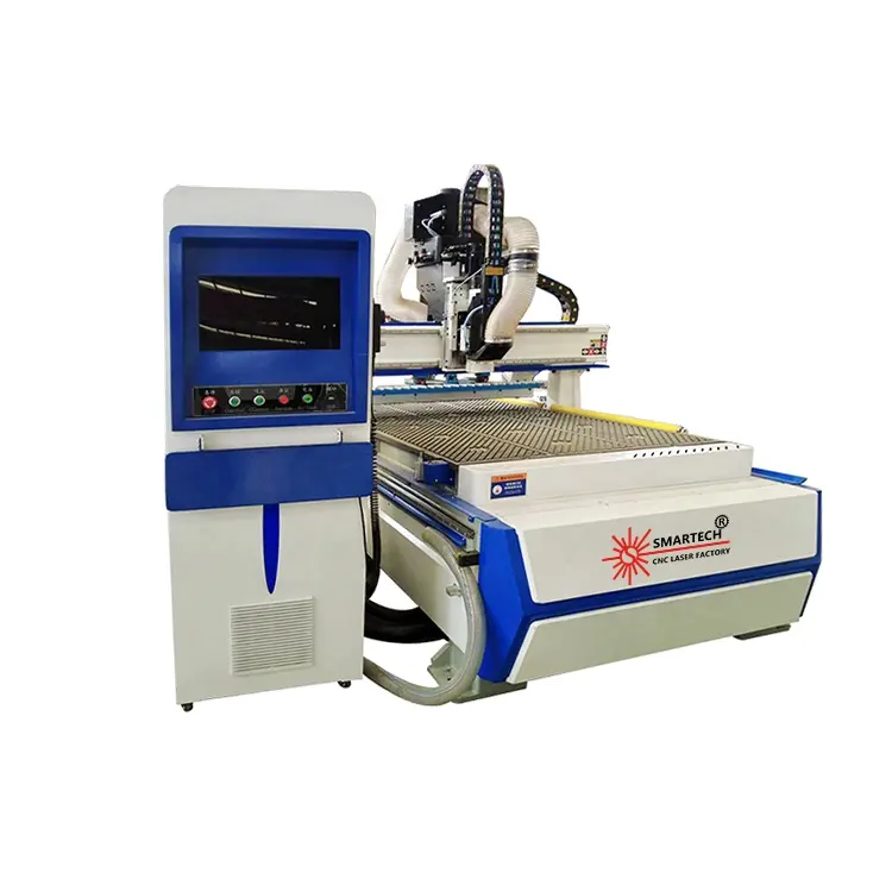

SWA Series Linear type atc 1530 CNC Router #CE standard #Working area:1500*3000*200mm #9.0KW HSD Spindle(Imported from Italy) #Shimpo reducer #Gear-wheel transmission from Taiwan for X,Y axis ball screw transmission for z axis  #Yaskawa servo motor driver FOR X Y Z AXIS. #Vacuum pump 7.5KW*2 pieces #Delta inverter #Automatic tool sensor #Aluminium table combines with vacuum table. #8 magazine tools holder #Dust collector with dust hood, pipeline switch #Syntec control system #Strong Seamless Steel frame #3 Years’ warranty,Lifetime after sale service #On-site technicians are available. #Origin point for table protection. #Safety sensor for option(protect human safety)

Machine features:

The machine from auto loading,optimize rough shape cutting ,vertical punching to auto unloading without stopping. Working process without interruption,achieve the max efficiency output. 2.The control interface of the machine design humanization,quite easy operation.the operator can operate it just with few hours training. The machine motion agility high speed and high efficiency. It can help you achieve off-take potential leap. 3.Stable performance,it adopts some import parts,such as high-power air cooling spindle,Japan Servo drive system,Planetary Reducer,France Schneider electrical components and so on. 4.The table is double-deck vacuum suck table,it can tightly suck different area materials.
Could finish one whole design from the beginning to the end without stop.especially suitable for the furniture doors making.
Machine comes with auto pushing system,which could send toward to the front after its cutting or engraving finish.
Auto tool sensor could detect the cutters automatically which is much more easier for operation.
Automatic tools changer disc type which could save tools changing time and improve working efficiency greatly.
This machine comes with led and music special design which could single while working, we are the first new technology from us in this field.led light design is quite super beautiful especially at nights. one machine high quality also grant beautiful appearance.

 HSD Tools Changer spindle                                               Auto lubricating system                                Auto tool sensor

 Useful Hand Wheel

 Tools support

 Economical HQD spindle automatic version

 Weihong control system with led screen

 Taiwan Syntec Controller

 Automatic tools sensor

Big wide towing chains LED light Vacuum valves LED light for motor covers

 Big torque original lead shine servo motor.

 Soft limit switch

 12 Pieces Tools Holder ISO30

Tools holder packages

Control electricity parts- Taiwan Delts inverter,Resistance,weihong control card,leakage protector,.original lead shine
drivers,power supply etc

Vacuum table pipes under machine

Specification

 No. Configurations OPTION Equipment Linear Type Automatic tools changer Dis Type Machine Body Thickening of lathe bed,high temperature heat treatment,machining center,high precision, long life Working area 1500*3000*200mm Weight 2500Kg Speed Idling 60-80m/min  Working speed:20m/min Rail Y axis 3.0  X,Z Axis 2.5 Rack screw rack Main parts Yaskawa Servo servo motor and drivers 11KW/380V Inverter from Taiwan Syntec Controller imported from Taiwan Baoyuan Standard huge control box 9KW Air cooling ATC Spindle Italy ISO30ER32 HQD 8 pieces tools holder HIWIN Rail for 3 axis   Helical tooth rack Original TBI Ball screw Electricity parts: Original Schneider Table Double thickening mesa, suction bigger and more uniform Automatic tool sensor,Automatic lubricating system Ancillary attachment Dust collector double bags、Brush、Dust pipes、Dust holder Vacuum pump ISO30 ER32 Collet 12.7  8 pieces Collet 6 2 pieces;Collet 4 2 pieces;Spanners 2 sets Voltage 380V 3 phase 220V-240V


Packing & Delivery

 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

machine recommendation

FAQ
 -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
