CNC Machine WOODEN DOOR GAUGE SIDE EDGES SAW

Availability:


Inquire Add to Basket

Model:
SD1530 Side drilling machine
Brand:
SMARTECH
Code:
Laser Marking
Size:
3550*1770*1400mm
Power:
3.7kw
Machine Color:
as customized

Product Description

Product Description

 2023 New design WOODEN DOOR GAUGE SIDE EDGES SAW #Machine model:Smart-H3-MJ-T #Machine size: 5100mm×2800mm×2300mm #Max Processing size:1100mm×3050mm #Minimum Processing size: 500mm×1800mm #Power of main saw:5.5KW×3 #Power of vice saw:1.5KW×3 #Main saw diameter: D300mm-D30mm #Vice saw diameter: D120mm-D20mm #Taiwan HIWIN Rail #Taiwan TBI Ball Screw #Schneider electrical parts #Servo motor drivers #Best inverter

 Machine-white with red Pic

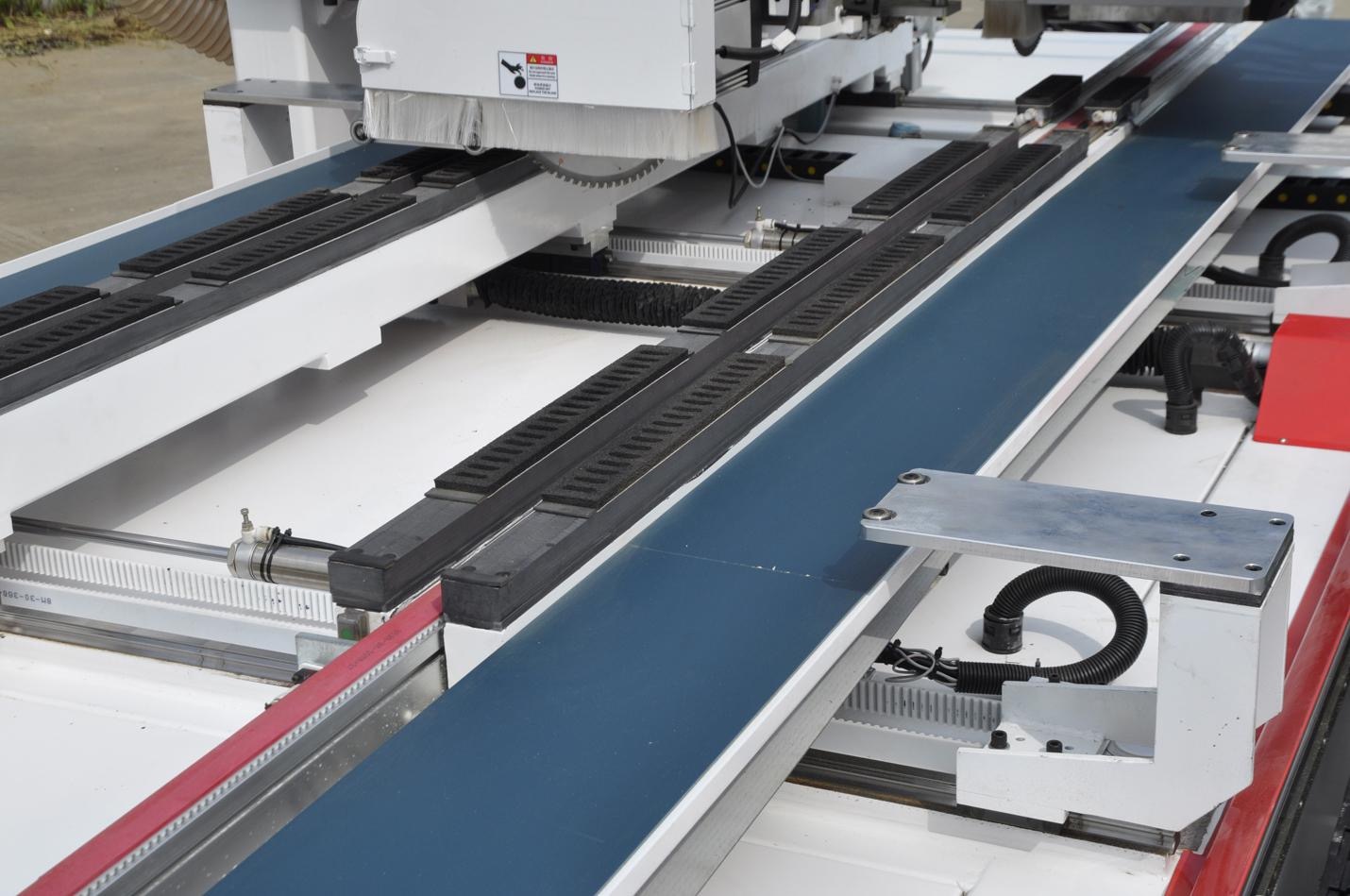

Mobile adsorption block
automatic adjustment of door width
and length, intelligent and precise processing.

Intelligent edge trimming
3 sets of sub-mother saw blades,
fully automatic and precise edge trimming, prevent edge chipping, and high efficiency.

Automatic collection of leftovers  Movable waste collection device, automatic collection and transmission of leftovers.

Pass-through type
 Wooden door square four-sided saw, which can be operated with intelligent connection.


 1.Saw blade horizontal screw drive
 2.Longitudinal main and auxiliary saw blades3.Horizontal main and auxiliary saw unit

 1. center positioning 2.Four side saw control box
 3.Mobile suction block

Smart and precise

 The infrared sensor has extremely high sensitivity, detects that the door panel is in place, and then controls the operation of the drive system.

Portable console Convenient and concise

 PLC programmable control system controls the operation of each electrical device, Computer touch screen panel operation, USB interface, machine motor And the platform is driven by servo motor and stepper motor, easy to operate System, accurate action, intelligent processing, making operation more convenient More humane, greatly reducing the cost of employment for enterprises.

Wide Application

 Applicable to a variety of material boards. It is suitable for horizontal and vertical sawing of wooden doors, and can easily complete the standard and square processing of painted doors, solid wood composite doors, rubber wooden doors, and ecological wooden doors. According to the actual processing mode of the factory, flexible customized connection can be carried out, and the door panel can be formed at one time, which can quickly improve production efficiency and effectively reduce labor costs

 Sample display: smooth processing, no burr, no edge burst

 Technical data

机器型号Machine model	Smart-H3-MJ-T
设备尺寸Machine Dimension	5100mm×2800mm×2300mm
最大加工尺寸Max Processing size	1100mm×3050mm
最小加工尺寸Minimum Processing size	500mm×1800mm
最大加工厚度Max processing thickness	35mm-65mm
主锯功率 Power of main saw	5.5KW×3
副锯功率 Power of Vice saw	1.5KW×3

Make Your Factory Fully Smart Automatic ! .

            Optional Loading Unloading Hands+Roller Table
