2020 Newest Automatic tools changer marble cnc router for countertops granite basin new technology

  • Stone Engraving Machine
  • Smartech
  • 3170mm x 2130mm x 2000mm
  • 18.5kw/22kw/37kw/45kw/55kw/75kw
  • white

ATC Marble CNC Router Carving Machine for countertops

Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.

SS-A Pro Series-Stone ATC CNC Router Features:

1) The software: For UncGraphics.NX3.0, Mastercam9.0 other software, set the CAD / CAM
as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.
2) The ATC system: The automatic system for changing tools is improving the integration all in terms of making
holes, cutting, milling, shaping and polishing.
3) The tools and abrasive: Many kinds of cutting wheels and abrasives are very easily available from local markets for various processing requirements.
4) High-precision screw and guide: The ball screw and guide rail are utilized by well-known Germany manufacturers. Unique oil-dip lubrication is applied for X and Y axis. The special water-proof and dirt-proof Structures can ensure better processing accuracy also prolong the life of screws and rails furthest. SS-A Series-Stone ATC CNC Router Parameter

SS-A Pro Series-Stone ATC CNC Router Introduction:

Application materials:

Artificial Stone, Marble, Quartz Stone, Ceramics, Resin and Other Industries Carving, Special-Shaped Cutting, Punching, Chamfering
of Edge, Etc.

Application industry:
Kitchen Table, Bathroom Sanitary Ware, Laboratory Table, Crafts, Resin, Etc.
Stone Cabinet Table Processing Center Features:
@1.Whole Machine of the Bed Adopts Thick Steel Pipe Welding and Tempering Treatment to Eliminate Internal Stress and Make the Machine Tool Work for a Long Time without Deformation.
@2.The Main Shaft Adopts Taiwan Large
Torque Mechanical Shaft, Which Has Large Strength and Long Service Life.
@3.This System Is Acceptable CAD Direct Input Control, No Need G Code Programming.
@4.The Clamping Workpiece Adopts Large Suction Sucker, Which Is Very Firm and Safe to Fix the Workpiece

QQ图片20200912184201

PRODUCT SPECIFICATIONS

Items parameters X Y Z Axis working area 3000*1500*400mm Table size 2310*3550mm Positioning accuracy ±0.03/300mm Reposition positioning accuracy ±0.03/300mm Machine Frame 8/10mm Steel tube well structure Drive system X,Y axis 30 Taiwan HIWIN guide rail&pinion Drive system Z axis Ball screw Max power consumption 20-28.0KW Max traverse speed 25000mm/min Max working speed 15000mm/min Spindle 7.5KW Mechanical Constant Water Spindle Spindle speed 25000rmp work mode Germany Siemens Servo motor and driver Working voltage AC380V Command language CAD Interface CF card, Ethernet Operating system Siemens Control  System X-Y resolution 0.03/300mm Software Artcam,Type3,UcancamV9


PRODUCT CONFIGURATION

10999972580_1774386698big power marble cnc router spindle



10999993056_1774386698spindle with cover


QQ图片20200912184125 table with loading wheels

HTB13f5ZRXXXXXaGapXXq6xXFXXXN



HTB1UTrmRXXXXXblXFXXq6xXFXXXG
IMG_7139


H1d56a1fcac874ef68a8e740a35a87d9b2
H0a6632c617174011982c80e0cdda5f3c8
Ha2d7a812d24d4bfead0c6c3f0288b6f3c

Successful Project

10999969879_1774386698Basin engraving by atc cnc router



11000005078_1774386698not only used for marble but also wood



img_96611basin cutting


img_96631
img_96641
img_96621

img_96601
IMG_7139
IMG_7141
SIMILAR PRODUCTS

QQ图片20200912184205

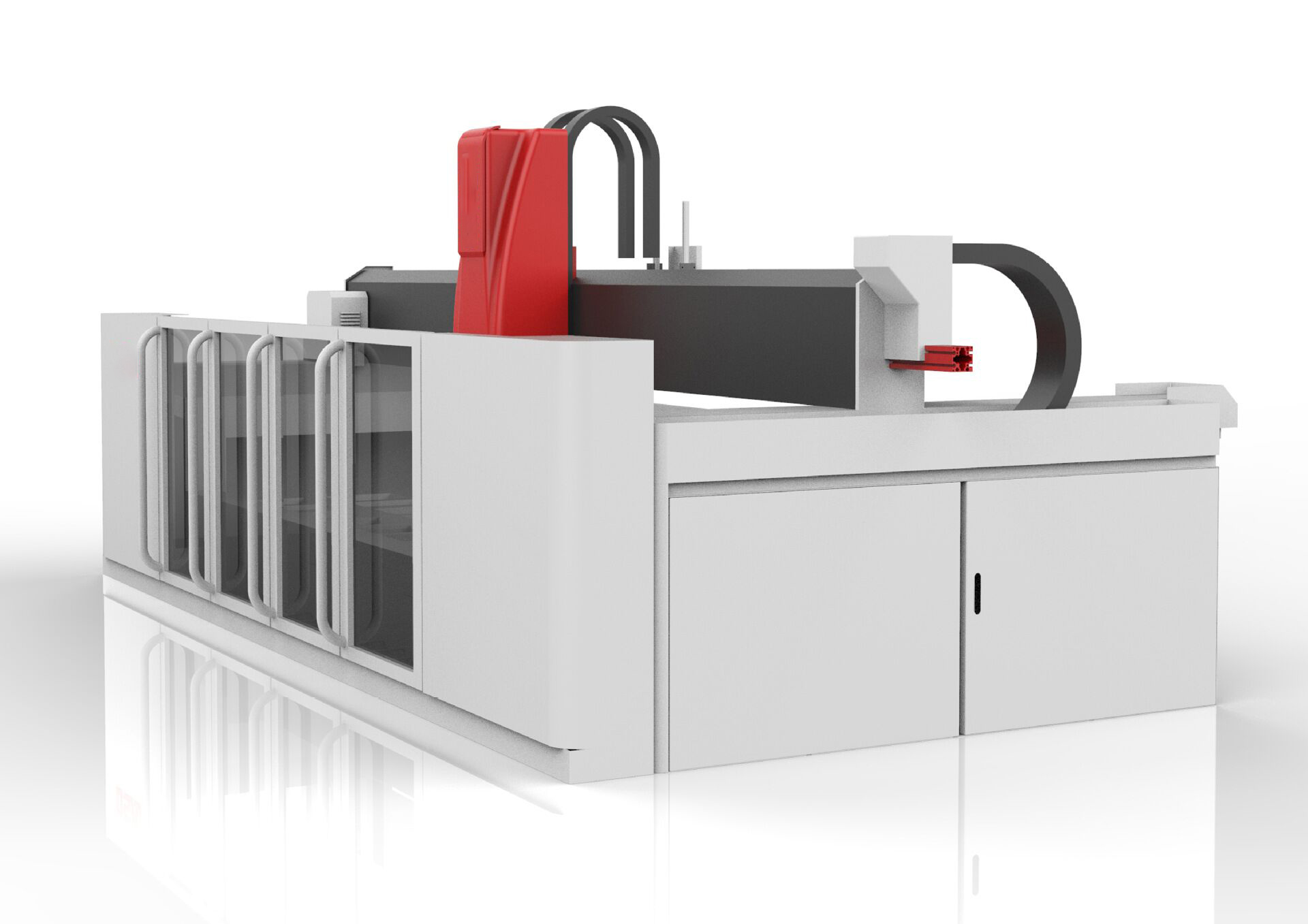

QQ图片20200912184157

QQ图片20200912184212


FAQ

-Q What is the payment terms? A:Western Union,Cash,T/T

-Q How long is the delivery date?(After getting the deposit)

A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping

ways? A:By sea or by air -

Q Is on site training is available ?

A: Yes, we could provide training in our factory or at your

workshop after machine arrival.

-Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,

about 2hours train from Beijing and Shanghai.

-Q Can I arrange sample for cutting test? A:Yes, always welcome.

-Q How about your

laser machine package?

A: Standard export wood package with free fumigation

-Q How about the quality guarantee period? A:5 Years

for whole machine

-Q How can you guarantee the production quality ?

A:We have 15years experience of QC team; strictly quality

control system in our production process.

-Q: How to install and run the machine?

A: Our technician have installed the machine

before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
