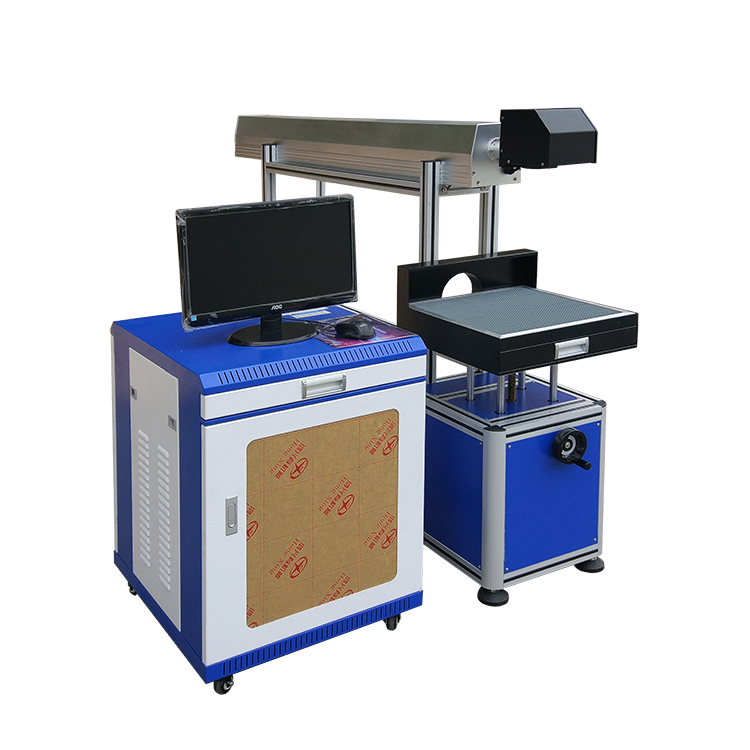

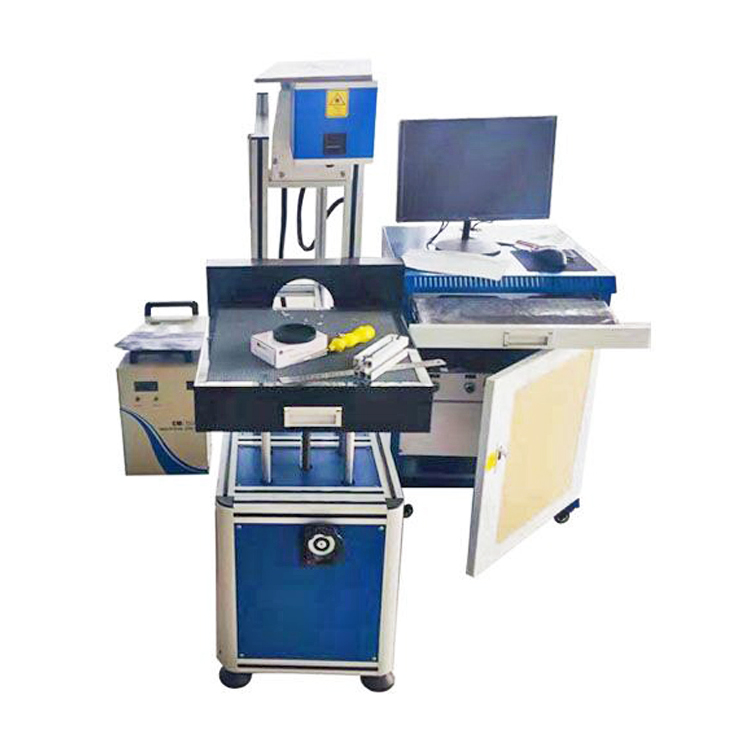

Top 10 Laser Engraving Machine in 2021

Availability:



Inquire Add to Basket

Model:
SF-50W/80W
Brand:
SMARTECH
Code:
New Product 2020
Size:
2000*1100*1000mm
Power:
50W /80w
Machine Color:
blue

Product Description

Product Overview

Co2 Laser Marking Machine Quotation

 Windows XP or Windows 2000 *Power supply*water cooling *Working size 100*100mm *EZCAD software *computer *Water chiller* laser power *controlling cabinet*stent and working table *optical system *cooling system *data connection*user manual


FEATURES AT A GLANCE

Package Three layers:first layer->Thin Film;Second layer->Protect plastic->Third,Strong wooden case Dimension 2000*1100*1000mm Weight 350 // 380  (Net/ gross) Delivery Time 10 working days after get deposit Payment 30% T/T in advance, 70% before delivery Warranty Time 2 years (replace parts during warranty(no human reason) Basic parts:                                                                           Detailed Information:                                                                 1.Co2 laser marking picture:  CO2 beam expander: collimating and beam expander functions, compress divergence Angle.This ratio is decided by the rate of vibration lens flare exit and laser flare.Beam expander vibration ratio = lens flare rate divided by the laser spot.Beam expander is generally put in the galvanometer neck or red light beam on the beam expander triad frames.
 Laser marking head:
 Control Card--Convert the draws into analog signal or digital signal then spread to the galvanometer
 Switches in equipment cabinet--- General supply switch.
 Laser switch  Oscillating mirror switch
 Water cooling swith

 Right elevation

 Left elevation

 Front elevation

PRODUCT SPECIFICATIONS

 NO. Model SF-50W/80W 1 Laser power 50W /80w   2 Working area 110*110mm or 160*160mm or 300*300 mm (price is the same) 3 Laser Wavelength   10640nm 4 Response time 0.5ms 5 Frequency of pulse ≦30KHZ 6 Max marking depth ≤0.3mm (adjustable according to materials) 7 Marking speed 0-7000mm/s 8 Marking lines 1-10 lines(in the marking area) 9 Minimum line width 0.01mm 10 Minimum character 0.04mm 11 Repeatability accuracy ±0.001mm 12 Resolution ratio 0.1mm 13 Marking content Text,pattern,date,bar code,etc 14 Graphic format supported bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. 15 Operation system Microsoft Windows XP or Windows 2000 or Windows7,windows 8.1 16 Control software EZCAD marking control software or laser2.1 marking control software 17 Unit power ≤5KW 18 Operation temperature 5℃-40℃ 19 Relative moisture ≤ 90%,no fog 20 Supply Voltage 220V/50Hz/15A

PRODUCT CONFIGURATION

Successful Project

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
